- Discrete Semiconductor Products
- Transistors - IGBTs - Single
Part Number
Manufacturer
Description
Unit Price
In Stock
FGH40T65UQDF-F155
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : -
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 1.67V @ 15V, 40A
Power - Max : 231W
Switching Energy : 989µJ (on), 310µJ (off)
Input Type : Standard
Gate Charge : 306nC
Td (on/off) @ 25°C : 32ns/271ns
Test Condition : 400V, 40A, 6 Ohm, 15V
Reverse Recovery Time (trr) : 89ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Packaging : -
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 1.67V @ 15V, 40A
Power - Max : 231W
Switching Energy : 989µJ (on), 310µJ (off)
Input Type : Standard
Gate Charge : 306nC
Td (on/off) @ 25°C : 32ns/271ns
Test Condition : 400V, 40A, 6 Ohm, 15V
Reverse Recovery Time (trr) : 89ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
440 in stock

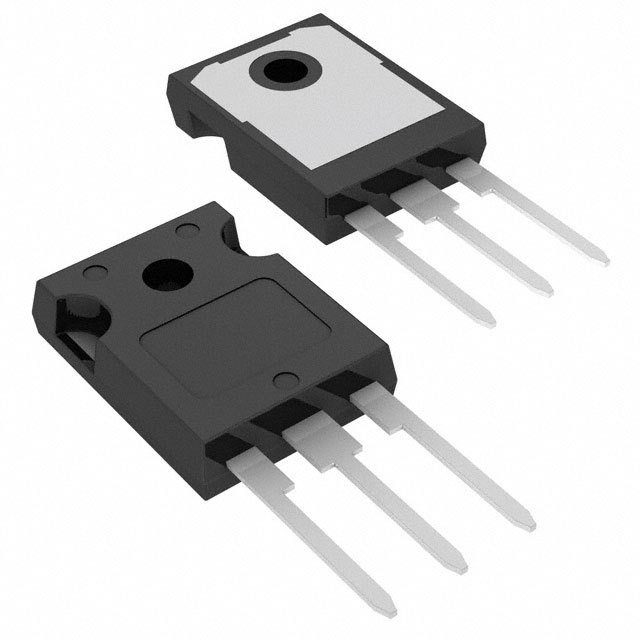

FGH40T70SHD-F155
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 700V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.15V @ 15V, 40A
Power - Max : 268W
Switching Energy : 1.15mJ (on), 271µJ (off)
Input Type : Standard
Gate Charge : 69nC
Td (on/off) @ 25°C : 22ns/66ns
Test Condition : 400V, 40A, 6 Ohm, 15V
Reverse Recovery Time (trr) : 37ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 700V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.15V @ 15V, 40A
Power - Max : 268W
Switching Energy : 1.15mJ (on), 271µJ (off)
Input Type : Standard
Gate Charge : 69nC
Td (on/off) @ 25°C : 22ns/66ns
Test Condition : 400V, 40A, 6 Ohm, 15V
Reverse Recovery Time (trr) : 37ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
450 in stock
FGH50N3
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 300V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 240A
Vce(on) (Max) @ Vge, Ic : 1.4V @ 15V, 30A
Power - Max : 463W
Switching Energy : 130µJ (on), 92µJ (off)
Input Type : Standard
Gate Charge : 180nC
Td (on/off) @ 25°C : 20ns/135ns
Test Condition : 180V, 30A, 5 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : PT
Voltage - Collector Emitter Breakdown (Max) : 300V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 240A
Vce(on) (Max) @ Vge, Ic : 1.4V @ 15V, 30A
Power - Max : 463W
Switching Energy : 130µJ (on), 92µJ (off)
Input Type : Standard
Gate Charge : 180nC
Td (on/off) @ 25°C : 20ns/135ns
Test Condition : 180V, 30A, 5 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
440 in stock
FGH50N6S2
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 240A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 30A
Power - Max : 463W
Switching Energy : 260µJ (on), 250µJ (off)
Input Type : Standard
Gate Charge : 70nC
Td (on/off) @ 25°C : 13ns/55ns
Test Condition : 390V, 30A, 3 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 240A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 30A
Power - Max : 463W
Switching Energy : 260µJ (on), 250µJ (off)
Input Type : Standard
Gate Charge : 70nC
Td (on/off) @ 25°C : 13ns/55ns
Test Condition : 390V, 30A, 3 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
100 in stock
FGH50N6S2D
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 240A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 30A
Power - Max : 463W
Switching Energy : 260µJ (on), 250µJ (off)
Input Type : Standard
Gate Charge : 70nC
Td (on/off) @ 25°C : 13ns/55ns
Test Condition : 390V, 30A, 3 Ohm, 15V
Reverse Recovery Time (trr) : 55ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 240A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 30A
Power - Max : 463W
Switching Energy : 260µJ (on), 250µJ (off)
Input Type : Standard
Gate Charge : 70nC
Td (on/off) @ 25°C : 13ns/55ns
Test Condition : 390V, 30A, 3 Ohm, 15V
Reverse Recovery Time (trr) : 55ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
392 in stock
FGH50T65SQD-F155
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : -
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 100A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 50A
Power - Max : 268W
Switching Energy : 180µJ (on), 45µJ (off)
Input Type : Standard
Gate Charge : 99nC
Td (on/off) @ 25°C : 22ns/105ns
Test Condition : 400V, 12.5A, 4.7 Ohm, 15V
Reverse Recovery Time (trr) : 31ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Packaging : -
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 100A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 50A
Power - Max : 268W
Switching Energy : 180µJ (on), 45µJ (off)
Input Type : Standard
Gate Charge : 99nC
Td (on/off) @ 25°C : 22ns/105ns
Test Condition : 400V, 12.5A, 4.7 Ohm, 15V
Reverse Recovery Time (trr) : 31ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
93 in stock
FGH50T65UPD
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 100A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 50A
Power - Max : 340W
Switching Energy : 2.7mJ (on), 740µJ (off)
Input Type : Standard
Gate Charge : 230nC
Td (on/off) @ 25°C : 32ns/160ns
Test Condition : 400V, 50A, 6 Ohm, 15V
Reverse Recovery Time (trr) : 53ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 100A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 50A
Power - Max : 340W
Switching Energy : 2.7mJ (on), 740µJ (off)
Input Type : Standard
Gate Charge : 230nC
Td (on/off) @ 25°C : 32ns/160ns
Test Condition : 400V, 50A, 6 Ohm, 15V
Reverse Recovery Time (trr) : 53ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
892 in stock
FGH60N60SFDTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 120A
Current - Collector Pulsed (Icm) : 180A
Vce(on) (Max) @ Vge, Ic : 2.9V @ 15V, 60A
Power - Max : 378W
Switching Energy : 1.79mJ (on), 670µJ (off)
Input Type : Standard
Gate Charge : 198nC
Td (on/off) @ 25°C : 22ns/134ns
Test Condition : 400V, 60A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 47ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 120A
Current - Collector Pulsed (Icm) : 180A
Vce(on) (Max) @ Vge, Ic : 2.9V @ 15V, 60A
Power - Max : 378W
Switching Energy : 1.79mJ (on), 670µJ (off)
Input Type : Standard
Gate Charge : 198nC
Td (on/off) @ 25°C : 22ns/134ns
Test Condition : 400V, 60A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 47ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
436 in stock

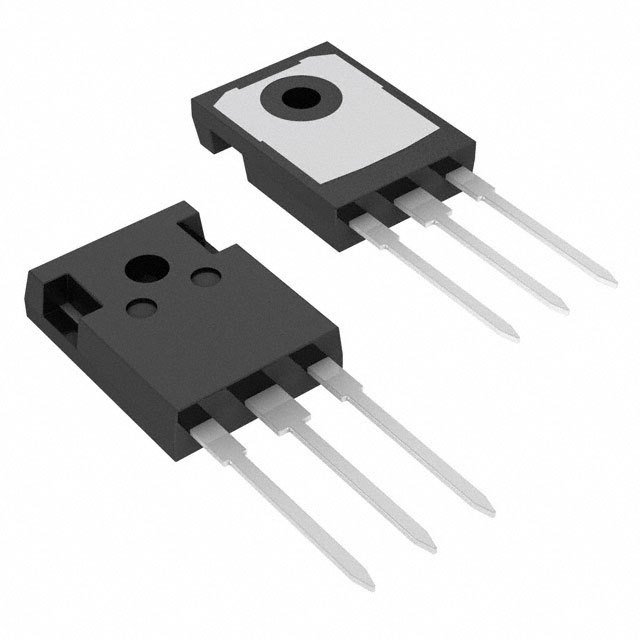

FGH60N60SFDTU-F085
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : Automotive, AEC-Q101
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 120A
Current - Collector Pulsed (Icm) : 180A
Vce(on) (Max) @ Vge, Ic : 2.9V @ 15V, 60A
Power - Max : 378W
Switching Energy : 1.97mJ (on), 570µJ (off)
Input Type : Standard
Gate Charge : 188nC
Td (on/off) @ 25°C : 26ns/134ns
Test Condition : 400V, 60A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 55ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : Automotive, AEC-Q101
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 120A
Current - Collector Pulsed (Icm) : 180A
Vce(on) (Max) @ Vge, Ic : 2.9V @ 15V, 60A
Power - Max : 378W
Switching Energy : 1.97mJ (on), 570µJ (off)
Input Type : Standard
Gate Charge : 188nC
Td (on/off) @ 25°C : 26ns/134ns
Test Condition : 400V, 60A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 55ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
93 in stock
FGH60N60SFTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 120A
Current - Collector Pulsed (Icm) : 180A
Vce(on) (Max) @ Vge, Ic : 2.9V @ 15V, 60A
Power - Max : 378W
Switching Energy : 1.79mJ (on), 670µJ (off)
Input Type : Standard
Gate Charge : 198nC
Td (on/off) @ 25°C : 22ns/134ns
Test Condition : 400V, 60A, 5 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 120A
Current - Collector Pulsed (Icm) : 180A
Vce(on) (Max) @ Vge, Ic : 2.9V @ 15V, 60A
Power - Max : 378W
Switching Energy : 1.79mJ (on), 670µJ (off)
Input Type : Standard
Gate Charge : 198nC
Td (on/off) @ 25°C : 22ns/134ns
Test Condition : 400V, 60A, 5 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
450 in stock
FGH60N60SMD
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 120A
Current - Collector Pulsed (Icm) : 180A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 60A
Power - Max : 600W
Switching Energy : 1.26mJ (on), 450µJ (off)
Input Type : Standard
Gate Charge : 189nC
Td (on/off) @ 25°C : 18ns/104ns
Test Condition : 400V, 60A, 3 Ohm, 15V
Reverse Recovery Time (trr) : 39ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 120A
Current - Collector Pulsed (Icm) : 180A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 60A
Power - Max : 600W
Switching Energy : 1.26mJ (on), 450µJ (off)
Input Type : Standard
Gate Charge : 189nC
Td (on/off) @ 25°C : 18ns/104ns
Test Condition : 400V, 60A, 3 Ohm, 15V
Reverse Recovery Time (trr) : 39ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
100 in stock
FGH60N60SMD-F085
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : Automotive, AEC-Q101
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 120A
Current - Collector Pulsed (Icm) : 180A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 60A
Power - Max : 600W
Switching Energy : 1.59mJ (on), 390µJ (off)
Input Type : Standard
Gate Charge : 280nC
Td (on/off) @ 25°C : 22ns/116ns
Test Condition : 400V, 60A, 3 Ohm, 15V
Reverse Recovery Time (trr) : 42ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Packaging : Tube
Series : Automotive, AEC-Q101
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 120A
Current - Collector Pulsed (Icm) : 180A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 60A
Power - Max : 600W
Switching Energy : 1.59mJ (on), 390µJ (off)
Input Type : Standard
Gate Charge : 280nC
Td (on/off) @ 25°C : 22ns/116ns
Test Condition : 400V, 60A, 3 Ohm, 15V
Reverse Recovery Time (trr) : 42ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
440 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
