- Discrete Semiconductor Products
- Transistors - IGBTs - Single
Part Number
Manufacturer
Description
Unit Price
In Stock

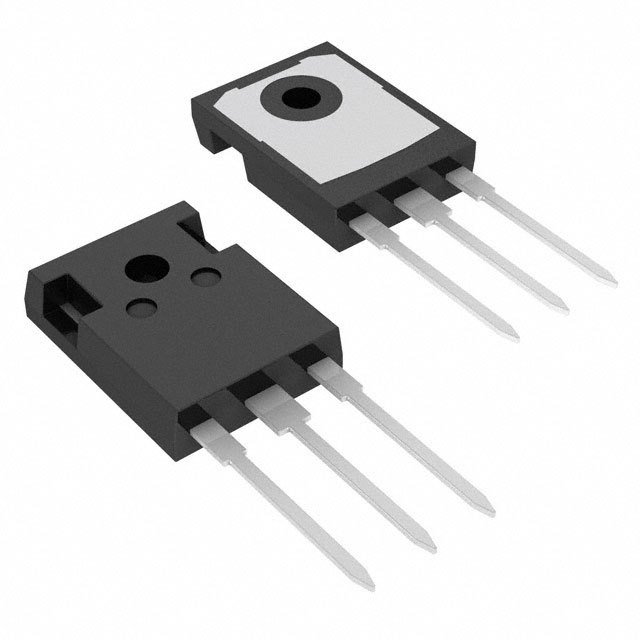

FGH60N60UFDTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 120A
Current - Collector Pulsed (Icm) : 180A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 60A
Power - Max : 298W
Switching Energy : 1.81mJ (on), 810µJ (off)
Input Type : Standard
Gate Charge : 188nC
Td (on/off) @ 25°C : 23ns/130ns
Test Condition : 400V, 60A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 47ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 120A
Current - Collector Pulsed (Icm) : 180A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 60A
Power - Max : 298W
Switching Energy : 1.81mJ (on), 810µJ (off)
Input Type : Standard
Gate Charge : 188nC
Td (on/off) @ 25°C : 23ns/130ns
Test Condition : 400V, 60A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 47ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
450 in stock
FGH60N60UFDTU-F085
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : Automotive, AEC-Q101
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 120A
Current - Collector Pulsed (Icm) : 180A
Vce(on) (Max) @ Vge, Ic : 2.9V @ 15V, 60A
Power - Max : 298W
Switching Energy : 2.47mJ (on), 810µJ (off)
Input Type : Standard
Gate Charge : 192nC
Td (on/off) @ 25°C : 29ns/138ns
Test Condition : 400V, 60A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 76ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : Automotive, AEC-Q101
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 120A
Current - Collector Pulsed (Icm) : 180A
Vce(on) (Max) @ Vge, Ic : 2.9V @ 15V, 60A
Power - Max : 298W
Switching Energy : 2.47mJ (on), 810µJ (off)
Input Type : Standard
Gate Charge : 192nC
Td (on/off) @ 25°C : 29ns/138ns
Test Condition : 400V, 60A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 76ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
340 in stock
FGH60N6S2
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 320A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 40A
Power - Max : 625W
Switching Energy : 400µJ (on), 310µJ (off)
Input Type : Standard
Gate Charge : 140nC
Td (on/off) @ 25°C : 18ns/70ns
Test Condition : 390V, 40A, 3 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 320A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 40A
Power - Max : 625W
Switching Energy : 400µJ (on), 310µJ (off)
Input Type : Standard
Gate Charge : 140nC
Td (on/off) @ 25°C : 18ns/70ns
Test Condition : 390V, 40A, 3 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
100 in stock
FGH60T65SHD-F155
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 120A
Current - Collector Pulsed (Icm) : 180A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 60A
Power - Max : 349W
Switching Energy : 1.69mJ (on), 630µJ (off)
Input Type : Standard
Gate Charge : 102nC
Td (on/off) @ 25°C : 26ns/87ns
Test Condition : 400V, 60A, 6 Ohm, 15V
Reverse Recovery Time (trr) : 34.6ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 Long Leads
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 120A
Current - Collector Pulsed (Icm) : 180A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 60A
Power - Max : 349W
Switching Energy : 1.69mJ (on), 630µJ (off)
Input Type : Standard
Gate Charge : 102nC
Td (on/off) @ 25°C : 26ns/87ns
Test Condition : 400V, 60A, 6 Ohm, 15V
Reverse Recovery Time (trr) : 34.6ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 Long Leads
0
758 in stock
FGH60T65SQD-F155
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : -
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 120A
Current - Collector Pulsed (Icm) : 240A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 60A
Power - Max : 333W
Switching Energy : 227µJ (on), 100µJ (off)
Input Type : Standard
Gate Charge : 79nC
Td (on/off) @ 25°C : 20.8ns/102ns
Test Condition : 400V, 15A, 4.7 Ohm, 15V
Reverse Recovery Time (trr) : 34.6ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Packaging : -
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 120A
Current - Collector Pulsed (Icm) : 240A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 60A
Power - Max : 333W
Switching Energy : 227µJ (on), 100µJ (off)
Input Type : Standard
Gate Charge : 79nC
Td (on/off) @ 25°C : 20.8ns/102ns
Test Condition : 400V, 15A, 4.7 Ohm, 15V
Reverse Recovery Time (trr) : 34.6ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
100 in stock
FGH75N60SFTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 150A
Current - Collector Pulsed (Icm) : 225A
Vce(on) (Max) @ Vge, Ic : 2.9V @ 15V, 75A
Power - Max : 452W
Switching Energy : 2.7mJ (on), 1mJ (off)
Input Type : Standard
Gate Charge : 250nC
Td (on/off) @ 25°C : 26ns/138ns
Test Condition : 400V, 75A, 3 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 150A
Current - Collector Pulsed (Icm) : 225A
Vce(on) (Max) @ Vge, Ic : 2.9V @ 15V, 75A
Power - Max : 452W
Switching Energy : 2.7mJ (on), 1mJ (off)
Input Type : Standard
Gate Charge : 250nC
Td (on/off) @ 25°C : 26ns/138ns
Test Condition : 400V, 75A, 3 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
100 in stock
FGH75N60UFTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 150A
Current - Collector Pulsed (Icm) : 225A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 75A
Power - Max : 452W
Switching Energy : 3.05mJ (on), 1.35mJ (off)
Input Type : Standard
Gate Charge : 250nC
Td (on/off) @ 25°C : 27ns/128ns
Test Condition : 400V, 75A, 3 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 150A
Current - Collector Pulsed (Icm) : 225A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 75A
Power - Max : 452W
Switching Energy : 3.05mJ (on), 1.35mJ (off)
Input Type : Standard
Gate Charge : 250nC
Td (on/off) @ 25°C : 27ns/128ns
Test Condition : 400V, 75A, 3 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
1 in stock

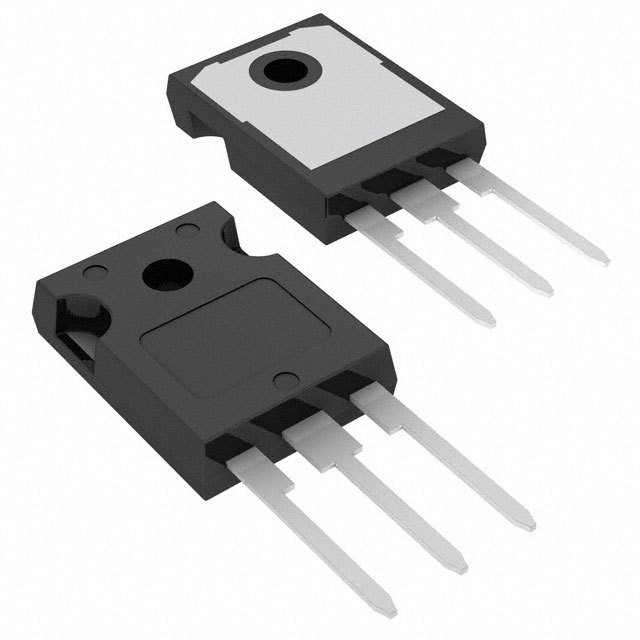

FGH75T65SHD-F155
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 150A
Current - Collector Pulsed (Icm) : 225A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 75A
Power - Max : 455W
Switching Energy : 2.4mJ (on), 720µJ (off)
Input Type : Standard
Gate Charge : 123nC
Td (on/off) @ 25°C : 28ns/80ns
Test Condition : 400V, 75A, 3 Ohm, 15V
Reverse Recovery Time (trr) : 43.4ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 Long Leads
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 150A
Current - Collector Pulsed (Icm) : 225A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 75A
Power - Max : 455W
Switching Energy : 2.4mJ (on), 720µJ (off)
Input Type : Standard
Gate Charge : 123nC
Td (on/off) @ 25°C : 28ns/80ns
Test Condition : 400V, 75A, 3 Ohm, 15V
Reverse Recovery Time (trr) : 43.4ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 Long Leads
0
900 in stock
FGH75T65SHDT-F155
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 150A
Current - Collector Pulsed (Icm) : 225A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 75A
Power - Max : 455W
Switching Energy : 3mJ (on), 750µJ (off)
Input Type : Standard
Gate Charge : 123nC
Td (on/off) @ 25°C : 28ns/86ns
Test Condition : 400V, 75A, 3 Ohm, 15V
Reverse Recovery Time (trr) : 76ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 150A
Current - Collector Pulsed (Icm) : 225A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 75A
Power - Max : 455W
Switching Energy : 3mJ (on), 750µJ (off)
Input Type : Standard
Gate Charge : 123nC
Td (on/off) @ 25°C : 28ns/86ns
Test Condition : 400V, 75A, 3 Ohm, 15V
Reverse Recovery Time (trr) : 76ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
450 in stock

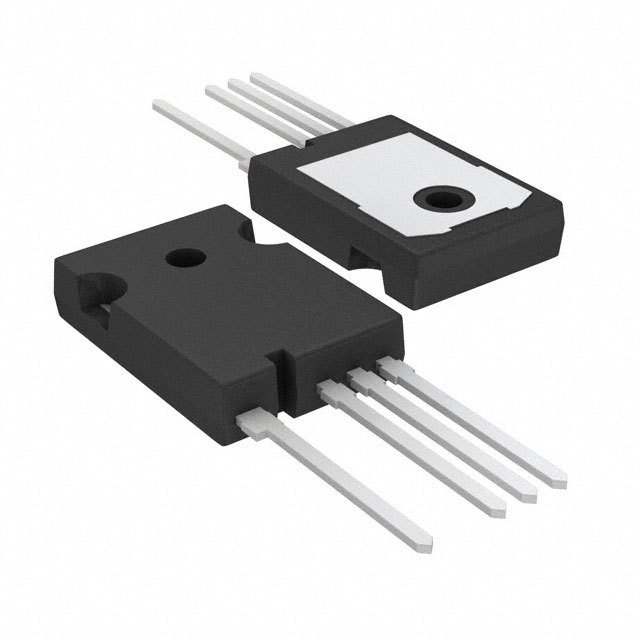

FGH75T65SHDTL4
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 150A
Current - Collector Pulsed (Icm) : 300A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 75A
Power - Max : 455W
Switching Energy : 1.06mJ (on), 1.56mJ (off)
Input Type : Standard
Gate Charge : 126nC
Td (on/off) @ 25°C : 55ns/189ns
Test Condition : 400V, 75A, 15 Ohm, 15V
Reverse Recovery Time (trr) : 76ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-4
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 150A
Current - Collector Pulsed (Icm) : 300A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 75A
Power - Max : 455W
Switching Energy : 1.06mJ (on), 1.56mJ (off)
Input Type : Standard
Gate Charge : 126nC
Td (on/off) @ 25°C : 55ns/189ns
Test Condition : 400V, 75A, 15 Ohm, 15V
Reverse Recovery Time (trr) : 76ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-4
Supplier Device Package : TO-247
0
311 in stock
FGH75T65SQD-F155
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 150A
Current - Collector Pulsed (Icm) : 300A
Vce(on) (Max) @ Vge, Ic : -
Power - Max : 375W
Switching Energy : 760µJ (on), 180µJ (off)
Input Type : Standard
Gate Charge : 128nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : 43ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 150A
Current - Collector Pulsed (Icm) : 300A
Vce(on) (Max) @ Vge, Ic : -
Power - Max : 375W
Switching Energy : 760µJ (on), 180µJ (off)
Input Type : Standard
Gate Charge : 128nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : 43ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
100 in stock
FGH75T65SQDT_F155
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : -
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 150A
Current - Collector Pulsed (Icm) : 300A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 75A
Power - Max : 375W
Switching Energy : 300µJ (on), 70µJ (off)
Input Type : Standard
Gate Charge : 128nC
Td (on/off) @ 25°C : 23ns/120ns
Test Condition : 400V, 18.8A, 4.7 Ohm, 15V
Reverse Recovery Time (trr) : 76ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Packaging : -
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 150A
Current - Collector Pulsed (Icm) : 300A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 75A
Power - Max : 375W
Switching Energy : 300µJ (on), 70µJ (off)
Input Type : Standard
Gate Charge : 128nC
Td (on/off) @ 25°C : 23ns/120ns
Test Condition : 400V, 18.8A, 4.7 Ohm, 15V
Reverse Recovery Time (trr) : 76ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
