- Discrete Semiconductor Products
- Transistors - IGBTs - Single
Part Number
Manufacturer
Description
Unit Price
In Stock
FGH40T100SMD-F155
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1000V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 40A
Power - Max : 333W
Switching Energy : 2.35mJ (on), 1.15mJ (off)
Input Type : Standard
Gate Charge : 398nC
Td (on/off) @ 25°C : 29ns/285ns
Test Condition : 600V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 78ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1000V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 40A
Power - Max : 333W
Switching Energy : 2.35mJ (on), 1.15mJ (off)
Input Type : Standard
Gate Charge : 398nC
Td (on/off) @ 25°C : 29ns/285ns
Test Condition : 600V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 78ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
2 in stock
FGH40T120SMD
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 40A
Power - Max : 555W
Switching Energy : 2.7mJ (on), 1.1mJ (off)
Input Type : Standard
Gate Charge : 370nC
Td (on/off) @ 25°C : 40ns/475ns
Test Condition : 600V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 65ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 40A
Power - Max : 555W
Switching Energy : 2.7mJ (on), 1.1mJ (off)
Input Type : Standard
Gate Charge : 370nC
Td (on/off) @ 25°C : 40ns/475ns
Test Condition : 600V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 65ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
100 in stock
FGH40T120SMD-F155
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 40A
Power - Max : 555W
Switching Energy : 2.7mJ (on), 1.1mJ (off)
Input Type : Standard
Gate Charge : 370nC
Td (on/off) @ 25°C : 40ns/475ns
Test Condition : 600V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 65ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 40A
Power - Max : 555W
Switching Energy : 2.7mJ (on), 1.1mJ (off)
Input Type : Standard
Gate Charge : 370nC
Td (on/off) @ 25°C : 40ns/475ns
Test Condition : 600V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 65ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
100 in stock

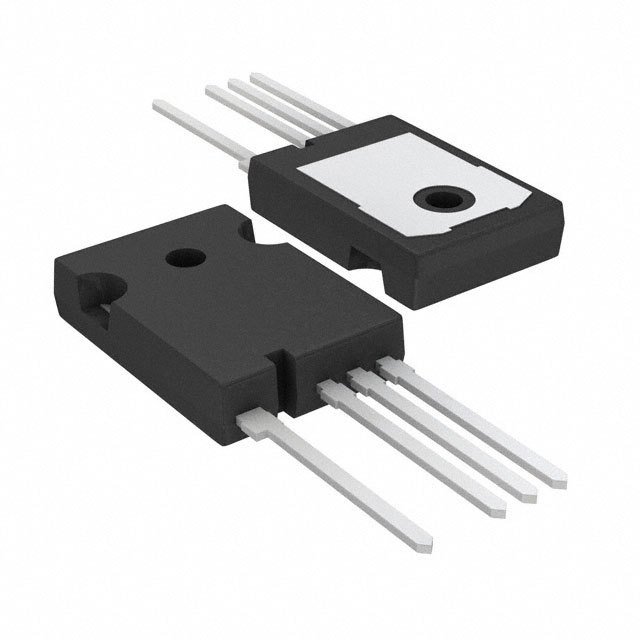

FGH40T120SMDL4
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 40A
Power - Max : 555W
Switching Energy : 2.24mJ (on), 1.02mJ (off)
Input Type : Standard
Gate Charge : 370nC
Td (on/off) @ 25°C : 44ns/464ns
Test Condition : 600V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 65ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-4
Supplier Device Package : TO-247-4L
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 40A
Power - Max : 555W
Switching Energy : 2.24mJ (on), 1.02mJ (off)
Input Type : Standard
Gate Charge : 370nC
Td (on/off) @ 25°C : 44ns/464ns
Test Condition : 600V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 65ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-4
Supplier Device Package : TO-247-4L
0
12 in stock
FGH40T120SQDNL4
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : -
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 160A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 1.95V @ 15V, 40A
Power - Max : 454W
Switching Energy : 1.4mJ (on), 1.1mJ (off)
Input Type : Standard
Gate Charge : 221nC
Td (on/off) @ 25°C : 46ns/220ns
Test Condition : 600V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 166ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-4
Supplier Device Package : TO-247-4L
Packaging : -
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 160A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 1.95V @ 15V, 40A
Power - Max : 454W
Switching Energy : 1.4mJ (on), 1.1mJ (off)
Input Type : Standard
Gate Charge : 221nC
Td (on/off) @ 25°C : 46ns/220ns
Test Condition : 600V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 166ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-4
Supplier Device Package : TO-247-4L
0
450 in stock
FGH40T65SHD-F155
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 40A
Power - Max : 268W
Switching Energy : 1.01mJ (on), 297µJ (off)
Input Type : Standard
Gate Charge : 72.2nC
Td (on/off) @ 25°C : 19.2ns/65.6ns
Test Condition : 400V, 40A, 6 Ohm, 15V
Reverse Recovery Time (trr) : 31.8ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 Long Leads
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 40A
Power - Max : 268W
Switching Energy : 1.01mJ (on), 297µJ (off)
Input Type : Standard
Gate Charge : 72.2nC
Td (on/off) @ 25°C : 19.2ns/65.6ns
Test Condition : 400V, 40A, 6 Ohm, 15V
Reverse Recovery Time (trr) : 31.8ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 Long Leads
0
628 in stock

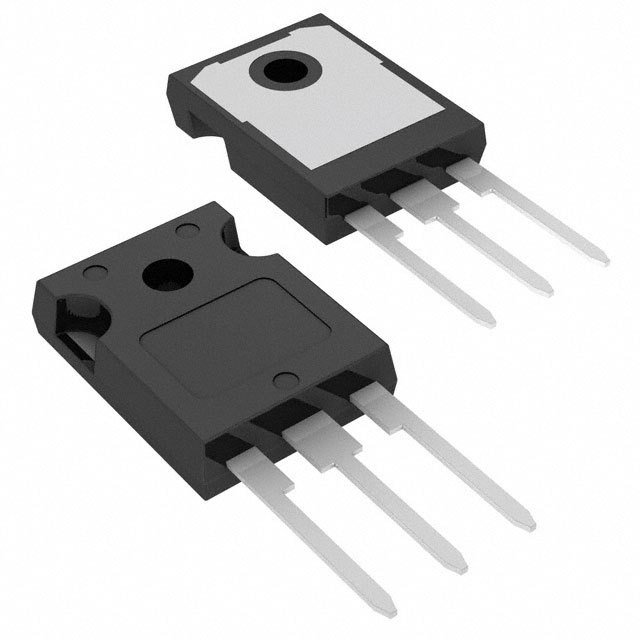

FGH40T65SHDF-F155
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 1.81V @ 15V, 40A
Power - Max : 268W
Switching Energy : 1.22mJ (on), 440µJ (off)
Input Type : Standard
Gate Charge : 68nC
Td (on/off) @ 25°C : 18ns/64ns
Test Condition : 400V, 40A, 6 Ohm, 15V
Reverse Recovery Time (trr) : 101ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 1.81V @ 15V, 40A
Power - Max : 268W
Switching Energy : 1.22mJ (on), 440µJ (off)
Input Type : Standard
Gate Charge : 68nC
Td (on/off) @ 25°C : 18ns/64ns
Test Condition : 400V, 40A, 6 Ohm, 15V
Reverse Recovery Time (trr) : 101ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
100 in stock
FGH40T65SH-F155
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 40A
Power - Max : 268W
Switching Energy : 1.01mJ (on), 297µJ (off)
Input Type : Standard
Gate Charge : 72.2nC
Td (on/off) @ 25°C : 19.2ns/65.6ns
Test Condition : 400V, 40A, 6 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 Long Leads
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 40A
Power - Max : 268W
Switching Energy : 1.01mJ (on), 297µJ (off)
Input Type : Standard
Gate Charge : 72.2nC
Td (on/off) @ 25°C : 19.2ns/65.6ns
Test Condition : 400V, 40A, 6 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 Long Leads
0
1233 in stock
FGH40T65SPD-F085
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : Automotive, AEC-Q101
Part Status : Active
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 40A
Power - Max : 267W
Switching Energy : 1.16MJ (on), 270µJ (off)
Input Type : Standard
Gate Charge : 36nC
Td (on/off) @ 25°C : 18ns/35ns
Test Condition : 400V, 40A, 6 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : Automotive, AEC-Q101
Part Status : Active
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 40A
Power - Max : 267W
Switching Energy : 1.16MJ (on), 270µJ (off)
Input Type : Standard
Gate Charge : 36nC
Td (on/off) @ 25°C : 18ns/35ns
Test Condition : 400V, 40A, 6 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
172 in stock
FGH40T65SPD-F155
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 40A
Power - Max : 267W
Switching Energy : 1.16mJ (on), 280µJ (off)
Input Type : Standard
Gate Charge : 35nC
Td (on/off) @ 25°C : 16ns/37ns
Test Condition : 400V, 40A, 6 Ohm, 15V
Reverse Recovery Time (trr) : 34ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 40A
Power - Max : 267W
Switching Energy : 1.16mJ (on), 280µJ (off)
Input Type : Standard
Gate Charge : 35nC
Td (on/off) @ 25°C : 16ns/37ns
Test Condition : 400V, 40A, 6 Ohm, 15V
Reverse Recovery Time (trr) : 34ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
6422 in stock
FGH40T65SQD_F155
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : -
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 40A
Power - Max : 238W
Switching Energy : 138µJ (on), 52µJ (off)
Input Type : Standard
Gate Charge : 80nC
Td (on/off) @ 25°C : 16.4ns/86.4ns
Test Condition : 400V, 10A, 6 Ohm, 15V
Reverse Recovery Time (trr) : 31.8ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Packaging : -
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 40A
Power - Max : 238W
Switching Energy : 138µJ (on), 52µJ (off)
Input Type : Standard
Gate Charge : 80nC
Td (on/off) @ 25°C : 16.4ns/86.4ns
Test Condition : 400V, 10A, 6 Ohm, 15V
Reverse Recovery Time (trr) : 31.8ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
100 in stock

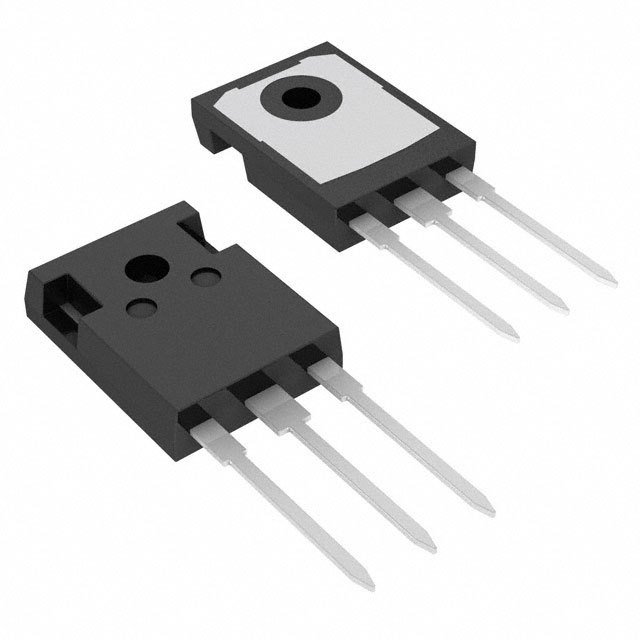

FGH40T65UPD
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 40A
Power - Max : 268W
Switching Energy : 1.59mJ (on), 580µJ (off)
Input Type : Standard
Gate Charge : 177nC
Td (on/off) @ 25°C : 20ns/144ns
Test Condition : 400V, 40A, 7 Ohm, 15V
Reverse Recovery Time (trr) : 43ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 40A
Power - Max : 268W
Switching Energy : 1.59mJ (on), 580µJ (off)
Input Type : Standard
Gate Charge : 177nC
Td (on/off) @ 25°C : 20ns/144ns
Test Condition : 400V, 40A, 7 Ohm, 15V
Reverse Recovery Time (trr) : 43ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
817 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
