- Discrete Semiconductor Products
- Transistors - IGBTs - Single
Part Number
Manufacturer
Description
Unit Price
In Stock
FGH40N60SFTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.9V @ 15V, 40A
Power - Max : 290W
Switching Energy : 1.13mJ (on), 310µJ (off)
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 25ns/115ns
Test Condition : 400V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.9V @ 15V, 40A
Power - Max : 290W
Switching Energy : 1.13mJ (on), 310µJ (off)
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 25ns/115ns
Test Condition : 400V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
227 in stock
FGH40N60SMD
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 40A
Power - Max : 349W
Switching Energy : 870µJ (on), 260µJ (off)
Input Type : Standard
Gate Charge : 119nC
Td (on/off) @ 25°C : 12ns/92ns
Test Condition : 400V, 40A, 6 Ohm, 15V
Reverse Recovery Time (trr) : 36ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 40A
Power - Max : 349W
Switching Energy : 870µJ (on), 260µJ (off)
Input Type : Standard
Gate Charge : 119nC
Td (on/off) @ 25°C : 12ns/92ns
Test Condition : 400V, 40A, 6 Ohm, 15V
Reverse Recovery Time (trr) : 36ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
3539 in stock
FGH40N60SMDF
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 40A
Power - Max : 349W
Switching Energy : 1.3mJ (on), 260µJ (off)
Input Type : Standard
Gate Charge : 119nC
Td (on/off) @ 25°C : 12ns/92ns
Test Condition : 400V, 40A, 6 Ohm, 15V
Reverse Recovery Time (trr) : 90ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 40A
Power - Max : 349W
Switching Energy : 1.3mJ (on), 260µJ (off)
Input Type : Standard
Gate Charge : 119nC
Td (on/off) @ 25°C : 12ns/92ns
Test Condition : 400V, 40A, 6 Ohm, 15V
Reverse Recovery Time (trr) : 90ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
1665 in stock
FGH40N60SMD-F085
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : Automotive, AEC-Q101
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 40A
Power - Max : 349W
Switching Energy : 920µJ (on), 300µJ (off)
Input Type : Standard
Gate Charge : 180nC
Td (on/off) @ 25°C : 18ns/110ns
Test Condition : 400V, 40A, 6 Ohm, 15V
Reverse Recovery Time (trr) : 47ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Packaging : Tube
Series : Automotive, AEC-Q101
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 40A
Power - Max : 349W
Switching Energy : 920µJ (on), 300µJ (off)
Input Type : Standard
Gate Charge : 180nC
Td (on/off) @ 25°C : 18ns/110ns
Test Condition : 400V, 40A, 6 Ohm, 15V
Reverse Recovery Time (trr) : 47ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
432 in stock

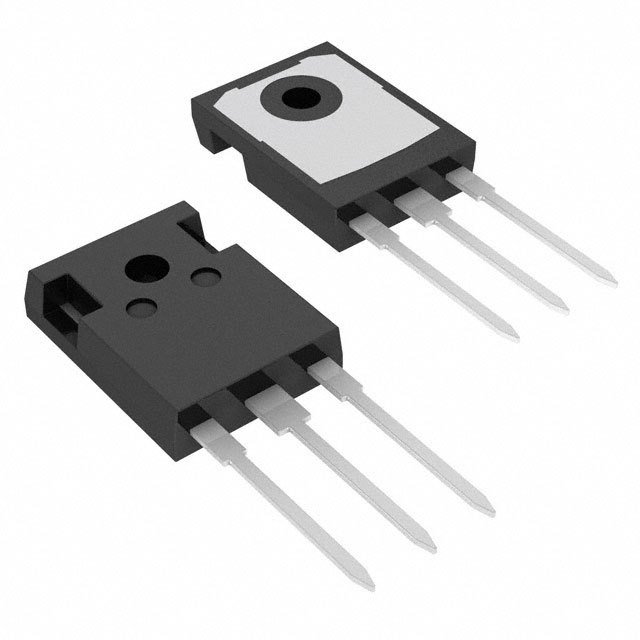

FGH40N60SMDF-F085
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : Automotive, AEC-Q101
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 40A
Power - Max : 349W
Switching Energy : 1.3mJ (on), 260µJ (off)
Input Type : Standard
Gate Charge : 122nC
Td (on/off) @ 25°C : 18ns/110ns
Test Condition : 400V, 40A, 6 Ohm, 15V
Reverse Recovery Time (trr) : 90ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Packaging : Tube
Series : Automotive, AEC-Q101
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 40A
Power - Max : 349W
Switching Energy : 1.3mJ (on), 260µJ (off)
Input Type : Standard
Gate Charge : 122nC
Td (on/off) @ 25°C : 18ns/110ns
Test Condition : 400V, 40A, 6 Ohm, 15V
Reverse Recovery Time (trr) : 90ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
78 in stock
FGH40N60UFDTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 40A
Power - Max : 290W
Switching Energy : 1.19mJ (on), 460µJ (off)
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 24ns/112ns
Test Condition : 400V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 45ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 40A
Power - Max : 290W
Switching Energy : 1.19mJ (on), 460µJ (off)
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 24ns/112ns
Test Condition : 400V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 45ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
389 in stock
FGH40N60UFTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 40A
Power - Max : 290W
Switching Energy : 1.19mJ (on), 460µJ (off)
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 24ns/112ns
Test Condition : 400V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 40A
Power - Max : 290W
Switching Energy : 1.19mJ (on), 460µJ (off)
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 24ns/112ns
Test Condition : 400V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
445 in stock
FGH40N65UFDTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 40A
Power - Max : 290W
Switching Energy : 1.19mJ (on), 460µJ (off)
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 24ns/112ns
Test Condition : 400V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 45ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 40A
Power - Max : 290W
Switching Energy : 1.19mJ (on), 460µJ (off)
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 24ns/112ns
Test Condition : 400V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 45ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
450 in stock
FGH40N65UFDTU-F085
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : Automotive, AEC-Q101
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 40A
Power - Max : 290W
Switching Energy : 1.28mJ (on), 500µJ (off)
Input Type : Standard
Gate Charge : 119nC
Td (on/off) @ 25°C : 23ns/126ns
Test Condition : 400V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 65ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : Automotive, AEC-Q101
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 40A
Power - Max : 290W
Switching Energy : 1.28mJ (on), 500µJ (off)
Input Type : Standard
Gate Charge : 119nC
Td (on/off) @ 25°C : 23ns/126ns
Test Condition : 400V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 65ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
222 in stock
FGH40N6S2
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 180A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 20A
Power - Max : 290W
Switching Energy : 115µJ (on), 195µJ (off)
Input Type : Standard
Gate Charge : 35nC
Td (on/off) @ 25°C : 8ns/35ns
Test Condition : 390V, 20A, 3 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 180A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 20A
Power - Max : 290W
Switching Energy : 115µJ (on), 195µJ (off)
Input Type : Standard
Gate Charge : 35nC
Td (on/off) @ 25°C : 8ns/35ns
Test Condition : 390V, 20A, 3 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
100 in stock
FGH40N6S2D
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 180A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 20A
Power - Max : 290W
Switching Energy : 115µJ (on), 195µJ (off)
Input Type : Standard
Gate Charge : 35nC
Td (on/off) @ 25°C : 8ns/35ns
Test Condition : 390V, 20A, 3 Ohm, 15V
Reverse Recovery Time (trr) : 48ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 180A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 20A
Power - Max : 290W
Switching Energy : 115µJ (on), 195µJ (off)
Input Type : Standard
Gate Charge : 35nC
Td (on/off) @ 25°C : 8ns/35ns
Test Condition : 390V, 20A, 3 Ohm, 15V
Reverse Recovery Time (trr) : 48ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
100 in stock
FGH40T100SMD
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1000V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 40A
Power - Max : 333W
Switching Energy : 2.35mJ (on), 1.15mJ (off)
Input Type : Standard
Gate Charge : 265nC
Td (on/off) @ 25°C : 29ns/285ns
Test Condition : 600V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 78ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1000V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 40A
Power - Max : 333W
Switching Energy : 2.35mJ (on), 1.15mJ (off)
Input Type : Standard
Gate Charge : 265nC
Td (on/off) @ 25°C : 29ns/285ns
Test Condition : 600V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 78ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
196 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
