- Discrete Semiconductor Products
- Transistors - IGBTs - Single
Part Number
Manufacturer
Description
Unit Price
In Stock

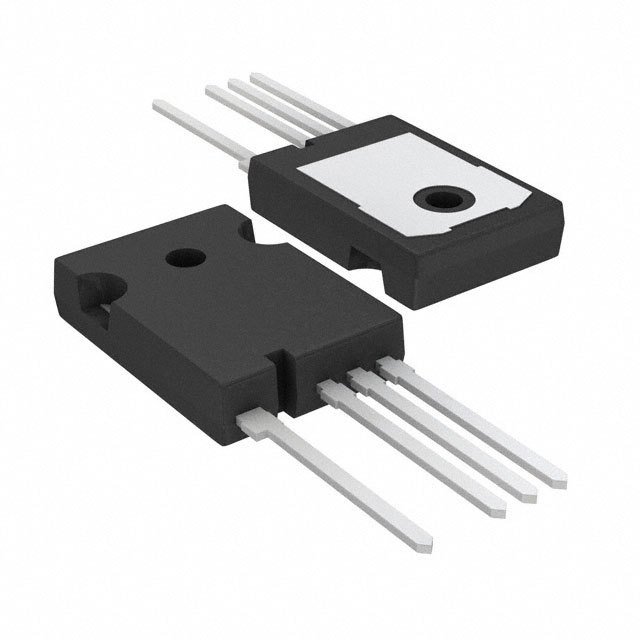

FGH75T65SQDTL4
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 150A
Current - Collector Pulsed (Icm) : 300A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 75A
Power - Max : -
Switching Energy : 307µJ (on), 266µJ (off)
Input Type : Standard
Gate Charge : 128nC
Td (on/off) @ 25°C : 44ns/276ns
Test Condition : 400V, 18.8A, 15 Ohm, 15V
Reverse Recovery Time (trr) : 76ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-4
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 150A
Current - Collector Pulsed (Icm) : 300A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 75A
Power - Max : -
Switching Energy : 307µJ (on), 266µJ (off)
Input Type : Standard
Gate Charge : 128nC
Td (on/off) @ 25°C : 44ns/276ns
Test Condition : 400V, 18.8A, 15 Ohm, 15V
Reverse Recovery Time (trr) : 76ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-4
Supplier Device Package : TO-247
0
100 in stock
FGH75T65UPD
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 150A
Current - Collector Pulsed (Icm) : 225A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 75A
Power - Max : 375W
Switching Energy : 2.85mJ (on), 1.2mJ (off)
Input Type : Standard
Gate Charge : 385nC
Td (on/off) @ 25°C : 32ns/166ns
Test Condition : 400V, 75A, 3 Ohm, 15V
Reverse Recovery Time (trr) : 85ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 150A
Current - Collector Pulsed (Icm) : 225A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 75A
Power - Max : 375W
Switching Energy : 2.85mJ (on), 1.2mJ (off)
Input Type : Standard
Gate Charge : 385nC
Td (on/off) @ 25°C : 32ns/166ns
Test Condition : 400V, 75A, 3 Ohm, 15V
Reverse Recovery Time (trr) : 85ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
100 in stock

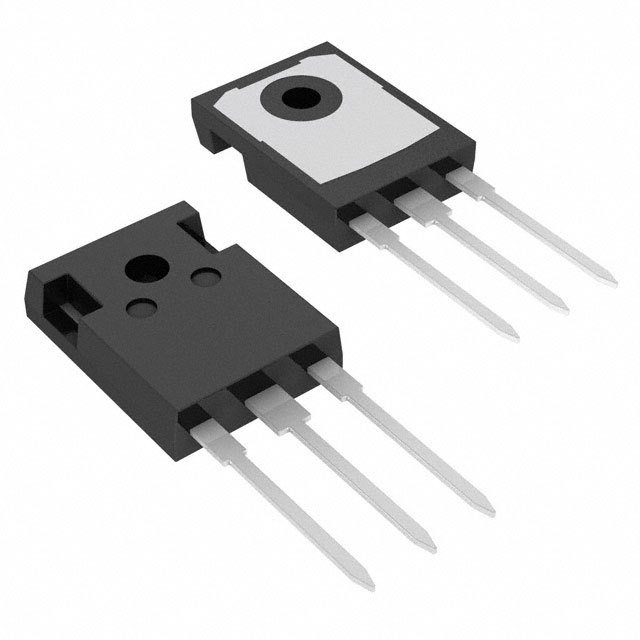

FGH75T65UPD-F085
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : Automotive, AEC-Q101
Part Status : Not For New Designs
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 150A
Current - Collector Pulsed (Icm) : 225A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 75A
Power - Max : 375W
Switching Energy : 2.85mJ (on), 1.2mJ (off)
Input Type : Standard
Gate Charge : 578nC
Td (on/off) @ 25°C : 32ns/166ns
Test Condition : 400V, 75A, 3 Ohm, 15V
Reverse Recovery Time (trr) : 85ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Packaging : Tube
Series : Automotive, AEC-Q101
Part Status : Not For New Designs
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 150A
Current - Collector Pulsed (Icm) : 225A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 75A
Power - Max : 375W
Switching Energy : 2.85mJ (on), 1.2mJ (off)
Input Type : Standard
Gate Charge : 578nC
Td (on/off) @ 25°C : 32ns/166ns
Test Condition : 400V, 75A, 3 Ohm, 15V
Reverse Recovery Time (trr) : 85ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
100 in stock
FGH75T65UPD-F155
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : -
Series : -
Part Status : Not For New Designs
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 150A
Current - Collector Pulsed (Icm) : 225A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 75A
Power - Max : 375W
Switching Energy : 3.68mJ (on), 1.6mJ (off)
Input Type : Standard
Gate Charge : 68nC
Td (on/off) @ 25°C : 42ns/216ns
Test Condition : 400V, 75A, 3 Ohm, 15V
Reverse Recovery Time (trr) : 85ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : -
Series : -
Part Status : Not For New Designs
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 150A
Current - Collector Pulsed (Icm) : 225A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 75A
Power - Max : 375W
Switching Energy : 3.68mJ (on), 1.6mJ (off)
Input Type : Standard
Gate Charge : 68nC
Td (on/off) @ 25°C : 42ns/216ns
Test Condition : 400V, 75A, 3 Ohm, 15V
Reverse Recovery Time (trr) : 85ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
100 in stock
FGH80N60FD2TU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 40A
Power - Max : 290W
Switching Energy : 1mJ (on), 520µJ (off)
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 21ns/126ns
Test Condition : 400V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 61ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 40A
Power - Max : 290W
Switching Energy : 1mJ (on), 520µJ (off)
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 21ns/126ns
Test Condition : 400V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 61ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
2250 in stock
FGI3040G2-F085
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : Automotive, AEC-Q101, EcoSPARK®
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 400V
Current - Collector (Ic) (Max) : 41A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 1.25V @ 4V, 6A
Power - Max : 150W
Switching Energy : -
Input Type : Logic
Gate Charge : 21nC
Td (on/off) @ 25°C : 900ns/4.8µs
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-262-3 Long Leads, I²Pak, TO-262AA
Supplier Device Package : I2PAK (TO-262)
Packaging : Tube
Series : Automotive, AEC-Q101, EcoSPARK®
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 400V
Current - Collector (Ic) (Max) : 41A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 1.25V @ 4V, 6A
Power - Max : 150W
Switching Energy : -
Input Type : Logic
Gate Charge : 21nC
Td (on/off) @ 25°C : 900ns/4.8µs
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-262-3 Long Leads, I²Pak, TO-262AA
Supplier Device Package : I2PAK (TO-262)
0
333 in stock

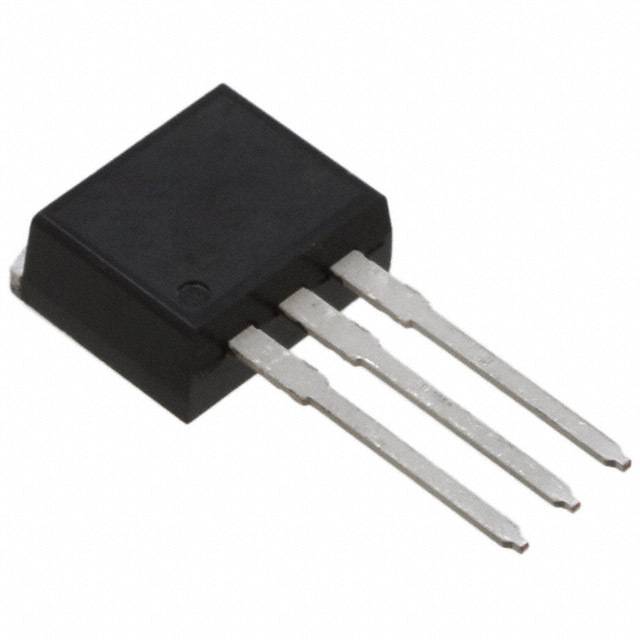

FGI3236-F085
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : Automotive, AEC-Q101, EcoSPARK®
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 360V
Current - Collector (Ic) (Max) : 44A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 1.4V @ 4V, 6A
Power - Max : 187W
Switching Energy : -
Input Type : Logic
Gate Charge : 20nC
Td (on/off) @ 25°C : -/5.4µs
Test Condition : 300V, 1 kOhm, 5V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-262-3 Long Leads, I²Pak, TO-262AA
Supplier Device Package : I2PAK (TO-262)
Packaging : Tube
Series : Automotive, AEC-Q101, EcoSPARK®
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 360V
Current - Collector (Ic) (Max) : 44A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 1.4V @ 4V, 6A
Power - Max : 187W
Switching Energy : -
Input Type : Logic
Gate Charge : 20nC
Td (on/off) @ 25°C : -/5.4µs
Test Condition : 300V, 1 kOhm, 5V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-262-3 Long Leads, I²Pak, TO-262AA
Supplier Device Package : I2PAK (TO-262)
0
372 in stock
FGI40N60SFTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.9V @ 15V, 40A
Power - Max : 290W
Switching Energy : 1.13mJ (on), 310µJ (off)
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 25ns/115ns
Test Condition : 400V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-262-3 Long Leads, I²Pak, TO-262AA
Supplier Device Package : I2PAK (TO-262)
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.9V @ 15V, 40A
Power - Max : 290W
Switching Energy : 1.13mJ (on), 310µJ (off)
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 25ns/115ns
Test Condition : 400V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-262-3 Long Leads, I²Pak, TO-262AA
Supplier Device Package : I2PAK (TO-262)
0
100 in stock

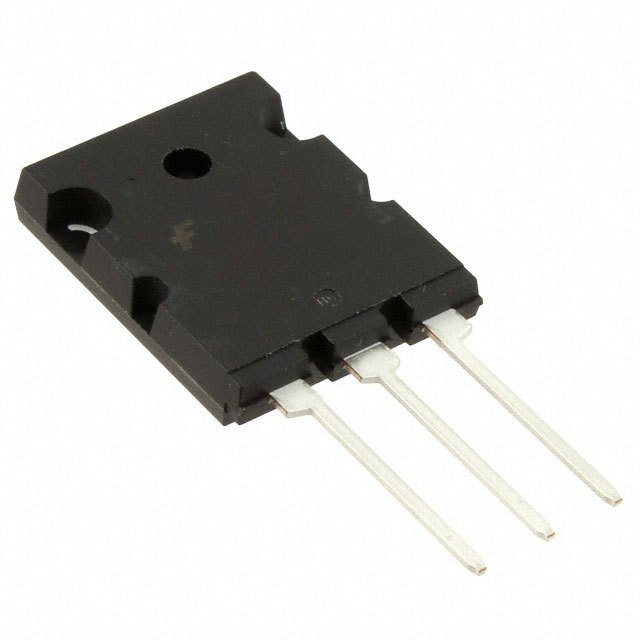

FGL12040WD
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 100A
Vce(on) (Max) @ Vge, Ic : 2.9V @ 15V, 40A
Power - Max : 391W
Switching Energy : 4.1mJ (on), 1mJ (off)
Input Type : Standard
Gate Charge : 226nC
Td (on/off) @ 25°C : 45ns/560ns
Test Condition : 600V, 40A, 23 Ohm, 15V
Reverse Recovery Time (trr) : 71ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 100A
Vce(on) (Max) @ Vge, Ic : 2.9V @ 15V, 40A
Power - Max : 391W
Switching Energy : 4.1mJ (on), 1mJ (off)
Input Type : Standard
Gate Charge : 226nC
Td (on/off) @ 25°C : 45ns/560ns
Test Condition : 600V, 40A, 23 Ohm, 15V
Reverse Recovery Time (trr) : 71ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264
0
375 in stock
FGL35N120FTDTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 70A
Current - Collector Pulsed (Icm) : 105A
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 35A
Power - Max : 368W
Switching Energy : 2.5mJ (on), 1.7mJ (off)
Input Type : Standard
Gate Charge : 210nC
Td (on/off) @ 25°C : 34ns/172ns
Test Condition : 600V, 35A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 337ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 70A
Current - Collector Pulsed (Icm) : 105A
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 35A
Power - Max : 368W
Switching Energy : 2.5mJ (on), 1.7mJ (off)
Input Type : Standard
Gate Charge : 210nC
Td (on/off) @ 25°C : 34ns/172ns
Test Condition : 600V, 35A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 337ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264
0
2250 in stock
FGL40N120ANDTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 64A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 3.2V @ 15V, 40A
Power - Max : 500W
Switching Energy : 2.3mJ (on), 1.1mJ (off)
Input Type : Standard
Gate Charge : 220nC
Td (on/off) @ 25°C : 15ns/110ns
Test Condition : 600V, 40A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 112ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 64A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 3.2V @ 15V, 40A
Power - Max : 500W
Switching Energy : 2.3mJ (on), 1.1mJ (off)
Input Type : Standard
Gate Charge : 220nC
Td (on/off) @ 25°C : 15ns/110ns
Test Condition : 600V, 40A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 112ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264
0
100 in stock
FGL40N120ANTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 64A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 3.2V @ 15V, 40A
Power - Max : 500W
Switching Energy : 2.3mJ (on), 1.1mJ (off)
Input Type : Standard
Gate Charge : 220nC
Td (on/off) @ 25°C : 15ns/110ns
Test Condition : 600V, 40A, 5 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 64A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 3.2V @ 15V, 40A
Power - Max : 500W
Switching Energy : 2.3mJ (on), 1.1mJ (off)
Input Type : Standard
Gate Charge : 220nC
Td (on/off) @ 25°C : 15ns/110ns
Test Condition : 600V, 40A, 5 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264
0
256 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
