- Discrete Semiconductor Products
- Transistors - IGBTs - Single
Part Number
Manufacturer
Description
Unit Price
In Stock
FGH25N120FTDS
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 50A
Current - Collector Pulsed (Icm) : 75A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 25A
Power - Max : 313W
Switching Energy : 1.42mJ (on), 1.16mJ (off)
Input Type : Standard
Gate Charge : 169nC
Td (on/off) @ 25°C : 26ns/151ns
Test Condition : 600V, 25A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 535ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 50A
Current - Collector Pulsed (Icm) : 75A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 25A
Power - Max : 313W
Switching Energy : 1.42mJ (on), 1.16mJ (off)
Input Type : Standard
Gate Charge : 169nC
Td (on/off) @ 25°C : 26ns/151ns
Test Condition : 600V, 25A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 535ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
4 in stock
FGH25T120SMD-F155
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 50A
Current - Collector Pulsed (Icm) : 100A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 25A
Power - Max : 428W
Switching Energy : 1.74mJ (on), 560µJ (off)
Input Type : Standard
Gate Charge : 225nC
Td (on/off) @ 25°C : 40ns/490ns
Test Condition : 600V, 25A, 23 Ohm, 15V
Reverse Recovery Time (trr) : 60ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 Long Leads
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 50A
Current - Collector Pulsed (Icm) : 100A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 25A
Power - Max : 428W
Switching Energy : 1.74mJ (on), 560µJ (off)
Input Type : Standard
Gate Charge : 225nC
Td (on/off) @ 25°C : 40ns/490ns
Test Condition : 600V, 25A, 23 Ohm, 15V
Reverse Recovery Time (trr) : 60ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 Long Leads
0
392 in stock
FGH30N120FTDTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 30A
Power - Max : 339W
Switching Energy : -
Input Type : Standard
Gate Charge : 208nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : 730ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 30A
Power - Max : 339W
Switching Energy : -
Input Type : Standard
Gate Charge : 208nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : 730ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
100 in stock
FGH30N60LSDTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 1.4V @ 15V, 30A
Power - Max : 480W
Switching Energy : 1.1mJ (on), 21mJ (off)
Input Type : Standard
Gate Charge : 225nC
Td (on/off) @ 25°C : 18ns/250ns
Test Condition : 400V, 30A, 6.8 Ohm, 15V
Reverse Recovery Time (trr) : 35ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 1.4V @ 15V, 30A
Power - Max : 480W
Switching Energy : 1.1mJ (on), 21mJ (off)
Input Type : Standard
Gate Charge : 225nC
Td (on/off) @ 25°C : 18ns/250ns
Test Condition : 400V, 30A, 6.8 Ohm, 15V
Reverse Recovery Time (trr) : 35ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
3 in stock
FGH30N6S2
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 45A
Current - Collector Pulsed (Icm) : 108A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 12A
Power - Max : 167W
Switching Energy : 55µJ (on), 100µJ (off)
Input Type : Standard
Gate Charge : 23nC
Td (on/off) @ 25°C : 6ns/40ns
Test Condition : 390V, 12A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 45A
Current - Collector Pulsed (Icm) : 108A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 12A
Power - Max : 167W
Switching Energy : 55µJ (on), 100µJ (off)
Input Type : Standard
Gate Charge : 23nC
Td (on/off) @ 25°C : 6ns/40ns
Test Condition : 390V, 12A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
100 in stock
FGH30N6S2D
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 45A
Current - Collector Pulsed (Icm) : 108A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 12A
Power - Max : 167W
Switching Energy : 55µJ (on), 100µJ (off)
Input Type : Standard
Gate Charge : 23nC
Td (on/off) @ 25°C : 6ns/40ns
Test Condition : 390V, 12A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 46ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 45A
Current - Collector Pulsed (Icm) : 108A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 12A
Power - Max : 167W
Switching Energy : 55µJ (on), 100µJ (off)
Input Type : Standard
Gate Charge : 23nC
Td (on/off) @ 25°C : 6ns/40ns
Test Condition : 390V, 12A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 46ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
100 in stock

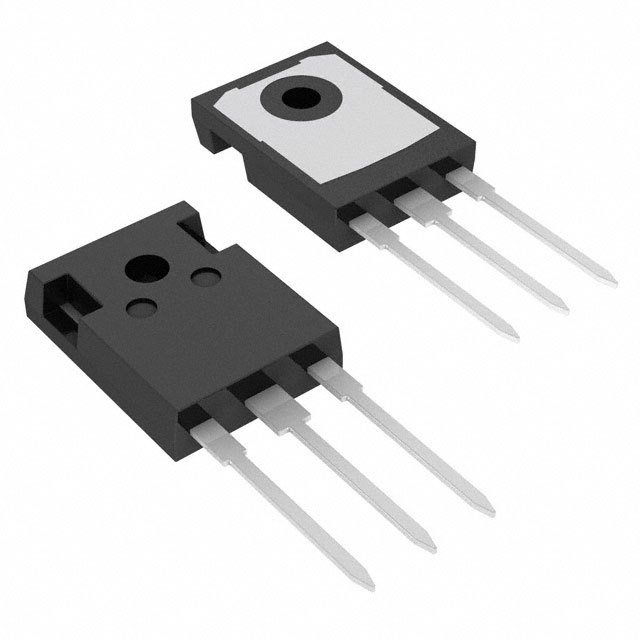

FGH30S130P
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1300V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 30A
Power - Max : 500W
Switching Energy : -
Input Type : Standard
Gate Charge : 78nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1300V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 30A
Power - Max : 500W
Switching Energy : -
Input Type : Standard
Gate Charge : 78nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
100 in stock
FGH30S150P
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1500V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 30A
Power - Max : 500W
Switching Energy : 1.16mJ (on), 900µJ (off)
Input Type : Standard
Gate Charge : 369nC
Td (on/off) @ 25°C : 32ns/492ns
Test Condition : 600V, 30A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1500V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 30A
Power - Max : 500W
Switching Energy : 1.16mJ (on), 900µJ (off)
Input Type : Standard
Gate Charge : 369nC
Td (on/off) @ 25°C : 32ns/492ns
Test Condition : 600V, 30A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
450 in stock
FGH30T65UPDT-F155
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 30A
Power - Max : 250W
Switching Energy : 760µJ (on), 400µJ (off)
Input Type : Standard
Gate Charge : 155nC
Td (on/off) @ 25°C : 22ns/139ns
Test Condition : 400V, 30A, 8 Ohm, 15V
Reverse Recovery Time (trr) : 43ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 Long Leads
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 30A
Power - Max : 250W
Switching Energy : 760µJ (on), 400µJ (off)
Input Type : Standard
Gate Charge : 155nC
Td (on/off) @ 25°C : 22ns/139ns
Test Condition : 400V, 30A, 8 Ohm, 15V
Reverse Recovery Time (trr) : 43ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 Long Leads
0
450 in stock
FGH40N120ANTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 64A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 3.2V @ 15V, 40A
Power - Max : 417W
Switching Energy : 2.3mJ (on), 1.1mJ (off)
Input Type : Standard
Gate Charge : 220nC
Td (on/off) @ 25°C : 15ns/110ns
Test Condition : 600V, 40A, 5 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 64A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 3.2V @ 15V, 40A
Power - Max : 417W
Switching Energy : 2.3mJ (on), 1.1mJ (off)
Input Type : Standard
Gate Charge : 220nC
Td (on/off) @ 25°C : 15ns/110ns
Test Condition : 600V, 40A, 5 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
295 in stock
FGH40N60SFDTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.9V @ 15V, 40A
Power - Max : 290W
Switching Energy : 1.13mJ (on), 310µJ (off)
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 25ns/115ns
Test Condition : 400V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 45ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.9V @ 15V, 40A
Power - Max : 290W
Switching Energy : 1.13mJ (on), 310µJ (off)
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 25ns/115ns
Test Condition : 400V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 45ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
320 in stock
FGH40N60SFDTU-F085
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : Automotive, AEC-Q101
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.9V @ 15V, 40A
Power - Max : 290W
Switching Energy : 1.23mJ (on), 380µJ (off)
Input Type : Standard
Gate Charge : 121nC
Td (on/off) @ 25°C : 21ns/138ns
Test Condition : 400V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 68ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : Automotive, AEC-Q101
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.9V @ 15V, 40A
Power - Max : 290W
Switching Energy : 1.23mJ (on), 380µJ (off)
Input Type : Standard
Gate Charge : 121nC
Td (on/off) @ 25°C : 21ns/138ns
Test Condition : 400V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 68ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
203 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
