Tamura Corporation of America
- Established in 1951, Microtran Corporation manufactured high-quality, magnetic components for both commercial and military applications. Offshore facilities provided expanded manufacturing capabilities on an extremely cost-effective basis for large volume requirements. Modified catalog items and custom designs were available on special order to meet customers' exact requirements.
Tamura Corporation of America acquired Microtran's product line and customer base in 1994. Prior to this acquisition, Tamura had been a subcontractor for Microtran for at least ten years and had manufactured many of the products found in the Microtran catalog. Since the acquisition, Tamura has combined identical and similar products into one product bearing a dual marking of both the Tamura and Microtran part numbers. This "dual marking" has enabled Tamura to continue to supply customers whose drawings referenced only the Microtran part number.
Part Number
Manufacturer
Description
Unit Price
In Stock

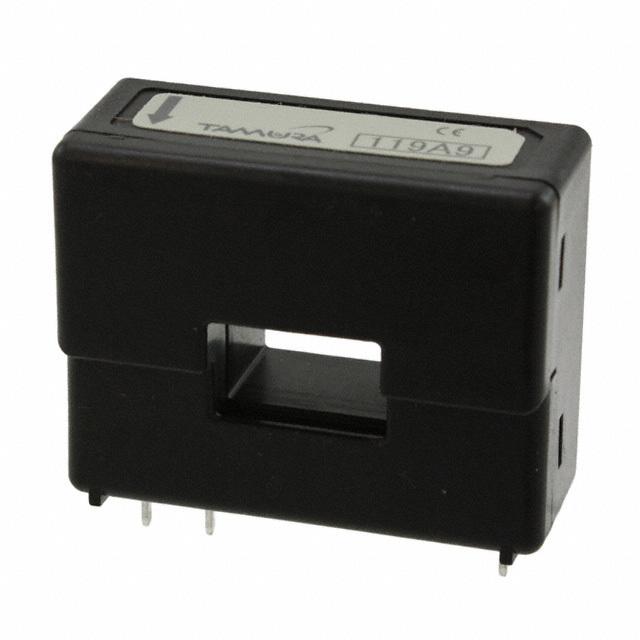

Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : -
Part Status : Active
For Measuring : AC/DC
Sensor Type : Hall Effect, Closed Loop
Current - Sensing : 50A
Number of Channels : 1
Output : Ratiometric, Current
Sensitivity : -
Frequency : DC ~ 100kHz
Linearity : ±0.15%
Accuracy : ±0.5%
Voltage - Supply : ±12 V ~ 15 V
Response Time : 1µs
Current - Supply (Max) : 16mA
Operating Temperature : -40°C ~ 85°C
Polarization : Bidirectional
Mounting Type : Through Hole
Package / Case : Module
0
153 in stock

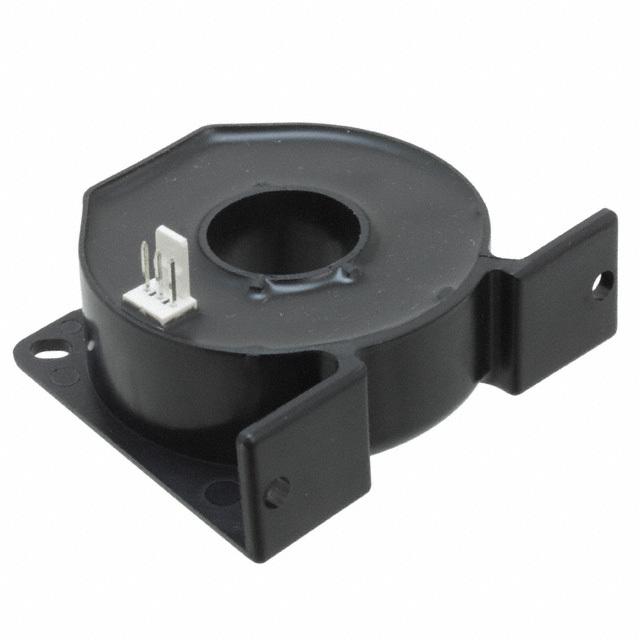

Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : -
Part Status : Active
For Measuring : AC/DC
Sensor Type : Hall Effect, Closed Loop
Current - Sensing : 300A
Number of Channels : 1
Output : Ratiometric, Current
Sensitivity : -
Frequency : DC ~ 100kHz
Linearity : ±0.1%
Accuracy : ±0.4%
Voltage - Supply : ±12 V ~ 20 V
Response Time : 1µs
Current - Supply (Max) : 20mA
Operating Temperature : -40°C ~ 85°C
Polarization : Bidirectional
Mounting Type : Panel Mount
Package / Case : Module
0
67 in stock

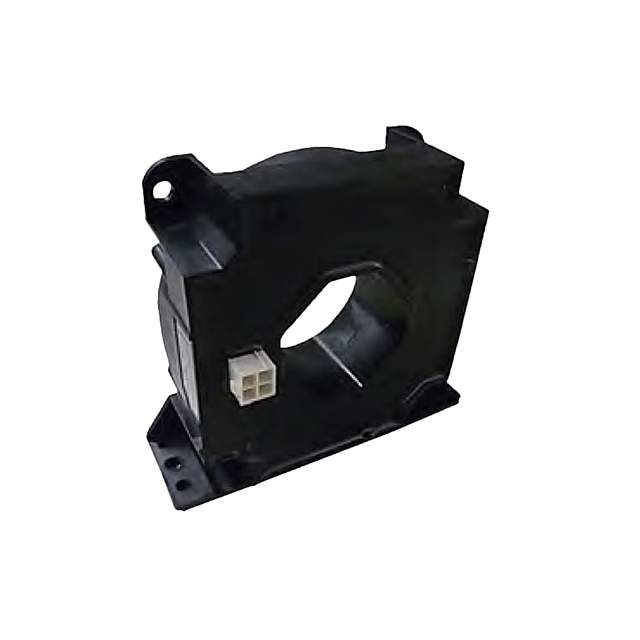

Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : -
Part Status : Active
For Measuring : AC/DC
Sensor Type : Hall Effect, Closed Loop
Current - Sensing : 1000A
Number of Channels : 1
Output : Ratiometric, Current
Sensitivity : -
Frequency : DC ~ 100kHz
Linearity : ±0.1%
Accuracy : ±0.1%
Voltage - Supply : ±15 V ~ 24 V
Response Time : 1µs
Current - Supply (Max) : 200mA
Operating Temperature : -40°C ~ 85°C
Polarization : Bidirectional
Mounting Type : -
Package / Case : Module, Single Pass Through
0
72 in stock

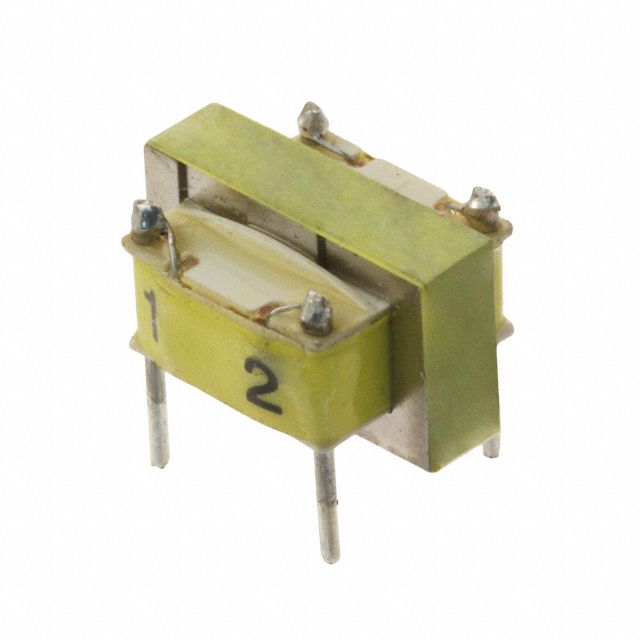

Tamura
Manufacturer : Tamura
Packaging : Tray
Series : -
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 600
DC Resistance (DCR) - Primary : 46 Ohm
DC Resistance (DCR) - Secondary : 63 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 3.5kHz
Frequency Response : ±0.5dB
Voltage - Isolation : 1500VRMS @ 1 Minute
Insertion Loss : 1dB Typ @ 1kHz
Return Loss : 26dB Min
Power Level : -45dB ~ 7dB
Operating Temperature : -
Approvals : CSA-C22.2 No. 950-M89, UL1459, UL1950
Mounting Type : Through Hole
Size / Dimension : 0.780" L x 0.654" W (19.80mm x 16.60mm)
Height - Seated (Max) : 0.469" (11.90mm)
Termination Style : PC Pin
0
989 in stock
Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : -
Part Status : Obsolete
Type : Isolated
Voltage - Input (Min) : 190V
Voltage - Input (Max) : 1000V
Number of Outputs : 1
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 1A
Power (Watts) : 24W
Voltage - Isolation : -
Applications : ITE (Commercial)
Efficiency : 80%
Operating Temperature : -20°C ~ 50°C
Mounting Type : DIN Rail
Size / Dimension : 4.13" L x 3.52" W x 2.37" H (104.9mm x 89.4mm x 60.2mm)
0
13 in stock

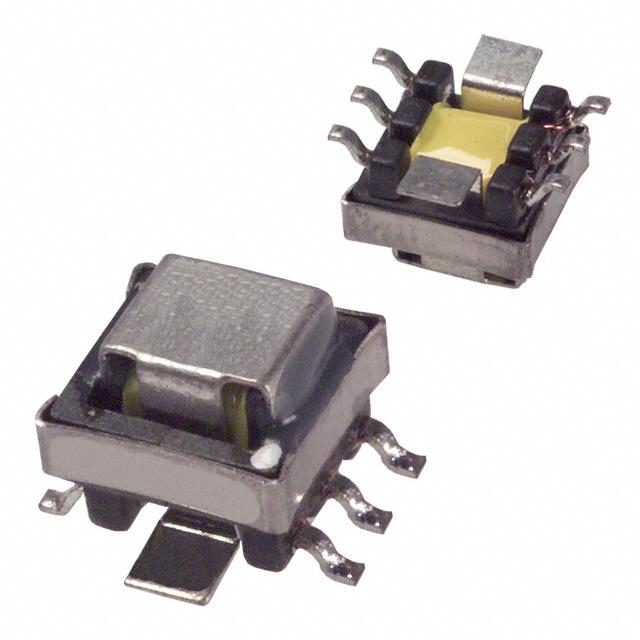

Tamura
Manufacturer : Tamura
Packaging : Tape & Reel (TR)
Series : TCS
Part Status : Obsolete
Frequency Range : 250kHz Min
Type : Invasive
Current Rating : -
Inductance : 80µH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:20
Current Ratio : -
DC Resistance (DCR) : 6 mOhm Primary, 550 mOhm Secondary
Ratings : -
Mounting Type : Surface Mount
Size / Dimension : 0.276" L x 0.331" W (7.00mm x 8.40mm)
Height - Seated (Max) : 0.205" (5.20mm)
Termination Style : Gull Wing
0
100 in stock
Tamura
Manufacturer : Tamura
Packaging : Tape & Reel (TR)
Series : TCS
Part Status : Obsolete
Frequency Range : 250kHz Min
Type : Invasive
Current Rating : -
Inductance : 180µH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:30
Current Ratio : -
DC Resistance (DCR) : 6 mOhm Primary, 870 mOhm Secondary
Ratings : -
Mounting Type : Surface Mount
Size / Dimension : 0.276" L x 0.331" W (7.00mm x 8.40mm)
Height - Seated (Max) : 0.205" (5.20mm)
Termination Style : Gull Wing
0
100 in stock
Tamura
Manufacturer : Tamura
Packaging : Tape & Reel (TR)
Series : TCS
Part Status : Obsolete
Frequency Range : 250kHz Min
Type : Invasive
Current Rating : -
Inductance : 320µH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:40
Current Ratio : -
DC Resistance (DCR) : 6 mOhm Primary, 1.14 Ohm Secondary
Ratings : -
Mounting Type : Surface Mount
Size / Dimension : 0.276" L x 0.331" W (7.00mm x 8.40mm)
Height - Seated (Max) : 0.205" (5.20mm)
Termination Style : Gull Wing
0
100 in stock
Tamura
Manufacturer : Tamura
Packaging : Tape & Reel (TR)
Series : TCS
Part Status : Obsolete
Frequency Range : 250kHz Min
Type : Invasive
Current Rating : -
Inductance : 500µH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:50
Current Ratio : -
DC Resistance (DCR) : 6 mOhm Primary, 1.5 Ohm Secondary
Ratings : -
Mounting Type : Surface Mount
Size / Dimension : 0.276" L x 0.331" W (7.00mm x 8.40mm)
Height - Seated (Max) : 0.205" (5.20mm)
Termination Style : Gull Wing
0
100 in stock
Tamura
Manufacturer : Tamura
Packaging : Tape & Reel (TR)
Series : TCS
Part Status : Obsolete
Frequency Range : 250kHz Min
Type : Invasive
Current Rating : -
Inductance : 720µH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:60
Current Ratio : -
DC Resistance (DCR) : 6 mOhm Primary, 1.75 Ohm Secondary
Ratings : -
Mounting Type : Surface Mount
Size / Dimension : 0.276" L x 0.331" W (7.00mm x 8.40mm)
Height - Seated (Max) : 0.205" (5.20mm)
Termination Style : Gull Wing
0
100 in stock
Tamura
Manufacturer : Tamura
Packaging : Tape & Reel (TR)
Series : TCS
Part Status : Obsolete
Frequency Range : 250kHz Min
Type : Invasive
Current Rating : -
Inductance : 980µH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:70
Current Ratio : -
DC Resistance (DCR) : 6 mOhm Primary, 4.75 Ohm Secondary
Ratings : -
Mounting Type : Surface Mount
Size / Dimension : 0.276" L x 0.331" W (7.00mm x 8.40mm)
Height - Seated (Max) : 0.205" (5.20mm)
Termination Style : Gull Wing
0
100 in stock
Tamura
Manufacturer : Tamura
Packaging : Tape & Reel (TR)
Series : TCS
Part Status : Obsolete
Frequency Range : 250kHz Min
Type : Invasive
Current Rating : -
Inductance : 2mH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:100
Current Ratio : -
DC Resistance (DCR) : 6 mOhm Primary, 5.9 Ohm Secondary
Ratings : -
Mounting Type : Surface Mount
Size / Dimension : 0.276" L x 0.331" W (7.00mm x 8.40mm)
Height - Seated (Max) : 0.205" (5.20mm)
Termination Style : Gull Wing
0
100 in stock
