Tamura Corporation of America

- Established in 1951, Microtran Corporation manufactured high-quality, magnetic components for both commercial and military applications. Offshore facilities provided expanded manufacturing capabilities on an extremely cost-effective basis for large volume requirements. Modified catalog items and custom designs were available on special order to meet customers' exact requirements.

Tamura Corporation of America acquired Microtran's product line and customer base in 1994. Prior to this acquisition, Tamura had been a subcontractor for Microtran for at least ten years and had manufactured many of the products found in the Microtran catalog. Since the acquisition, Tamura has combined identical and similar products into one product bearing a dual marking of both the Tamura and Microtran part numbers. This "dual marking" has enabled Tamura to continue to supply customers whose drawings referenced only the Microtran part number.

Part Number
Manufacturer
Description
Unit Price
In Stock

PL30-24-130B PL30-24-130B

Tamura
Manufacturer : Tamura
Series : PL30-xx-130B
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 2.5A, Series 1.25A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 30 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 66.70mm L x 55.60mm W
Height - Seated (Max) : 41.00mm
Voltage - Isolation : 3500Vrms
Weight : -
0
1356 in stock

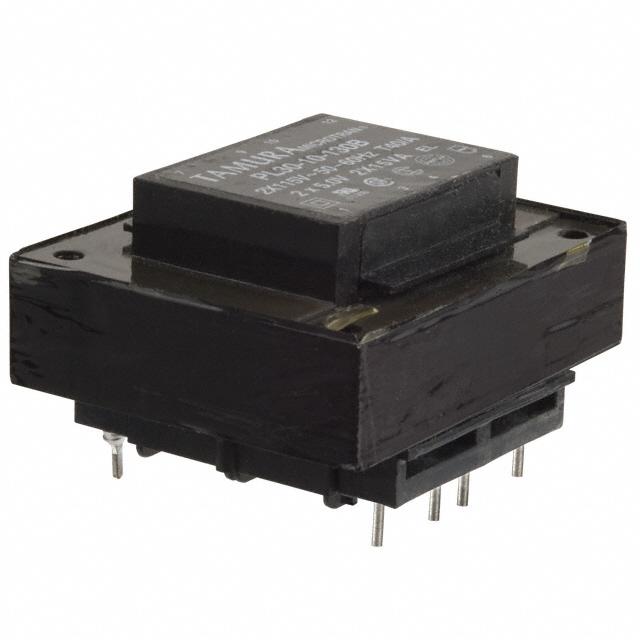

PL30-28-130B PL30-28-130B

Tamura
Manufacturer : Tamura
Series : PL30-xx-130B
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 14V, Series 28V
Current - Output (Max) : Parallel 2.12A, Series 1.06A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 30 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 66.70mm L x 55.60mm W
Height - Seated (Max) : 41.00mm
Voltage - Isolation : 3500Vrms
Weight : -
0
294 in stock

PL30-32-130B PL30-32-130B

Tamura
Manufacturer : Tamura
Series : -
Part Status : Obsolete
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : -
Current - Output (Max) : -
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 30 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 66.70mm L x 55.60mm W
Height - Seated (Max) : 41.00mm
Voltage - Isolation : 3500Vrms
Weight : -
0
100 in stock

PL30-36-130B PL30-36-130B

Tamura
Manufacturer : Tamura
Series : PL30-xx-130B
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 18V, Series 36V
Current - Output (Max) : Parallel 1.64A, Series 820mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 30 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 66.70mm L x 55.60mm W
Height - Seated (Max) : 41.00mm
Voltage - Isolation : 3500Vrms
Weight : -
0
67 in stock

PL5.0-10-130B PL5.0-10-130B

Tamura
Manufacturer : Tamura
Series : PL5.0-xx-130B
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 5V, Series 10V
Current - Output (Max) : Parallel 1A, Series 500mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 5 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 41.28mm L x 36.37mm W
Height - Seated (Max) : 35.60mm
Voltage - Isolation : 3500Vrms
Weight : -
0
2985 in stock

PL5.0-12-130B PL5.0-12-130B

Tamura
Manufacturer : Tamura
Series : PL5.0-xx-130B
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 6.3V, Series 12.6V
Current - Output (Max) : Parallel 800mA, Series 400mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 5 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 41.28mm L x 36.37mm W
Height - Seated (Max) : 35.60mm
Voltage - Isolation : 3500Vrms
Weight : -
0
10 in stock

PL5.0-16-130B PL5.0-16-130B

Tamura
Manufacturer : Tamura
Series : PL5.0-xx-130B
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 8V, Series 16V
Current - Output (Max) : Parallel 620mA, Series 310mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 5 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 41.28mm L x 36.37mm W
Height - Seated (Max) : 35.60mm
Voltage - Isolation : 3500Vrms
Weight : -
0
24 in stock

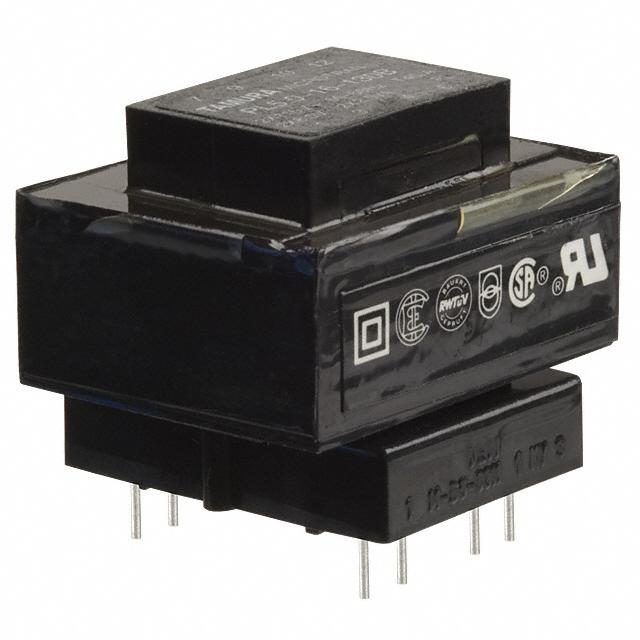

PL5.0-20-130B PL5.0-20-130B

Tamura
Manufacturer : Tamura
Series : PL5.0-xx-130B
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 500mA, Series 250mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 5 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 41.28mm L x 36.37mm W
Height - Seated (Max) : 35.60mm
Voltage - Isolation : 3500Vrms
Weight : -
0
100 in stock

PL5.0-24-130B PL5.0-24-130B

Tamura
Manufacturer : Tamura
Series : PL5.0-xx-130B
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 420mA, Series 210mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 5 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 41.28mm L x 36.37mm W
Height - Seated (Max) : 35.60mm
Voltage - Isolation : 3500Vrms
Weight : -
0
58 in stock

PL5.0-28-130B PL5.0-28-130B

Tamura
Manufacturer : Tamura
Series : PL5.0-xx-130B
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 14V, Series 28V
Current - Output (Max) : Parallel 360mA, Series 180mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 5 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 41.28mm L x 36.37mm W
Height - Seated (Max) : 35.60mm
Voltage - Isolation : 3500Vrms
Weight : -
0
381 in stock

PL5.0-36-130B PL5.0-36-130B

Tamura
Manufacturer : Tamura
Series : PL5.0-xx-130B
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 18V, Series 36V
Current - Output (Max) : Parallel 280mA, Series 140mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 5 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 41.28mm L x 36.37mm W
Height - Seated (Max) : 35.60mm
Voltage - Isolation : 3500Vrms
Weight : -
0
100 in stock

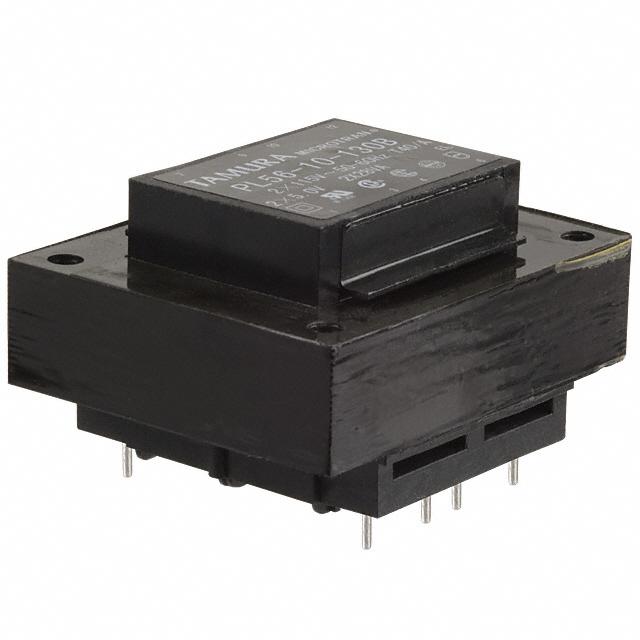

PL56-12-130B PL56-12-130B

Tamura
Manufacturer : Tamura
Series : PL56-xx-130B
Part Status : Obsolete
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 6.3V, Series 12.6V
Current - Output (Max) : Parallel 8.8A, Series 4.4A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 56 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 76.20mm L x 64.00mm W
Height - Seated (Max) : 48.50mm
Voltage - Isolation : 3500Vrms
Weight : -
0
100 in stock
