Tamura Corporation of America

- Established in 1951, Microtran Corporation manufactured high-quality, magnetic components for both commercial and military applications. Offshore facilities provided expanded manufacturing capabilities on an extremely cost-effective basis for large volume requirements. Modified catalog items and custom designs were available on special order to meet customers' exact requirements.

Tamura Corporation of America acquired Microtran's product line and customer base in 1994. Prior to this acquisition, Tamura had been a subcontractor for Microtran for at least ten years and had manufactured many of the products found in the Microtran catalog. Since the acquisition, Tamura has combined identical and similar products into one product bearing a dual marking of both the Tamura and Microtran part numbers. This "dual marking" has enabled Tamura to continue to supply customers whose drawings referenced only the Microtran part number.

Part Number
Manufacturer
Description
Unit Price
In Stock

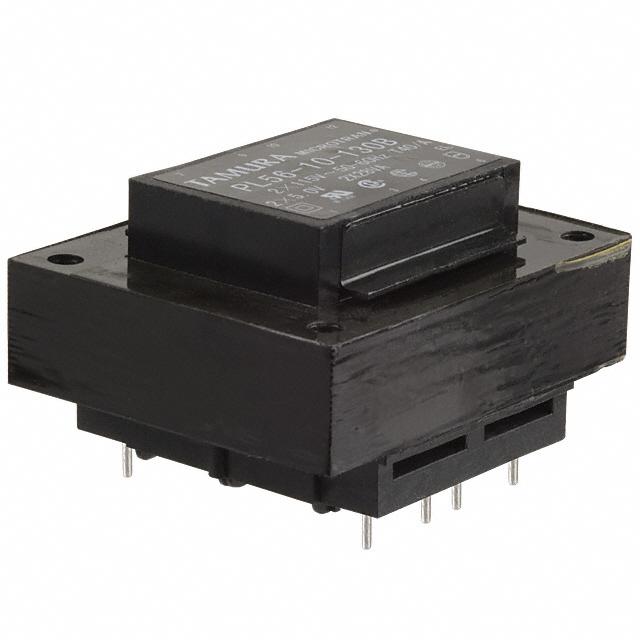

PL56-16-130B PL56-16-130B

Tamura
Manufacturer : Tamura
Series : PL56-xx-130B
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 8V, Series 16V
Current - Output (Max) : Parallel 7A, Series 3.5A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 56 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 76.20mm L x 64.00mm W
Height - Seated (Max) : 48.50mm
Voltage - Isolation : 3500Vrms
Weight : -
0
10 in stock

PL56-20-130B PL56-20-130B

Tamura
Manufacturer : Tamura
Series : PL56-xx-130B
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 5.6A, Series 2.8A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 56 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 76.20mm L x 64.00mm W
Height - Seated (Max) : 48.50mm
Voltage - Isolation : 3500Vrms
Weight : -
0
105 in stock

PL56-24-130B PL56-24-130B

Tamura
Manufacturer : Tamura
Series : PL56-xx-130B
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 4.66A, Series 2.33A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 56 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 76.20mm L x 64.00mm W
Height - Seated (Max) : 48.50mm
Voltage - Isolation : 3500Vrms
Weight : -
0
85 in stock

PL56-28-130B PL56-28-130B

Tamura
Manufacturer : Tamura
Series : PL56-xx-130B
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 14V, Series 28V
Current - Output (Max) : Parallel 4A, Series 2A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 56 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 76.20mm L x 64.00mm W
Height - Seated (Max) : 48.50mm
Voltage - Isolation : 3500Vrms
Weight : -
0
210 in stock

PL56-36-130B PL56-36-130B

Tamura
Manufacturer : Tamura
Series : PL56-xx-130B
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 18V, Series 36V
Current - Output (Max) : Parallel 3.12A, Series 1.56A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 56 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 76.20mm L x 64.00mm W
Height - Seated (Max) : 48.50mm
Voltage - Isolation : 3500Vrms
Weight : -
0
91 in stock

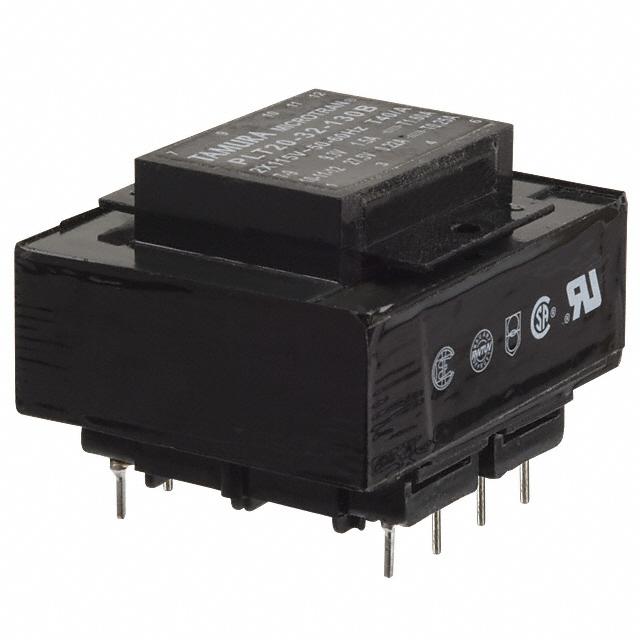

PLT20-32-130B PLT20-32-130B

Tamura
Manufacturer : Tamura
Series : -
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 9.3V, Series 27.5V
Current - Output (Max) : Parallel 220mA, Series 1.5A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : Yes
Power - Max : 20 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 57.20mm L x 47.60mm W
Height - Seated (Max) : 41.38mm
Voltage - Isolation : 3500Vrms
Weight : -
0
100 in stock

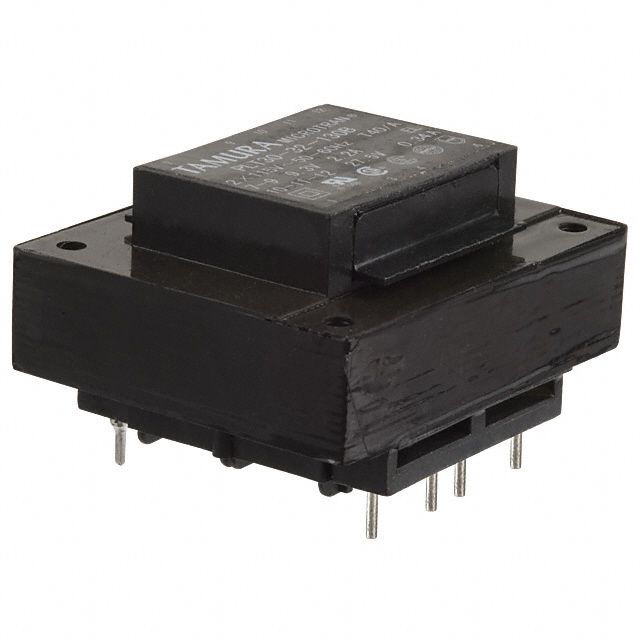

PLT30-32-130B PLT30-32-130B

Tamura
Manufacturer : Tamura
Series : -
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 9.3V, Series 27.5V
Current - Output (Max) : Parallel 340mA, Series 2.2A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : Yes
Power - Max : 30 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 66.70mm L x 55.60mm W
Height - Seated (Max) : 41.00mm
Voltage - Isolation : 3750Vrms
Weight : -
0
258 in stock

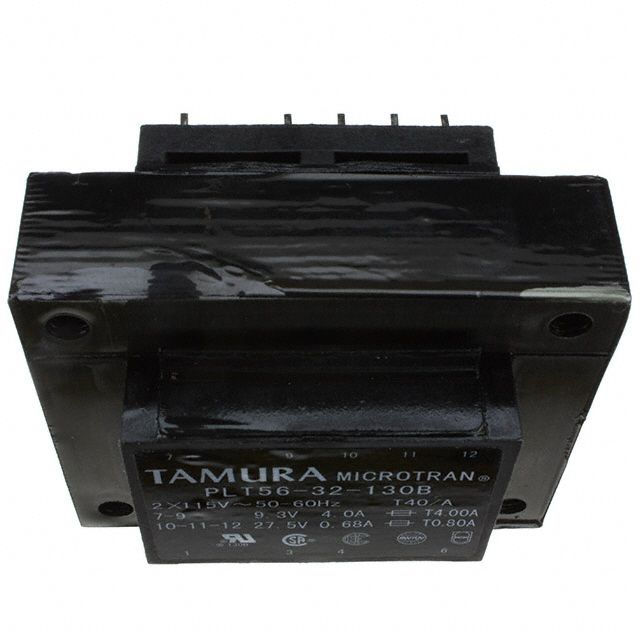

PLT56-32-130B PLT56-32-130B

Tamura
Manufacturer : Tamura
Series : -
Part Status : Obsolete
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 9.3V, Series 27.5V
Current - Output (Max) : Parallel 680mA, Series 4A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : Yes
Power - Max : 56 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 76.20mm L x 64.00mm W
Height - Seated (Max) : 48.50mm
Voltage - Isolation : 3500Vrms
Weight : -
0
100 in stock

S22P006S05 S22P006S05

Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : -
Part Status : Active
For Measuring : AC/DC
Sensor Type : Hall Effect, Closed Loop
Current - Sensing : 6A
Number of Channels : 1
Output : Ratiometric, Voltage
Sensitivity : -
Frequency : DC ~ 100kHz
Linearity : ±0.2%
Accuracy : -
Voltage - Supply : 5V
Response Time : 1µs
Current - Supply (Max) : 12.5mA
Operating Temperature : -10°C ~ 85°C
Polarization : Bidirectional
Mounting Type : Through Hole
Package / Case : Module
0
41 in stock

S22P015S05 S22P015S05

Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : -
Part Status : Active
For Measuring : AC/DC
Sensor Type : Hall Effect, Closed Loop
Current - Sensing : 15A
Number of Channels : 1
Output : Ratiometric, Voltage
Sensitivity : -
Frequency : DC ~ 100kHz
Linearity : ±0.2%
Accuracy : -
Voltage - Supply : 5V
Response Time : 1µs
Current - Supply (Max) : 12.5mA
Operating Temperature : -10°C ~ 85°C
Polarization : Bidirectional
Mounting Type : Through Hole
Package / Case : Module
0
632 in stock

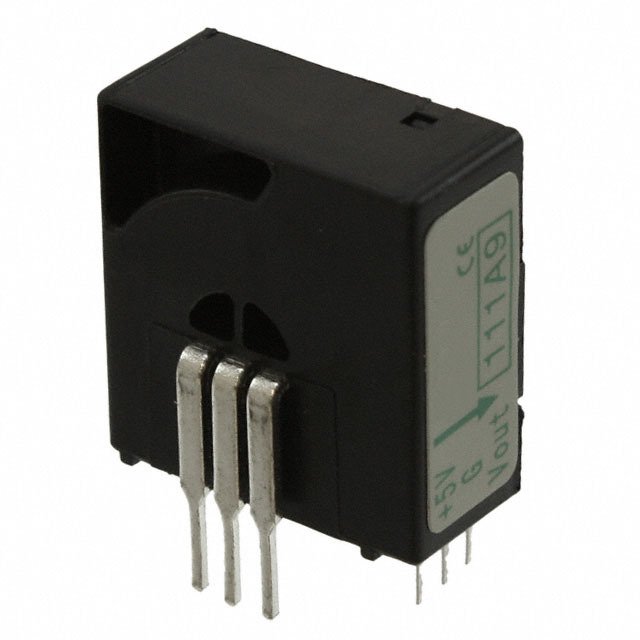

S22P025S05 S22P025S05

Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : -
Part Status : Active
For Measuring : AC/DC
Sensor Type : Hall Effect, Closed Loop
Current - Sensing : 25A
Number of Channels : 1
Output : Ratiometric, Voltage
Sensitivity : -
Frequency : DC ~ 100kHz
Linearity : ±0.2%
Accuracy : -
Voltage - Supply : 5V
Response Time : 1µs
Current - Supply (Max) : 12.5mA
Operating Temperature : -10°C ~ 85°C
Polarization : Bidirectional
Mounting Type : Through Hole
Package / Case : Module
0
984 in stock

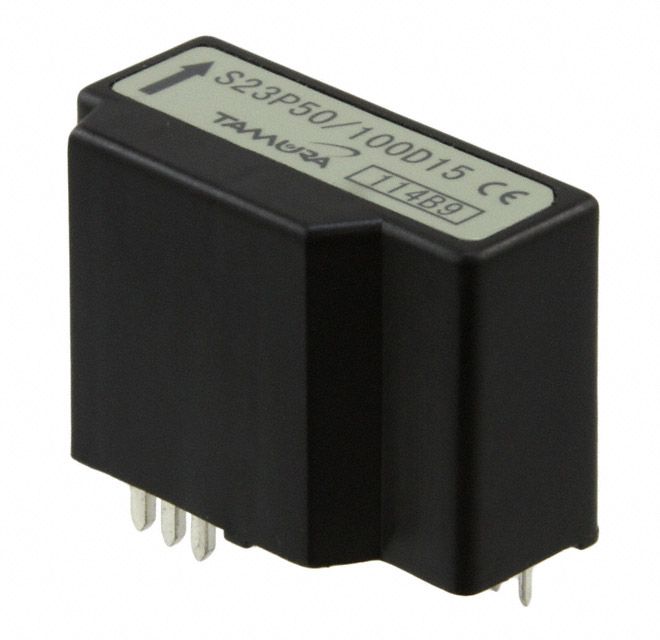

S23P50/100D15 S23P50/100D15

Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : S23PXXXD15
Part Status : Active
For Measuring : AC/DC
Sensor Type : Hall Effect, Closed Loop
Current - Sensing : 50A
Number of Channels : 1
Output : Ratiometric, Current
Sensitivity : -
Frequency : DC ~ 100kHz
Linearity : ±0.15%
Accuracy : ±0.25%
Voltage - Supply : ±12 V ~ 15 V
Response Time : 0.5µs
Current - Supply (Max) : 25mA
Operating Temperature : -40°C ~ 85°C
Polarization : Bidirectional
Mounting Type : Through Hole
Package / Case : Module
0
162 in stock
