Tamura Corporation of America
- Established in 1951, Microtran Corporation manufactured high-quality, magnetic components for both commercial and military applications. Offshore facilities provided expanded manufacturing capabilities on an extremely cost-effective basis for large volume requirements. Modified catalog items and custom designs were available on special order to meet customers' exact requirements.
Tamura Corporation of America acquired Microtran's product line and customer base in 1994. Prior to this acquisition, Tamura had been a subcontractor for Microtran for at least ten years and had manufactured many of the products found in the Microtran catalog. Since the acquisition, Tamura has combined identical and similar products into one product bearing a dual marking of both the Tamura and Microtran part numbers. This "dual marking" has enabled Tamura to continue to supply customers whose drawings referenced only the Microtran part number.
Part Number
Manufacturer
Description
Unit Price
In Stock
Tamura

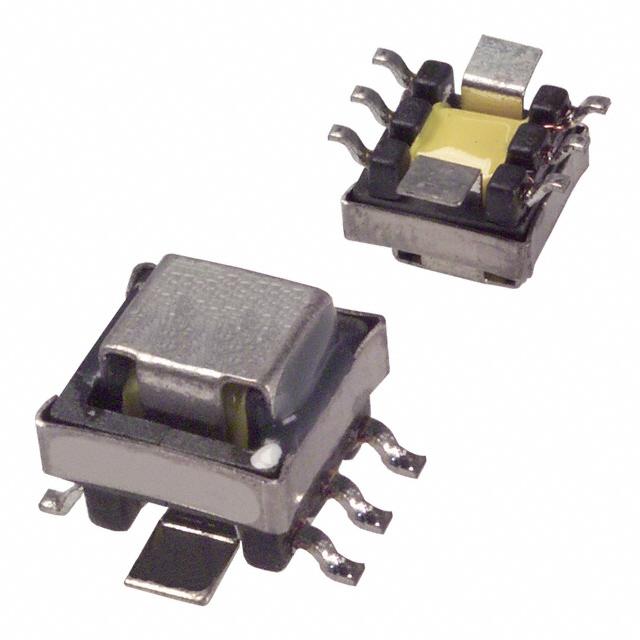

Manufacturer : Tamura
Packaging : Tape & Reel (TR)
Series : TCS
Part Status : Obsolete
Frequency Range : 250kHz Min
Type : Invasive
Current Rating : -
Inductance : 3mH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:125
Current Ratio : -
DC Resistance (DCR) : 6 mOhm Primary, 7.7 Ohm Secondary
Ratings : -
Mounting Type : Surface Mount
Size / Dimension : 0.276" L x 0.331" W (7.00mm x 8.40mm)
Height - Seated (Max) : 0.205" (5.20mm)
Termination Style : Gull Wing
0
100 in stock

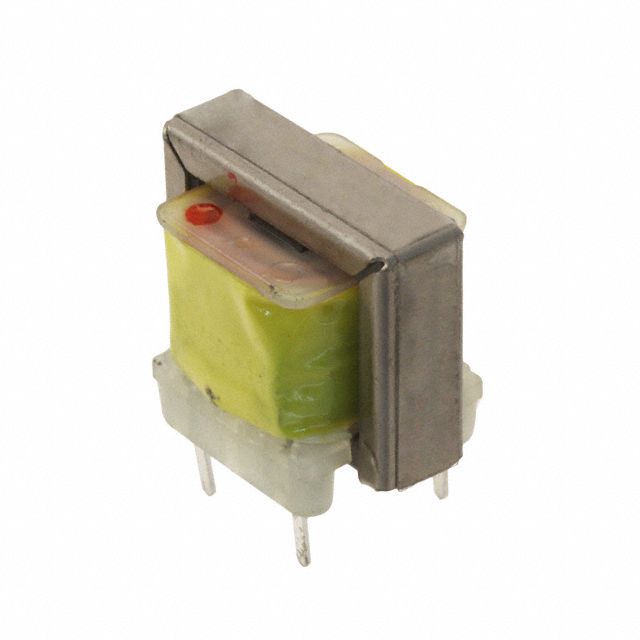

Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : TTC
Part Status : Active
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 600
DC Resistance (DCR) - Primary : 72 Ohm
DC Resistance (DCR) - Secondary : 90 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 3.5kHz
Frequency Response : ±0.5dB
Voltage - Isolation : 1500VRMS @ 1 Minute
Insertion Loss : 1.5dB Max @ 1kHz
Return Loss : -
Power Level : -45dB ~ 7dB
Operating Temperature : -
Approvals : CSA-C22.2 No. 66-M1988, UL1459
Mounting Type : Through Hole
Size / Dimension : 0.799" L x 0.650" W (20.30mm x 16.50mm)
Height - Seated (Max) : 0.488" (12.40mm)
Termination Style : PC Pin
0
100 in stock
Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : TTC
Part Status : Obsolete
Turns Ratio - Primary:Secondary : 1:0.736
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 600/600
DC Resistance (DCR) - Primary : 57 Ohm
DC Resistance (DCR) - Secondary : 42 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 3.5kHz
Frequency Response : ±0.5dB
Voltage - Isolation : 1500VRMS @ 1 Minute
Insertion Loss : 1.2dB Max @ 1kHz
Return Loss : -
Power Level : 7dB
Operating Temperature : -
Approvals : CSA-C22.2 No. 66-M1988, UL1459
Mounting Type : Through Hole
Size / Dimension : 0.799" L x 0.689" W (20.30mm x 17.50mm)
Height - Seated (Max) : 0.752" (19.10mm)
Termination Style : PC Pin
0
100 in stock
Tamura
Manufacturer : Tamura
Packaging : -
Series : *
Part Status : Obsolete
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : -
Impedance - Secondary (Ohms) : -
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : -
Frequency Range : -
Frequency Response : -
Voltage - Isolation : -
Insertion Loss : -
Return Loss : -
Power Level : -
Operating Temperature : -
Approvals : -
Mounting Type : -
Size / Dimension : -
Height - Seated (Max) : -
Termination Style : -
0
100 in stock
Tamura
Manufacturer : Tamura
Packaging : -
Series : -
Part Status : Obsolete
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : -
DC Resistance (DCR) - Primary : 47 Ohm
DC Resistance (DCR) - Secondary : 35 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 3.5kHz
Frequency Response : ±0.5dB
Voltage - Isolation : -
Insertion Loss : -
Return Loss : 26dB
Power Level : -45dB ~ 7dB
Operating Temperature : -
Approvals : CSA, UR
Mounting Type : Through Hole
Size / Dimension : -
Height - Seated (Max) : -
Termination Style : PC Pin
0
100 in stock
Tamura

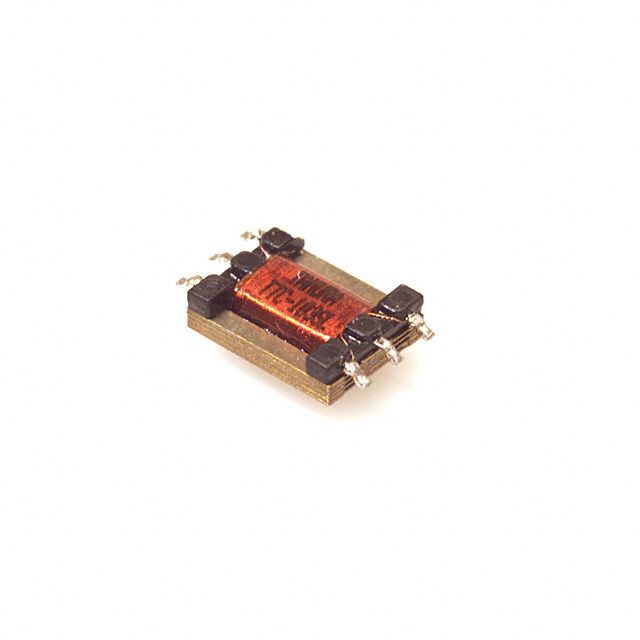

Manufacturer : Tamura
Packaging : Bulk
Series : TTC
Part Status : Obsolete
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 346
DC Resistance (DCR) - Primary : 127 Ohm
DC Resistance (DCR) - Secondary : 150 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 3.5kHz
Frequency Response : -0.35dB ~ 0.15dB
Voltage - Isolation : 1000VRMS @ 1 Minute
Insertion Loss : 2.7dB @ 1kHz
Return Loss : 25dB Min @ 300Hz ~ 3.5kHz
Power Level : 10mW
Operating Temperature : -
Approvals : CSA-C22.2 No. 950-M89, UL1459, UL1950
Mounting Type : Surface Mount
Size / Dimension : 0.330" L x 0.402" W (8.38mm x 10.20mm)
Height - Seated (Max) : 0.164" (4.16mm)
Termination Style : Gull Wing
0
100 in stock
Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : TTC
Part Status : Active
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 600
DC Resistance (DCR) - Primary : 71 Ohm
DC Resistance (DCR) - Secondary : 117 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 660Hz ~ 3.5kHz
Frequency Response : -1dB ~ 0.7dB
Voltage - Isolation : 1500VRMS @ 1 Minute
Insertion Loss : 3dB Max @ 660Hz ~ 800Hz, 2.5dB Max @ 800Hz @ 3.5kHz
Return Loss : -
Power Level : -45dB ~ 10dB
Operating Temperature : -
Approvals : CSA-C22.2 No. 66-M1988, UL1459
Mounting Type : Through Hole
Size / Dimension : 0.839" L x 0.630" W (21.30mm x 16.00mm)
Height - Seated (Max) : 0.748" (19.00mm)
Termination Style : PC Pin
0
4191 in stock
Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : TTC
Part Status : Active
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 600CT
DC Resistance (DCR) - Primary : 71 Ohm
DC Resistance (DCR) - Secondary : 117 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 660Hz ~ 3.5kHz
Frequency Response : -1dB ~ 0.7dB
Voltage - Isolation : 1500VRMS @ 1 Minute
Insertion Loss : 3dB Max @ 660Hz ~ 800Hz, 2.5dB Max @ 800Hz @ 3.5kHz
Return Loss : -
Power Level : -45dB ~ 10dB
Operating Temperature : -
Approvals : CSA-C22.2 No. 66-M1988, UL1459
Mounting Type : Through Hole
Size / Dimension : 0.839" L x 0.630" W (21.30mm x 16.00mm)
Height - Seated (Max) : 0.748" (19.00mm)
Termination Style : PC Pin
0
22 in stock
Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : TTC
Part Status : Active
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 600CT
Impedance - Secondary (Ohms) : 600CT
DC Resistance (DCR) - Primary : 44 Ohm
DC Resistance (DCR) - Secondary : 56 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 3.5kHz
Frequency Response : ±0.5dB
Voltage - Isolation : 1500VRMS @ 1 Minute
Insertion Loss : 1.4dB Max @ 1kHz
Return Loss : -
Power Level : -45dB ~ 7dB
Operating Temperature : -
Approvals : CSA-C22.2 No. 66-M1988, UL1459
Mounting Type : Through Hole
Size / Dimension : 0.799" L x 0.689" W (20.30mm x 17.50mm)
Height - Seated (Max) : 0.752" (19.10mm)
Termination Style : PC Pin
0
856 in stock
Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : TTC
Part Status : Active
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 600CT
Impedance - Secondary (Ohms) : 600CT
DC Resistance (DCR) - Primary : 44 Ohm
DC Resistance (DCR) - Secondary : 56 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 3.5kHz
Frequency Response : ±0.5dB
Voltage - Isolation : 1500VRMS @ 1 Minute
Insertion Loss : 1.4dB Max @ 1kHz
Return Loss : -
Power Level : -45dB ~ 7dB
Operating Temperature : -
Approvals : CSA-C22.2 No. 66-M1988, UL1459
Mounting Type : Through Hole
Size / Dimension : 0.815" L x 0.650" W (20.70mm x 16.50mm)
Height - Seated (Max) : 0.736" (18.70mm)
Termination Style : PC Pin
0
949 in stock
Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : TTC
Part Status : Obsolete
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 600
DC Resistance (DCR) - Primary : 71 Ohm
DC Resistance (DCR) - Secondary : 117 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 660Hz ~ 3.5kHz
Frequency Response : -1dB ~ 0.7dB
Voltage - Isolation : 1500VRMS @ 1 Minute
Insertion Loss : 3dB Max @ 660Hz ~ 800Hz, 2.5dB Max @ 800Hz @ 3.5kHz
Return Loss : -
Power Level : -45dB ~ 10dB
Operating Temperature : -
Approvals : CSA-C22.2 No. 66-M1988, UL1862
Mounting Type : Through Hole
Size / Dimension : 0.823" L x 0.752" W (20.90mm x 19.10mm)
Height - Seated (Max) : 0.630" (16.00mm)
Termination Style : PC Pin
0
100 in stock
Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : TTC
Part Status : Obsolete
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : -
Impedance - Secondary (Ohms) : -
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : -
Frequency Range : -
Frequency Response : -
Voltage - Isolation : -
Insertion Loss : -
Return Loss : -
Power Level : -
Operating Temperature : -
Approvals : -
Mounting Type : -
Size / Dimension : -
Height - Seated (Max) : -
Termination Style : -
0
100 in stock
