Tamura Corporation of America

- Established in 1951, Microtran Corporation manufactured high-quality, magnetic components for both commercial and military applications. Offshore facilities provided expanded manufacturing capabilities on an extremely cost-effective basis for large volume requirements. Modified catalog items and custom designs were available on special order to meet customers' exact requirements.

Tamura Corporation of America acquired Microtran's product line and customer base in 1994. Prior to this acquisition, Tamura had been a subcontractor for Microtran for at least ten years and had manufactured many of the products found in the Microtran catalog. Since the acquisition, Tamura has combined identical and similar products into one product bearing a dual marking of both the Tamura and Microtran part numbers. This "dual marking" has enabled Tamura to continue to supply customers whose drawings referenced only the Microtran part number.

Part Number
Manufacturer
Description
Unit Price
In Stock

TTC-121 TTC-121

Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : TTC
Part Status : Obsolete
Turns Ratio - Primary:Secondary : 1:0.5
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 600, 300/300
DC Resistance (DCR) - Primary : 74 Ohm
DC Resistance (DCR) - Secondary : 64 Ohm
Transformer Type : -
Frequency Range : 300Hz ~ 3.5kHz
Frequency Response : ±0.7dB
Voltage - Isolation : 1500VRMS @ 1 Minute
Insertion Loss : 1.1dB Typ @ 1kHz
Return Loss : 18dB Typ
Power Level : -45dB ~ 7dB
Operating Temperature : -
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 1.650" L x 1.370" W (41.90mm x 34.80mm)
Height - Seated (Max) : 0.657" (16.70mm)
Termination Style : PC Pin
0
100 in stock

TTC-125 TTC-125

Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : TTC
Part Status : Obsolete
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 600
DC Resistance (DCR) - Primary : 95 Ohm
DC Resistance (DCR) - Secondary : 180 Ohm
Transformer Type : -
Frequency Range : 300Hz ~ 3.5kHz
Frequency Response : ±0.5dB
Voltage - Isolation : 1500VRMS @ 1 Minute
Insertion Loss : 2.2dB Max @ 1kHz
Return Loss : 14dB Typ
Power Level : -45dB ~ 7dB
Operating Temperature : -
Approvals : CSA-C22.2 No. 66-M1988, UL1459
Mounting Type : Through Hole
Size / Dimension : 1.272" L x 1.299" W (32.30mm x 33.00mm)
Height - Seated (Max) : 0.626" (15.90mm)
Termination Style : PC Pin
0
100 in stock

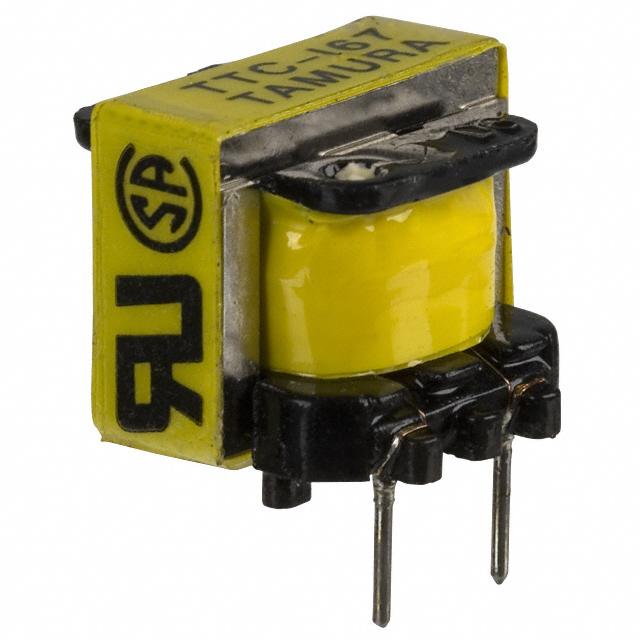

TTC-167 TTC-167

Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : TTC
Part Status : Active
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 10k
Impedance - Secondary (Ohms) : 10k
DC Resistance (DCR) - Primary : 330 Ohm
DC Resistance (DCR) - Secondary : 420 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 4kHz
Frequency Response : ±1dB
Voltage - Isolation : 1000VRMS @ 1 Minute
Insertion Loss : 1.7dB Max @ 1kHz
Return Loss : -
Power Level : -
Operating Temperature : -
Approvals : CSA-C22.2 No. 66-M1988, UL1863
Mounting Type : Through Hole
Size / Dimension : 0.610" L x 0.689" W (15.50mm x 17.50mm)
Height - Seated (Max) : 0.551" (14.00mm)
Termination Style : PC Pin
0
5352 in stock

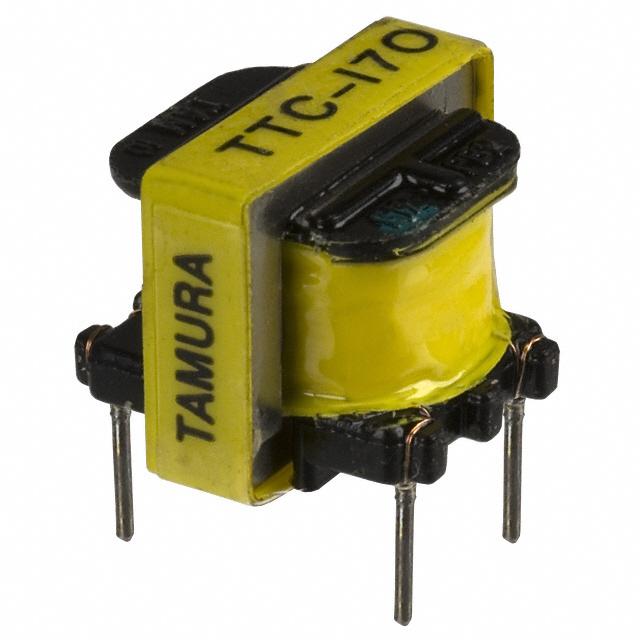

TTC-170 TTC-170

Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : TTC
Part Status : Active
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 600
DC Resistance (DCR) - Primary : 47 Ohm
DC Resistance (DCR) - Secondary : 61 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 3.5kHz
Frequency Response : ±0.5dB
Voltage - Isolation : 1500VRMS @ 1 Minute
Insertion Loss : 1.5dB Max @ 1kHz
Return Loss : -
Power Level : -
Operating Temperature : 0°C ~ 70°C
Approvals : CSA-C22.2 No. 66-M1988, UL1459
Mounting Type : Through Hole
Size / Dimension : 0.528" L x 0.512" W (13.40mm x 13.00mm)
Height - Seated (Max) : 0.421" (10.70mm)
Termination Style : PC Pin
0
99 in stock

TTC-198 TTC-198

Tamura
Manufacturer : Tamura
Packaging : -
Series : TTC
Part Status : Obsolete
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 600CT
DC Resistance (DCR) - Primary : 33 Ohm
DC Resistance (DCR) - Secondary : 56 Ohm
Transformer Type : -
Frequency Range : 300Hz ~ 3.5kHz
Frequency Response : ±0.5dB
Voltage - Isolation : 4000VRMS @ 1 Minute
Insertion Loss : 1.4dB Max @ 1kHz
Return Loss : 26dB Min
Power Level : -45dB ~ 7dB
Operating Temperature : -
Approvals : -
Mounting Type : -
Size / Dimension : -
Height - Seated (Max) : -
Termination Style : -
0
100 in stock

TTC-2000 TTC-2000

Tamura
Manufacturer : Tamura
Packaging : -
Series : TTC
Part Status : Obsolete
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : -
Impedance - Secondary (Ohms) : -
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : -
Frequency Range : -
Frequency Response : -
Voltage - Isolation : 1500VRMS @ 1 Minute
Insertion Loss : -
Return Loss : -
Power Level : -
Operating Temperature : -
Approvals : UL1950
Mounting Type : -
Size / Dimension : -
Height - Seated (Max) : -
Termination Style : -
0
100 in stock

TTC-2002 TTC-2002

Tamura
Manufacturer : Tamura
Packaging : -
Series : TTC
Part Status : Obsolete
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : -
Impedance - Secondary (Ohms) : -
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : -
Frequency Range : -
Frequency Response : -
Voltage - Isolation : -
Insertion Loss : -
Return Loss : -
Power Level : -
Operating Temperature : -
Approvals : -
Mounting Type : -
Size / Dimension : -
Height - Seated (Max) : -
Termination Style : -
0
100 in stock

TTC-2003 TTC-2003

Tamura
Manufacturer : Tamura
Packaging : -
Series : TTC
Part Status : Obsolete
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : -
Impedance - Secondary (Ohms) : -
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : -
Frequency Range : -
Frequency Response : -
Voltage - Isolation : 500VRMS @ 1 Minute
Insertion Loss : -
Return Loss : -
Power Level : -
Operating Temperature : -
Approvals : -
Mounting Type : -
Size / Dimension : -
Height - Seated (Max) : -
Termination Style : -
0
100 in stock

TTC-2012 TTC-2012

Tamura
Manufacturer : Tamura
Packaging : -
Series : TTC
Part Status : Obsolete
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : -
Impedance - Secondary (Ohms) : -
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : -
Frequency Range : -
Frequency Response : -
Voltage - Isolation : 1500VRMS @ 1 Minute
Insertion Loss : -3.5dB Max @ 6-9MHz
Return Loss : -12dB Min @ 6-9MHz
Power Level : -
Operating Temperature : -40°C ~ 85°C
Approvals : -
Mounting Type : -
Size / Dimension : -
Height - Seated (Max) : -
Termination Style : -
0
100 in stock

TTC-203SL TTC-203SL

Tamura
Manufacturer : Tamura
Packaging : -
Series : TTC
Part Status : Obsolete
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 346
DC Resistance (DCR) - Primary : 127 Ohm
DC Resistance (DCR) - Secondary : 150 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 3.5kHz
Frequency Response : -0.35dB ~ 0.15dB
Voltage - Isolation : 1000VRMS @ 1 Minute
Insertion Loss : 2.7dB @ 1kHz
Return Loss : 25dB Min @ 300Hz ~ 3.5kHz
Power Level : 10mW
Operating Temperature : -
Approvals : CSA-C22.2 No. 950-M89, UL1459, UL1950
Mounting Type : Surface Mount
Size / Dimension : 0.330" L x 0.402" W (8.38mm x 10.20mm)
Height - Seated (Max) : 0.164" (4.16mm)
Termination Style : Gull Wing
0
100 in stock

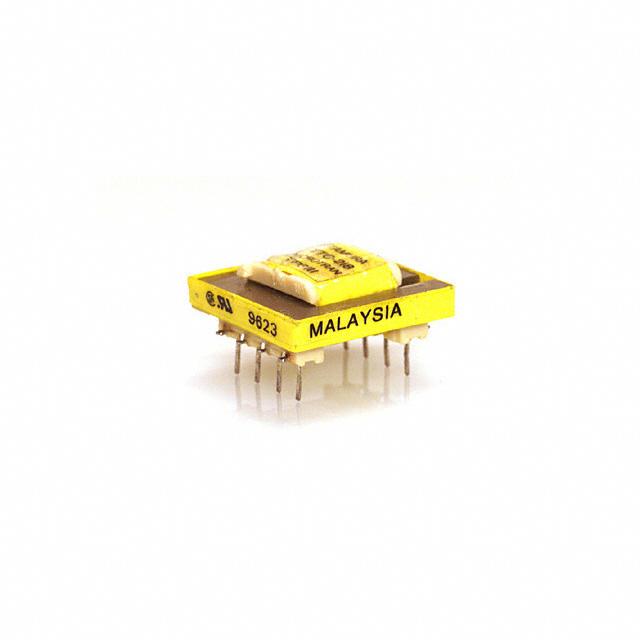

TTC-218 TTC-218

Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : TTC
Part Status : Obsolete
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 600
DC Resistance (DCR) - Primary : 49 Ohm
DC Resistance (DCR) - Secondary : 76 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 660Hz ~ 3.5kHz
Frequency Response : -1.8dB ~ 0.5dB
Voltage - Isolation : 1500VRMS @ 1 Minute
Insertion Loss : 1.8dB Max @ 2kHz
Return Loss : -
Power Level : -45dB ~ 7dB
Operating Temperature : -
Approvals : CSA-C22.2 No. 66-M1988, UL1863
Mounting Type : Through Hole
Size / Dimension : 0.839" L x 0.760" W (21.30mm x 19.30mm)
Height - Seated (Max) : 0.346" (8.80mm)
Termination Style : PC Pin
0
100 in stock

TTC-218-2 TTC-218-2

Tamura
Manufacturer : Tamura
Packaging : -
Series : -
Part Status : Obsolete
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 600
DC Resistance (DCR) - Primary : 49 Ohm
DC Resistance (DCR) - Secondary : 76 Ohm
Transformer Type : Impedance Matching
Frequency Range : 660Hz ~ 3.5kHz
Frequency Response : -1.8dB ~ 0.5dB
Voltage - Isolation : -
Insertion Loss : -
Return Loss : -
Power Level : -45dB ~ 7dB
Operating Temperature : -
Approvals : CSA, UR
Mounting Type : Through Hole
Size / Dimension : -
Height - Seated (Max) : 0.350" (8.89mm)
Termination Style : PC Pin
0
100 in stock
