Tamura Corporation of America
- Established in 1951, Microtran Corporation manufactured high-quality, magnetic components for both commercial and military applications. Offshore facilities provided expanded manufacturing capabilities on an extremely cost-effective basis for large volume requirements. Modified catalog items and custom designs were available on special order to meet customers' exact requirements.
Tamura Corporation of America acquired Microtran's product line and customer base in 1994. Prior to this acquisition, Tamura had been a subcontractor for Microtran for at least ten years and had manufactured many of the products found in the Microtran catalog. Since the acquisition, Tamura has combined identical and similar products into one product bearing a dual marking of both the Tamura and Microtran part numbers. This "dual marking" has enabled Tamura to continue to supply customers whose drawings referenced only the Microtran part number.
Part Number
Manufacturer
Description
Unit Price
In Stock
Tamura
Manufacturer : Tamura

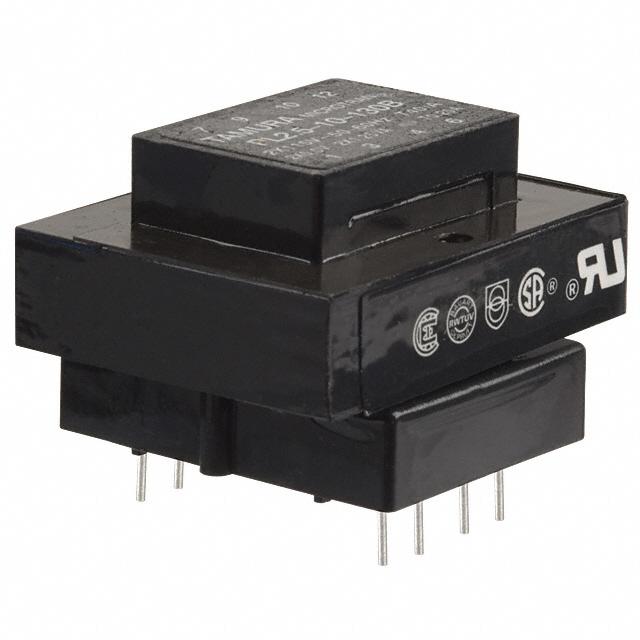

Series : PL2.5-xx-130B
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 18V, Series 36V
Current - Output (Max) : Parallel 140mA, Series 70mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 2.5 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 41.28mm L x 36.37mm W
Height - Seated (Max) : 28.60mm
Voltage - Isolation : 3500Vrms
Weight : -
0
107 in stock
Tamura
Manufacturer : Tamura

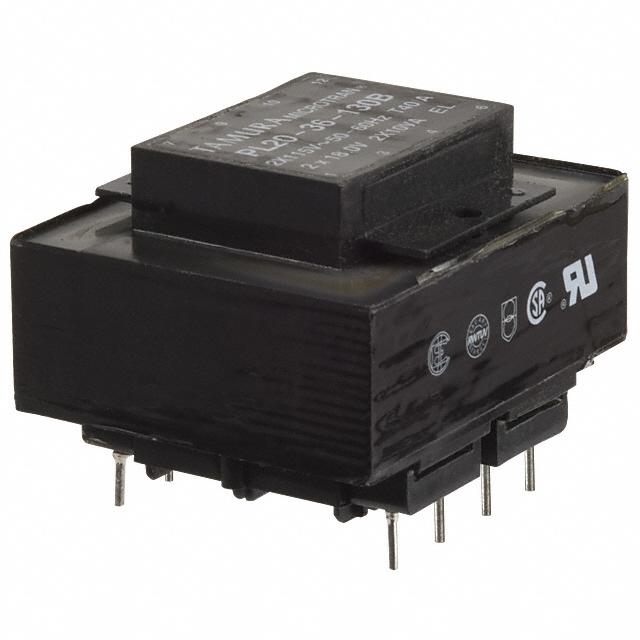

Series : PL20-xx-130B
Part Status : Obsolete
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 5V, Series 10V
Current - Output (Max) : Parallel 4A, Series 2A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 20 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 57.20mm L x 47.60mm W
Height - Seated (Max) : 41.28mm
Voltage - Isolation : 3500Vrms
Weight : -
0
100 in stock
Tamura
Manufacturer : Tamura
Series : PL20-xx-130B
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 6.3V, Series 12.6V
Current - Output (Max) : Parallel 3.2A, Series 1.6A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 20 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 57.20mm L x 47.60mm W
Height - Seated (Max) : 41.28mm
Voltage - Isolation : 3500Vrms
Weight : -
0
520 in stock
Tamura
Manufacturer : Tamura
Series : PL20-xx-130B
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 8V, Series 16V
Current - Output (Max) : Parallel 2.5A, Series 1.25A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 20 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 57.20mm L x 47.60mm W
Height - Seated (Max) : 41.28mm
Voltage - Isolation : 3500Vrms
Weight : -
0
155 in stock
Tamura
Manufacturer : Tamura
Series : PL20-xx-130B
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 2A, Series 1A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 20 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 57.20mm L x 47.60mm W
Height - Seated (Max) : 41.28mm
Voltage - Isolation : 3500Vrms
Weight : -
0
770 in stock
Tamura
Manufacturer : Tamura
Series : PL20-xx-130B
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 1.66A, Series 830mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 20 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 57.20mm L x 47.60mm W
Height - Seated (Max) : 41.28mm
Voltage - Isolation : 3500Vrms
Weight : -
0
1094 in stock
Tamura
Manufacturer : Tamura
Series : PL20-xx-130B
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 14V, Series 28V
Current - Output (Max) : Parallel 1.44A, Series 720mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 20 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 57.20mm L x 47.60mm W
Height - Seated (Max) : 41.28mm
Voltage - Isolation : 3500Vrms
Weight : -
0
354 in stock
Tamura
Manufacturer : Tamura
Series : PL20-xx-130B
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 18V, Series 36V
Current - Output (Max) : Parallel 1.12A, Series 560mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 20 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 57.20mm L x 47.60mm W
Height - Seated (Max) : 41.28mm
Voltage - Isolation : 3500Vrms
Weight : -
0
100 in stock
Tamura
Manufacturer : Tamura
Series : PL30-xx-130B
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 5V, Series 10V
Current - Output (Max) : Parallel 6A, Series 3A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 30 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 66.70mm L x 55.60mm W
Height - Seated (Max) : 41.00mm
Voltage - Isolation : 3500Vrms
Weight : -
0
70 in stock
Tamura
Manufacturer : Tamura
Series : PL30-xx-130B
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 6.3V, Series 12.6V
Current - Output (Max) : Parallel 4.8A, Series 2.4A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 30 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 66.70mm L x 55.60mm W
Height - Seated (Max) : 41.00mm
Voltage - Isolation : 3500Vrms
Weight : -
0
12 in stock
Tamura
Manufacturer : Tamura
Series : PL30-xx-130B
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 8V, Series 16V
Current - Output (Max) : Parallel 3.8A, Series 1.9A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 30 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 66.70mm L x 55.60mm W
Height - Seated (Max) : 41.00mm
Voltage - Isolation : 3500Vrms
Weight : -
0
365 in stock
Tamura
Manufacturer : Tamura
Series : PL30-xx-130B
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 3A, Series 1.5A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 30 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 66.70mm L x 55.60mm W
Height - Seated (Max) : 41.00mm
Voltage - Isolation : 3500Vrms
Weight : -
0
160 in stock
