Tamura Corporation of America
- Established in 1951, Microtran Corporation manufactured high-quality, magnetic components for both commercial and military applications. Offshore facilities provided expanded manufacturing capabilities on an extremely cost-effective basis for large volume requirements. Modified catalog items and custom designs were available on special order to meet customers' exact requirements.
Tamura Corporation of America acquired Microtran's product line and customer base in 1994. Prior to this acquisition, Tamura had been a subcontractor for Microtran for at least ten years and had manufactured many of the products found in the Microtran catalog. Since the acquisition, Tamura has combined identical and similar products into one product bearing a dual marking of both the Tamura and Microtran part numbers. This "dual marking" has enabled Tamura to continue to supply customers whose drawings referenced only the Microtran part number.
Part Number
Manufacturer
Description
Unit Price
In Stock
Tamura
Manufacturer : Tamura
Packaging : -
Series : *
Part Status : Obsolete
Type : -
Applications : -
Intended Chipset : -
Chipset Manufacturer : -
Voltage - Primary : -
Voltage - Auxiliary : -
Voltage - Isolation : -
Inductance @ Frequency : -
Frequency : -
Operating Temperature : -
Mounting Type : -
Size / Dimension : -
Height - Seated (Max) : -
Footprint : -
Style : -
0
100 in stock

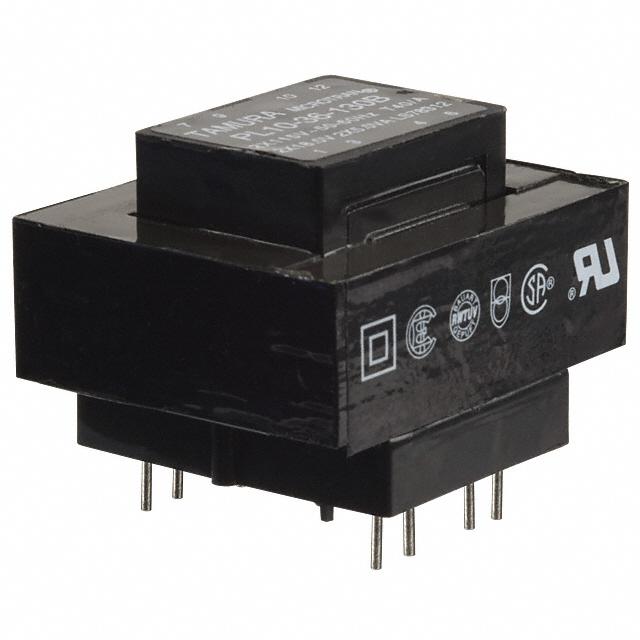

Tamura
Manufacturer : Tamura
Series : PL10-xx130B
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 6.3V, Series 12.6V
Current - Output (Max) : Parallel 1.6A, Series 800mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 10 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 47.60mm L x 39.70mm W
Height - Seated (Max) : 36.20mm
Voltage - Isolation : 3500Vrms
Weight : -
0
558 in stock
Tamura
Manufacturer : Tamura
Series : PL10-xx130B
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 8V, Series 16V
Current - Output (Max) : Parallel 1.25A, Series 620mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 10 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 47.60mm L x 39.70mm W
Height - Seated (Max) : 36.20mm
Voltage - Isolation : 3500Vrms
Weight : -
0
190 in stock
Tamura
Manufacturer : Tamura
Series : PL10-xx130B
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 1A, Series 500mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 10 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 47.60mm L x 39.70mm W
Height - Seated (Max) : 36.20mm
Voltage - Isolation : 3500Vrms
Weight : -
0
13 in stock
Tamura
Manufacturer : Tamura
Series : PL10-xx130B
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 840mA, Series 420mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 10 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 47.60mm L x 39.70mm W
Height - Seated (Max) : 36.20mm
Voltage - Isolation : 3500Vrms
Weight : -
0
14 in stock
Tamura
Manufacturer : Tamura
Series : PL10-xx130B
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 14V, Series 28V
Current - Output (Max) : Parallel 720mA, Series 360mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 10 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 47.60mm L x 39.70mm W
Height - Seated (Max) : 36.20mm
Voltage - Isolation : 3500Vrms
Weight : -
0
378 in stock
Tamura
Manufacturer : Tamura
Series : PL10-xx130B
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 18V, Series 36V
Current - Output (Max) : Parallel 560mA, Series 280mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 10 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 47.60mm L x 39.70mm W
Height - Seated (Max) : 36.20mm
Voltage - Isolation : 3500Vrms
Weight : -
0
47 in stock

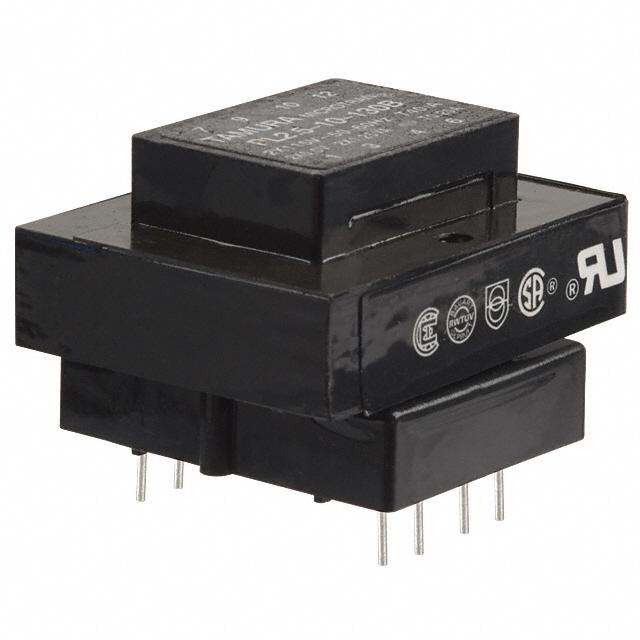

Tamura
Manufacturer : Tamura
Series : PL2.5-xx-130B
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 5V, Series 10V
Current - Output (Max) : Parallel 500mA, Series 250mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 2.5 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 41.28mm L x 36.37mm W
Height - Seated (Max) : 28.60mm
Voltage - Isolation : 3500Vrms
Weight : -
0
810 in stock
Tamura
Manufacturer : Tamura
Series : PL2.5-xx-130B
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 6.3V, Series 12.6V
Current - Output (Max) : Parallel 400mA, Series 200mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 2.5 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 41.28mm L x 36.37mm W
Height - Seated (Max) : 28.60mm
Voltage - Isolation : 3500Vrms
Weight : -
0
100 in stock
Tamura
Manufacturer : Tamura
Series : PL2.5-xx-130B
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 8V, Series 16V
Current - Output (Max) : Parallel 300mA, Series 150mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 2.5 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 41.28mm L x 36.37mm W
Height - Seated (Max) : 28.60mm
Voltage - Isolation : 3500Vrms
Weight : -
0
891 in stock
Tamura
Manufacturer : Tamura
Series : PL2.5-xx-130B
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 240mA, Series 120mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 2.5 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 41.28mm L x 36.37mm W
Height - Seated (Max) : 28.60mm
Voltage - Isolation : 3500Vrms
Weight : -
0
272 in stock
Tamura
Manufacturer : Tamura
Series : PL2.5-xx-130B
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 200mA, Series 100mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 2.5 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 41.28mm L x 36.37mm W
Height - Seated (Max) : 28.60mm
Voltage - Isolation : 3500Vrms
Weight : -
0
100 in stock
