Mechatronics
- Mechatronics is a manufacturer of brushless cooling fans and thermal solutions headquartered near Seattle, WA. Mechatronics product offering includes AC axial fans, DC axial fans, AC blowers, DC blowers, AC motorized impellers and value-added assemblies. In addition to our standard products, we offer tailored solutions to fit customer specific requirements from minor modifications to fully custom products.
With factories located in Indonesia, Taiwan and China, Mechatronics offers technologically advanced products, superior quality, competitive pricing and exceptional service.
Part Number
Manufacturer
Description
Unit Price
In Stock

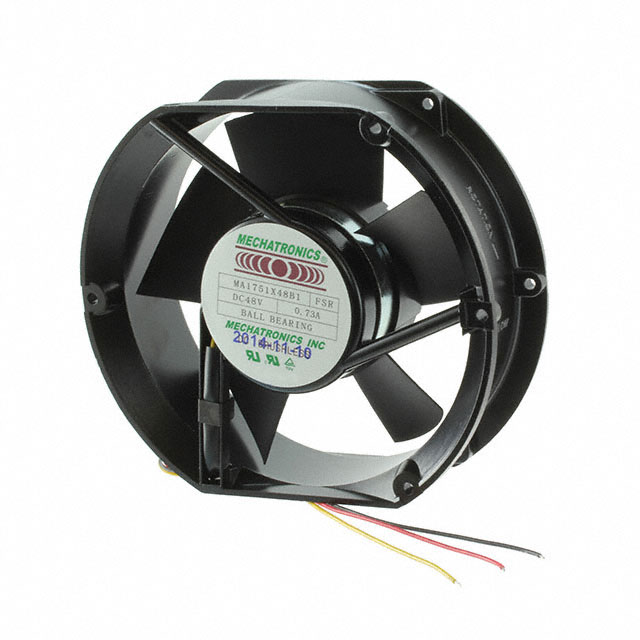

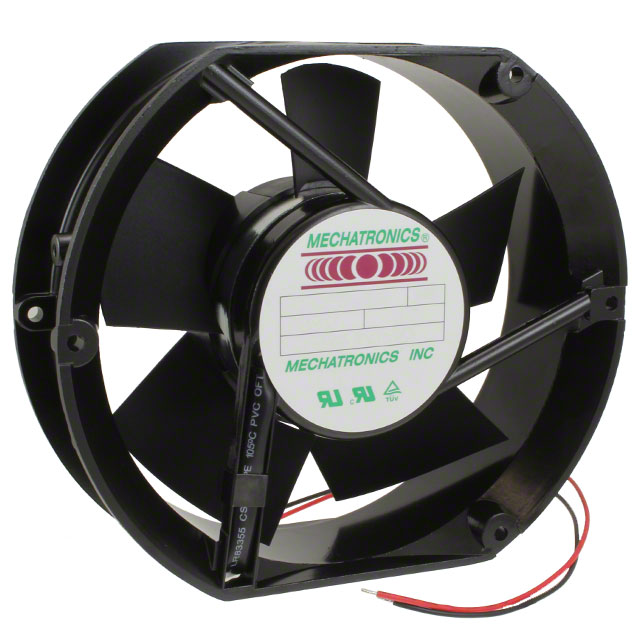

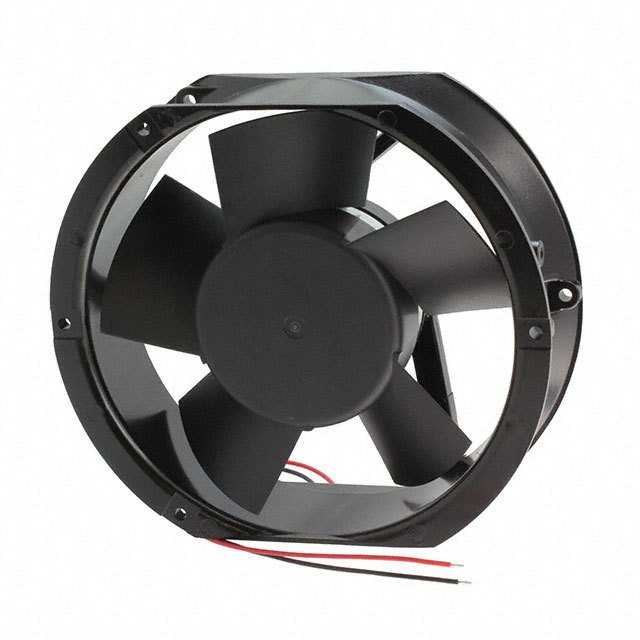

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MA1751
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 50.80mm
Air Flow : 243.6 CFM (6.82m鲁/min)
Static Pressure : 0.550 in H2O (137.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 58.4 dB(A)
Power (Watts) : -
RPM : 2850 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 1.7 lbs (771.1g)
0
5 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MA1751
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 50.80mm
Air Flow : 205.0 CFM (5.74m鲁/min)
Static Pressure : 0.390 in H2O (97.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 54.5 dB(A)
Power (Watts) : -
RPM : 2400 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 1.7 lbs (771.1g)
0
2 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MA1751
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 50.80mm
Air Flow : 324.8 CFM (9.09m鲁/min)
Static Pressure : 0.980 in H2O (244.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 66.2 dB(A)
Power (Watts) : -
RPM : 3800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 1.7 lbs (771.1g)
0
4 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MA1751
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 50.80mm
Air Flow : 290.6 CFM (8.14m鲁/min)
Static Pressure : 0.780 in H2O (194.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 63.0 dB(A)
Power (Watts) : -
RPM : 3400 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 1.7 lbs (771.1g)
0
6 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MA1751
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 50.80mm
Air Flow : 290.6 CFM (8.14m鲁/min)
Static Pressure : 0.780 in H2O (194.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 63.0 dB(A)
Power (Watts) : -
RPM : 3400 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 1.7 lbs (771.1g)
0
101 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MA1751
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 50.80mm
Air Flow : 290.6 CFM (8.14m鲁/min)
Static Pressure : 0.780 in H2O (194.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 63.0 dB(A)
Power (Watts) : -
RPM : 3400 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 1.7 lbs (771.1g)
0
5 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MA1751
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 50.80mm
Air Flow : 290.6 CFM (8.14m鲁/min)
Static Pressure : 0.780 in H2O (194.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 63.0 dB(A)
Power (Watts) : -
RPM : 3400 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 1.7 lbs (771.1g)
0
75 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MA1751
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 50.80mm
Air Flow : 290.6 CFM (8.14m鲁/min)
Static Pressure : 0.780 in H2O (194.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 63.0 dB(A)
Power (Watts) : -
RPM : 3400 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 1.7 lbs (771.1g)
0
3 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MA1751
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 50.80mm
Air Flow : 290.6 CFM (8.14m鲁/min)
Static Pressure : 0.780 in H2O (194.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 63.0 dB(A)
Power (Watts) : -
RPM : 3400 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 1.7 lbs (771.1g)
0
2 in stock

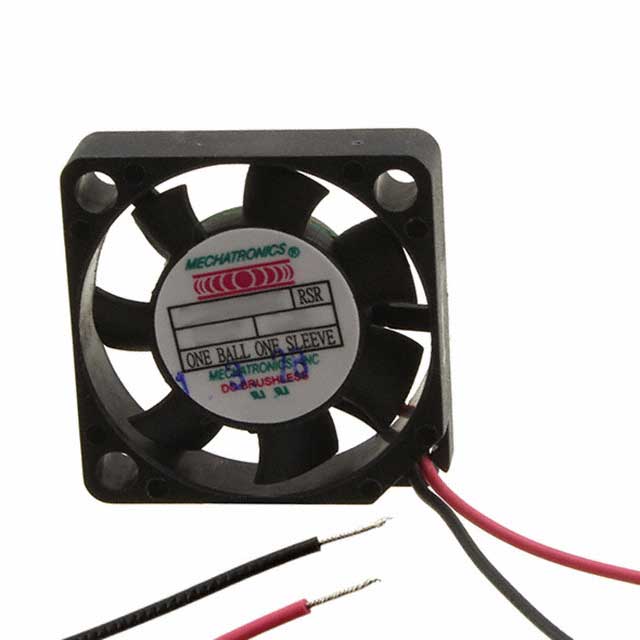

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MA2506
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 25mm L x 25mm H
Width : 6.10mm
Air Flow : 2.1 CFM (0.059m鲁/min)
Static Pressure : 0.130 in H2O (32.4 Pa)
Bearing Type : 1 Ball/1 Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 25.5 dB(A)
Power (Watts) : -
RPM : 10500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.018 lb (8.16g)
0
406 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MA2506
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 25mm L x 25mm H
Width : 6.10mm
Air Flow : 2.1 CFM (0.059m鲁/min)
Static Pressure : 0.130 in H2O (32.4 Pa)
Bearing Type : 1 Ball/1 Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 25.5 dB(A)
Power (Watts) : -
RPM : 10500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.018 lb (8.16g)
0
62 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MA2506
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 25mm L x 25mm H
Width : 6.10mm
Air Flow : 1.2 CFM (0.034m鲁/min)
Static Pressure : 0.050 in H2O (12.4 Pa)
Bearing Type : 1 Ball/1 Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 11.0 dB(A)
Power (Watts) : -
RPM : 6500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.018 lb (8.16g)
0
56 in stock
