Mechatronics
- Mechatronics is a manufacturer of brushless cooling fans and thermal solutions headquartered near Seattle, WA. Mechatronics product offering includes AC axial fans, DC axial fans, AC blowers, DC blowers, AC motorized impellers and value-added assemblies. In addition to our standard products, we offer tailored solutions to fit customer specific requirements from minor modifications to fully custom products.
With factories located in Indonesia, Taiwan and China, Mechatronics offers technologically advanced products, superior quality, competitive pricing and exceptional service.
Part Number
Manufacturer
Description
Unit Price
In Stock
Mechatronics
Manufacturer : Mechatronics Fan Group

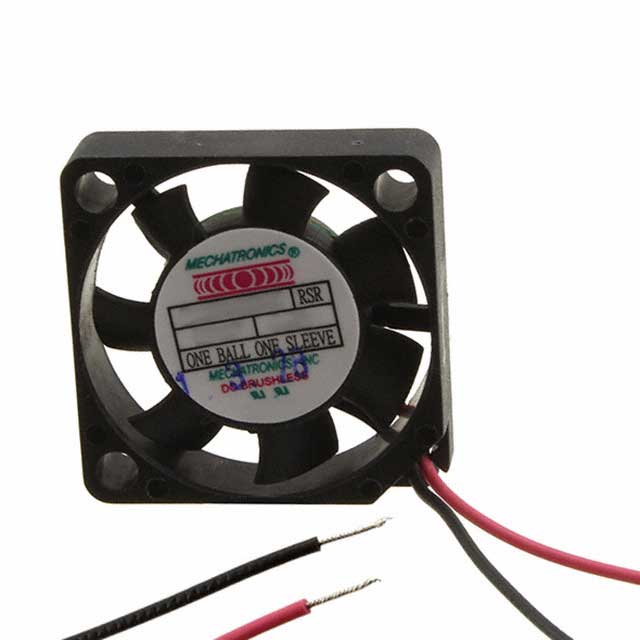

Series : MA2506
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 25mm L x 25mm H
Width : 6.10mm
Air Flow : 1.2 CFM (0.034m鲁/min)
Static Pressure : 0.050 in H2O (12.4 Pa)
Bearing Type : 1 Ball/1 Sleeve
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 11.0 dB(A)
Power (Watts) : -
RPM : 6500 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.018 lb (8.16g)
0
6 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MA2506
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 25mm L x 25mm H
Width : 6.10mm
Air Flow : 1.2 CFM (0.034m鲁/min)
Static Pressure : 0.050 in H2O (12.4 Pa)
Bearing Type : 1 Ball/1 Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 11.0 dB(A)
Power (Watts) : -
RPM : 6500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.018 lb (8.16g)
0
20 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MA2506
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 25mm L x 25mm H
Width : 6.10mm
Air Flow : 1.6 CFM (0.045m鲁/min)
Static Pressure : 0.090 in H2O (22.4 Pa)
Bearing Type : 1 Ball/1 Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 19.0 dB(A)
Power (Watts) : -
RPM : 8500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.018 lb (8.16g)
0
8 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group

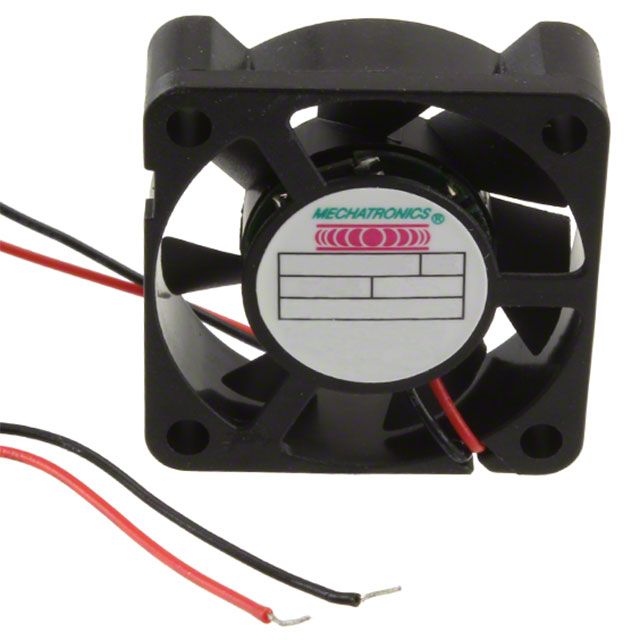

Series : MA3010
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 30mm L x 30mm H
Width : 10.00mm
Air Flow : 4.2 CFM (0.118m鲁/min)
Static Pressure : 0.150 in H2O (37.3 Pa)
Bearing Type : 1 Ball/1 Sleeve
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 28.0 dB(A)
Power (Watts) : -
RPM : 9000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.018 lb (8.16g)
0
10 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MA3010
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 30mm L x 30mm H
Width : 10.00mm
Air Flow : 4.2 CFM (0.118m鲁/min)
Static Pressure : 0.150 in H2O (37.3 Pa)
Bearing Type : 1 Ball/1 Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 28.0 dB(A)
Power (Watts) : -
RPM : 9000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.018 lb (8.16g)
0
879 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MA3010
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 30mm L x 30mm H
Width : 10.00mm
Air Flow : 4.2 CFM (0.118m鲁/min)
Static Pressure : 0.150 in H2O (37.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 28.0 dB(A)
Power (Watts) : -
RPM : 9000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.018 lb (8.16g)
0
10 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MA3010
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 30mm L x 30mm H
Width : 10.00mm
Air Flow : 4.2 CFM (0.118m鲁/min)
Static Pressure : 0.150 in H2O (37.3 Pa)
Bearing Type : 1 Ball/1 Sleeve
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 28.0 dB(A)
Power (Watts) : -
RPM : 9000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.018 lb (8.16g)
0
23 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MA3010
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 30mm L x 30mm H
Width : 10.00mm
Air Flow : 4.2 CFM (0.118m鲁/min)
Static Pressure : 0.150 in H2O (37.3 Pa)
Bearing Type : 1 Ball/1 Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 28.0 dB(A)
Power (Watts) : -
RPM : 9000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.018 lb (8.16g)
0
18 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MA3010
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 30mm L x 30mm H
Width : 10.00mm
Air Flow : 2.1 CFM (0.059m鲁/min)
Static Pressure : 0.070 in H2O (17.4 Pa)
Bearing Type : 1 Ball/1 Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 15.0 dB(A)
Power (Watts) : -
RPM : 5000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.018 lb (8.16g)
0
10 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group

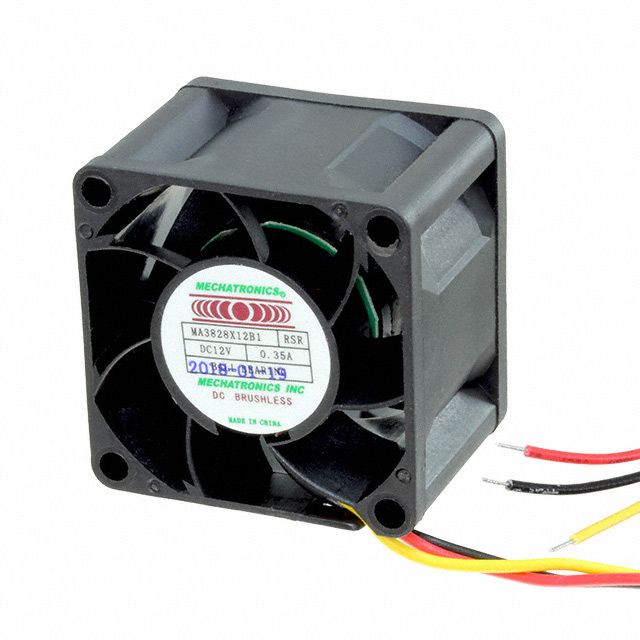

Series : MA3828
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 38mm L x 38mm H
Width : 28.00mm
Air Flow : 6.2 CFM (0.174m鲁/min)
Static Pressure : 0.136 in H2O (33.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 30.8 dB(A)
Power (Watts) : -
RPM : 5000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, UL
Weight : 0.078 lb (35.38g)
0
30 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MA3828
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 38mm L x 38mm H
Width : 28.00mm
Air Flow : 6.2 CFM (0.174m鲁/min)
Static Pressure : 0.136 in H2O (33.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 30.8 dB(A)
Power (Watts) : -
RPM : 5000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, UL
Weight : 0.078 lb (35.38g)
0
10 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MA3828
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 38mm L x 38mm H
Width : 28.00mm
Air Flow : 19.5 CFM (0.546m鲁/min)
Static Pressure : 1.145 in H2O (285.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 53.1 dB(A)
Power (Watts) : -
RPM : 15000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, UL
Weight : 0.078 lb (35.38g)
0
9 in stock
