Mechatronics
- Mechatronics is a manufacturer of brushless cooling fans and thermal solutions headquartered near Seattle, WA. Mechatronics product offering includes AC axial fans, DC axial fans, AC blowers, DC blowers, AC motorized impellers and value-added assemblies. In addition to our standard products, we offer tailored solutions to fit customer specific requirements from minor modifications to fully custom products.
With factories located in Indonesia, Taiwan and China, Mechatronics offers technologically advanced products, superior quality, competitive pricing and exceptional service.
Part Number
Manufacturer
Description
Unit Price
In Stock

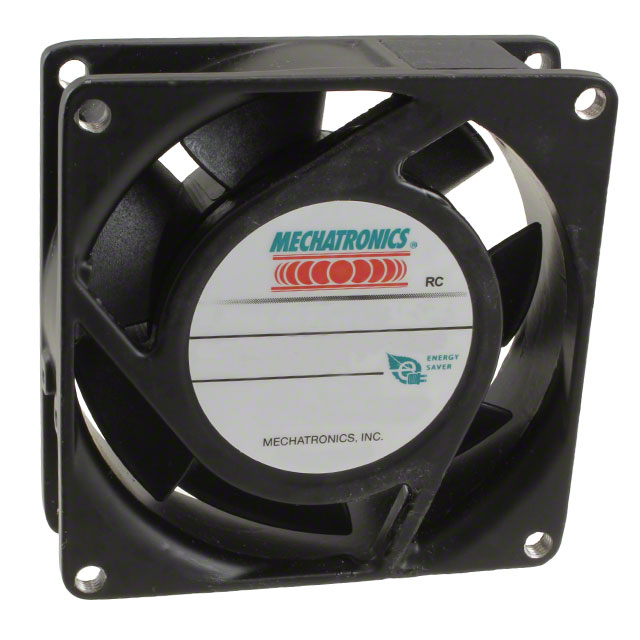

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : LPC80B
Part Status : Obsolete
Voltage - Rated : -
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 43.0 CFM (1.20m鲁/min)
Static Pressure : 0.180 in H2O (44.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Electronic Commutation (EC)
Noise : 36.0 dB(A)
Power (Watts) : 3.50W
RPM : 3500 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : -
Weight : 0.386 lb (175.09g)
0
100 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : LPC80B
Part Status : Obsolete
Voltage - Rated : -
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 53.0 CFM (1.48m鲁/min)
Static Pressure : 0.250 in H2O (62.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Electronic Commutation (EC)
Noise : 45.0 dB(A)
Power (Watts) : 5.00W
RPM : 4500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : -
Weight : 0.386 lb (175.09g)
0
100 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : LPC80B
Part Status : Obsolete
Voltage - Rated : -
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 48.0 CFM (1.34m鲁/min)
Static Pressure : 0.210 in H2O (52.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Electronic Commutation (EC)
Noise : 40.0 dB(A)
Power (Watts) : 4.00W
RPM : 4000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : -
Weight : 0.386 lb (175.09g)
0
100 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : LPC80B
Part Status : Obsolete
Voltage - Rated : -
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 43.0 CFM (1.20m鲁/min)
Static Pressure : 0.180 in H2O (44.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Electronic Commutation (EC)
Noise : 36.0 dB(A)
Power (Watts) : 3.50W
RPM : 3500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : -
Weight : 0.386 lb (175.09g)
0
100 in stock

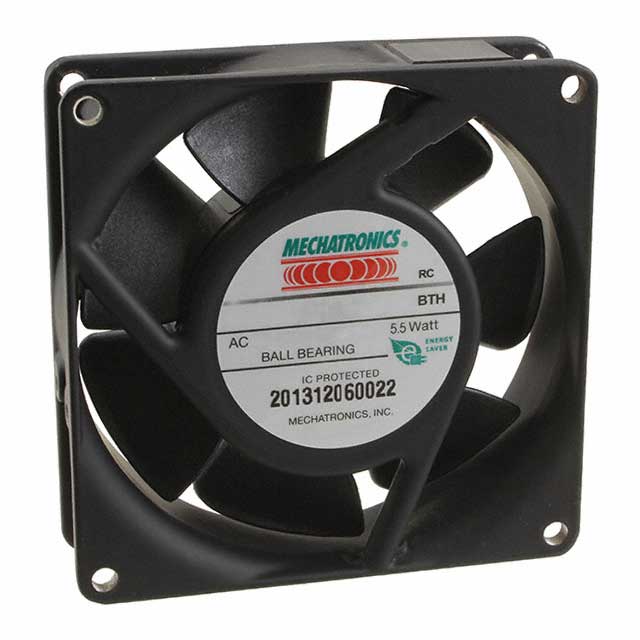

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : LPC92B
Part Status : Obsolete
Voltage - Rated : -
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 58.0 CFM (1.62m鲁/min)
Static Pressure : 0.260 in H2O (64.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Electronic Commutation (EC)
Noise : 40.0 dB(A)
Power (Watts) : 5.50W
RPM : 4000 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : -
Weight : 0.386 lb (175.09g)
0
7 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : LPC92B
Part Status : Obsolete
Voltage - Rated : -
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 48.0 CFM (1.34m鲁/min)
Static Pressure : 0.190 in H2O (47.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Electronic Commutation (EC)
Noise : 35.0 dB(A)
Power (Watts) : 4.00W
RPM : 3000 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : -
Weight : 0.386 lb (175.09g)
0
100 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : LPC92B
Part Status : Obsolete
Voltage - Rated : -
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 58.0 CFM (1.62m鲁/min)
Static Pressure : 0.260 in H2O (64.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Electronic Commutation (EC)
Noise : 40.0 dB(A)
Power (Watts) : 5.50W
RPM : 4000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : -
Weight : 0.386 lb (175.09g)
0
100 in stock

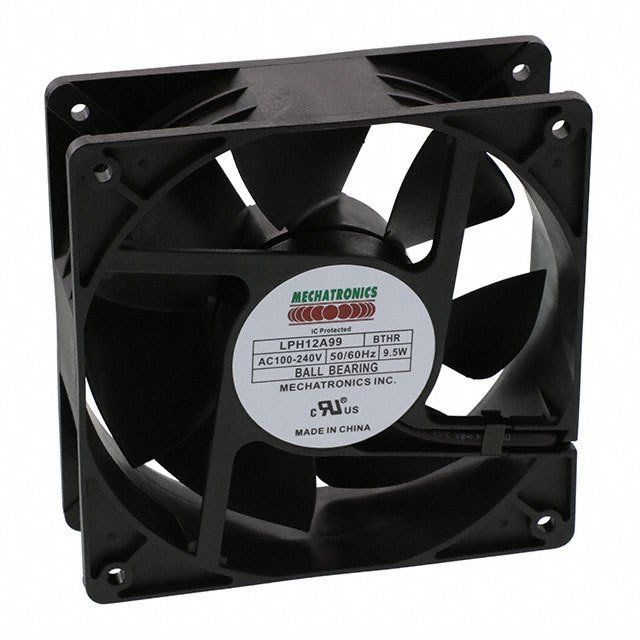

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : LPH12A99
Part Status : Active
Voltage - Rated : 100 ~ 240VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.50mm
Air Flow : 123.9 CFM (3.47m鲁/min)
Static Pressure : 0.363 in H2O (90.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart, Electronic Commutation (EC)
Noise : 49.0 dB(A)
Power (Watts) : 9.50W
RPM : 3500 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 0.628 lb (284.86g)
0
236 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : LPH12B99
Part Status : Active
Voltage - Rated : 100 ~ 240VAC
Size / Dimension : Square - 120mm L x 120mm H
Width : 25.50mm
Air Flow : 79.0 CFM (2.21m鲁/min)
Static Pressure : 0.180 in H2O (44.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart, Electronic Commutation (EC)
Noise : 44.0 dB(A)
Power (Watts) : 6.00W
RPM : 3000 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 0.324 lb (146.96g)
0
1244 in stock

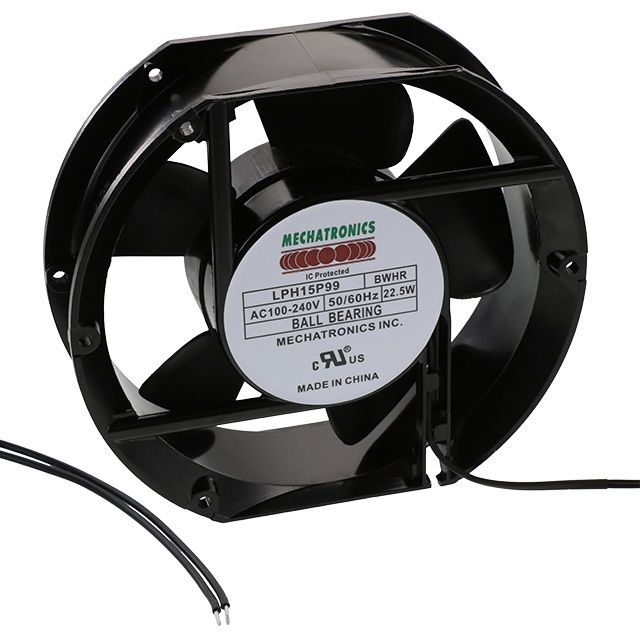

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : LPH15P99
Part Status : Active
Voltage - Rated : 100 ~ 240VAC
Size / Dimension : Rectangular - 172mm L x 150mm H
Width : 51.50mm
Air Flow : 228.0 CFM (6.38m鲁/min)
Static Pressure : 0.600 in H2O (149.5 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart, Electronic Commutation (EC)
Noise : 55.0 dB(A)
Power (Watts) : 22.50W
RPM : 3200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 1.6 lbs (725.7g)
0
100 in stock

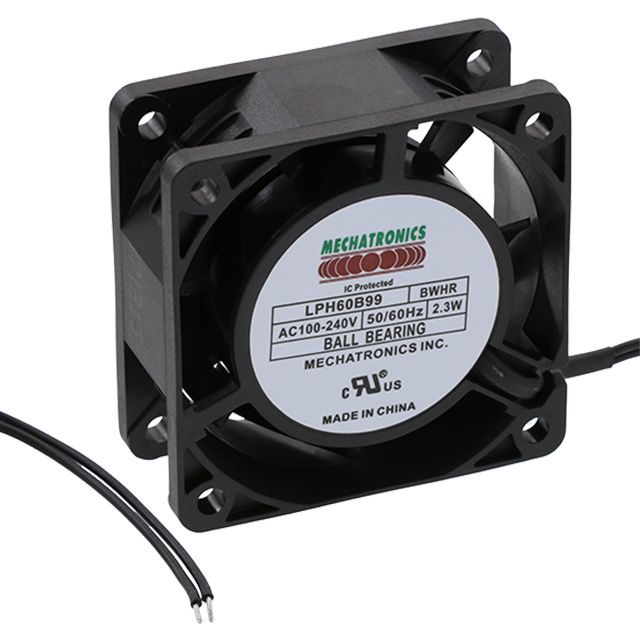

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : LPH60B99
Part Status : Active
Voltage - Rated : 100 ~ 240VAC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.50mm
Air Flow : 17.0 CFM (0.476m鲁/min)
Static Pressure : 0.240 in H2O (59.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart, Electronic Commutation (EC)
Noise : 55.0 dB(A)
Power (Watts) : 22.50W
RPM : 4500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 0.154 lb (69.85g)
0
458 in stock

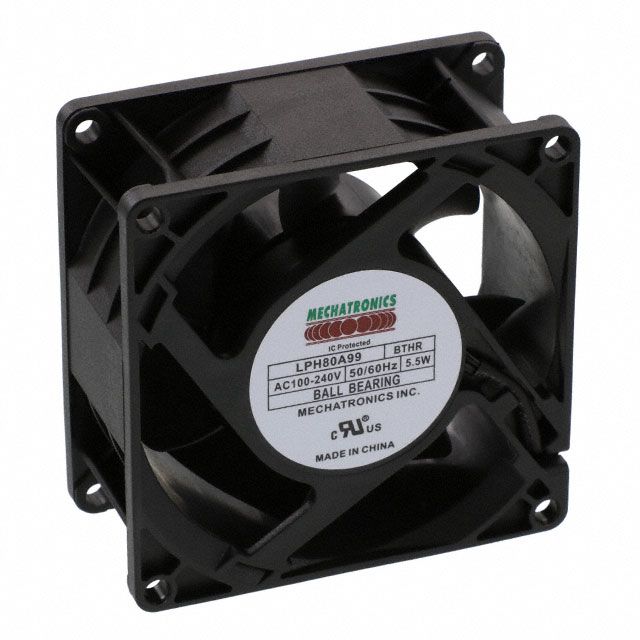

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : LPH80A99
Part Status : Active
Voltage - Rated : 100 ~ 240VAC
Size / Dimension : Square - 80mm L x 80mm H
Width : 38.00mm
Air Flow : 41.0 CFM (1.15m鲁/min)
Static Pressure : 0.280 in H2O (70.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart, Electronic Commutation (EC)
Noise : 31.0 dB(A)
Power (Watts) : 5.50W
RPM : 4000 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 0.359 lb (162.84g)
0
185 in stock
