Mechatronics
- Mechatronics is a manufacturer of brushless cooling fans and thermal solutions headquartered near Seattle, WA. Mechatronics product offering includes AC axial fans, DC axial fans, AC blowers, DC blowers, AC motorized impellers and value-added assemblies. In addition to our standard products, we offer tailored solutions to fit customer specific requirements from minor modifications to fully custom products.
With factories located in Indonesia, Taiwan and China, Mechatronics offers technologically advanced products, superior quality, competitive pricing and exceptional service.
Part Number
Manufacturer
Description
Unit Price
In Stock

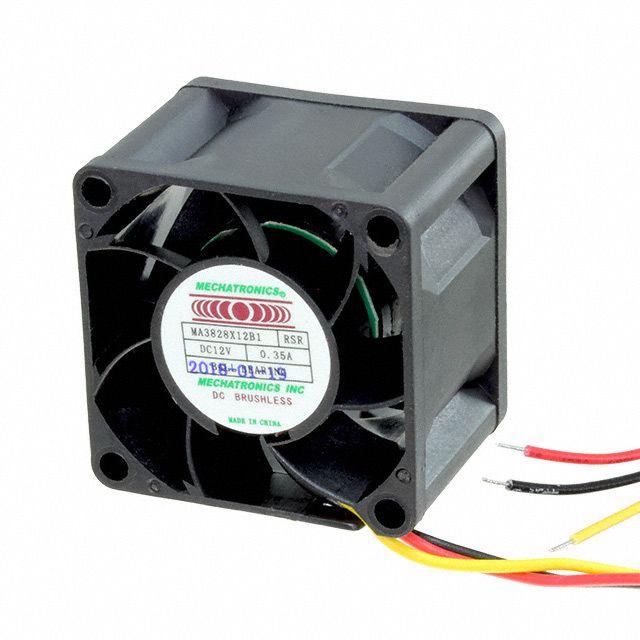

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MA3828
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 38mm L x 38mm H
Width : 28.00mm
Air Flow : 15.0 CFM (0.420m鲁/min)
Static Pressure : 0.698 in H2O (173.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 43.0 dB(A)
Power (Watts) : -
RPM : 11500 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, UL
Weight : 0.078 lb (35.38g)
0
6 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MA4010
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 10.00mm
Air Flow : 4.9 CFM (0.137m鲁/min)
Static Pressure : 0.110 in H2O (27.4 Pa)
Bearing Type : 1 Ball/1 Sleeve
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 26.0 dB(A)
Power (Watts) : -
RPM : 6000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, UL
Weight : 0.046 lb (20.87g)
0
195 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MA4010
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 10.00mm
Air Flow : 4.9 CFM (0.137m鲁/min)
Static Pressure : 0.110 in H2O (27.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 26.0 dB(A)
Power (Watts) : -
RPM : 6000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, UL
Weight : 0.046 lb (20.87g)
0
48 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MA4010
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 10.00mm
Air Flow : 4.9 CFM (0.137m鲁/min)
Static Pressure : 0.110 in H2O (27.4 Pa)
Bearing Type : 1 Ball/1 Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 26.0 dB(A)
Power (Watts) : -
RPM : 6000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, UL
Weight : 0.046 lb (20.87g)
0
76 in stock

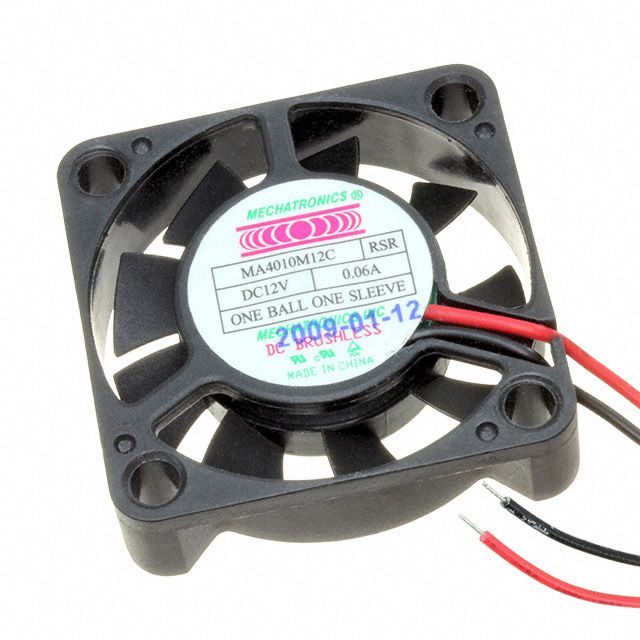

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MA4010
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 10.00mm
Air Flow : 4.2 CFM (0.118m鲁/min)
Static Pressure : 0.080 in H2O (19.9 Pa)
Bearing Type : 1 Ball/1 Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 24.0 dB(A)
Power (Watts) : -
RPM : 5000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, UL
Weight : 0.046 lb (20.87g)
0
100 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MA4010
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 10.00mm
Air Flow : 4.2 CFM (0.118m鲁/min)
Static Pressure : 0.080 in H2O (19.9 Pa)
Bearing Type : 1 Ball/1 Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 24.0 dB(A)
Power (Watts) : -
RPM : 5000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, UL
Weight : 0.046 lb (20.87g)
0
132 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MA7015
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 70mm L x 70mm H
Width : 15.00mm
Air Flow : -
Static Pressure : -
Bearing Type : Ball
Fan Type : -
Features : Speed Sensor (Tach)
Noise : -
Power (Watts) : -
RPM : -
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, UL
Weight : -
0
9 in stock

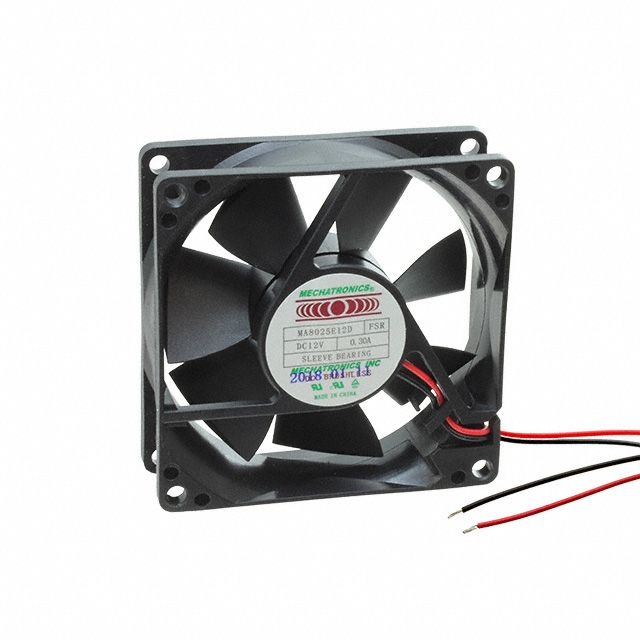

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MA8025
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : -
Static Pressure : -
Bearing Type : Sleeve
Fan Type : -
Features : -
Noise : -
Power (Watts) : -
RPM : -
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, UL
Weight : -
0
15 in stock

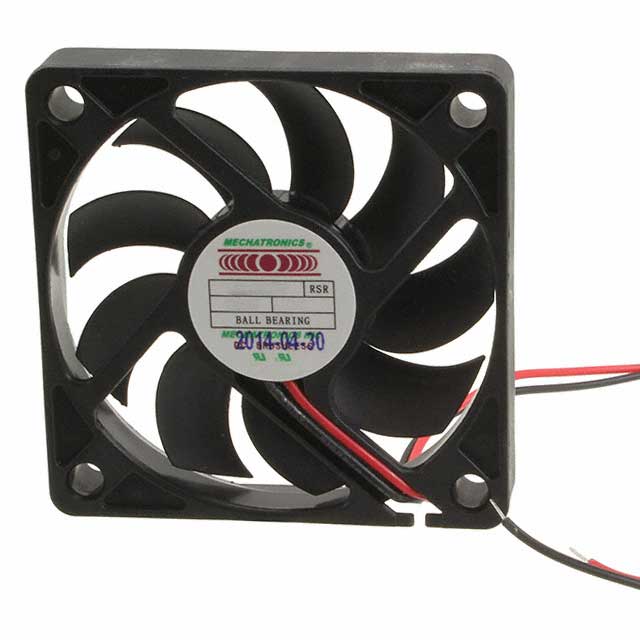

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MB6010
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 10.20mm
Air Flow : 13.5 CFM (0.378m鲁/min)
Static Pressure : 0.080 in H2O (19.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 28.0 dB(A)
Power (Watts) : -
RPM : 3900 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, UL
Weight : 0.059 lb (26.76g)
0
8 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MB6010
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 10.20mm
Air Flow : 13.5 CFM (0.378m鲁/min)
Static Pressure : 0.080 in H2O (19.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 28.0 dB(A)
Power (Watts) : -
RPM : 3900 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, UL
Weight : 0.059 lb (26.76g)
0
8 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MB6010
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 10.20mm
Air Flow : 9.4 CFM (0.263m鲁/min)
Static Pressure : 0.040 in H2O (10.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 19.0 dB(A)
Power (Watts) : -
RPM : 2700 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, UL
Weight : 0.059 lb (26.76g)
0
15 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MB6010
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 10.20mm
Air Flow : 11.0 CFM (0.308m鲁/min)
Static Pressure : 0.060 in H2O (14.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 22.5 dB(A)
Power (Watts) : -
RPM : 3200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, UL
Weight : 0.059 lb (26.76g)
0
1954 in stock
