Mechatronics
- Mechatronics is a manufacturer of brushless cooling fans and thermal solutions headquartered near Seattle, WA. Mechatronics product offering includes AC axial fans, DC axial fans, AC blowers, DC blowers, AC motorized impellers and value-added assemblies. In addition to our standard products, we offer tailored solutions to fit customer specific requirements from minor modifications to fully custom products.
With factories located in Indonesia, Taiwan and China, Mechatronics offers technologically advanced products, superior quality, competitive pricing and exceptional service.
Part Number
Manufacturer
Description
Unit Price
In Stock

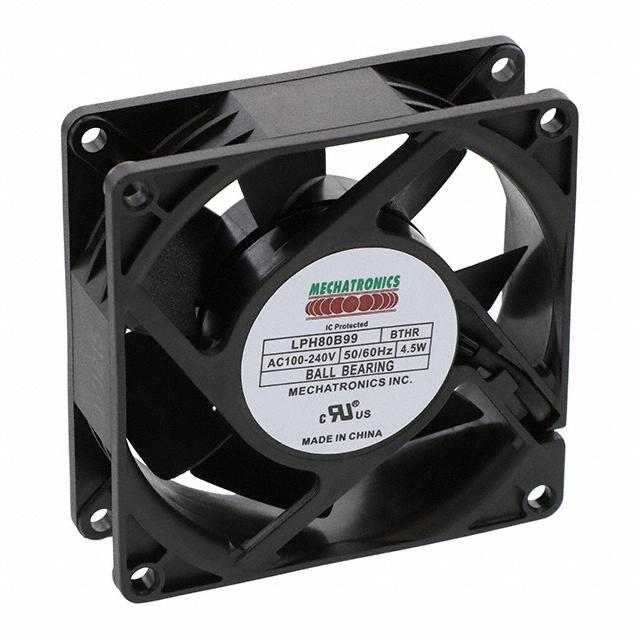

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : LPH80B99
Part Status : Active
Voltage - Rated : 100 ~ 240VAC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.50mm
Air Flow : 39.0 CFM (1.09m鲁/min)
Static Pressure : 0.250 in H2O (62.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart, Electronic Commutation (EC)
Noise : 31.0 dB(A)
Power (Watts) : 4.50W
RPM : 3500 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 0.209 lb (94.89g)
0
226 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : LPH92A99
Part Status : Active
Voltage - Rated : 100 ~ 240VAC
Size / Dimension : Square - 92mm L x 92mm H
Width : 38.00mm
Air Flow : 68.0 CFM (1.90m鲁/min)
Static Pressure : 0.290 in H2O (72.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart, Electronic Commutation (EC)
Noise : 42.0 dB(A)
Power (Watts) : 5.50W
RPM : 3500 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 0.384 lb (174.18g)
0
102 in stock

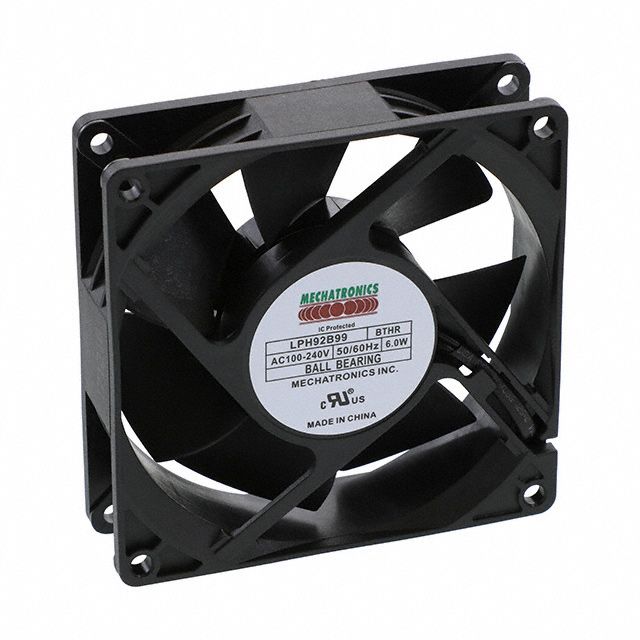

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : LPH92B99
Part Status : Active
Voltage - Rated : 100 ~ 240VAC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.50mm
Air Flow : 56.0 CFM (1.57m鲁/min)
Static Pressure : 0.270 in H2O (67.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart, Electronic Commutation (EC)
Noise : 44.0 dB(A)
Power (Watts) : 6.30W
RPM : 3500 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : CE, cUL, TUV, UL
Weight : 0.234 lb (106.14g)
0
54 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : M5010
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 50mm L x 50mm H
Width : 10.00mm
Air Flow : 9.9 CFM (0.277m鲁/min)
Static Pressure : 0.140 in H2O (34.9 Pa)
Bearing Type : 1 Ball/1 Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 28.0 dB(A)
Power (Watts) : -
RPM : 6000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.046 lb (20.87g)
0
1317 in stock

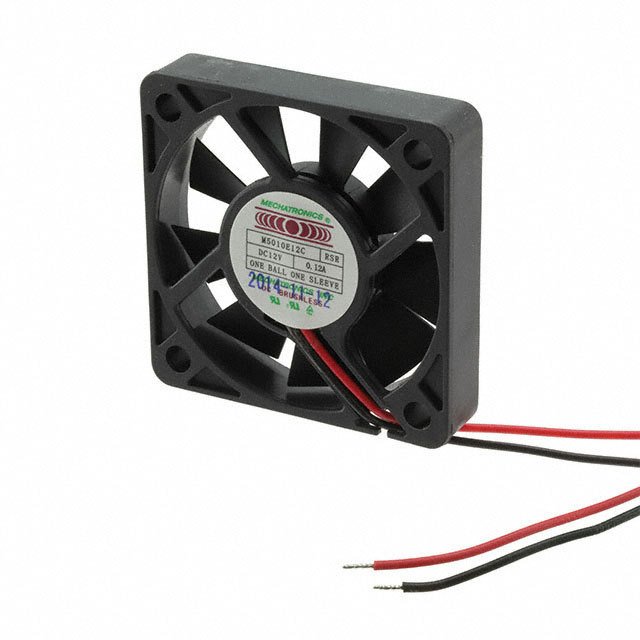

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : M5010
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 50mm L x 50mm H
Width : 10.00mm
Air Flow : 9.9 CFM (0.277m鲁/min)
Static Pressure : 0.140 in H2O (34.9 Pa)
Bearing Type : 1 Ball/1 Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 28.0 dB(A)
Power (Watts) : -
RPM : 6000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.046 lb (20.87g)
0
502 in stock

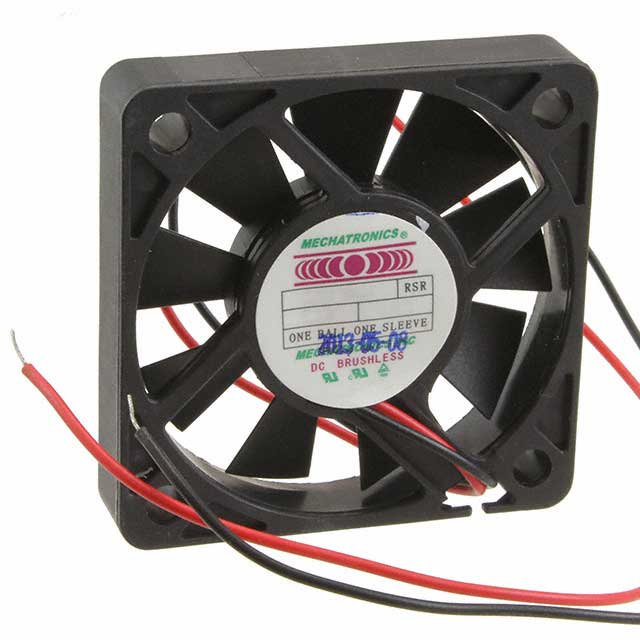

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : M5210
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 52mm L x 52mm H
Width : 10.00mm
Air Flow : 11.3 CFM (0.316m鲁/min)
Static Pressure : 0.150 in H2O (37.3 Pa)
Bearing Type : 1 Ball/1 Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 28.0 dB(A)
Power (Watts) : -
RPM : 6000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.044 lb (19.96g)
0
159 in stock

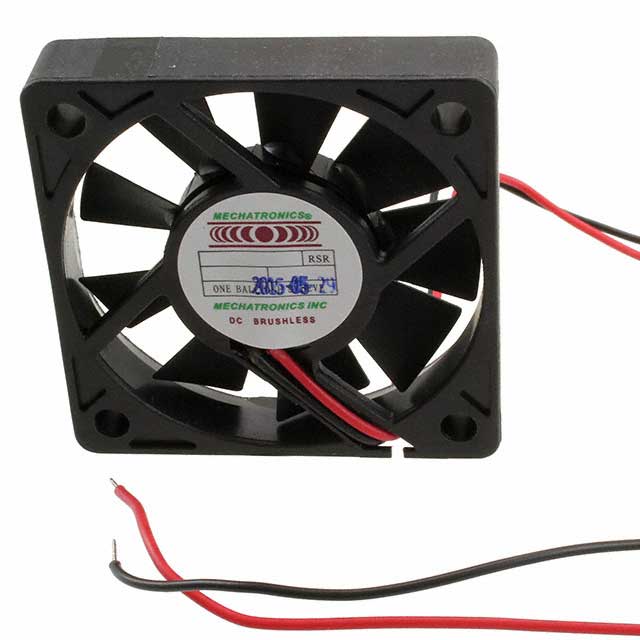

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : M5210
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 52mm L x 52mm H
Width : 10.00mm
Air Flow : 11.3 CFM (0.316m鲁/min)
Static Pressure : 0.150 in H2O (37.3 Pa)
Bearing Type : 1 Ball/1 Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 28.0 dB(A)
Power (Watts) : -
RPM : 6000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.044 lb (19.96g)
0
399 in stock

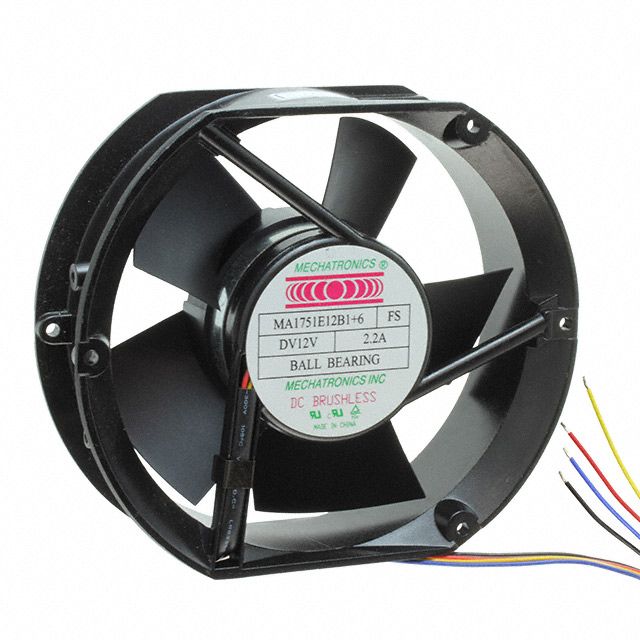

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MA1751
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 50.80mm
Air Flow : 269.2 CFM (7.54m鲁/min)
Static Pressure : 0.670 in H2O (166.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 61.0 dB(A)
Power (Watts) : -
RPM : 3150 RPM
Termination : 4 Wire Leads
Ingress Protection : IP57 - Dust Protected, Waterproof
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 1.7 lbs (771.1g)
0
100 in stock

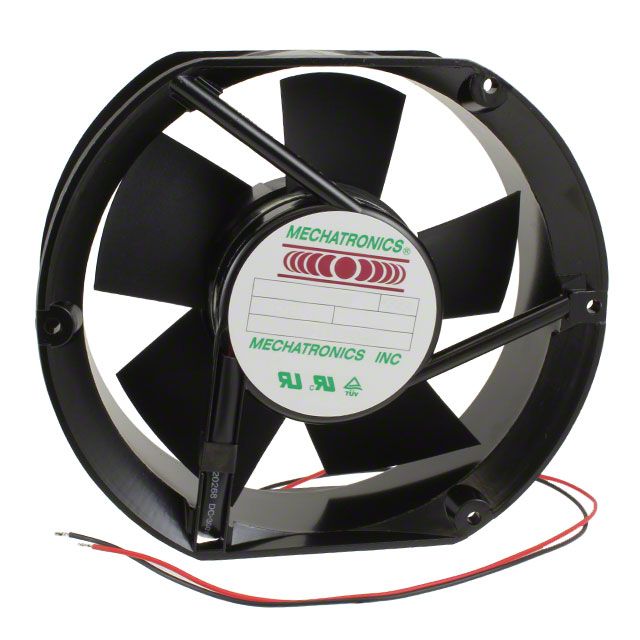

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MA1751
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 50.80mm
Air Flow : 269.2 CFM (7.54m鲁/min)
Static Pressure : 0.670 in H2O (166.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 61.0 dB(A)
Power (Watts) : -
RPM : 3150 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 1.7 lbs (771.1g)
0
307 in stock

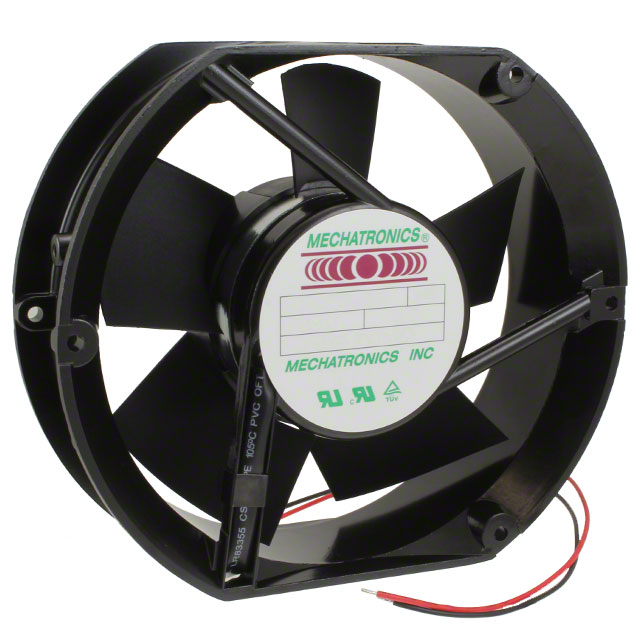

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MA1751
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 50.80mm
Air Flow : 269.2 CFM (7.54m鲁/min)
Static Pressure : 0.670 in H2O (166.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 61.0 dB(A)
Power (Watts) : -
RPM : 3150 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 1.7 lbs (771.1g)
0
4 in stock

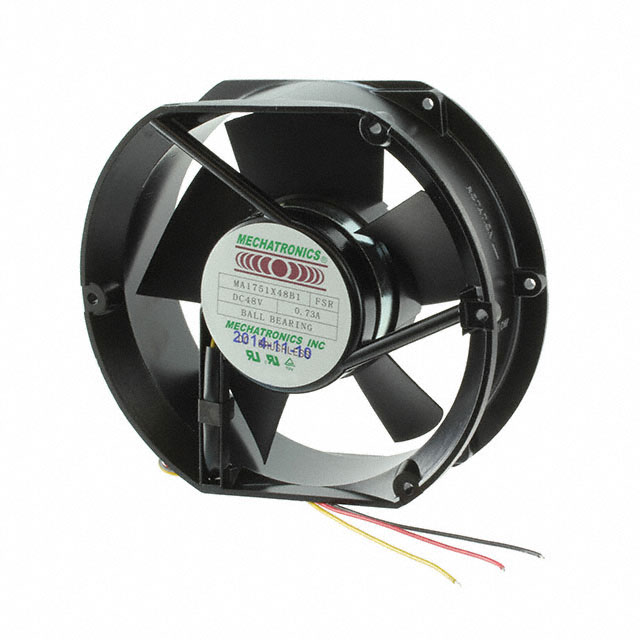

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MA1751
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 50.80mm
Air Flow : 269.2 CFM (7.54m鲁/min)
Static Pressure : 0.670 in H2O (166.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 61.0 dB(A)
Power (Watts) : -
RPM : 3150 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 1.7 lbs (771.1g)
0
5 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MA1751
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 50.80mm
Air Flow : 243.6 CFM (6.82m鲁/min)
Static Pressure : 0.550 in H2O (137.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 58.4 dB(A)
Power (Watts) : -
RPM : 2850 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 1.7 lbs (771.1g)
0
40 in stock
