API Delevan
- API Delevan designs, manufactures, and markets an extensive line of quality inductors, chokes, and coils to satisfy various electrical filtering requirements. The Group concentrates on producing high performance inductive devices to meet stringent government and customer specifications relating to high product quality and reliability.
Part Number
Manufacturer
Description
Unit Price
In Stock
S1210R-392K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1210R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 3.9µH
Tolerance : ±10%
Current Rating : 441mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 830 mOhm Max
Q @ Freq : 40 @ 7.9MHz
Frequency - Self Resonant : 42MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1210R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 3.9µH
Tolerance : ±10%
Current Rating : 441mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 830 mOhm Max
Q @ Freq : 40 @ 7.9MHz
Frequency - Self Resonant : 42MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
0
100 in stock
S1210R-393K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1210R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 39µH
Tolerance : ±10%
Current Rating : 179mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 5 Ohm Max
Q @ Freq : 40 @ 2.5MHz
Frequency - Self Resonant : 12MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1210R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 39µH
Tolerance : ±10%
Current Rating : 179mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 5 Ohm Max
Q @ Freq : 40 @ 2.5MHz
Frequency - Self Resonant : 12MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
0
100 in stock
S1210R-471K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1210R
Part Status : Active
Type : -
Material - Core : Iron
Inductance : 470nH
Tolerance : ±10%
Current Rating : 653mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 450 mOhm Max
Q @ Freq : 40 @ 25MHz
Frequency - Self Resonant : 220MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 25MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1210R
Part Status : Active
Type : -
Material - Core : Iron
Inductance : 470nH
Tolerance : ±10%
Current Rating : 653mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 450 mOhm Max
Q @ Freq : 40 @ 25MHz
Frequency - Self Resonant : 220MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 25MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
0
100 in stock
S1210R-472K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1210R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 4.7µH
Tolerance : ±10%
Current Rating : 402mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 1 Ohm Max
Q @ Freq : 40 @ 7.9MHz
Frequency - Self Resonant : 40MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1210R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 4.7µH
Tolerance : ±10%
Current Rating : 402mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 1 Ohm Max
Q @ Freq : 40 @ 7.9MHz
Frequency - Self Resonant : 40MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
0
100 in stock
S1210R-473K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1210R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 47µH
Tolerance : ±10%
Current Rating : 171mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 5.5 Ohm Max
Q @ Freq : 40 @ 2.5MHz
Frequency - Self Resonant : 10MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1210R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 47µH
Tolerance : ±10%
Current Rating : 171mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 5.5 Ohm Max
Q @ Freq : 40 @ 2.5MHz
Frequency - Self Resonant : 10MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
0
1965 in stock

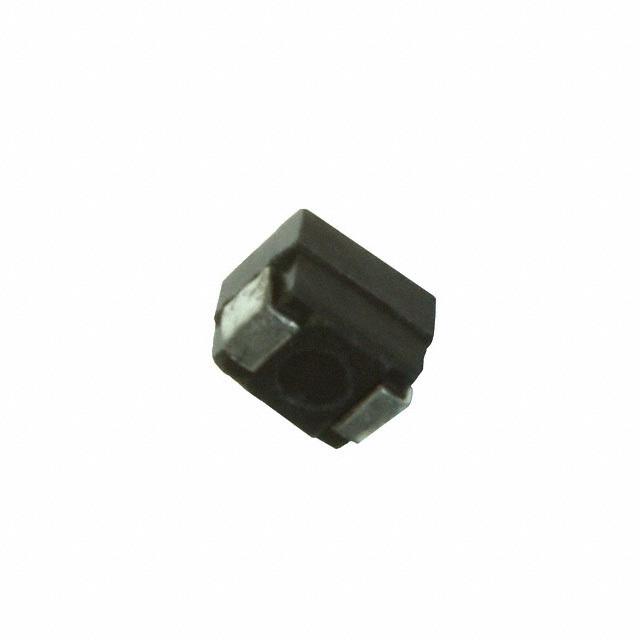

S1210R-561K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1210R
Part Status : Active
Type : -
Material - Core : Iron
Inductance : 560nH
Tolerance : ±10%
Current Rating : 619mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 500 mOhm Max
Q @ Freq : 40 @ 25MHz
Frequency - Self Resonant : 200MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 25MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1210R
Part Status : Active
Type : -
Material - Core : Iron
Inductance : 560nH
Tolerance : ±10%
Current Rating : 619mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 500 mOhm Max
Q @ Freq : 40 @ 25MHz
Frequency - Self Resonant : 200MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 25MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
0
100 in stock
S1210R-562K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1210R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 5.6µH
Tolerance : ±10%
Current Rating : 352mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 1.3 Ohm Max
Q @ Freq : 40 @ 7.9MHz
Frequency - Self Resonant : 38MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1210R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 5.6µH
Tolerance : ±10%
Current Rating : 352mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 1.3 Ohm Max
Q @ Freq : 40 @ 7.9MHz
Frequency - Self Resonant : 38MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
0
48 in stock
S1210R-681K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1210R
Part Status : Active
Type : -
Material - Core : Iron
Inductance : 680nH
Tolerance : ±10%
Current Rating : 590mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 550 mOhm Max
Q @ Freq : 40 @ 25MHz
Frequency - Self Resonant : 180MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 25MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1210R
Part Status : Active
Type : -
Material - Core : Iron
Inductance : 680nH
Tolerance : ±10%
Current Rating : 590mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 550 mOhm Max
Q @ Freq : 40 @ 25MHz
Frequency - Self Resonant : 180MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 25MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
0
100 in stock
S1210R-682K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1210R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 6.8µH
Tolerance : ±10%
Current Rating : 328mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 1.5 Ohm Max
Q @ Freq : 40 @ 7.9MHz
Frequency - Self Resonant : 35MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1210R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 6.8µH
Tolerance : ±10%
Current Rating : 328mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 1.5 Ohm Max
Q @ Freq : 40 @ 7.9MHz
Frequency - Self Resonant : 35MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
0
7 in stock
S1210R-821K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1210R
Part Status : Active
Type : -
Material - Core : Iron
Inductance : 820nH
Tolerance : ±10%
Current Rating : 565mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 600 mOhm Max
Q @ Freq : 40 @ 25MHz
Frequency - Self Resonant : 170MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 25MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1210R
Part Status : Active
Type : -
Material - Core : Iron
Inductance : 820nH
Tolerance : ±10%
Current Rating : 565mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 600 mOhm Max
Q @ Freq : 40 @ 25MHz
Frequency - Self Resonant : 170MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 25MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
0
100 in stock
S1210RKIT
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Plastic Box with Bin Guide
Series : S1210
Part Status : Obsolete
Kit Type : Fixed
Style : -
Material - Core : -
Quantity : 185 Pieces (37 Values - 5 Each)
Inductance Range : 100nH ~ 100µH
Mounting Type : Surface Mount
Packages Included : 1210 (3225 Metric)
Features : -
Shielding : Shielded
Packaging : Plastic Box with Bin Guide
Series : S1210
Part Status : Obsolete
Kit Type : Fixed
Style : -
Material - Core : -
Quantity : 185 Pieces (37 Values - 5 Each)
Inductance Range : 100nH ~ 100µH
Mounting Type : Surface Mount
Packages Included : 1210 (3225 Metric)
Features : -
Shielding : Shielded
0
100 in stock

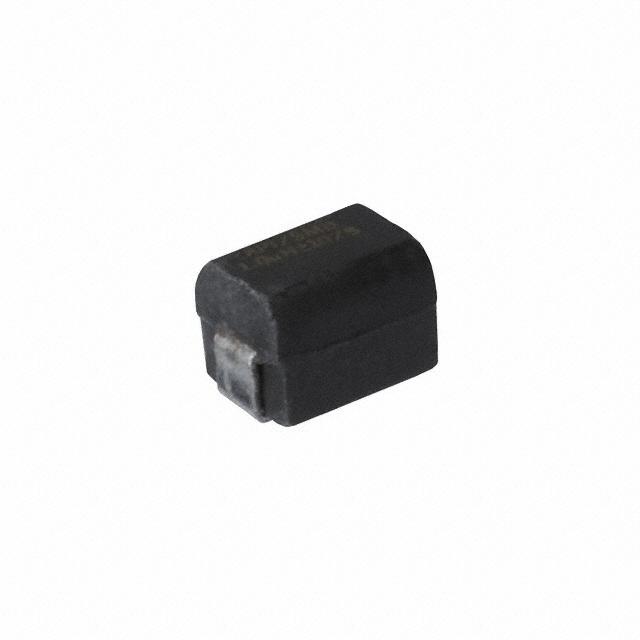

S1812-683K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1812
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 68µH
Tolerance : ±10%
Current Rating : 215mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 4.3 Ohm Max
Q @ Freq : 50 @ 2.5MHz
Frequency - Self Resonant : 7.6MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1812
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 68µH
Tolerance : ±10%
Current Rating : 215mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 4.3 Ohm Max
Q @ Freq : 50 @ 2.5MHz
Frequency - Self Resonant : 7.6MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
