API Delevan
- API Delevan designs, manufactures, and markets an extensive line of quality inductors, chokes, and coils to satisfy various electrical filtering requirements. The Group concentrates on producing high performance inductive devices to meet stringent government and customer specifications relating to high product quality and reliability.
Part Number
Manufacturer
Description
Unit Price
In Stock

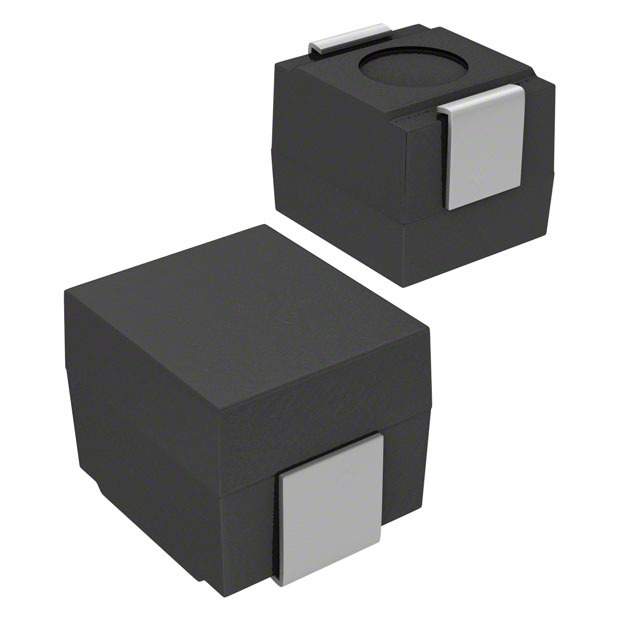

S1008R-821K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1008R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 820nH
Tolerance : ±10%
Current Rating : 715mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 220 mOhm Max
Q @ Freq : 40 @ 25MHz
Frequency - Self Resonant : 140MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 25MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.105" L x 0.095" W (2.66mm x 2.41mm)
Height - Seated (Max) : 0.095" (2.41mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1008R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 820nH
Tolerance : ±10%
Current Rating : 715mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 220 mOhm Max
Q @ Freq : 40 @ 25MHz
Frequency - Self Resonant : 140MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 25MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.105" L x 0.095" W (2.66mm x 2.41mm)
Height - Seated (Max) : 0.095" (2.41mm)
0
389 in stock
S1008R-822K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1008R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 8.2µH
Tolerance : ±10%
Current Rating : 240mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 1.9 Ohm Max
Q @ Freq : 30 @ 7.9MHz
Frequency - Self Resonant : 32MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.105" L x 0.095" W (2.66mm x 2.41mm)
Height - Seated (Max) : 0.095" (2.41mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1008R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 8.2µH
Tolerance : ±10%
Current Rating : 240mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 1.9 Ohm Max
Q @ Freq : 30 @ 7.9MHz
Frequency - Self Resonant : 32MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.105" L x 0.095" W (2.66mm x 2.41mm)
Height - Seated (Max) : 0.095" (2.41mm)
0
100 in stock
S1008R-911K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1008R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 910nH
Tolerance : ±10%
Current Rating : 685mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 240 mOhm Max
Q @ Freq : 40 @ 25MHz
Frequency - Self Resonant : 130MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 25MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.105" L x 0.095" W (2.66mm x 2.41mm)
Height - Seated (Max) : 0.095" (2.41mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1008R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 910nH
Tolerance : ±10%
Current Rating : 685mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 240 mOhm Max
Q @ Freq : 40 @ 25MHz
Frequency - Self Resonant : 130MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 25MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.105" L x 0.095" W (2.66mm x 2.41mm)
Height - Seated (Max) : 0.095" (2.41mm)
0
100 in stock
S1008RKIT
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Plastic Box with Bin Guide
Series : S1008
Part Status : Obsolete
Kit Type : Fixed
Style : -
Material - Core : Ferrite
Quantity : 180 Pieces (36 Values - 5 Each)
Inductance Range : 100nH ~ 47µH
Mounting Type : Surface Mount
Packages Included : 1008
Features : -
Shielding : Shielded
Packaging : Plastic Box with Bin Guide
Series : S1008
Part Status : Obsolete
Kit Type : Fixed
Style : -
Material - Core : Ferrite
Quantity : 180 Pieces (36 Values - 5 Each)
Inductance Range : 100nH ~ 47µH
Mounting Type : Surface Mount
Packages Included : 1008
Features : -
Shielding : Shielded
0
100 in stock
S1210KIT
API Delevan
Manufacturer : API Delevan Inc.
Packaging : -
Series : S1210
Part Status : Obsolete
Kit Type : Fixed
Style : -
Material - Core : -
Quantity : 185 Pieces (37 Values - 5 Each)
Inductance Range : 100nH ~ 100µH
Mounting Type : Surface Mount
Packages Included : 1210 (3225 Metric)
Features : -
Shielding : Shielded
Packaging : -
Series : S1210
Part Status : Obsolete
Kit Type : Fixed
Style : -
Material - Core : -
Quantity : 185 Pieces (37 Values - 5 Each)
Inductance Range : 100nH ~ 100µH
Mounting Type : Surface Mount
Packages Included : 1210 (3225 Metric)
Features : -
Shielding : Shielded
0
100 in stock
S1210R-101K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1210R
Part Status : Active
Type : -
Material - Core : Iron
Inductance : 100nH
Tolerance : ±10%
Current Rating : 1.131A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 150 mOhm Max
Q @ Freq : 40 @ 25MHz
Frequency - Self Resonant : 375MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 25MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1210R
Part Status : Active
Type : -
Material - Core : Iron
Inductance : 100nH
Tolerance : ±10%
Current Rating : 1.131A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 150 mOhm Max
Q @ Freq : 40 @ 25MHz
Frequency - Self Resonant : 375MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 25MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
0
100 in stock

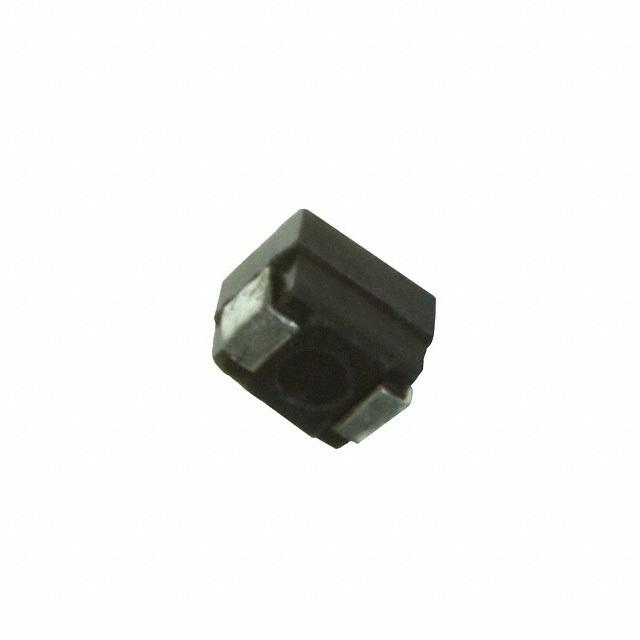

S1210R-102K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1210R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 1µH
Tolerance : ±10%
Current Rating : 635mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 400 mOhm Max
Q @ Freq : 40 @ 7.9MHz
Frequency - Self Resonant : 140MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1210R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 1µH
Tolerance : ±10%
Current Rating : 635mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 400 mOhm Max
Q @ Freq : 40 @ 7.9MHz
Frequency - Self Resonant : 140MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
0
385 in stock
S1210R-103K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1210R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 10µH
Tolerance : ±10%
Current Rating : 291mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 1.9 Ohm Max
Q @ Freq : 40 @ 2.5MHz
Frequency - Self Resonant : 28MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1210R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 10µH
Tolerance : ±10%
Current Rating : 291mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 1.9 Ohm Max
Q @ Freq : 40 @ 2.5MHz
Frequency - Self Resonant : 28MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
0
15 in stock
S1210R-104K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1210R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 100µH
Tolerance : ±10%
Current Rating : 127mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 10 Ohm Max
Q @ Freq : 40 @ 2.5MHz
Frequency - Self Resonant : 8MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1210R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 100µH
Tolerance : ±10%
Current Rating : 127mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 10 Ohm Max
Q @ Freq : 40 @ 2.5MHz
Frequency - Self Resonant : 8MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
0
100 in stock
S1210R-121K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1210R
Part Status : Active
Type : -
Material - Core : Iron
Inductance : 120nH
Tolerance : ±10%
Current Rating : 1.062A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 170 mOhm Max
Q @ Freq : 40 @ 25MHz
Frequency - Self Resonant : 350MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 25MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1210R
Part Status : Active
Type : -
Material - Core : Iron
Inductance : 120nH
Tolerance : ±10%
Current Rating : 1.062A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 170 mOhm Max
Q @ Freq : 40 @ 25MHz
Frequency - Self Resonant : 350MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 25MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
0
100 in stock
S1210R-122K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1210R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 1.2µH
Tolerance : ±10%
Current Rating : 574mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 490 mOhm Max
Q @ Freq : 40 @ 7.9MHz
Frequency - Self Resonant : 120MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1210R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 1.2µH
Tolerance : ±10%
Current Rating : 574mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 490 mOhm Max
Q @ Freq : 40 @ 7.9MHz
Frequency - Self Resonant : 120MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
0
1870 in stock
S1210R-151K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1210R
Part Status : Active
Type : -
Material - Core : Iron
Inductance : 150nH
Tolerance : ±10%
Current Rating : 979mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 200 mOhm Max
Q @ Freq : 40 @ 25MHz
Frequency - Self Resonant : 330MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 25MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1210R
Part Status : Active
Type : -
Material - Core : Iron
Inductance : 150nH
Tolerance : ±10%
Current Rating : 979mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 200 mOhm Max
Q @ Freq : 40 @ 25MHz
Frequency - Self Resonant : 330MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 25MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
