API Delevan
- API Delevan designs, manufactures, and markets an extensive line of quality inductors, chokes, and coils to satisfy various electrical filtering requirements. The Group concentrates on producing high performance inductive devices to meet stringent government and customer specifications relating to high product quality and reliability.
Part Number
Manufacturer
Description
Unit Price
In Stock
S1812KIT
API Delevan
Manufacturer : API Delevan Inc.
Packaging : -
Series : S1812
Part Status : Obsolete
Kit Type : Fixed
Style : -
Material - Core : Ferrite
Quantity : 245 Pieces (49 Values - 5 Each)
Inductance Range : 100nH ~ 1mH
Mounting Type : Surface Mount
Packages Included : 1812 (4532 Metric)
Features : -
Shielding : Shielded
Packaging : -
Series : S1812
Part Status : Obsolete
Kit Type : Fixed
Style : -
Material - Core : Ferrite
Quantity : 245 Pieces (49 Values - 5 Each)
Inductance Range : 100nH ~ 1mH
Mounting Type : Surface Mount
Packages Included : 1812 (4532 Metric)
Features : -
Shielding : Shielded
0
100 in stock
S1812R-102K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 1µH
Tolerance : ±10%
Current Rating : 755mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 350 mOhm Max
Q @ Freq : 40 @ 7.9MHz
Frequency - Self Resonant : 160MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 1µH
Tolerance : ±10%
Current Rating : 755mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 350 mOhm Max
Q @ Freq : 40 @ 7.9MHz
Frequency - Self Resonant : 160MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
100 in stock
S1812R-103K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 10µH
Tolerance : ±10%
Current Rating : 333mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 1.8 Ohm Max
Q @ Freq : 50 @ 2.5MHz
Frequency - Self Resonant : 25MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 10µH
Tolerance : ±10%
Current Rating : 333mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 1.8 Ohm Max
Q @ Freq : 50 @ 2.5MHz
Frequency - Self Resonant : 25MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
100 in stock

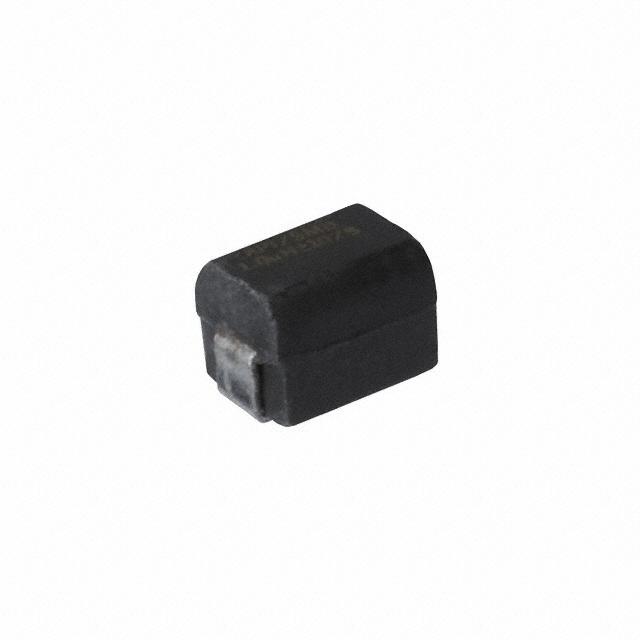

S1812R-104K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 100µH
Tolerance : ±10%
Current Rating : 169mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 7 Ohm Max
Q @ Freq : 40 @ 790kHz
Frequency - Self Resonant : 7MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 790kHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 100µH
Tolerance : ±10%
Current Rating : 169mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 7 Ohm Max
Q @ Freq : 40 @ 790kHz
Frequency - Self Resonant : 7MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 790kHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
100 in stock
S1812R-105K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 1mH
Tolerance : ±10%
Current Rating : 60mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 55 Ohm Max
Q @ Freq : 40 @ 790kHz
Frequency - Self Resonant : 2MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 790kHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 1mH
Tolerance : ±10%
Current Rating : 60mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 55 Ohm Max
Q @ Freq : 40 @ 790kHz
Frequency - Self Resonant : 2MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 790kHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
336 in stock
S1812R-124K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 120µH
Tolerance : ±10%
Current Rating : 163mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 7.5 Ohm Max
Q @ Freq : 40 @ 790kHz
Frequency - Self Resonant : 6MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 790kHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 120µH
Tolerance : ±10%
Current Rating : 163mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 7.5 Ohm Max
Q @ Freq : 40 @ 790kHz
Frequency - Self Resonant : 6MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 790kHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
344 in stock
S1812R-153K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1812R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 15µH
Tolerance : ±10%
Current Rating : 301mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 2.2 Ohm Max
Q @ Freq : 50 @ 2.5MHz
Frequency - Self Resonant : 18MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1812R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 15µH
Tolerance : ±10%
Current Rating : 301mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 2.2 Ohm Max
Q @ Freq : 50 @ 2.5MHz
Frequency - Self Resonant : 18MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
651 in stock
S1812R-184K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 180µH
Tolerance : ±10%
Current Rating : 153mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 8.5 Ohm Max
Q @ Freq : 40 @ 790kHz
Frequency - Self Resonant : 4.5MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 790kHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 180µH
Tolerance : ±10%
Current Rating : 153mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 8.5 Ohm Max
Q @ Freq : 40 @ 790kHz
Frequency - Self Resonant : 4.5MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 790kHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
155 in stock
S1812R-222K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 2.2µH
Tolerance : ±10%
Current Rating : 658mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 460 mOhm Max
Q @ Freq : 40 @ 7.9MHz
Frequency - Self Resonant : 90MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 2.2µH
Tolerance : ±10%
Current Rating : 658mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 460 mOhm Max
Q @ Freq : 40 @ 7.9MHz
Frequency - Self Resonant : 90MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
2063 in stock
S1812R-223K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 22µH
Tolerance : ±10%
Current Rating : 277mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 2.6 Ohm Max
Q @ Freq : 50 @ 2.5MHz
Frequency - Self Resonant : 14MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 22µH
Tolerance : ±10%
Current Rating : 277mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 2.6 Ohm Max
Q @ Freq : 50 @ 2.5MHz
Frequency - Self Resonant : 14MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
1000 in stock
S1812R-224K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 220µH
Tolerance : ±10%
Current Rating : 149mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 9 Ohm Max
Q @ Freq : 40 @ 790kHz
Frequency - Self Resonant : 4.2MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 790kHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 220µH
Tolerance : ±10%
Current Rating : 149mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 9 Ohm Max
Q @ Freq : 40 @ 790kHz
Frequency - Self Resonant : 4.2MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 790kHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
2296 in stock
S1812R-333K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 33µH
Tolerance : ±10%
Current Rating : 258mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 3 Ohm Max
Q @ Freq : 50 @ 2.5MHz
Frequency - Self Resonant : 12MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 33µH
Tolerance : ±10%
Current Rating : 258mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 3 Ohm Max
Q @ Freq : 50 @ 2.5MHz
Frequency - Self Resonant : 12MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
212 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
