API Delevan
- API Delevan designs, manufactures, and markets an extensive line of quality inductors, chokes, and coils to satisfy various electrical filtering requirements. The Group concentrates on producing high performance inductive devices to meet stringent government and customer specifications relating to high product quality and reliability.
Part Number
Manufacturer
Description
Unit Price
In Stock
S1210R-152K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1210R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 1.5µH
Tolerance : ±10%
Current Rating : 532mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 570 mOhm Max
Q @ Freq : 40 @ 7.9MHz
Frequency - Self Resonant : 110MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1210R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 1.5µH
Tolerance : ±10%
Current Rating : 532mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 570 mOhm Max
Q @ Freq : 40 @ 7.9MHz
Frequency - Self Resonant : 110MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
0
100 in stock

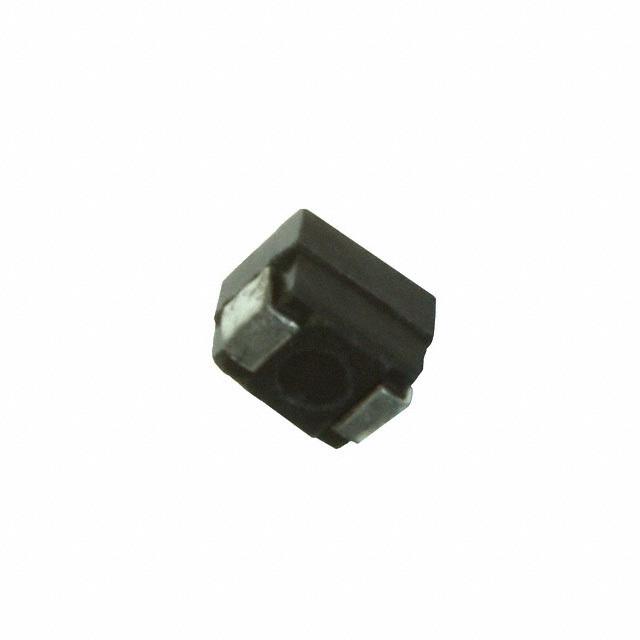

S1210R-153K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1210R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 15µH
Tolerance : ±10%
Current Rating : 254mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 2.5 Ohm Max
Q @ Freq : 40 @ 2.5MHz
Frequency - Self Resonant : 23MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1210R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 15µH
Tolerance : ±10%
Current Rating : 254mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 2.5 Ohm Max
Q @ Freq : 40 @ 2.5MHz
Frequency - Self Resonant : 23MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
0
489 in stock
S1210R-181K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1210R
Part Status : Active
Type : -
Material - Core : Iron
Inductance : 180nH
Tolerance : ±10%
Current Rating : 934mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 220 mOhm Max
Q @ Freq : 40 @ 25MHz
Frequency - Self Resonant : 310MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 25MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1210R
Part Status : Active
Type : -
Material - Core : Iron
Inductance : 180nH
Tolerance : ±10%
Current Rating : 934mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 220 mOhm Max
Q @ Freq : 40 @ 25MHz
Frequency - Self Resonant : 310MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 25MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
0
5346 in stock
S1210R-182K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1210R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 1.8µH
Tolerance : ±10%
Current Rating : 498mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 650 mOhm Max
Q @ Freq : 40 @ 7.9MHz
Frequency - Self Resonant : 95MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1210R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 1.8µH
Tolerance : ±10%
Current Rating : 498mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 650 mOhm Max
Q @ Freq : 40 @ 7.9MHz
Frequency - Self Resonant : 95MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
0
211 in stock
S1210R-222K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1210R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 2.2µH
Tolerance : ±10%
Current Rating : 470mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 730 mOhm Max
Q @ Freq : 40 @ 7.9MHz
Frequency - Self Resonant : 80MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1210R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 2.2µH
Tolerance : ±10%
Current Rating : 470mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 730 mOhm Max
Q @ Freq : 40 @ 7.9MHz
Frequency - Self Resonant : 80MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
0
2 in stock
S1210R-223K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1210R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 22µH
Tolerance : ±10%
Current Rating : 232mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 3 Ohm Max
Q @ Freq : 40 @ 2.5MHz
Frequency - Self Resonant : 19MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1210R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 22µH
Tolerance : ±10%
Current Rating : 232mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 3 Ohm Max
Q @ Freq : 40 @ 2.5MHz
Frequency - Self Resonant : 19MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
0
100 in stock
S1210R-272K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1210R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 2.7µH
Tolerance : ±10%
Current Rating : 464mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 750 mOhm Max
Q @ Freq : 40 @ 7.9MHz
Frequency - Self Resonant : 70MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1210R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 2.7µH
Tolerance : ±10%
Current Rating : 464mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 750 mOhm Max
Q @ Freq : 40 @ 7.9MHz
Frequency - Self Resonant : 70MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
0
100 in stock
S1210R-331G
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1210R
Part Status : Active
Type : Wirewound
Material - Core : Iron
Inductance : 330nH
Tolerance : ±2%
Current Rating : 740mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 350 mOhm Max
Q @ Freq : 40 @ 25MHz
Frequency - Self Resonant : 255MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 25MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 2-SMD
Supplier Device Package : -
Size / Dimension : 0.138" L x 0.105" W (3.51mm x 2.66mm)
Height - Seated (Max) : 0.101" (2.57mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1210R
Part Status : Active
Type : Wirewound
Material - Core : Iron
Inductance : 330nH
Tolerance : ±2%
Current Rating : 740mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 350 mOhm Max
Q @ Freq : 40 @ 25MHz
Frequency - Self Resonant : 255MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 25MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 2-SMD
Supplier Device Package : -
Size / Dimension : 0.138" L x 0.105" W (3.51mm x 2.66mm)
Height - Seated (Max) : 0.101" (2.57mm)
0
2000 in stock
S1210R-331K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1210R
Part Status : Active
Type : -
Material - Core : Iron
Inductance : 330nH
Tolerance : ±10%
Current Rating : 740mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 350 mOhm Max
Q @ Freq : 40 @ 25MHz
Frequency - Self Resonant : 255MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 25MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1210R
Part Status : Active
Type : -
Material - Core : Iron
Inductance : 330nH
Tolerance : ±10%
Current Rating : 740mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 350 mOhm Max
Q @ Freq : 40 @ 25MHz
Frequency - Self Resonant : 255MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 25MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
0
151 in stock
S1210R-332K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1210R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 3.3µH
Tolerance : ±10%
Current Rating : 449mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 800 mOhm Max
Q @ Freq : 40 @ 7.9MHz
Frequency - Self Resonant : 45MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1210R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 3.3µH
Tolerance : ±10%
Current Rating : 449mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 800 mOhm Max
Q @ Freq : 40 @ 7.9MHz
Frequency - Self Resonant : 45MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
0
100 in stock
S1210R-333K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1210R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 33µH
Tolerance : ±10%
Current Rating : 189mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 4.5 Ohm Max
Q @ Freq : 40 @ 2.5MHz
Frequency - Self Resonant : 14MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1210R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 33µH
Tolerance : ±10%
Current Rating : 189mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 4.5 Ohm Max
Q @ Freq : 40 @ 2.5MHz
Frequency - Self Resonant : 14MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
0
100 in stock
S1210R-391K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1210R
Part Status : Active
Type : -
Material - Core : Iron
Inductance : 390nH
Tolerance : ±10%
Current Rating : 692mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 400 mOhm Max
Q @ Freq : 40 @ 25MHz
Frequency - Self Resonant : 230MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 25MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1210R
Part Status : Active
Type : -
Material - Core : Iron
Inductance : 390nH
Tolerance : ±10%
Current Rating : 692mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 400 mOhm Max
Q @ Freq : 40 @ 25MHz
Frequency - Self Resonant : 230MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 25MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
0
15004 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
