API Delevan
- API Delevan designs, manufactures, and markets an extensive line of quality inductors, chokes, and coils to satisfy various electrical filtering requirements. The Group concentrates on producing high performance inductive devices to meet stringent government and customer specifications relating to high product quality and reliability.
Part Number
Manufacturer
Description
Unit Price
In Stock
S1812R-334K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 330µH
Tolerance : ±10%
Current Rating : 129mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 12 Ohm Max
Q @ Freq : 40 @ 790kHz
Frequency - Self Resonant : 3.7MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 790kHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 330µH
Tolerance : ±10%
Current Rating : 129mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 12 Ohm Max
Q @ Freq : 40 @ 790kHz
Frequency - Self Resonant : 3.7MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 790kHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
3604 in stock
S1812R-392K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 3.9µH
Tolerance : ±10%
Current Rating : 487mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 840 mOhm Max
Q @ Freq : 40 @ 7.9MHz
Frequency - Self Resonant : 56MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 3.9µH
Tolerance : ±10%
Current Rating : 487mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 840 mOhm Max
Q @ Freq : 40 @ 7.9MHz
Frequency - Self Resonant : 56MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
1002 in stock
S1812R-472K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 4.7µH
Tolerance : ±10%
Current Rating : 471mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 900 mOhm Max
Q @ Freq : 40 @ 7.9MHz
Frequency - Self Resonant : 50MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 4.7µH
Tolerance : ±10%
Current Rating : 471mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 900 mOhm Max
Q @ Freq : 40 @ 7.9MHz
Frequency - Self Resonant : 50MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
500 in stock
S1812R-473K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 47µH
Tolerance : ±10%
Current Rating : 242mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 3.4 Ohm Max
Q @ Freq : 50 @ 2.5MHz
Frequency - Self Resonant : 9MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 47µH
Tolerance : ±10%
Current Rating : 242mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 3.4 Ohm Max
Q @ Freq : 50 @ 2.5MHz
Frequency - Self Resonant : 9MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
100 in stock

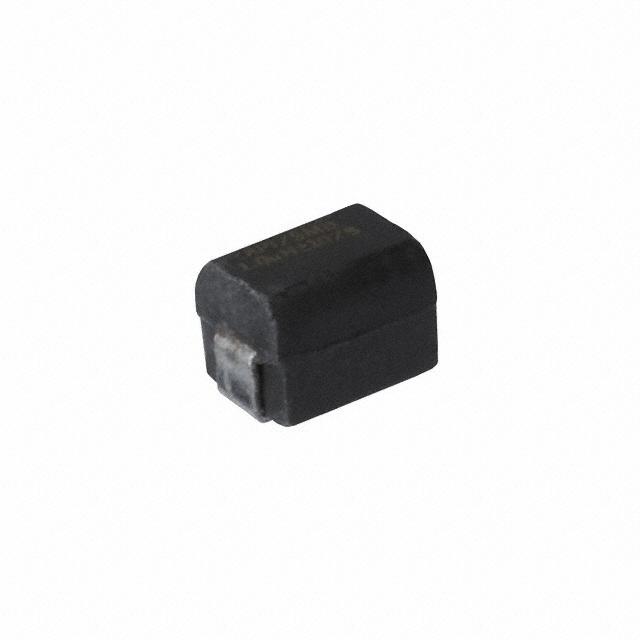

S1812R-474J
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 470µH
Tolerance : ±5%
Current Rating : 91mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 24 Ohm Max
Q @ Freq : 40 @ 790kHz
Frequency - Self Resonant : 3.3MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 790kHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812 (4532 Metric)
Size / Dimension : 0.189" L x 0.134" W (4.80mm x 3.40mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 470µH
Tolerance : ±5%
Current Rating : 91mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 24 Ohm Max
Q @ Freq : 40 @ 790kHz
Frequency - Self Resonant : 3.3MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 790kHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812 (4532 Metric)
Size / Dimension : 0.189" L x 0.134" W (4.80mm x 3.40mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
300 in stock
S1812R-474K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 470µH
Tolerance : ±10%
Current Rating : 91mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 24 Ohm Max
Q @ Freq : 40 @ 790kHz
Frequency - Self Resonant : 3.3MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 790kHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 470µH
Tolerance : ±10%
Current Rating : 91mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 24 Ohm Max
Q @ Freq : 40 @ 790kHz
Frequency - Self Resonant : 3.3MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 790kHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
100 in stock
S1812R-562K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1812R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 5.6µH
Tolerance : ±10%
Current Rating : 447mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 1 Ohm Max
Q @ Freq : 40 @ 7.9MHz
Frequency - Self Resonant : 40MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1812R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 5.6µH
Tolerance : ±10%
Current Rating : 447mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 1 Ohm Max
Q @ Freq : 40 @ 7.9MHz
Frequency - Self Resonant : 40MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
150 in stock
S1812R-563K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 56µH
Tolerance : ±10%
Current Rating : 235mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 3.6 Ohm Max
Q @ Freq : 50 @ 2.5MHz
Frequency - Self Resonant : 8MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 56µH
Tolerance : ±10%
Current Rating : 235mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 3.6 Ohm Max
Q @ Freq : 50 @ 2.5MHz
Frequency - Self Resonant : 8MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
490 in stock
S1812R-564K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 560µH
Tolerance : ±10%
Current Rating : 84mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 28 Ohm Max
Q @ Freq : 40 @ 790kHz
Frequency - Self Resonant : 2.8MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 790kHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 560µH
Tolerance : ±10%
Current Rating : 84mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 28 Ohm Max
Q @ Freq : 40 @ 790kHz
Frequency - Self Resonant : 2.8MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 790kHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
4251 in stock
S1812R-682K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 6.8µH
Tolerance : ±10%
Current Rating : 408mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 1.2 Ohm Max
Q @ Freq : 40 @ 7.9MHz
Frequency - Self Resonant : 32MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 6.8µH
Tolerance : ±10%
Current Rating : 408mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 1.2 Ohm Max
Q @ Freq : 40 @ 7.9MHz
Frequency - Self Resonant : 32MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
100 in stock
S1812R-684K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 680µH
Tolerance : ±10%
Current Rating : 79mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 32 Ohm Max
Q @ Freq : 40 @ 790kHz
Frequency - Self Resonant : 2.6MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 790kHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 680µH
Tolerance : ±10%
Current Rating : 79mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 32 Ohm Max
Q @ Freq : 40 @ 790kHz
Frequency - Self Resonant : 2.6MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 790kHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
130 in stock
S1812R-822K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 8.2µH
Tolerance : ±10%
Current Rating : 372mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 1.44 Ohm Max
Q @ Freq : 40 @ 7.9MHz
Frequency - Self Resonant : 30MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 8.2µH
Tolerance : ±10%
Current Rating : 372mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 1.44 Ohm Max
Q @ Freq : 40 @ 7.9MHz
Frequency - Self Resonant : 30MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
