Sumida
- Sumida is one of the leading manufacturers of coils and wire wound electronic products. Sumida currently has over 31000 products in its coil catalog-attesting to the diversity to which coil technology can be applied in the present day information age. All of Sumida's products are manufactured outside of Japan in various locations in the Asian region as well as in Mexico. This has allowed Sumida to keep costs to a minimum, spread risk and increase response times.
Sumida components can be found in audio visual equipment, CD-ROM drives, DVD/MD products, modems, networking hardware, liquid crystal display monitors, computer peripherals, air-conditioners, electronic automotive products such as Anti Lock Braking Systems, and a plethora of other electronic devices. See the product section of our site for more on our extensive range.
Part Number
Manufacturer
Description
Unit Price
In Stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH74
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 150µH
Tolerance : ±20%
Current Rating : 460mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 880 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
2064 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH74
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 18µH
Tolerance : ±20%
Current Rating : 1.31A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 91 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
17689 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH74
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 180µH
Tolerance : ±20%
Current Rating : 420mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 980 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
107 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH74
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 22µH
Tolerance : ±20%
Current Rating : 1.23A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 110 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
13273 in stock

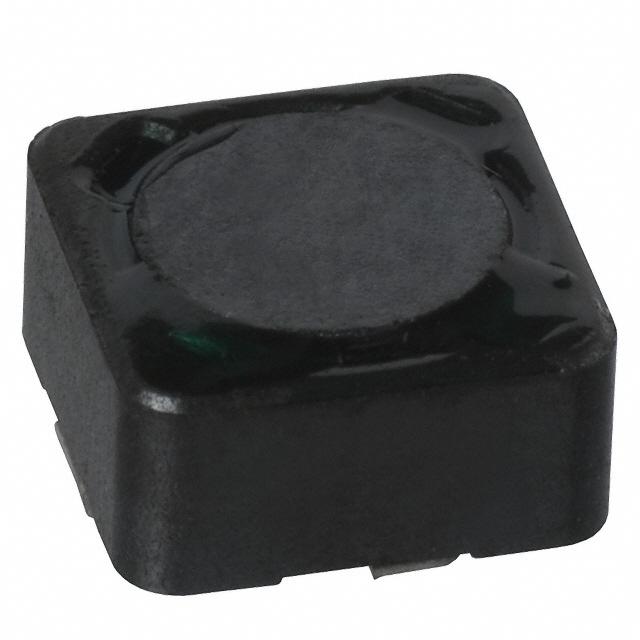

Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH74
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 220µH
Tolerance : ±20%
Current Rating : 360mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 1.17 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
759 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Series : CDRH74
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 33µH
Tolerance : ±20%
Current Rating : 960mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 170 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
2306 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH74
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 330µH
Tolerance : ±20%
Current Rating : 320mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 1.86 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
9047 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH74
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 47µH
Tolerance : ±20%
Current Rating : 880mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 260 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
5896 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH74
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 470µH
Tolerance : ±20%
Current Rating : 260mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 3.01 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
100 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH74
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 68µH
Tolerance : ±20%
Current Rating : 690mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 380 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
3334 in stock

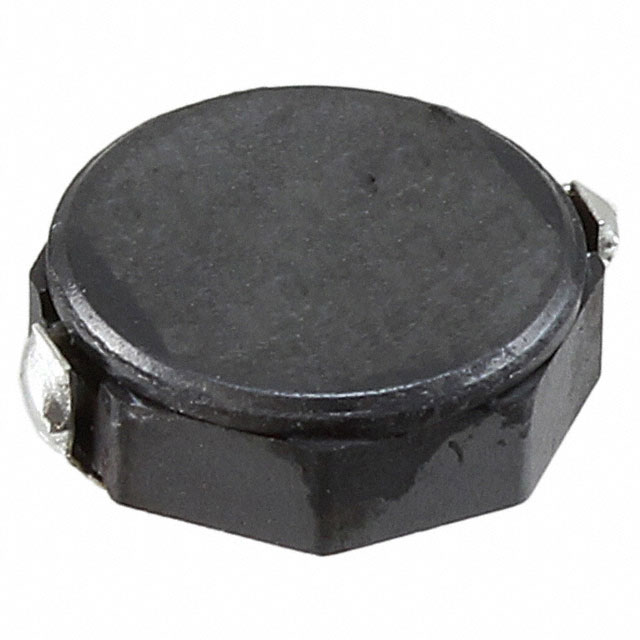

Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH8D28/HP
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 4.7µH
Tolerance : ±30%
Current Rating : 3.6A
Current - Saturation : 4.5A
Shielding : Shielded
DC Resistance (DCR) : 40 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Max) : 0.118" (3.00mm)
0
651 in stock

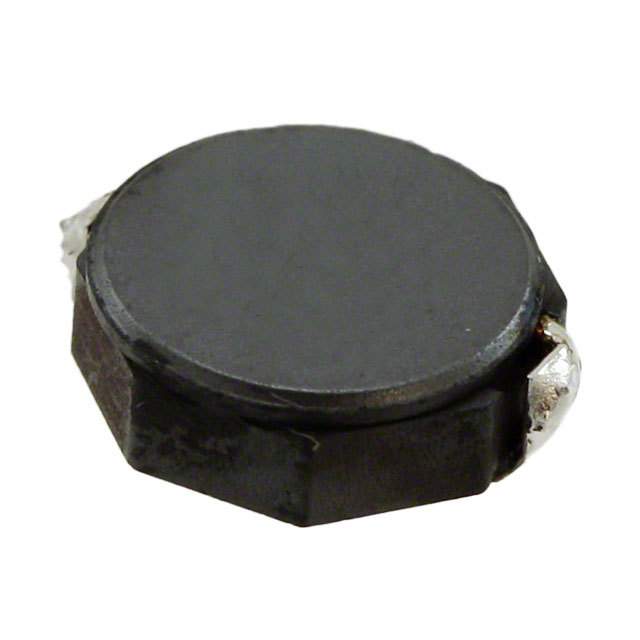

Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH8D28
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 10µH
Tolerance : ±30%
Current Rating : 3.2A
Current - Saturation : 2.5A
Shielding : Shielded
DC Resistance (DCR) : 47 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Max) : 0.118" (3.00mm)
0
5800 in stock
