Sumida
- Sumida is one of the leading manufacturers of coils and wire wound electronic products. Sumida currently has over 31000 products in its coil catalog-attesting to the diversity to which coil technology can be applied in the present day information age. All of Sumida's products are manufactured outside of Japan in various locations in the Asian region as well as in Mexico. This has allowed Sumida to keep costs to a minimum, spread risk and increase response times.
Sumida components can be found in audio visual equipment, CD-ROM drives, DVD/MD products, modems, networking hardware, liquid crystal display monitors, computer peripherals, air-conditioners, electronic automotive products such as Anti Lock Braking Systems, and a plethora of other electronic devices. See the product section of our site for more on our extensive range.
Part Number
Manufacturer
Description
Unit Price
In Stock

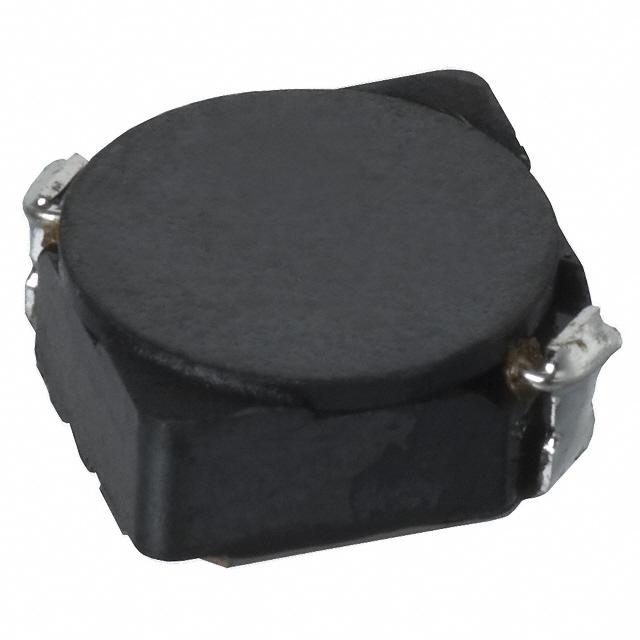

Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH6D38
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 18µH
Tolerance : ±30%
Current Rating : 1.5A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 92 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.264" L x 0.264" W (6.70mm x 6.70mm)
Height - Seated (Max) : 0.157" (4.00mm)
0
1507 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH6D38
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 22µH
Tolerance : ±30%
Current Rating : 1.3A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 96 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.264" L x 0.264" W (6.70mm x 6.70mm)
Height - Seated (Max) : 0.157" (4.00mm)
0
2 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Series : CDRH6D38
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 33µH
Tolerance : ±30%
Current Rating : 1.1A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 124 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.264" L x 0.264" W (6.70mm x 6.70mm)
Height - Seated (Max) : 0.157" (4.00mm)
0
3534 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH6D38
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 3.3µH
Tolerance : ±30%
Current Rating : 3.5A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 20 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.264" L x 0.264" W (6.70mm x 6.70mm)
Height - Seated (Max) : 0.157" (4.00mm)
0
6414 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH6D38
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 5µH
Tolerance : ±30%
Current Rating : 2.9A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 24 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.264" L x 0.264" W (6.70mm x 6.70mm)
Height - Seated (Max) : 0.157" (4.00mm)
0
3383 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH6D38
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 6.2µH
Tolerance : ±30%
Current Rating : 2.5A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 27 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.264" L x 0.264" W (6.70mm x 6.70mm)
Height - Seated (Max) : 0.157" (4.00mm)
0
4362 in stock

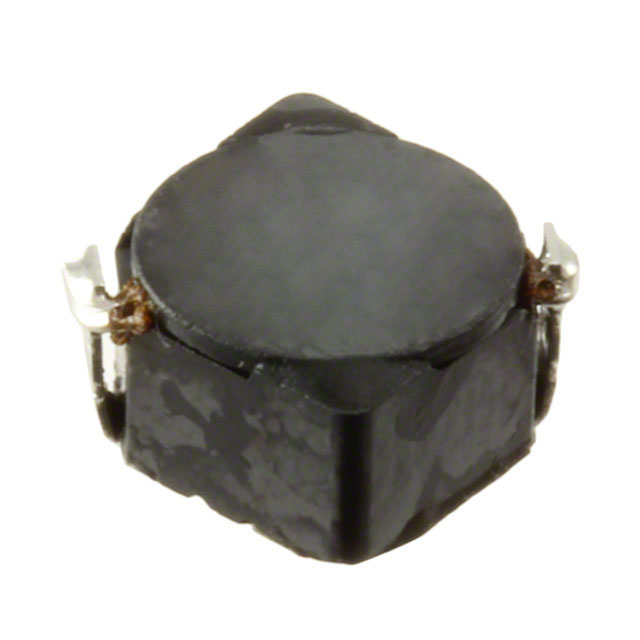

Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH6D38/T125
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 10µH
Tolerance : ±25%
Current Rating : 3A
Current - Saturation : 2.2A
Shielding : Shielded
DC Resistance (DCR) : 43.5 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.264" L x 0.264" W (6.70mm x 6.70mm)
Height - Seated (Max) : 0.157" (4.00mm)
0
30 in stock

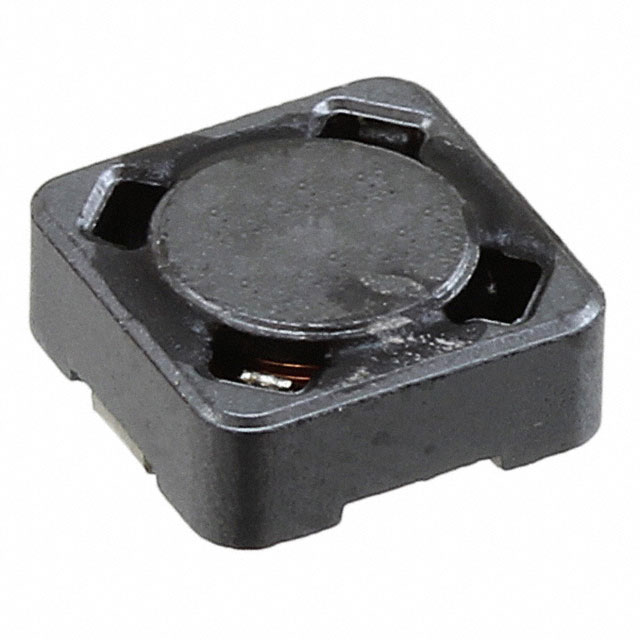

Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH73
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 10µH
Tolerance : ±20%
Current Rating : 1.68A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 72 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
930 in stock

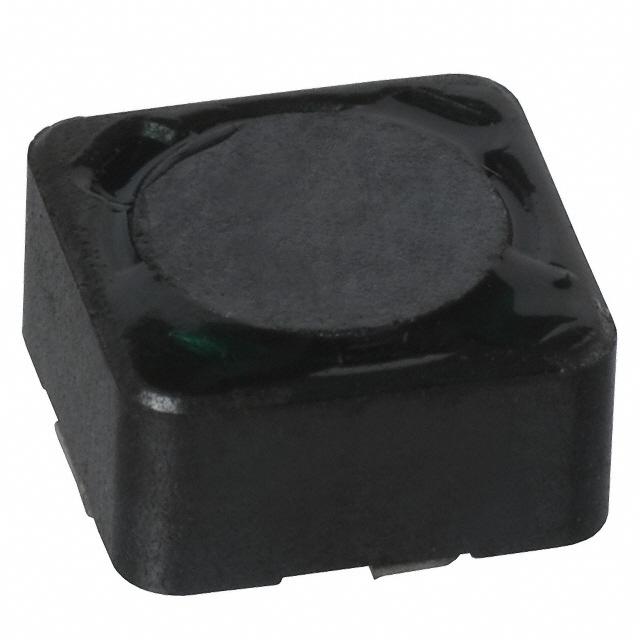

Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH74
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 10µH
Tolerance : ±20%
Current Rating : 1.84A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 49 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
9485 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH74
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 100µH
Tolerance : ±20%
Current Rating : 600mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 610 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
15344 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH74
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 1mH
Tolerance : ±20%
Current Rating : 180mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 6 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
21230 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH74
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 15µH
Tolerance : ±20%
Current Rating : 1.47A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 81 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
905 in stock
