Sumida
- Sumida is one of the leading manufacturers of coils and wire wound electronic products. Sumida currently has over 31000 products in its coil catalog-attesting to the diversity to which coil technology can be applied in the present day information age. All of Sumida's products are manufactured outside of Japan in various locations in the Asian region as well as in Mexico. This has allowed Sumida to keep costs to a minimum, spread risk and increase response times.
Sumida components can be found in audio visual equipment, CD-ROM drives, DVD/MD products, modems, networking hardware, liquid crystal display monitors, computer peripherals, air-conditioners, electronic automotive products such as Anti Lock Braking Systems, and a plethora of other electronic devices. See the product section of our site for more on our extensive range.
Part Number
Manufacturer
Description
Unit Price
In Stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging

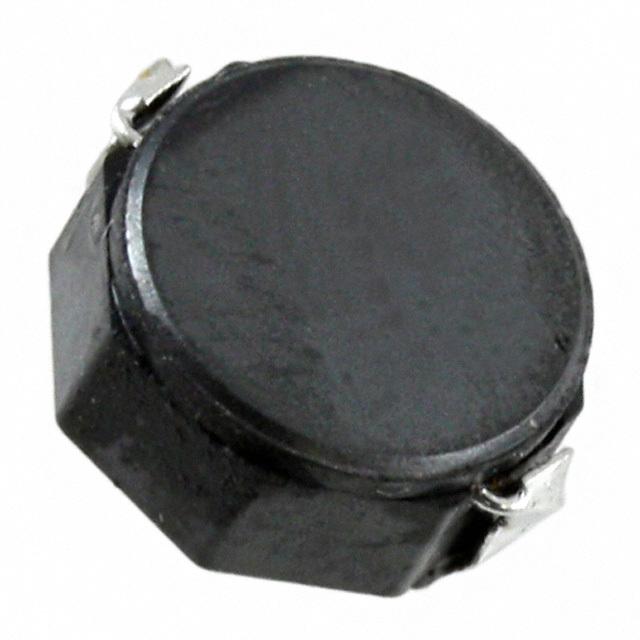

Series : CDRH8D38
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 68µH
Tolerance : ±30%
Current Rating : 1.08A
Current - Saturation : 1.3A
Shielding : Shielded
DC Resistance (DCR) : 290 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Max) : 0.157" (4.00mm)
0
1238 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)

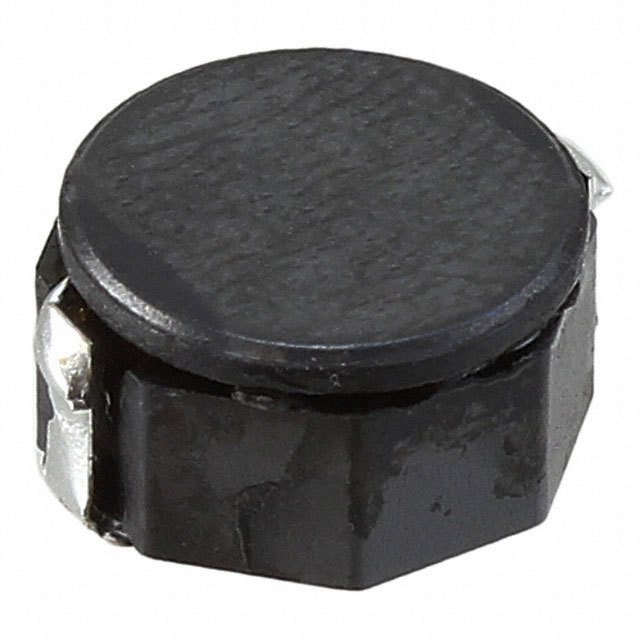

Series : CDRH8D43/HP
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 15µH
Tolerance : ±30%
Current Rating : 2A
Current - Saturation : 3.7A
Shielding : Shielded
DC Resistance (DCR) : 75 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Max) : 0.185" (4.70mm)
0
1863 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH8D43/HP
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 22µH
Tolerance : ±30%
Current Rating : 1.5A
Current - Saturation : 3A
Shielding : Shielded
DC Resistance (DCR) : 125 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Max) : 0.185" (4.70mm)
0
1734 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH8D43/HP
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 2.7µH
Tolerance : ±30%
Current Rating : 5.1A
Current - Saturation : 8.6A
Shielding : Shielded
DC Resistance (DCR) : 19.5 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Max) : 0.185" (4.70mm)
0
471 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH8D43/HP
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 33µH
Tolerance : ±30%
Current Rating : 1.4A
Current - Saturation : 2.5A
Shielding : Shielded
DC Resistance (DCR) : 150 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Max) : 0.185" (4.70mm)
0
599 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH8D43
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 10µH
Tolerance : ±30%
Current Rating : 3.2A
Current - Saturation : 4A
Shielding : Shielded
DC Resistance (DCR) : 36 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
5887 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging

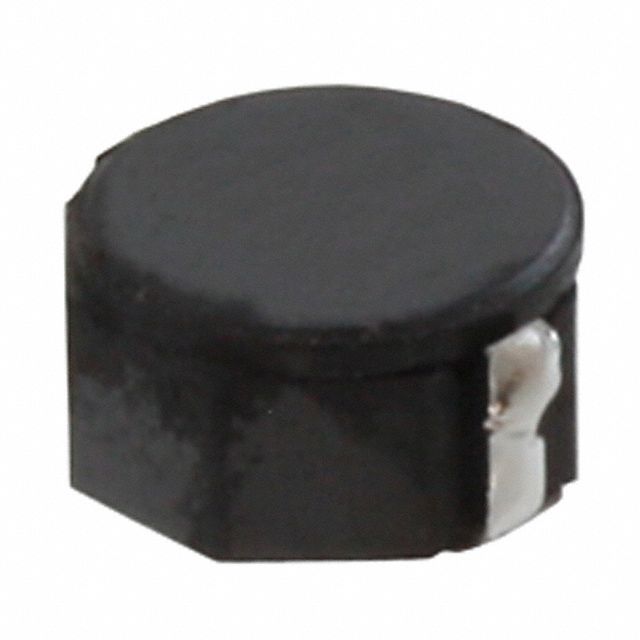

Series : CDRH8D43
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 100µH
Tolerance : ±30%
Current Rating : 800mA
Current - Saturation : 1.3A
Shielding : Shielded
DC Resistance (DCR) : 360 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
359 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH8D43
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 15µH
Tolerance : ±30%
Current Rating : 2.3A
Current - Saturation : 2.9A
Shielding : Shielded
DC Resistance (DCR) : 53 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
2943 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH8D43
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 22µH
Tolerance : ±30%
Current Rating : 1.8A
Current - Saturation : 2.6A
Shielding : Shielded
DC Resistance (DCR) : 75 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
296 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH8D43
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 2µH
Tolerance : ±30%
Current Rating : 5.5A
Current - Saturation : 7A
Shielding : Shielded
DC Resistance (DCR) : 14 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
2284 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH8D43
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 33µH
Tolerance : ±30%
Current Rating : 1.4A
Current - Saturation : 2.2A
Shielding : Shielded
DC Resistance (DCR) : 125 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
36 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH8D43
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 47µH
Tolerance : ±30%
Current Rating : 1.3A
Current - Saturation : 1.8A
Shielding : Shielded
DC Resistance (DCR) : 150 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
310 in stock
