Sumida
- Sumida is one of the leading manufacturers of coils and wire wound electronic products. Sumida currently has over 31000 products in its coil catalog-attesting to the diversity to which coil technology can be applied in the present day information age. All of Sumida's products are manufactured outside of Japan in various locations in the Asian region as well as in Mexico. This has allowed Sumida to keep costs to a minimum, spread risk and increase response times.
Sumida components can be found in audio visual equipment, CD-ROM drives, DVD/MD products, modems, networking hardware, liquid crystal display monitors, computer peripherals, air-conditioners, electronic automotive products such as Anti Lock Braking Systems, and a plethora of other electronic devices. See the product section of our site for more on our extensive range.
Part Number
Manufacturer
Description
Unit Price
In Stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH64B
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 12µH
Tolerance : ±20%
Current Rating : 1.2A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 130 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.244" L x 0.232" W (6.20mm x 5.90mm)
Height - Seated (Max) : 0.197" (5.00mm)
0
132 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH64B
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 470µH
Tolerance : ±20%
Current Rating : 200mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 3.93 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.244" L x 0.232" W (6.20mm x 5.90mm)
Height - Seated (Max) : 0.197" (5.00mm)
0
4 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH6D12
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 10µH
Tolerance : ±30%
Current Rating : 1.1A
Current - Saturation : 1.2A
Shielding : Shielded
DC Resistance (DCR) : 165 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.256" L x 0.256" W (6.50mm x 6.50mm)
Height - Seated (Max) : 0.059" (1.50mm)
0
236 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH6D12
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 2.2µH
Tolerance : ±30%
Current Rating : 2.3A
Current - Saturation : 2.5A
Shielding : Shielded
DC Resistance (DCR) : 50 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.256" L x 0.256" W (6.50mm x 6.50mm)
Height - Seated (Max) : 0.059" (1.50mm)
0
2675 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging

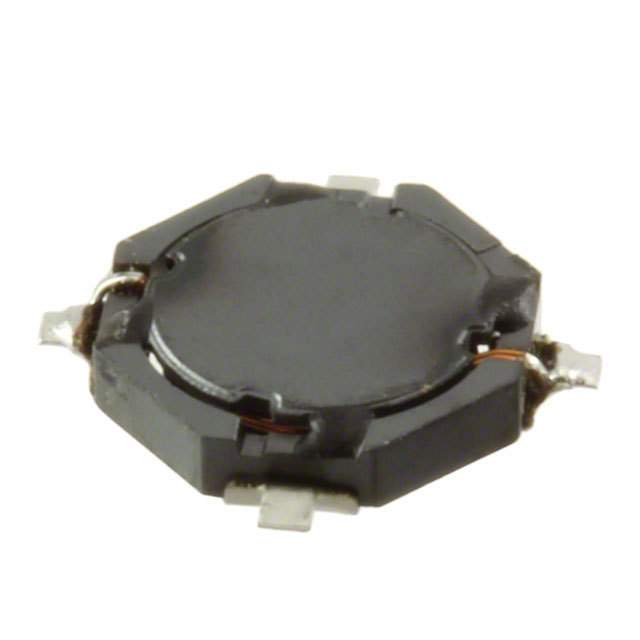

Series : CDRH6D12
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 3.3µH
Tolerance : ±30%
Current Rating : 1.9A
Current - Saturation : 2.2A
Shielding : Shielded
DC Resistance (DCR) : 62.5 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.256" L x 0.256" W (6.50mm x 6.50mm)
Height - Seated (Max) : 0.059" (1.50mm)
0
663 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging

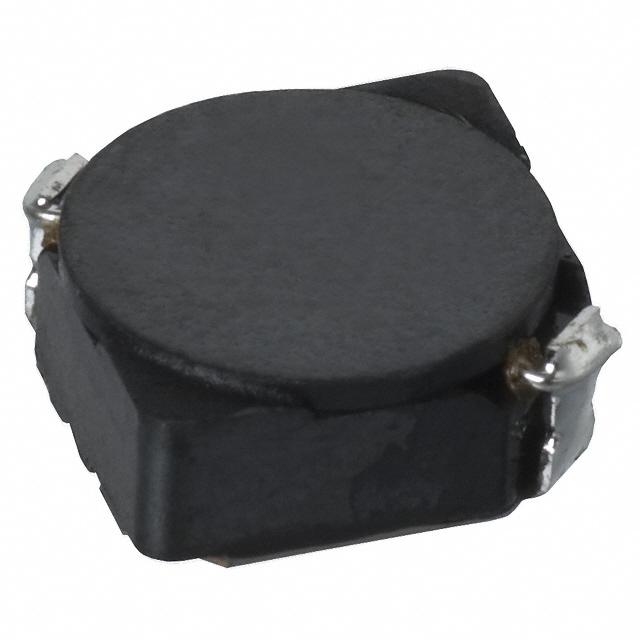

Series : CDRH6D28
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 10µH
Tolerance : ±30%
Current Rating : 1.7A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 65 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.264" L x 0.264" W (6.70mm x 6.70mm)
Height - Seated (Max) : 0.118" (3.00mm)
0
6801 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH6D28
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 100µH
Tolerance : ±30%
Current Rating : 540mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 535 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.264" L x 0.264" W (6.70mm x 6.70mm)
Height - Seated (Max) : 0.118" (3.00mm)
0
15110 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH6D28
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 12µH
Tolerance : ±30%
Current Rating : 1.55A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 70 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.264" L x 0.264" W (6.70mm x 6.70mm)
Height - Seated (Max) : 0.118" (3.00mm)
0
4038 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH6D28
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 15µH
Tolerance : ±30%
Current Rating : 1.4A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 84 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.264" L x 0.264" W (6.70mm x 6.70mm)
Height - Seated (Max) : 0.118" (3.00mm)
0
10232 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH6D28
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 18µH
Tolerance : ±30%
Current Rating : 1.32A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 95 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.264" L x 0.264" W (6.70mm x 6.70mm)
Height - Seated (Max) : 0.118" (3.00mm)
0
1430 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH6D28
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 22µH
Tolerance : ±30%
Current Rating : 1.2A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 128 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.264" L x 0.264" W (6.70mm x 6.70mm)
Height - Seated (Max) : 0.118" (3.00mm)
0
56525 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH6D28
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 27µH
Tolerance : ±30%
Current Rating : 1.05A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 142 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.264" L x 0.264" W (6.70mm x 6.70mm)
Height - Seated (Max) : 0.118" (3.00mm)
0
1950 in stock
