Mechatronics
- Mechatronics is a manufacturer of brushless cooling fans and thermal solutions headquartered near Seattle, WA. Mechatronics product offering includes AC axial fans, DC axial fans, AC blowers, DC blowers, AC motorized impellers and value-added assemblies. In addition to our standard products, we offer tailored solutions to fit customer specific requirements from minor modifications to fully custom products.
With factories located in Indonesia, Taiwan and China, Mechatronics offers technologically advanced products, superior quality, competitive pricing and exceptional service.
Part Number
Manufacturer
Description
Unit Price
In Stock

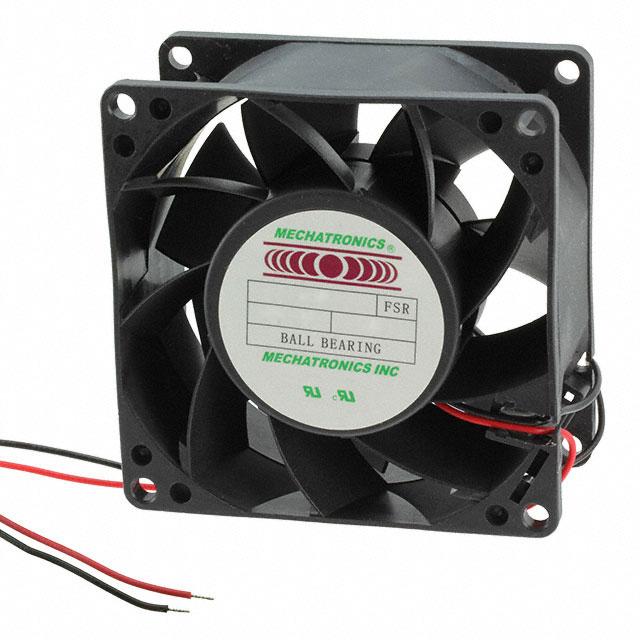

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MC8038
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 38.00mm
Air Flow : 45.5 CFM (1.27m鲁/min)
Static Pressure : 0.280 in H2O (69.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Thermal Overload Protector (TOP)
Noise : 39.0 dB(A)
Power (Watts) : -
RPM : 3400 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.397 lb (180.08g)
0
6 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MC8038
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 38.00mm
Air Flow : 95.6 CFM (2.68m鲁/min)
Static Pressure : 1.150 in H2O (286.5 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Thermal Overload Protector (TOP)
Noise : 60.2 dB(A)
Power (Watts) : -
RPM : 6800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.397 lb (180.08g)
0
93 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MC8038
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 38.00mm
Air Flow : 95.6 CFM (2.68m鲁/min)
Static Pressure : 1.150 in H2O (286.5 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Thermal Overload Protector (TOP)
Noise : 60.2 dB(A)
Power (Watts) : -
RPM : 6800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.397 lb (180.08g)
0
842 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MC9238
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 38.00mm
Air Flow : 80.2 CFM (2.25m鲁/min)
Static Pressure : 0.420 in H2O (104.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 47.5 dB(A)
Power (Watts) : -
RPM : 4000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 0.4 lb (181.44g)
0
10 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MD1238
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 174.0 CFM (4.87m鲁/min)
Static Pressure : 0.670 in H2O (166.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 57.8 dB(A)
Power (Watts) : -
RPM : 3800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, UL
Weight : 0.906 lb (410.95g)
0
147 in stock

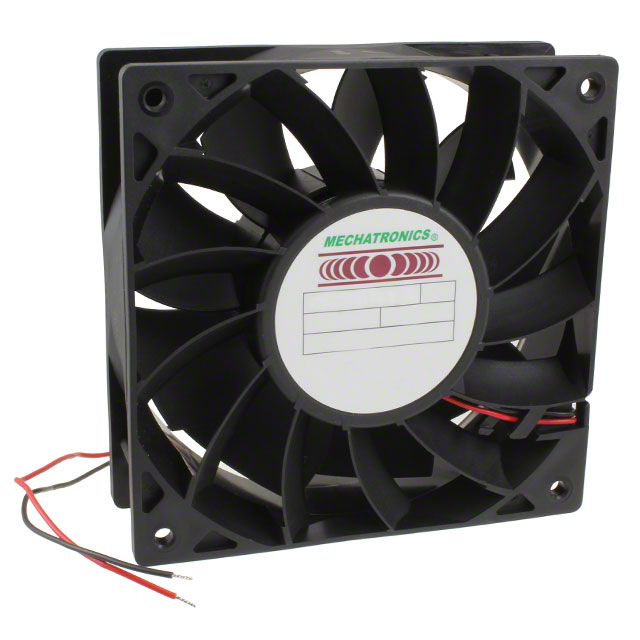

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MD1238
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 174.0 CFM (4.87m鲁/min)
Static Pressure : 0.670 in H2O (166.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 57.8 dB(A)
Power (Watts) : -
RPM : 3800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, UL
Weight : 0.906 lb (410.95g)
0
10 in stock

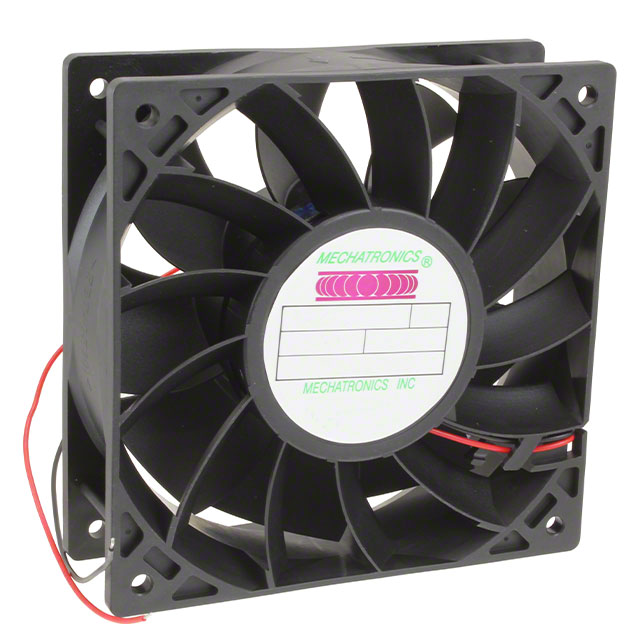

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MD1238
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 174.0 CFM (4.87m鲁/min)
Static Pressure : 0.670 in H2O (166.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 57.8 dB(A)
Power (Watts) : -
RPM : 3800 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, UL
Weight : 0.906 lb (410.95g)
0
5 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MD1238
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 137.0 CFM (3.84m鲁/min)
Static Pressure : 0.420 in H2O (104.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 52.0 dB(A)
Power (Watts) : -
RPM : 3000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, UL
Weight : 0.906 lb (410.95g)
0
16 in stock

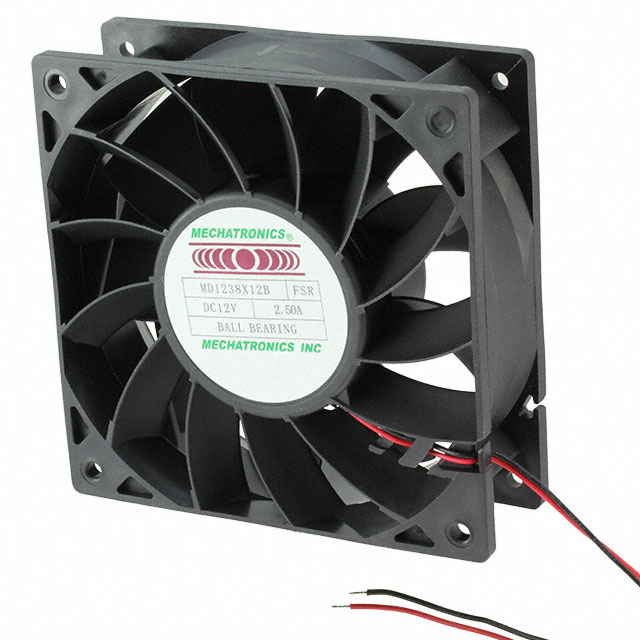

Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MD1238
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 205.0 CFM (5.74m鲁/min)
Static Pressure : 0.943 in H2O (234.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 62.0 dB(A)
Power (Watts) : -
RPM : 4500 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, UL
Weight : 0.906 lb (410.95g)
0
11 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MD1238
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 205.0 CFM (5.74m鲁/min)
Static Pressure : 0.943 in H2O (234.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 62.0 dB(A)
Power (Watts) : -
RPM : 4500 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, UL
Weight : 0.906 lb (410.95g)
0
14 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MD1238
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 205.0 CFM (5.74m鲁/min)
Static Pressure : 0.943 in H2O (234.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 62.0 dB(A)
Power (Watts) : -
RPM : 4500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, UL
Weight : 0.906 lb (410.95g)
0
168 in stock
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MD1238
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 205.0 CFM (5.74m鲁/min)
Static Pressure : 0.943 in H2O (234.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 62.0 dB(A)
Power (Watts) : -
RPM : 4500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, UL
Weight : 0.906 lb (410.95g)
0
213 in stock
