Lumileds
- Companies developing automotive, mobile, IoT and illumination lighting applications need a partner who can collaborate with them to push the boundaries of light. With over 100 years of inventions and industry firsts, Lumileds is a global lighting solutions company that helps customers around the world deliver differentiated solutions to gain and maintain a competitive edge. As the inventor of Xenon technology, a pioneer in halogen lighting and the leader in high performance LEDs, Lumileds builds innovation, quality and reliability into its technology, products and every customer engagement. Together with its customers, Lumileds is making the world safer, better and more beautiful—with light.
Part Number
Manufacturer
Description
Unit Price
In Stock

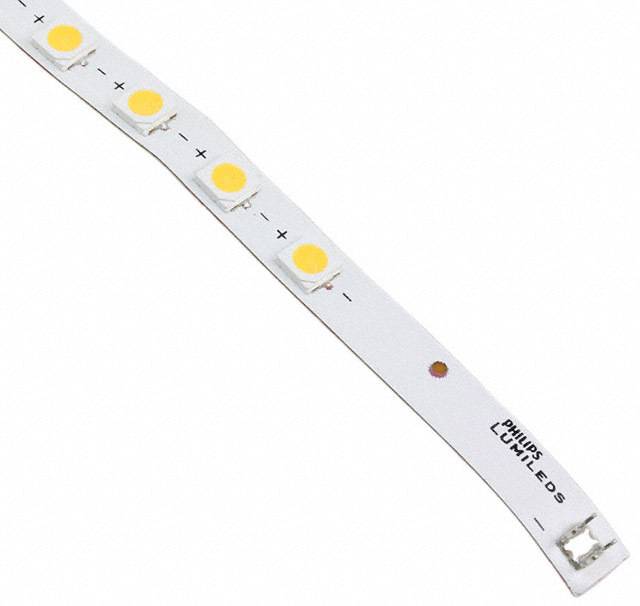

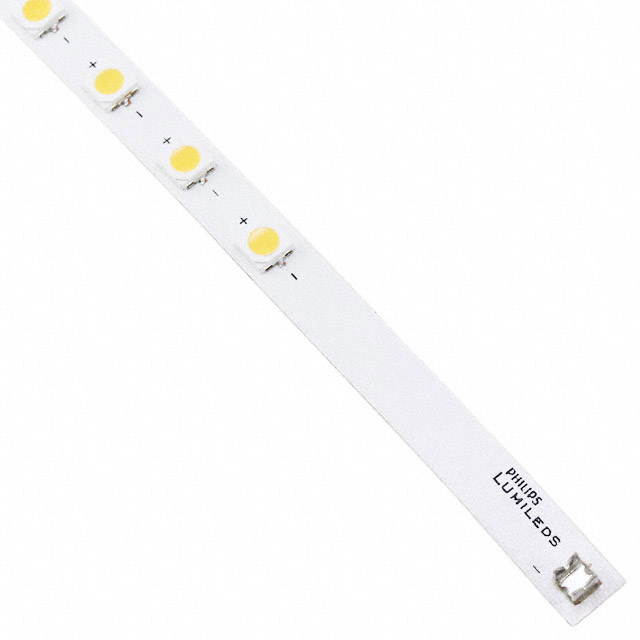

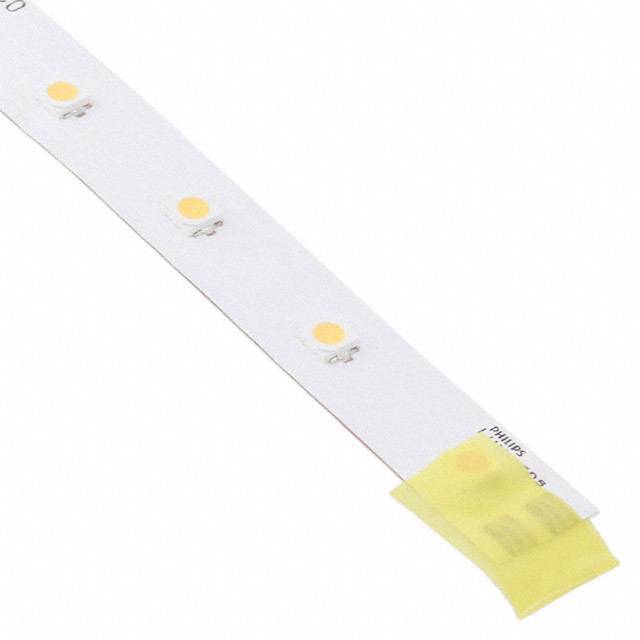

Lumileds
Manufacturer : Lumileds
Packaging : Strip
Series : LUXEON XF-3535L
Part Status : Active
Type : LED Module
Color : White, Neutral
CCT (K) : 4000K
Wavelength : -
Configuration : Linear Light Strip, Flexible
Flux @ Current/Temperature - Test : 1584 lm (Typ)
Current - Test : 600mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 18V
Lumens/Watt @ Current - Test : 147 lm/W
Current - Max : 1.2A
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 600.00mm L x 10.00mm W
Height : 1.23mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
488 in stock
Lumileds
Manufacturer : Lumileds
Packaging : Strip
Series : LUXEON XF-3535L
Part Status : Active
Type : LED Module
Color : White, Neutral
CCT (K) : 4000K
Wavelength : -
Configuration : Linear Light Strip, Flexible
Flux @ Current/Temperature - Test : 2464 lm (Typ)
Current - Test : 800mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 21V
Lumens/Watt @ Current - Test : 147 lm/W
Current - Max : 1.6A
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 525.40mm L x 5.25mm W
Height : 1.23mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
172 in stock
Lumileds
Manufacturer : Lumileds
Packaging : Strip
Series : LUXEON XF-3535L
Part Status : Active
Type : LED Module
Color : White, Neutral
CCT (K) : 4000K
Wavelength : -
Configuration : Linear Light Strip, Flexible
Flux @ Current/Temperature - Test : 4752 lm (Typ)
Current - Test : 900mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 36V
Lumens/Watt @ Current - Test : 147 lm/W
Current - Max : 1.8A
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 1150.00mm L x 5.25mm W
Height : 1.23mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
454 in stock
Lumileds
Manufacturer : Lumileds
Packaging : Strip
Series : LUXEON XF-3535L
Part Status : Active
Type : LED Module
Color : White, Cool
CCT (K) : 5000K
Wavelength : -
Configuration : Linear Light Strip, Flexible
Flux @ Current/Temperature - Test : 2632 lm (Typ)
Current - Test : 800mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 21V
Lumens/Watt @ Current - Test : 157 lm/W
Current - Max : 1.2A
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 525.40mm L x 5.25mm W
Height : 1.23mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
1 in stock

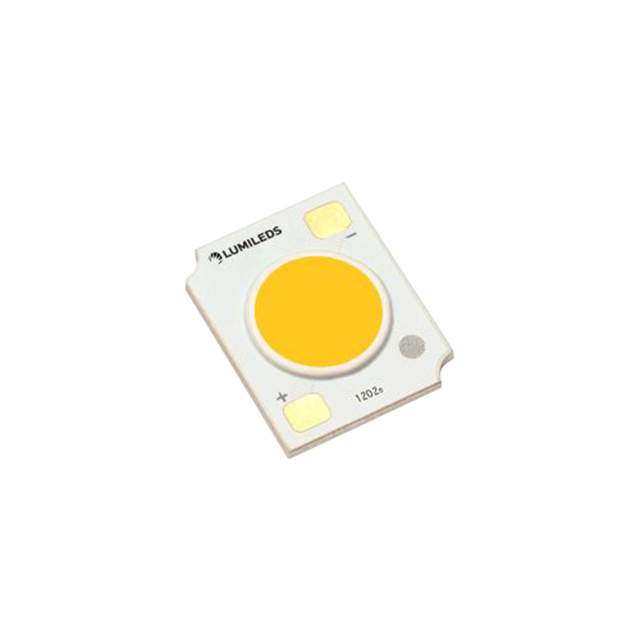

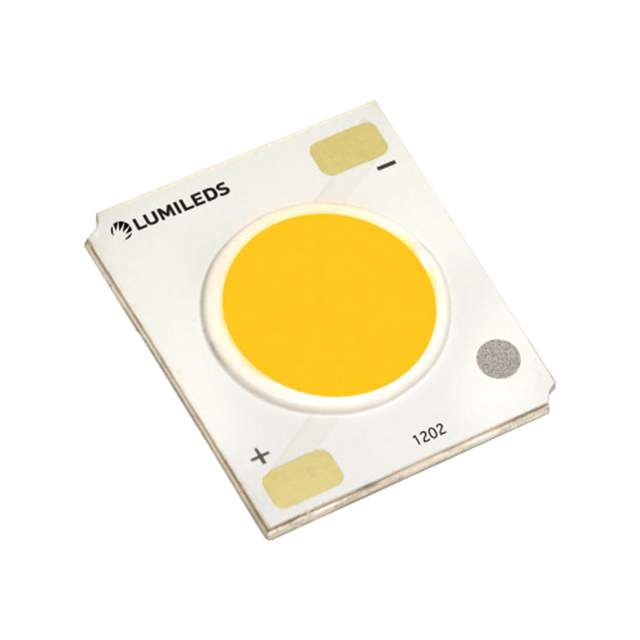

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2200K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 625 lm (Typ)
Current - Test : 200mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.5V
Lumens/Watt @ Current - Test : 88 lm/W
Current - Max : 400mA
CRI (Color Rendering Index) : 80
Viewing Angle : 115°
Features : -
Size / Dimension : 12.00mm L x 15.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 6.50mm Diameter
Lens Type : Flat
0
100 in stock
Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2200K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 525 lm (Typ)
Current - Test : 200mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.5V
Lumens/Watt @ Current - Test : 74 lm/W
Current - Max : 400mA
CRI (Color Rendering Index) : 90
Viewing Angle : 115°
Features : -
Size / Dimension : 12.00mm L x 15.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 6.50mm Diameter
Lens Type : Flat
0
100 in stock
Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 725 lm (Typ)
Current - Test : 200mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.5V
Lumens/Watt @ Current - Test : 102 lm/W
Current - Max : 400mA
CRI (Color Rendering Index) : 80
Viewing Angle : 115°
Features : -
Size / Dimension : 12.00mm L x 15.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 6.50mm Diameter
Lens Type : Flat
0
98 in stock
Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 600 lm (Typ)
Current - Test : 200mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.5V
Lumens/Watt @ Current - Test : 85 lm/W
Current - Max : 400mA
CRI (Color Rendering Index) : 90
Viewing Angle : 115°
Features : -
Size / Dimension : 12.00mm L x 15.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 6.50mm Diameter
Lens Type : Flat
0
37 in stock
Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 775 lm (Typ)
Current - Test : 200mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.5V
Lumens/Watt @ Current - Test : 109 lm/W
Current - Max : 400mA
CRI (Color Rendering Index) : 80
Viewing Angle : 115°
Features : -
Size / Dimension : 12.00mm L x 15.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 6.50mm Diameter
Lens Type : Flat
0
100 in stock
Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 625 lm (Typ)
Current - Test : 200mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.5V
Lumens/Watt @ Current - Test : 88 lm/W
Current - Max : 400mA
CRI (Color Rendering Index) : 90
Viewing Angle : 115°
Features : -
Size / Dimension : 12.00mm L x 15.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 6.50mm Diameter
Lens Type : Flat
0
100 in stock
Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB, CrispWhite
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 625 lm (Typ)
Current - Test : 200mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.5V
Lumens/Watt @ Current - Test : 88 lm/W
Current - Max : 400mA
CRI (Color Rendering Index) : 90
Viewing Angle : 115°
Features : -
Size / Dimension : 12.00mm L x 15.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 6.50mm Diameter
Lens Type : Flat
0
86 in stock
Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3500K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 775 lm (Typ)
Current - Test : 200mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.5V
Lumens/Watt @ Current - Test : 109 lm/W
Current - Max : 400mA
CRI (Color Rendering Index) : 80
Viewing Angle : 115°
Features : -
Size / Dimension : 12.00mm L x 15.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 6.50mm Diameter
Lens Type : Flat
0
100 in stock
