Lumileds
- Companies developing automotive, mobile, IoT and illumination lighting applications need a partner who can collaborate with them to push the boundaries of light. With over 100 years of inventions and industry firsts, Lumileds is a global lighting solutions company that helps customers around the world deliver differentiated solutions to gain and maintain a competitive edge. As the inventor of Xenon technology, a pioneer in halogen lighting and the leader in high performance LEDs, Lumileds builds innovation, quality and reliability into its technology, products and every customer engagement. Together with its customers, Lumileds is making the world safer, better and more beautiful—with light.
Part Number
Manufacturer
Description
Unit Price
In Stock
Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3500K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 650 lm (Typ)
Current - Test : 200mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.5V
Lumens/Watt @ Current - Test : 92 lm/W
Current - Max : 400mA
CRI (Color Rendering Index) : 90
Viewing Angle : 115°
Features : -
Size / Dimension : 12.00mm L x 15.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 6.50mm Diameter
Lens Type : Flat
0
100 in stock
Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 800 lm (Typ)
Current - Test : 200mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.5V
Lumens/Watt @ Current - Test : 113 lm/W
Current - Max : 400mA
CRI (Color Rendering Index) : 80
Viewing Angle : 115°
Features : -
Size / Dimension : 12.00mm L x 15.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 6.50mm Diameter
Lens Type : Flat
0
92 in stock
Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 700 lm (Typ)
Current - Test : 200mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.5V
Lumens/Watt @ Current - Test : 99 lm/W
Current - Max : 400mA
CRI (Color Rendering Index) : 90
Viewing Angle : 115°
Features : -
Size / Dimension : 12.00mm L x 15.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 6.50mm Diameter
Lens Type : Flat
0
90 in stock
Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB
Part Status : Obsolete
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 825 lm (Typ)
Current - Test : 200mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35.5V
Lumens/Watt @ Current - Test : 116 lm/W
Current - Max : 400mA
CRI (Color Rendering Index) : 80
Viewing Angle : 115°
Features : -
Size / Dimension : 12.00mm L x 15.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 6.50mm Diameter
Lens Type : Flat
0
100 in stock
Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB Core Range
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2200K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 1067 lm (Typ)
Current - Test : 300mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.5V
Lumens/Watt @ Current - Test : 103 lm/W
Current - Max : 600mA
CRI (Color Rendering Index) : 80
Viewing Angle : 115°
Features : -
Size / Dimension : 16.00mm L x 19.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat
0
96 in stock
Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB Core Range
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2200K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 666 lm (Typ)
Current - Test : 200mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.5V
Lumens/Watt @ Current - Test : 97 lm/W
Current - Max : 400mA
CRI (Color Rendering Index) : 90
Viewing Angle : 115°
Features : -
Size / Dimension : 16.00mm L x 19.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat
0
94 in stock
Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB Core Range
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2200K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 1764 lm (Typ)
Current - Test : 600mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 84 lm/W
Current - Max : 1.2A
CRI (Color Rendering Index) : 90
Viewing Angle : 115°
Features : -
Size / Dimension : 20.00mm L x 24.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 13.00mm Diameter
Lens Type : Flat
0
83 in stock

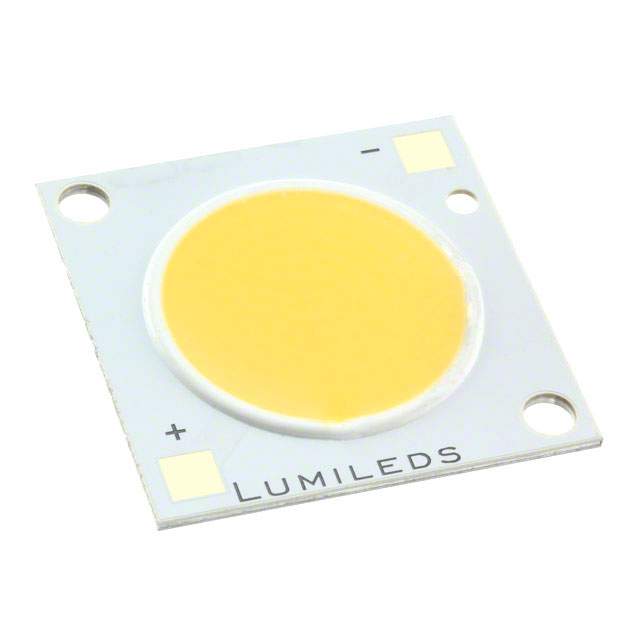

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB Core Range
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2200K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 5210 lm (Typ)
Current - Test : 1.6A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 93 lm/W
Current - Max : 3.2A
CRI (Color Rendering Index) : 90
Viewing Angle : 115°
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 23.00mm Diameter
Lens Type : Flat
0
69 in stock

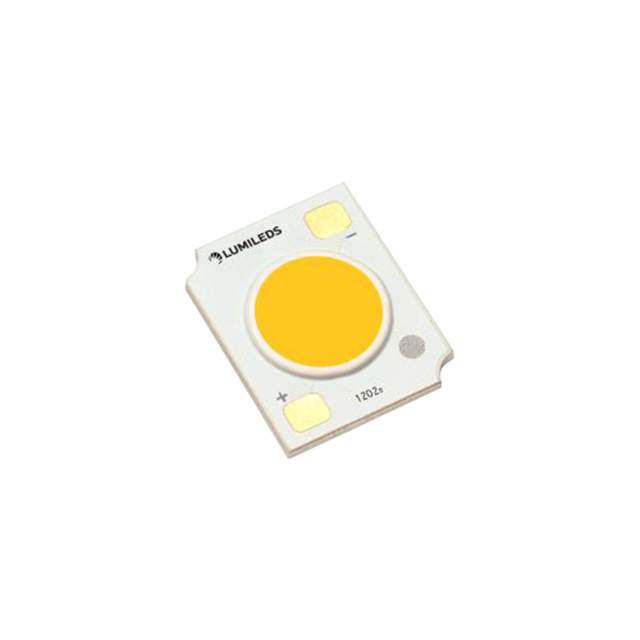

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB Core Range Gen 2
Part Status : Discontinued at
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2200K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 599 lm (Typ)
Current - Test : 200mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.5V
Lumens/Watt @ Current - Test : 87 lm/W
Current - Max : 400mA
CRI (Color Rendering Index) : 90
Viewing Angle : 115°
Features : -
Size / Dimension : 12.00mm L x 15.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 6.50mm Diameter
Lens Type : Flat
0
100 in stock
Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB Core Range
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 879 lm (Typ)
Current - Test : 200mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.5V
Lumens/Watt @ Current - Test : 127 lm/W
Current - Max : 400mA
CRI (Color Rendering Index) : 80
Viewing Angle : 115°
Features : -
Size / Dimension : 16.00mm L x 19.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat
0
94 in stock

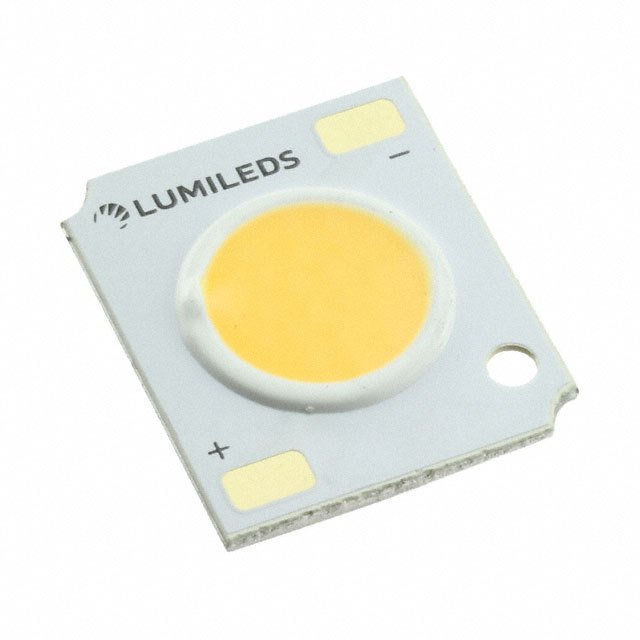

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB Core Range
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 1283 lm (Typ)
Current - Test : 300mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.5V
Lumens/Watt @ Current - Test : 124 lm/W
Current - Max : 600mA
CRI (Color Rendering Index) : 80
Viewing Angle : 115°
Features : -
Size / Dimension : 16.00mm L x 19.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 9.00mm Diameter
Lens Type : Flat
0
80 in stock

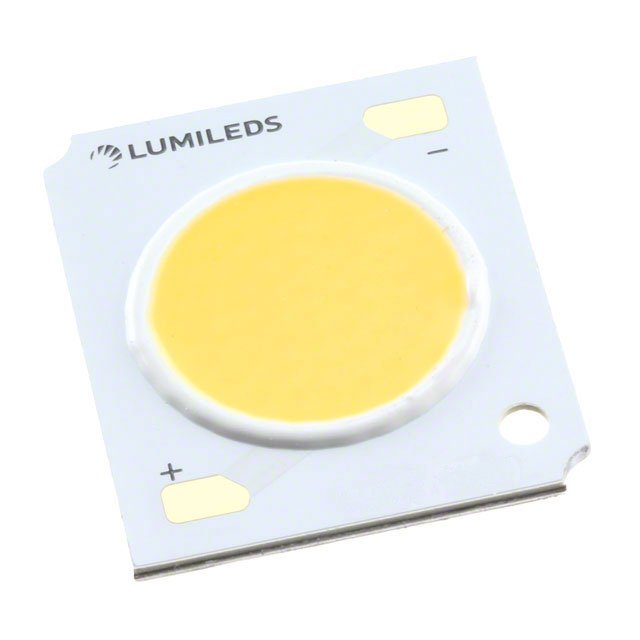

Lumileds
Manufacturer : Lumileds
Packaging : Tube
Series : LUXEON CoB Core Range
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 1924 lm (Typ)
Current - Test : 450mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 35V
Lumens/Watt @ Current - Test : 122 lm/W
Current - Max : 900mA
CRI (Color Rendering Index) : 80
Viewing Angle : 115°
Features : -
Size / Dimension : 20.00mm L x 24.00mm W
Height : 1.50mm
Light Emitting Surface (LES) : 13.00mm Diameter
Lens Type : Flat
0
92 in stock
