API Delevan
- API Delevan designs, manufactures, and markets an extensive line of quality inductors, chokes, and coils to satisfy various electrical filtering requirements. The Group concentrates on producing high performance inductive devices to meet stringent government and customer specifications relating to high product quality and reliability.
Part Number
Manufacturer
Description
Unit Price
In Stock

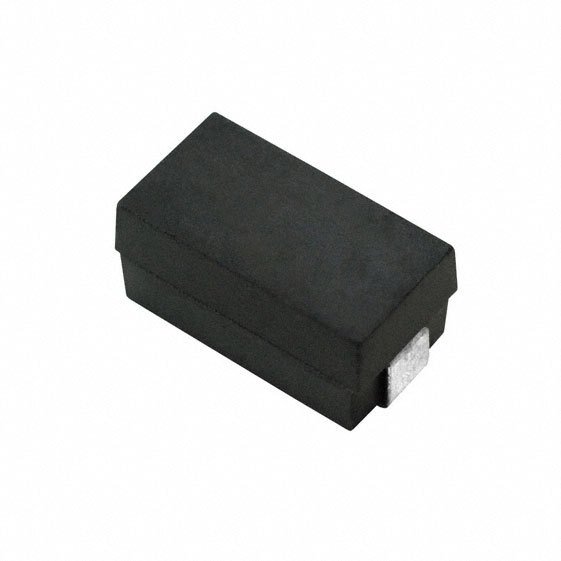

P3519R-822J
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : P3519R
Part Status : Discontinued at
Type : Wirewound
Material - Core : Ferrite
Inductance : 8.2µH
Tolerance : ±5%
Current Rating : 1.11A
Current - Saturation : 1.5A
Shielding : Unshielded
DC Resistance (DCR) : 239 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.358" L x 0.190" W (9.09mm x 4.83mm)
Height - Seated (Max) : 0.185" (4.70mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : P3519R
Part Status : Discontinued at
Type : Wirewound
Material - Core : Ferrite
Inductance : 8.2µH
Tolerance : ±5%
Current Rating : 1.11A
Current - Saturation : 1.5A
Shielding : Unshielded
DC Resistance (DCR) : 239 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.358" L x 0.190" W (9.09mm x 4.83mm)
Height - Seated (Max) : 0.185" (4.70mm)
0
45 in stock
P3519R-823J
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : P3519R
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 82µH
Tolerance : ±5%
Current Rating : 387mA
Current - Saturation : 480mA
Shielding : Unshielded
DC Resistance (DCR) : 1.96 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.358" L x 0.190" W (9.09mm x 4.83mm)
Height - Seated (Max) : 0.185" (4.70mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : P3519R
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 82µH
Tolerance : ±5%
Current Rating : 387mA
Current - Saturation : 480mA
Shielding : Unshielded
DC Resistance (DCR) : 1.96 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.358" L x 0.190" W (9.09mm x 4.83mm)
Height - Seated (Max) : 0.185" (4.70mm)
0
100 in stock
P3519R-824J
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : P3519R
Part Status : Discontinued at
Type : Wirewound
Material - Core : Ferrite
Inductance : 820µH
Tolerance : ±5%
Current Rating : 110mA
Current - Saturation : 150mA
Shielding : Unshielded
DC Resistance (DCR) : 24.22 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.358" L x 0.190" W (9.09mm x 4.83mm)
Height - Seated (Max) : 0.185" (4.70mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : P3519R
Part Status : Discontinued at
Type : Wirewound
Material - Core : Ferrite
Inductance : 820µH
Tolerance : ±5%
Current Rating : 110mA
Current - Saturation : 150mA
Shielding : Unshielded
DC Resistance (DCR) : 24.22 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 130°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.358" L x 0.190" W (9.09mm x 4.83mm)
Height - Seated (Max) : 0.185" (4.70mm)
0
100 in stock
PT150-1250-VM
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Bulk
Series : PT
Part Status : Active
Type : Toroidal
Material - Core : Iron Powder
Inductance : 150µH
Tolerance : ±15%
Current Rating : 5.7A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 60 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 1.250" L x 0.700" W (31.75mm x 17.78mm)
Height - Seated (Max) : 1.380" (35.05mm)
Packaging : Bulk
Series : PT
Part Status : Active
Type : Toroidal
Material - Core : Iron Powder
Inductance : 150µH
Tolerance : ±15%
Current Rating : 5.7A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 60 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 1.250" L x 0.700" W (31.75mm x 17.78mm)
Height - Seated (Max) : 1.380" (35.05mm)
0
200 in stock
S1008-223K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1008
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 22µH
Tolerance : ±10%
Current Rating : 170mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 6 Ohm Max
Q @ Freq : 30 @ 2.5MHz
Frequency - Self Resonant : 18MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.105" L x 0.095" W (2.66mm x 2.41mm)
Height - Seated (Max) : 0.095" (2.41mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1008
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 22µH
Tolerance : ±10%
Current Rating : 170mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 6 Ohm Max
Q @ Freq : 30 @ 2.5MHz
Frequency - Self Resonant : 18MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.105" L x 0.095" W (2.66mm x 2.41mm)
Height - Seated (Max) : 0.095" (2.41mm)
0
100 in stock

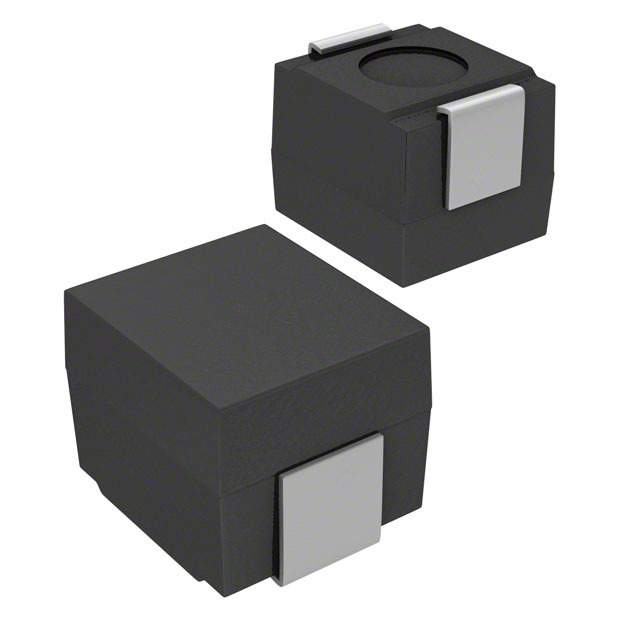

S1008-272K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1008
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 2.7µH
Tolerance : ±10%
Current Rating : 365mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 850 mOhm Max
Q @ Freq : 30 @ 7.9MHz
Frequency - Self Resonant : 55MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.105" L x 0.095" W (2.66mm x 2.41mm)
Height - Seated (Max) : 0.095" (2.41mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1008
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 2.7µH
Tolerance : ±10%
Current Rating : 365mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 850 mOhm Max
Q @ Freq : 30 @ 7.9MHz
Frequency - Self Resonant : 55MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.105" L x 0.095" W (2.66mm x 2.41mm)
Height - Seated (Max) : 0.095" (2.41mm)
0
100 in stock
S1008-332K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1008
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 3.3µH
Tolerance : ±10%
Current Rating : 355mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 900 mOhm Max
Q @ Freq : 30 @ 7.9MHz
Frequency - Self Resonant : 50MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.105" L x 0.095" W (2.66mm x 2.41mm)
Height - Seated (Max) : 0.095" (2.41mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1008
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 3.3µH
Tolerance : ±10%
Current Rating : 355mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 900 mOhm Max
Q @ Freq : 30 @ 7.9MHz
Frequency - Self Resonant : 50MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.105" L x 0.095" W (2.66mm x 2.41mm)
Height - Seated (Max) : 0.095" (2.41mm)
0
100 in stock
S1008KIT
API Delevan
Manufacturer : API Delevan Inc.
Packaging : -
Series : S1008
Part Status : Obsolete
Kit Type : Fixed
Style : -
Material - Core : Ferrite
Quantity : 180 Pieces (36 Values - 5 Each)
Inductance Range : 100nH ~ 47µH
Mounting Type : Surface Mount
Packages Included : 1008
Features : -
Shielding : Shielded
Packaging : -
Series : S1008
Part Status : Obsolete
Kit Type : Fixed
Style : -
Material - Core : Ferrite
Quantity : 180 Pieces (36 Values - 5 Each)
Inductance Range : 100nH ~ 47µH
Mounting Type : Surface Mount
Packages Included : 1008
Features : -
Shielding : Shielded
0
100 in stock
S1008R-101K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1008R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 100nH
Tolerance : ±10%
Current Rating : 1.12A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 90 mOhm Max
Q @ Freq : 40 @ 25MHz
Frequency - Self Resonant : 383MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 25MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.105" L x 0.095" W (2.66mm x 2.41mm)
Height - Seated (Max) : 0.095" (2.41mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1008R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 100nH
Tolerance : ±10%
Current Rating : 1.12A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 90 mOhm Max
Q @ Freq : 40 @ 25MHz
Frequency - Self Resonant : 383MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 25MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.105" L x 0.095" W (2.66mm x 2.41mm)
Height - Seated (Max) : 0.095" (2.41mm)
0
963 in stock
S1008R-102K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1008R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 1µH
Tolerance : ±10%
Current Rating : 670mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 250 mOhm Max
Q @ Freq : 30 @ 7.9MHz
Frequency - Self Resonant : 120MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.105" L x 0.095" W (2.66mm x 2.41mm)
Height - Seated (Max) : 0.095" (2.41mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1008R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 1µH
Tolerance : ±10%
Current Rating : 670mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 250 mOhm Max
Q @ Freq : 30 @ 7.9MHz
Frequency - Self Resonant : 120MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.105" L x 0.095" W (2.66mm x 2.41mm)
Height - Seated (Max) : 0.095" (2.41mm)
0
767 in stock
S1008R-103K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1008R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 10µH
Tolerance : ±10%
Current Rating : 230mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 2.1 Ohm Max
Q @ Freq : 30 @ 7.9MHz
Frequency - Self Resonant : 29MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.105" L x 0.095" W (2.66mm x 2.41mm)
Height - Seated (Max) : 0.095" (2.41mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1008R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 10µH
Tolerance : ±10%
Current Rating : 230mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 2.1 Ohm Max
Q @ Freq : 30 @ 7.9MHz
Frequency - Self Resonant : 29MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.105" L x 0.095" W (2.66mm x 2.41mm)
Height - Seated (Max) : 0.095" (2.41mm)
0
564 in stock
S1008R-122K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1008R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 1.2µH
Tolerance : ±10%
Current Rating : 625mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 290 mOhm Max
Q @ Freq : 30 @ 7.9MHz
Frequency - Self Resonant : 95MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.105" L x 0.095" W (2.66mm x 2.41mm)
Height - Seated (Max) : 0.095" (2.41mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : S1008R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 1.2µH
Tolerance : ±10%
Current Rating : 625mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 290 mOhm Max
Q @ Freq : 30 @ 7.9MHz
Frequency - Self Resonant : 95MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.105" L x 0.095" W (2.66mm x 2.41mm)
Height - Seated (Max) : 0.095" (2.41mm)
0
441 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
