API Delevan
- API Delevan designs, manufactures, and markets an extensive line of quality inductors, chokes, and coils to satisfy various electrical filtering requirements. The Group concentrates on producing high performance inductive devices to meet stringent government and customer specifications relating to high product quality and reliability.
Part Number
Manufacturer
Description
Unit Price
In Stock
1840-26K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-M15305, MS75101
Part Status : Active
Type : -
Material - Core : Iron
Inductance : 6.8µH
Tolerance : ±10%
Current Rating : 580mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 375 mOhm Max
Q @ Freq : 35 @ 7.9MHz
Frequency - Self Resonant : 50MHz
Ratings : -
Operating Temperature : -55°C ~ 105°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.187" Dia x 0.437" L (4.75mm x 11.10mm)
Height - Seated (Max) : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-M15305, MS75101
Part Status : Active
Type : -
Material - Core : Iron
Inductance : 6.8µH
Tolerance : ±10%
Current Rating : 580mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 375 mOhm Max
Q @ Freq : 35 @ 7.9MHz
Frequency - Self Resonant : 50MHz
Ratings : -
Operating Temperature : -55°C ~ 105°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.187" Dia x 0.437" L (4.75mm x 11.10mm)
Height - Seated (Max) : -
0
1276 in stock

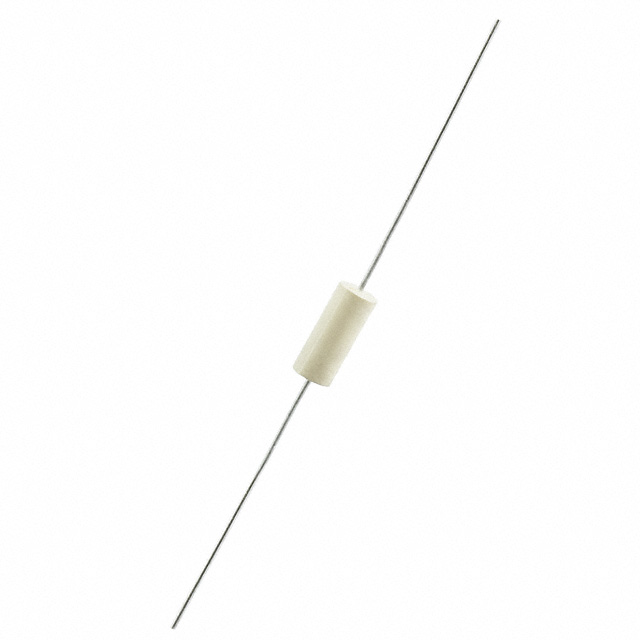

1840-30K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-M15305, MS75101
Part Status : Active
Type : -
Material - Core : Iron
Inductance : 10µH
Tolerance : ±10%
Current Rating : 455mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 600 mOhm Max
Q @ Freq : 35 @ 7.9MHz
Frequency - Self Resonant : 42MHz
Ratings : -
Operating Temperature : -55°C ~ 105°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.187" Dia x 0.437" L (4.75mm x 11.10mm)
Height - Seated (Max) : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-M15305, MS75101
Part Status : Active
Type : -
Material - Core : Iron
Inductance : 10µH
Tolerance : ±10%
Current Rating : 455mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 600 mOhm Max
Q @ Freq : 35 @ 7.9MHz
Frequency - Self Resonant : 42MHz
Ratings : -
Operating Temperature : -55°C ~ 105°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.187" Dia x 0.437" L (4.75mm x 11.10mm)
Height - Seated (Max) : -
0
1732 in stock
2474-36L
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Bulk
Series : 2474
Part Status : Active
Type : Molded
Material - Core : Ferrite
Inductance : 820µH
Tolerance : ±15%
Current Rating : 420mA
Current - Saturation : 220mA
Shielding : Unshielded
DC Resistance (DCR) : 1.98 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.240" Dia x 0.740" L (6.10mm x 18.80mm)
Height - Seated (Max) : -
Packaging : Bulk
Series : 2474
Part Status : Active
Type : Molded
Material - Core : Ferrite
Inductance : 820µH
Tolerance : ±15%
Current Rating : 420mA
Current - Saturation : 220mA
Shielding : Unshielded
DC Resistance (DCR) : 1.98 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.240" Dia x 0.740" L (6.10mm x 18.80mm)
Height - Seated (Max) : -
0
346 in stock
2474R-01L
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Bulk
Series : 2474R
Part Status : Active
Type : Molded
Material - Core : Ferrite
Inductance : 1µH
Tolerance : ±15%
Current Rating : 6.27A
Current - Saturation : 6.4A
Shielding : Unshielded
DC Resistance (DCR) : 9 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.240" Dia x 0.740" L (6.10mm x 18.80mm)
Height - Seated (Max) : -
Packaging : Bulk
Series : 2474R
Part Status : Active
Type : Molded
Material - Core : Ferrite
Inductance : 1µH
Tolerance : ±15%
Current Rating : 6.27A
Current - Saturation : 6.4A
Shielding : Unshielded
DC Resistance (DCR) : 9 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.240" Dia x 0.740" L (6.10mm x 18.80mm)
Height - Seated (Max) : -
0
301 in stock
2474R-03L
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Bulk
Series : 2474R
Part Status : Active
Type : Molded
Material - Core : Ferrite
Inductance : 1.5µH
Tolerance : ±15%
Current Rating : 5.67A
Current - Saturation : 5.2A
Shielding : Unshielded
DC Resistance (DCR) : 11 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.240" Dia x 0.740" L (6.10mm x 18.80mm)
Height - Seated (Max) : -
Packaging : Bulk
Series : 2474R
Part Status : Active
Type : Molded
Material - Core : Ferrite
Inductance : 1.5µH
Tolerance : ±15%
Current Rating : 5.67A
Current - Saturation : 5.2A
Shielding : Unshielded
DC Resistance (DCR) : 11 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.240" Dia x 0.740" L (6.10mm x 18.80mm)
Height - Seated (Max) : -
0
1100 in stock
2474R-05L
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Bulk
Series : 2474R
Part Status : Active
Type : Molded
Material - Core : Ferrite
Inductance : 2.2µH
Tolerance : ±15%
Current Rating : 5.22A
Current - Saturation : 4.3A
Shielding : Unshielded
DC Resistance (DCR) : 13 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.240" Dia x 0.740" L (6.10mm x 18.80mm)
Height - Seated (Max) : -
Packaging : Bulk
Series : 2474R
Part Status : Active
Type : Molded
Material - Core : Ferrite
Inductance : 2.2µH
Tolerance : ±15%
Current Rating : 5.22A
Current - Saturation : 4.3A
Shielding : Unshielded
DC Resistance (DCR) : 13 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.240" Dia x 0.740" L (6.10mm x 18.80mm)
Height - Seated (Max) : -
0
807 in stock

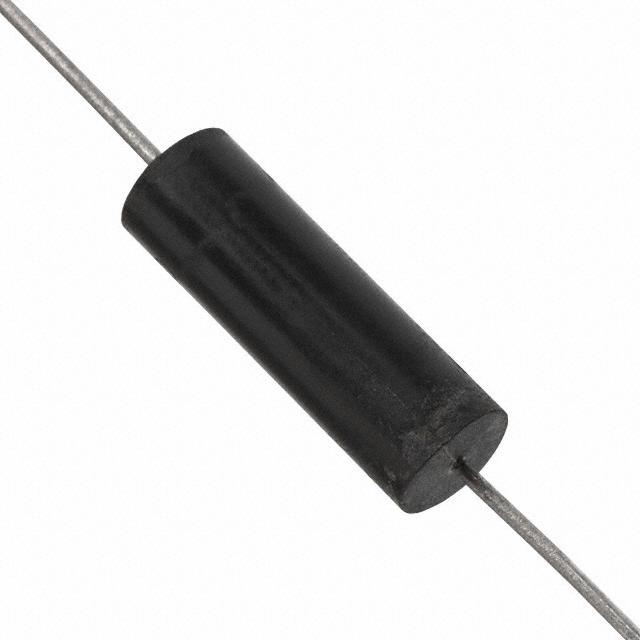

2474R-09L
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Bulk
Series : 2474R
Part Status : Active
Type : Molded
Material - Core : Ferrite
Inductance : 4.7µH
Tolerance : ±15%
Current Rating : 4.01A
Current - Saturation : 2.9A
Shielding : Unshielded
DC Resistance (DCR) : 22 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.240" Dia x 0.740" L (6.10mm x 18.80mm)
Height - Seated (Max) : -
Packaging : Bulk
Series : 2474R
Part Status : Active
Type : Molded
Material - Core : Ferrite
Inductance : 4.7µH
Tolerance : ±15%
Current Rating : 4.01A
Current - Saturation : 2.9A
Shielding : Unshielded
DC Resistance (DCR) : 22 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.240" Dia x 0.740" L (6.10mm x 18.80mm)
Height - Seated (Max) : -
0
1191 in stock
2474R-12L
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Bulk
Series : 2474R
Part Status : Active
Type : Molded
Material - Core : Ferrite
Inductance : 8.2µH
Tolerance : ±15%
Current Rating : 3.55A
Current - Saturation : 2.2A
Shielding : Unshielded
DC Resistance (DCR) : 28 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.240" Dia x 0.740" L (6.10mm x 18.80mm)
Height - Seated (Max) : -
Packaging : Bulk
Series : 2474R
Part Status : Active
Type : Molded
Material - Core : Ferrite
Inductance : 8.2µH
Tolerance : ±15%
Current Rating : 3.55A
Current - Saturation : 2.2A
Shielding : Unshielded
DC Resistance (DCR) : 28 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.240" Dia x 0.740" L (6.10mm x 18.80mm)
Height - Seated (Max) : -
0
856 in stock
2474R-13L
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Bulk
Series : 2474R
Part Status : Active
Type : Molded
Material - Core : Ferrite
Inductance : 10µH
Tolerance : ±15%
Current Rating : 3.27A
Current - Saturation : 2A
Shielding : Unshielded
DC Resistance (DCR) : 33 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.240" Dia x 0.740" L (6.10mm x 18.80mm)
Height - Seated (Max) : -
Packaging : Bulk
Series : 2474R
Part Status : Active
Type : Molded
Material - Core : Ferrite
Inductance : 10µH
Tolerance : ±15%
Current Rating : 3.27A
Current - Saturation : 2A
Shielding : Unshielded
DC Resistance (DCR) : 33 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.240" Dia x 0.740" L (6.10mm x 18.80mm)
Height - Seated (Max) : -
0
5068 in stock
2474R-14L
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Bulk
Series : 2474R
Part Status : Active
Type : Molded
Material - Core : Ferrite
Inductance : 12µH
Tolerance : ±15%
Current Rating : 3.09A
Current - Saturation : 1.8A
Shielding : Unshielded
DC Resistance (DCR) : 37 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.240" Dia x 0.740" L (6.10mm x 18.80mm)
Height - Seated (Max) : -
Packaging : Bulk
Series : 2474R
Part Status : Active
Type : Molded
Material - Core : Ferrite
Inductance : 12µH
Tolerance : ±15%
Current Rating : 3.09A
Current - Saturation : 1.8A
Shielding : Unshielded
DC Resistance (DCR) : 37 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.240" Dia x 0.740" L (6.10mm x 18.80mm)
Height - Seated (Max) : -
0
200 in stock
2474R-17L
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Bulk
Series : 2474R
Part Status : Active
Type : Molded
Material - Core : Ferrite
Inductance : 22µH
Tolerance : ±15%
Current Rating : 2.66A
Current - Saturation : 1.4A
Shielding : Unshielded
DC Resistance (DCR) : 50 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.240" Dia x 0.740" L (6.10mm x 18.80mm)
Height - Seated (Max) : -
Packaging : Bulk
Series : 2474R
Part Status : Active
Type : Molded
Material - Core : Ferrite
Inductance : 22µH
Tolerance : ±15%
Current Rating : 2.66A
Current - Saturation : 1.4A
Shielding : Unshielded
DC Resistance (DCR) : 50 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.240" Dia x 0.740" L (6.10mm x 18.80mm)
Height - Seated (Max) : -
0
1109 in stock
2474R-18L
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Bulk
Series : 2474R
Part Status : Active
Type : Molded
Material - Core : Ferrite
Inductance : 27µH
Tolerance : ±15%
Current Rating : 2.25A
Current - Saturation : 1.2A
Shielding : Unshielded
DC Resistance (DCR) : 70 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.240" Dia x 0.740" L (6.10mm x 18.80mm)
Height - Seated (Max) : -
Packaging : Bulk
Series : 2474R
Part Status : Active
Type : Molded
Material - Core : Ferrite
Inductance : 27µH
Tolerance : ±15%
Current Rating : 2.25A
Current - Saturation : 1.2A
Shielding : Unshielded
DC Resistance (DCR) : 70 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.240" Dia x 0.740" L (6.10mm x 18.80mm)
Height - Seated (Max) : -
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
