API Delevan
- API Delevan designs, manufactures, and markets an extensive line of quality inductors, chokes, and coils to satisfy various electrical filtering requirements. The Group concentrates on producing high performance inductive devices to meet stringent government and customer specifications relating to high product quality and reliability.
Part Number
Manufacturer
Description
Unit Price
In Stock
1812R-154J
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 150µH
Tolerance : ±5%
Current Rating : 149mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 9 Ohm Max
Q @ Freq : 40 @ 790kHz
Frequency - Self Resonant : 6MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 790kHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 150µH
Tolerance : ±5%
Current Rating : 149mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 9 Ohm Max
Q @ Freq : 40 @ 790kHz
Frequency - Self Resonant : 6MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 790kHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
250 in stock
1812R-182J
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 1.8µH
Tolerance : ±5%
Current Rating : 556mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 650 mOhm Max
Q @ Freq : 50 @ 7.9MHz
Frequency - Self Resonant : 60MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 1.8µH
Tolerance : ±5%
Current Rating : 556mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 650 mOhm Max
Q @ Freq : 50 @ 7.9MHz
Frequency - Self Resonant : 60MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
69 in stock
1812R-183J
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 18µH
Tolerance : ±5%
Current Rating : 268mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 2.8 Ohm Max
Q @ Freq : 50 @ 2.5MHz
Frequency - Self Resonant : 15MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 18µH
Tolerance : ±5%
Current Rating : 268mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 2.8 Ohm Max
Q @ Freq : 50 @ 2.5MHz
Frequency - Self Resonant : 15MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
78 in stock
1812R-184J
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 180µH
Tolerance : ±5%
Current Rating : 145mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 9.5 Ohm Max
Q @ Freq : 40 @ 790kHz
Frequency - Self Resonant : 5MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 790kHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 180µH
Tolerance : ±5%
Current Rating : 145mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 9.5 Ohm Max
Q @ Freq : 40 @ 790kHz
Frequency - Self Resonant : 5MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 790kHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
100 in stock
1812R-221K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812R
Part Status : Active
Type : -
Material - Core : Iron
Inductance : 220nH
Tolerance : ±10%
Current Rating : 708mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 400 mOhm Max
Q @ Freq : 30 @ 25MHz
Frequency - Self Resonant : 350MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 25MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812R
Part Status : Active
Type : -
Material - Core : Iron
Inductance : 220nH
Tolerance : ±10%
Current Rating : 708mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 400 mOhm Max
Q @ Freq : 30 @ 25MHz
Frequency - Self Resonant : 350MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 25MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
2768 in stock
1812R-222J
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 2.2µH
Tolerance : ±5%
Current Rating : 535mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 700 mOhm Max
Q @ Freq : 50 @ 7.9MHz
Frequency - Self Resonant : 55MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 2.2µH
Tolerance : ±5%
Current Rating : 535mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 700 mOhm Max
Q @ Freq : 50 @ 7.9MHz
Frequency - Self Resonant : 55MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
310 in stock
1812R-223J
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 22µH
Tolerance : ±5%
Current Rating : 250mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 3.2 Ohm Max
Q @ Freq : 50 @ 2.5MHz
Frequency - Self Resonant : 13MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 22µH
Tolerance : ±5%
Current Rating : 250mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 3.2 Ohm Max
Q @ Freq : 50 @ 2.5MHz
Frequency - Self Resonant : 13MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
100 in stock
1812R-224J
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 220µH
Tolerance : ±5%
Current Rating : 142mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 10 Ohm Max
Q @ Freq : 40 @ 790kHz
Frequency - Self Resonant : 4MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 790kHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 220µH
Tolerance : ±5%
Current Rating : 142mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 10 Ohm Max
Q @ Freq : 40 @ 790kHz
Frequency - Self Resonant : 4MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 790kHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
1919 in stock
1812R-272J
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 2.7µH
Tolerance : ±5%
Current Rating : 517mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 750 mOhm Max
Q @ Freq : 50 @ 7.9MHz
Frequency - Self Resonant : 50MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 2.7µH
Tolerance : ±5%
Current Rating : 517mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 750 mOhm Max
Q @ Freq : 50 @ 7.9MHz
Frequency - Self Resonant : 50MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
1417 in stock
1812R-273J
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 27µH
Tolerance : ±5%
Current Rating : 236mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 3.6 Ohm Max
Q @ Freq : 50 @ 2.5MHz
Frequency - Self Resonant : 12MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 27µH
Tolerance : ±5%
Current Rating : 236mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 3.6 Ohm Max
Q @ Freq : 50 @ 2.5MHz
Frequency - Self Resonant : 12MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
195 in stock

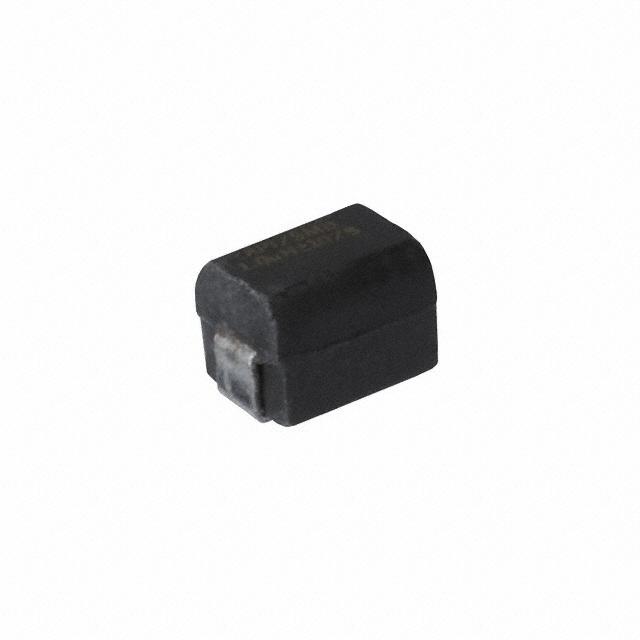

1812R-274J
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 270µH
Tolerance : ±5%
Current Rating : 129mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 12 Ohm Max
Q @ Freq : 40 @ 790kHz
Frequency - Self Resonant : 4MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 790kHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 270µH
Tolerance : ±5%
Current Rating : 129mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 12 Ohm Max
Q @ Freq : 40 @ 790kHz
Frequency - Self Resonant : 4MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 790kHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
27 in stock
1812R-332J
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 3.3µH
Tolerance : ±5%
Current Rating : 501mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 800 mOhm Max
Q @ Freq : 50 @ 7.9MHz
Frequency - Self Resonant : 45MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 3.3µH
Tolerance : ±5%
Current Rating : 501mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 800 mOhm Max
Q @ Freq : 50 @ 7.9MHz
Frequency - Self Resonant : 45MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
