API Delevan
- API Delevan designs, manufactures, and markets an extensive line of quality inductors, chokes, and coils to satisfy various electrical filtering requirements. The Group concentrates on producing high performance inductive devices to meet stringent government and customer specifications relating to high product quality and reliability.
Part Number
Manufacturer
Description
Unit Price
In Stock
1812R-333J
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 33µH
Tolerance : ±5%
Current Rating : 224mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 4 Ohm Max
Q @ Freq : 50 @ 2.5MHz
Frequency - Self Resonant : 11MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 33µH
Tolerance : ±5%
Current Rating : 224mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 4 Ohm Max
Q @ Freq : 50 @ 2.5MHz
Frequency - Self Resonant : 11MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
1000 in stock
1812R-334J
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 330µH
Tolerance : ±5%
Current Rating : 120mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 14 Ohm Max
Q @ Freq : 40 @ 790kHz
Frequency - Self Resonant : 3.5MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 790kHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 330µH
Tolerance : ±5%
Current Rating : 120mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 14 Ohm Max
Q @ Freq : 40 @ 790kHz
Frequency - Self Resonant : 3.5MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 790kHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
16473 in stock
1812R-392J
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 3.9µH
Tolerance : ±5%
Current Rating : 472mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 900 mOhm Max
Q @ Freq : 50 @ 7.9MHz
Frequency - Self Resonant : 40MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 3.9µH
Tolerance : ±5%
Current Rating : 472mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 900 mOhm Max
Q @ Freq : 50 @ 7.9MHz
Frequency - Self Resonant : 40MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
2993 in stock
1812R-472J
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 4.7µH
Tolerance : ±5%
Current Rating : 448mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 1 Ohm Max
Q @ Freq : 50 @ 7.9MHz
Frequency - Self Resonant : 35MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 4.7µH
Tolerance : ±5%
Current Rating : 448mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 1 Ohm Max
Q @ Freq : 50 @ 7.9MHz
Frequency - Self Resonant : 35MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
1323 in stock
1812R-473J
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 47µH
Tolerance : ±5%
Current Rating : 200mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 5 Ohm Max
Q @ Freq : 50 @ 2.5MHz
Frequency - Self Resonant : 10MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 47µH
Tolerance : ±5%
Current Rating : 200mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 5 Ohm Max
Q @ Freq : 50 @ 2.5MHz
Frequency - Self Resonant : 10MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
100 in stock
1812R-474J
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 470µH
Tolerance : ±5%
Current Rating : 88mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 26 Ohm Max
Q @ Freq : 40 @ 790kHz
Frequency - Self Resonant : 3MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 790kHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 470µH
Tolerance : ±5%
Current Rating : 88mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 26 Ohm Max
Q @ Freq : 40 @ 790kHz
Frequency - Self Resonant : 3MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 790kHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
100 in stock
1812R-562J
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 5.6µH
Tolerance : ±5%
Current Rating : 427mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 1.1 Ohm Max
Q @ Freq : 50 @ 7.9MHz
Frequency - Self Resonant : 33MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 5.6µH
Tolerance : ±5%
Current Rating : 427mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 1.1 Ohm Max
Q @ Freq : 50 @ 7.9MHz
Frequency - Self Resonant : 33MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
100 in stock

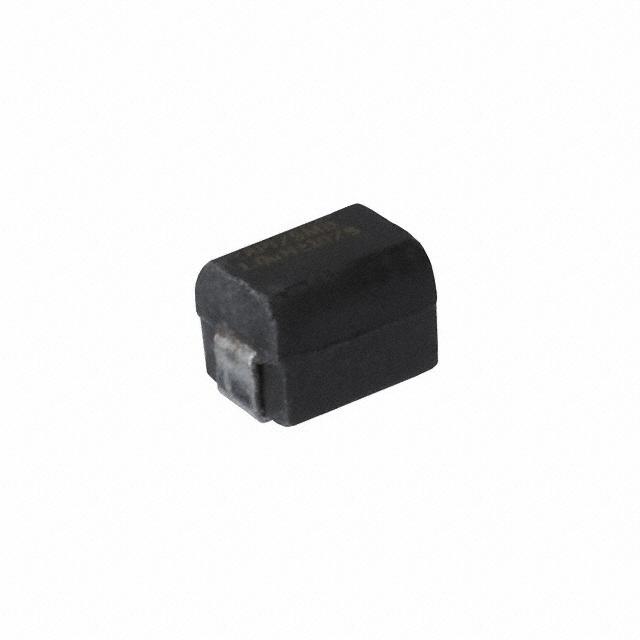

1812R-563J
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 56µH
Tolerance : ±5%
Current Rating : 191mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 5.5 Ohm Max
Q @ Freq : 50 @ 2.5MHz
Frequency - Self Resonant : 9MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 56µH
Tolerance : ±5%
Current Rating : 191mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 5.5 Ohm Max
Q @ Freq : 50 @ 2.5MHz
Frequency - Self Resonant : 9MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
15445 in stock
1812R-564J
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 560µH
Tolerance : ±5%
Current Rating : 82mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 30 Ohm Max
Q @ Freq : 30 @ 790kHz
Frequency - Self Resonant : 3MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 790kHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 560µH
Tolerance : ±5%
Current Rating : 82mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 30 Ohm Max
Q @ Freq : 30 @ 790kHz
Frequency - Self Resonant : 3MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 790kHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
1591 in stock
1812R-822J
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 8.2µH
Tolerance : ±5%
Current Rating : 375mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 1.4 Ohm Max
Q @ Freq : 50 @ 7.9MHz
Frequency - Self Resonant : 25MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 8.2µH
Tolerance : ±5%
Current Rating : 375mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 1.4 Ohm Max
Q @ Freq : 50 @ 7.9MHz
Frequency - Self Resonant : 25MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
5430 in stock
1812R-824J
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 820µH
Tolerance : ±5%
Current Rating : 67mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 45 Ohm Max
Q @ Freq : 30 @ 790kHz
Frequency - Self Resonant : 2.5MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 790kHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 820µH
Tolerance : ±5%
Current Rating : 67mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 45 Ohm Max
Q @ Freq : 30 @ 790kHz
Frequency - Self Resonant : 2.5MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 790kHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
100 in stock
1812RKIT
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Plastic Box with Bin Guide
Series : 1812
Part Status : Obsolete
Kit Type : Fixed
Style : -
Material - Core : Ferrite, Phenolic
Quantity : 305 Pieces (61 Values - 5 Each)
Inductance Range : 10nH ~ 1mH
Mounting Type : Surface Mount
Packages Included : 1812 (4532 Metric)
Features : -
Shielding : -
Packaging : Plastic Box with Bin Guide
Series : 1812
Part Status : Obsolete
Kit Type : Fixed
Style : -
Material - Core : Ferrite, Phenolic
Quantity : 305 Pieces (61 Values - 5 Each)
Inductance Range : 10nH ~ 1mH
Mounting Type : Surface Mount
Packages Included : 1812 (4532 Metric)
Features : -
Shielding : -
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
