API Delevan
- API Delevan designs, manufactures, and markets an extensive line of quality inductors, chokes, and coils to satisfy various electrical filtering requirements. The Group concentrates on producing high performance inductive devices to meet stringent government and customer specifications relating to high product quality and reliability.
Part Number
Manufacturer
Description
Unit Price
In Stock

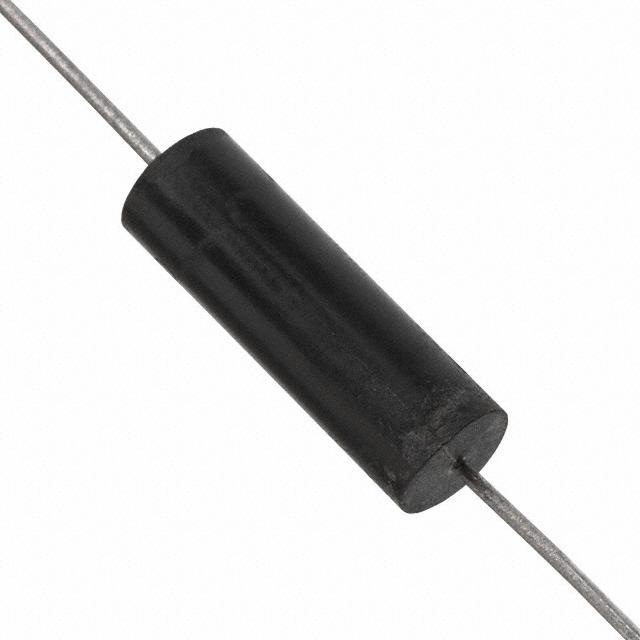

2474R-51L
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Bulk
Series : 2474R
Part Status : Active
Type : Molded
Material - Core : Ferrite
Inductance : 15mH
Tolerance : ±15%
Current Rating : 100mA
Current - Saturation : 50mA
Shielding : Unshielded
DC Resistance (DCR) : 36 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.240" Dia x 0.740" L (6.10mm x 18.80mm)
Height - Seated (Max) : -
Packaging : Bulk
Series : 2474R
Part Status : Active
Type : Molded
Material - Core : Ferrite
Inductance : 15mH
Tolerance : ±15%
Current Rating : 100mA
Current - Saturation : 50mA
Shielding : Unshielded
DC Resistance (DCR) : 36 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.240" Dia x 0.740" L (6.10mm x 18.80mm)
Height - Seated (Max) : -
0
984 in stock
2500-12J
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-M15305, MS90539
Part Status : Active
Type : Molded
Material - Core : Iron
Inductance : 470µH
Tolerance : ±5%
Current Rating : 108mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 11 Ohm Max
Q @ Freq : 65 @ 790kHz
Frequency - Self Resonant : 4MHz
Ratings : -
Operating Temperature : -55°C ~ 105°C
Inductance Frequency - Test : 790kHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.190" Dia x 0.440" L (4.83mm x 11.18mm)
Height - Seated (Max) : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-M15305, MS90539
Part Status : Active
Type : Molded
Material - Core : Iron
Inductance : 470µH
Tolerance : ±5%
Current Rating : 108mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 11 Ohm Max
Q @ Freq : 65 @ 790kHz
Frequency - Self Resonant : 4MHz
Ratings : -
Operating Temperature : -55°C ~ 105°C
Inductance Frequency - Test : 790kHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.190" Dia x 0.440" L (4.83mm x 11.18mm)
Height - Seated (Max) : -
0
1678 in stock

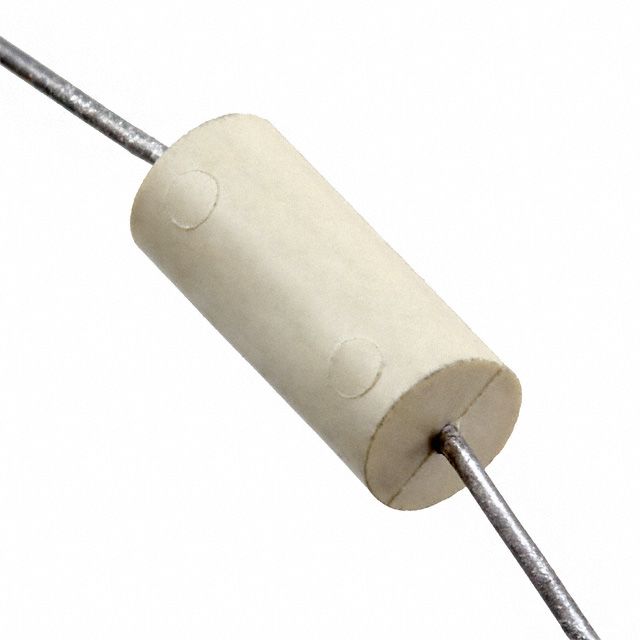

2500-28J
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-M15305, MS90539
Part Status : Active
Type : Molded
Material - Core : Iron
Inductance : 1mH
Tolerance : ±5%
Current Rating : 88mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 16.5 Ohm Max
Q @ Freq : 60 @ 790kHz
Frequency - Self Resonant : 2.8MHz
Ratings : -
Operating Temperature : -55°C ~ 105°C
Inductance Frequency - Test : 790kHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.190" Dia x 0.440" L (4.83mm x 11.18mm)
Height - Seated (Max) : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-M15305, MS90539
Part Status : Active
Type : Molded
Material - Core : Iron
Inductance : 1mH
Tolerance : ±5%
Current Rating : 88mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 16.5 Ohm Max
Q @ Freq : 60 @ 790kHz
Frequency - Self Resonant : 2.8MHz
Ratings : -
Operating Temperature : -55°C ~ 105°C
Inductance Frequency - Test : 790kHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.190" Dia x 0.440" L (4.83mm x 11.18mm)
Height - Seated (Max) : -
0
633 in stock

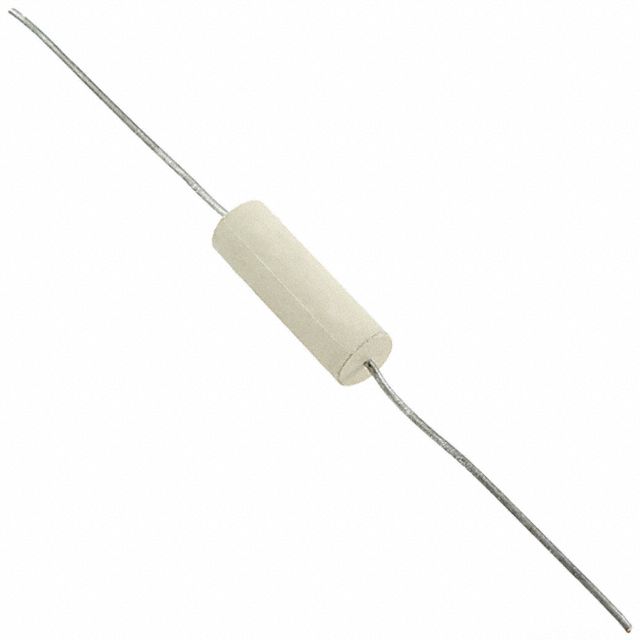

2500-76J
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-M15305, MS90541
Part Status : Active
Type : Molded
Material - Core : Iron
Inductance : 10mH
Tolerance : ±5%
Current Rating : 48mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 72 Ohm Max
Q @ Freq : 80 @ 250kHz
Frequency - Self Resonant : 950kHz
Ratings : -
Operating Temperature : -55°C ~ 105°C
Inductance Frequency - Test : 250kHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.240" Dia x 0.740" L (6.10mm x 18.80mm)
Height - Seated (Max) : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Military, MIL-PRF-M15305, MS90541
Part Status : Active
Type : Molded
Material - Core : Iron
Inductance : 10mH
Tolerance : ±5%
Current Rating : 48mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 72 Ohm Max
Q @ Freq : 80 @ 250kHz
Frequency - Self Resonant : 950kHz
Ratings : -
Operating Temperature : -55°C ~ 105°C
Inductance Frequency - Test : 250kHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.240" Dia x 0.740" L (6.10mm x 18.80mm)
Height - Seated (Max) : -
0
1720 in stock

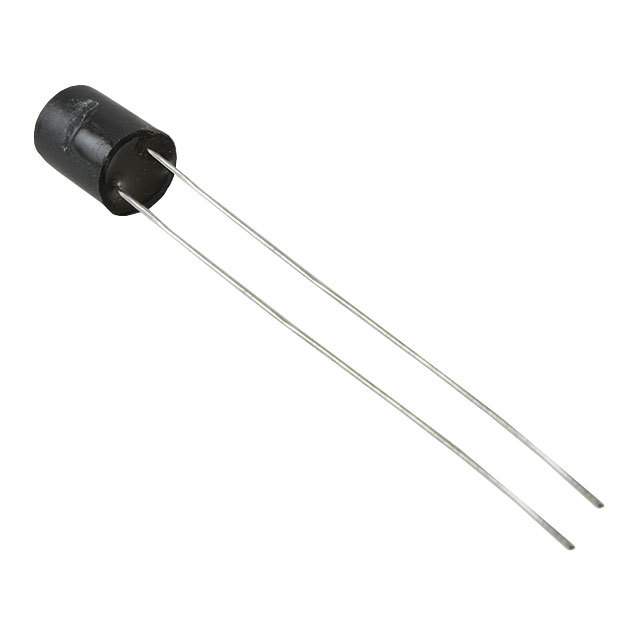

2534-28K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Bulk
Series : 2534
Part Status : Active
Type : Molded
Material - Core : Ferrite
Inductance : 1.5mH
Tolerance : ±10%
Current Rating : 118mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 12 Ohm Max
Q @ Freq : 90 @ 250kHz
Frequency - Self Resonant : 1.15MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 250kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.250" Dia (6.35mm)
Height - Seated (Max) : 0.345" (8.76mm)
Packaging : Bulk
Series : 2534
Part Status : Active
Type : Molded
Material - Core : Ferrite
Inductance : 1.5mH
Tolerance : ±10%
Current Rating : 118mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 12 Ohm Max
Q @ Freq : 90 @ 250kHz
Frequency - Self Resonant : 1.15MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 250kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.250" Dia (6.35mm)
Height - Seated (Max) : 0.345" (8.76mm)
0
1222 in stock
4221-1
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4221
Part Status : Active
Filter Type : -
Number of Lines : 1
Impedance @ Frequency : 47 Ohms @ 100MHz
Current Rating (Max) : 5A
DC Resistance (DCR) (Max) : 0.8 mOhm (Typ)
Ratings : -
Operating Temperature : -55°C ~ 125°C
Package / Case : 2-SMD, J-Lead
Mounting Type : Surface Mount
Height (Max) : 0.128" (3.25mm)
Size / Dimension : 0.197" L x 0.120" W (5.00mm x 3.05mm)
Features : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4221
Part Status : Active
Filter Type : -
Number of Lines : 1
Impedance @ Frequency : 47 Ohms @ 100MHz
Current Rating (Max) : 5A
DC Resistance (DCR) (Max) : 0.8 mOhm (Typ)
Ratings : -
Operating Temperature : -55°C ~ 125°C
Package / Case : 2-SMD, J-Lead
Mounting Type : Surface Mount
Height (Max) : 0.128" (3.25mm)
Size / Dimension : 0.197" L x 0.120" W (5.00mm x 3.05mm)
Features : -
0
456 in stock
4221R-1
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4221R
Part Status : Active
Filter Type : -
Number of Lines : 1
Impedance @ Frequency : 47 Ohms @ 100MHz
Current Rating (Max) : 5A
DC Resistance (DCR) (Max) : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Package / Case : 2-SMD, J-Lead
Mounting Type : Surface Mount
Height (Max) : 0.128" (3.25mm)
Size / Dimension : 0.197" L x 0.120" W (5.00mm x 3.05mm)
Features : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4221R
Part Status : Active
Filter Type : -
Number of Lines : 1
Impedance @ Frequency : 47 Ohms @ 100MHz
Current Rating (Max) : 5A
DC Resistance (DCR) (Max) : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Package / Case : 2-SMD, J-Lead
Mounting Type : Surface Mount
Height (Max) : 0.128" (3.25mm)
Size / Dimension : 0.197" L x 0.120" W (5.00mm x 3.05mm)
Features : -
0
199 in stock
4221R-2
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4221R
Part Status : Active
Filter Type : -
Number of Lines : 1
Impedance @ Frequency : 95 Ohms @ 100MHz
Current Rating (Max) : 5A
DC Resistance (DCR) (Max) : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Package / Case : 2-SMD, J-Lead
Mounting Type : Surface Mount
Height (Max) : 0.128" (3.25mm)
Size / Dimension : 0.374" L x 0.120" W (9.50mm x 3.05mm)
Features : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4221R
Part Status : Active
Filter Type : -
Number of Lines : 1
Impedance @ Frequency : 95 Ohms @ 100MHz
Current Rating (Max) : 5A
DC Resistance (DCR) (Max) : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Package / Case : 2-SMD, J-Lead
Mounting Type : Surface Mount
Height (Max) : 0.128" (3.25mm)
Size / Dimension : 0.374" L x 0.120" W (9.50mm x 3.05mm)
Features : -
0
86186 in stock
4221R-4
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4221R
Part Status : Active
Filter Type : -
Number of Lines : 1
Impedance @ Frequency : 85 Ohms @ 100MHz
Current Rating (Max) : 5A
DC Resistance (DCR) (Max) : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Package / Case : 2-SMD, J-Lead
Mounting Type : Surface Mount
Height (Max) : 0.146" (3.70mm)
Size / Dimension : 0.350" L x 0.187" W (8.90mm x 4.75mm)
Features : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4221R
Part Status : Active
Filter Type : -
Number of Lines : 1
Impedance @ Frequency : 85 Ohms @ 100MHz
Current Rating (Max) : 5A
DC Resistance (DCR) (Max) : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Package / Case : 2-SMD, J-Lead
Mounting Type : Surface Mount
Height (Max) : 0.146" (3.70mm)
Size / Dimension : 0.350" L x 0.187" W (8.90mm x 4.75mm)
Features : -
0
2487 in stock
4222R
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Bulk
Series : 4222R
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : 54 Ohms @ 100MHz
Current Rating (Max) : 5A
DC Resistance (DCR) (Max) : 10 mOhm
Ratings : -
Operating Temperature : -
Package / Case : 2-SMD, J-Lead
Mounting Type : Surface Mount
Height (Max) : 0.122" (3.10mm)
Size / Dimension : 0.335" L x 0.220" W (8.51mm x 5.60mm)
Features : -
Packaging : Bulk
Series : 4222R
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : 54 Ohms @ 100MHz
Current Rating (Max) : 5A
DC Resistance (DCR) (Max) : 10 mOhm
Ratings : -
Operating Temperature : -
Package / Case : 2-SMD, J-Lead
Mounting Type : Surface Mount
Height (Max) : 0.122" (3.10mm)
Size / Dimension : 0.335" L x 0.220" W (8.51mm x 5.60mm)
Features : -
0
1754 in stock
4426-8
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4426
Part Status : Discontinued at
Type : Wirewound
Material - Core : Air
Inductance : 28nH
Tolerance : ±5%
Current Rating : 3A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : -
Q @ Freq : 105 @ 150MHz
Frequency - Self Resonant : 2.6GHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 150MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.270" L x 0.120" W (6.86mm x 3.05mm)
Height - Seated (Max) : 0.125" (3.18mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4426
Part Status : Discontinued at
Type : Wirewound
Material - Core : Air
Inductance : 28nH
Tolerance : ±5%
Current Rating : 3A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : -
Q @ Freq : 105 @ 150MHz
Frequency - Self Resonant : 2.6GHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 150MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.270" L x 0.120" W (6.86mm x 3.05mm)
Height - Seated (Max) : 0.125" (3.18mm)
0
379 in stock
4426KIT
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Plastic Box with Bin Guide
Series : 4426
Part Status : Obsolete
Kit Type : Fixed
Style : Wirewound
Material - Core : Air
Quantity : 50 Pieces (10 Values - 5 Each)
Inductance Range : 2.5nH ~ 43nH
Mounting Type : Surface Mount
Packages Included : 4426
Features : -
Shielding : -
Packaging : Plastic Box with Bin Guide
Series : 4426
Part Status : Obsolete
Kit Type : Fixed
Style : Wirewound
Material - Core : Air
Quantity : 50 Pieces (10 Values - 5 Each)
Inductance Range : 2.5nH ~ 43nH
Mounting Type : Surface Mount
Packages Included : 4426
Features : -
Shielding : -
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
