API Delevan
- API Delevan designs, manufactures, and markets an extensive line of quality inductors, chokes, and coils to satisfy various electrical filtering requirements. The Group concentrates on producing high performance inductive devices to meet stringent government and customer specifications relating to high product quality and reliability.
Part Number
Manufacturer
Description
Unit Price
In Stock

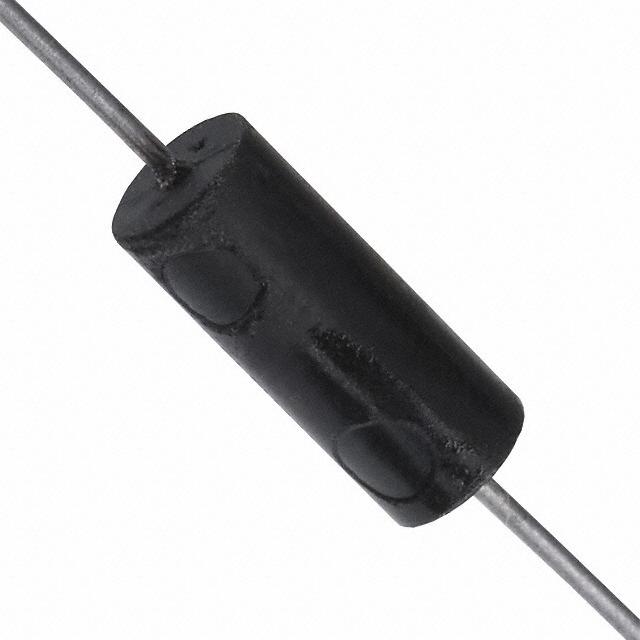

1641R-682K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Bulk
Series : 1641R
Part Status : Active
Type : Molded
Material - Core : Iron
Inductance : 6.8µH
Tolerance : ±10%
Current Rating : 285mA
Current - Saturation : 285mA
Shielding : Shielded
DC Resistance (DCR) : 1.02 Ohm Max
Q @ Freq : 50 @ 7.9MHz
Frequency - Self Resonant : 55MHz
Ratings : -
Operating Temperature : -55°C ~ 105°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.162" Dia x 0.410" L (4.11mm x 10.41mm)
Height - Seated (Max) : -
Packaging : Bulk
Series : 1641R
Part Status : Active
Type : Molded
Material - Core : Iron
Inductance : 6.8µH
Tolerance : ±10%
Current Rating : 285mA
Current - Saturation : 285mA
Shielding : Shielded
DC Resistance (DCR) : 1.02 Ohm Max
Q @ Freq : 50 @ 7.9MHz
Frequency - Self Resonant : 55MHz
Ratings : -
Operating Temperature : -55°C ~ 105°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : Axial
Size / Dimension : 0.162" Dia x 0.410" L (4.11mm x 10.41mm)
Height - Seated (Max) : -
0
417 in stock
1812-562K
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 5.6µH
Tolerance : ±10%
Current Rating : 427mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 1.1 Ohm Max
Q @ Freq : 50 @ 7.9MHz
Frequency - Self Resonant : 33MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : -
Size / Dimension : 0.189" L x 0.134" W (4.80mm x 3.40mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 5.6µH
Tolerance : ±10%
Current Rating : 427mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 1.1 Ohm Max
Q @ Freq : 50 @ 7.9MHz
Frequency - Self Resonant : 33MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : -
Size / Dimension : 0.189" L x 0.134" W (4.80mm x 3.40mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
6 in stock

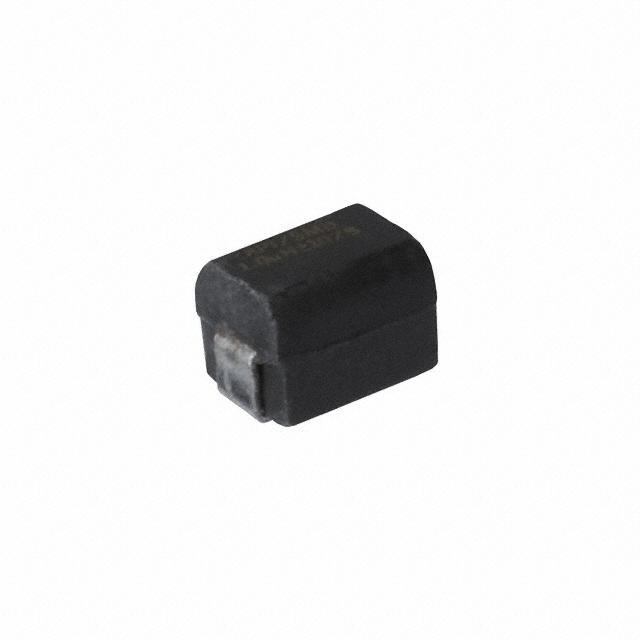

1812-684J
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 680µH
Tolerance : ±5%
Current Rating : 82mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 30 Ohm Max
Q @ Freq : 30 @ 790kHz
Frequency - Self Resonant : 3MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 790kHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 680µH
Tolerance : ±5%
Current Rating : 82mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 30 Ohm Max
Q @ Freq : 30 @ 790kHz
Frequency - Self Resonant : 3MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 790kHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
321 in stock
1812KIT
API Delevan
Manufacturer : API Delevan Inc.
Packaging : -
Series : 1812
Part Status : Obsolete
Kit Type : Fixed
Style : -
Material - Core : Ferrite, Phenolic
Quantity : 305 Pieces (61 Values - 5 Each)
Inductance Range : 10nH ~ 1mH
Mounting Type : Surface Mount
Packages Included : 1812 (4532 Metric)
Features : -
Shielding : -
Packaging : -
Series : 1812
Part Status : Obsolete
Kit Type : Fixed
Style : -
Material - Core : Ferrite, Phenolic
Quantity : 305 Pieces (61 Values - 5 Each)
Inductance Range : 10nH ~ 1mH
Mounting Type : Surface Mount
Packages Included : 1812 (4532 Metric)
Features : -
Shielding : -
0
100 in stock
1812R-102J
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 1µH
Tolerance : ±5%
Current Rating : 634mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 500 mOhm Max
Q @ Freq : 50 @ 7.9MHz
Frequency - Self Resonant : 100MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 1µH
Tolerance : ±5%
Current Rating : 634mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 500 mOhm Max
Q @ Freq : 50 @ 7.9MHz
Frequency - Self Resonant : 100MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
100 in stock
1812R-103J
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 10µH
Tolerance : ±5%
Current Rating : 354mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 1.6 Ohm Max
Q @ Freq : 50 @ 7.9MHz
Frequency - Self Resonant : 20MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 10µH
Tolerance : ±5%
Current Rating : 354mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 1.6 Ohm Max
Q @ Freq : 50 @ 7.9MHz
Frequency - Self Resonant : 20MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
143 in stock
1812R-104J
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 100µH
Tolerance : ±5%
Current Rating : 158mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 8 Ohm Max
Q @ Freq : 50 @ 2.5MHz
Frequency - Self Resonant : 8MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 790kHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 100µH
Tolerance : ±5%
Current Rating : 158mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 8 Ohm Max
Q @ Freq : 50 @ 2.5MHz
Frequency - Self Resonant : 8MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 790kHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
19905 in stock
1812R-105J
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 1mH
Tolerance : ±5%
Current Rating : 55mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 60 Ohm Max
Q @ Freq : 30 @ 790kHz
Frequency - Self Resonant : 2.5MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 790kHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 1mH
Tolerance : ±5%
Current Rating : 55mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 60 Ohm Max
Q @ Freq : 30 @ 790kHz
Frequency - Self Resonant : 2.5MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 790kHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
2610 in stock
1812R-122J
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 1.2µH
Tolerance : ±5%
Current Rating : 604mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 550 mOhm Max
Q @ Freq : 50 @ 7.9MHz
Frequency - Self Resonant : 80MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 1.2µH
Tolerance : ±5%
Current Rating : 604mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 550 mOhm Max
Q @ Freq : 50 @ 7.9MHz
Frequency - Self Resonant : 80MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
100 in stock
1812R-123J
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 12µH
Tolerance : ±5%
Current Rating : 317mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 2 Ohm Max
Q @ Freq : 50 @ 2.5MHz
Frequency - Self Resonant : 18MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 12µH
Tolerance : ±5%
Current Rating : 317mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 2 Ohm Max
Q @ Freq : 50 @ 2.5MHz
Frequency - Self Resonant : 18MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
21413 in stock
1812R-152J
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 1.5µH
Tolerance : ±5%
Current Rating : 578mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 600 mOhm Max
Q @ Freq : 50 @ 7.9MHz
Frequency - Self Resonant : 70MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 1.5µH
Tolerance : ±5%
Current Rating : 578mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 600 mOhm Max
Q @ Freq : 50 @ 7.9MHz
Frequency - Self Resonant : 70MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 7.9MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
100 in stock
1812R-153J
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 15µH
Tolerance : ±5%
Current Rating : 283mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 2.5 Ohm Max
Q @ Freq : 50 @ 2.5MHz
Frequency - Self Resonant : 17MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1812R
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 15µH
Tolerance : ±5%
Current Rating : 283mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 2.5 Ohm Max
Q @ Freq : 50 @ 2.5MHz
Frequency - Self Resonant : 17MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 2.5MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
4 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
