- Discrete Semiconductor Products
- Transistors - IGBTs - Single
Part Number
Manufacturer
Description
Unit Price
In Stock
FGA50N60LS
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 100A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 50A
Power - Max : 240W
Switching Energy : 1.1mJ (on), 3.2mJ (off)
Input Type : Standard
Gate Charge : 167nC
Td (on/off) @ 25°C : 54ns/146ns
Test Condition : 300V, 50A, 5.9 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 100A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 50A
Power - Max : 240W
Switching Energy : 1.1mJ (on), 3.2mJ (off)
Input Type : Standard
Gate Charge : 167nC
Td (on/off) @ 25°C : 54ns/146ns
Test Condition : 300V, 50A, 5.9 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
0
100 in stock
FGA50S110P
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1100V
Current - Collector (Ic) (Max) : 50A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 50A
Power - Max : 300W
Switching Energy : -
Input Type : Standard
Gate Charge : 195nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3PN
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1100V
Current - Collector (Ic) (Max) : 50A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 50A
Power - Max : 300W
Switching Energy : -
Input Type : Standard
Gate Charge : 195nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3PN
0
307 in stock

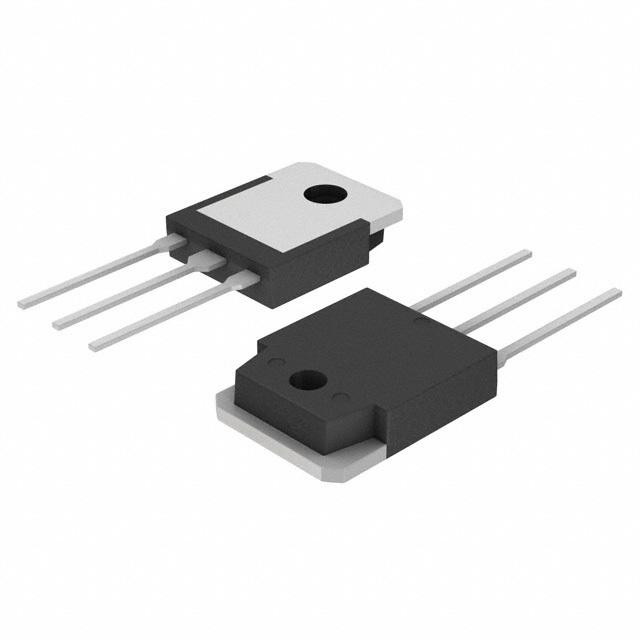

FGA6065ADF
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 120A
Current - Collector Pulsed (Icm) : 180A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 60A
Power - Max : 306W
Switching Energy : 2.46mJ (on), 520µJ (off)
Input Type : Standard
Gate Charge : 84nC
Td (on/off) @ 25°C : 25.6ns/71ns
Test Condition : 400V, 60A, 6 Ohm, 15V
Reverse Recovery Time (trr) : 110ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3PN
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 120A
Current - Collector Pulsed (Icm) : 180A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 60A
Power - Max : 306W
Switching Energy : 2.46mJ (on), 520µJ (off)
Input Type : Standard
Gate Charge : 84nC
Td (on/off) @ 25°C : 25.6ns/71ns
Test Condition : 400V, 60A, 6 Ohm, 15V
Reverse Recovery Time (trr) : 110ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3PN
0
403 in stock
FGA60N60UFDTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 120A
Current - Collector Pulsed (Icm) : 180A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 60A
Power - Max : 298W
Switching Energy : 1.81mJ (on), 810µJ (off)
Input Type : Standard
Gate Charge : 188nC
Td (on/off) @ 25°C : 23ns/130ns
Test Condition : 400V, 60A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 47ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 120A
Current - Collector Pulsed (Icm) : 180A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 60A
Power - Max : 298W
Switching Energy : 1.81mJ (on), 810µJ (off)
Input Type : Standard
Gate Charge : 188nC
Td (on/off) @ 25°C : 23ns/130ns
Test Condition : 400V, 60A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 47ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
0
446 in stock

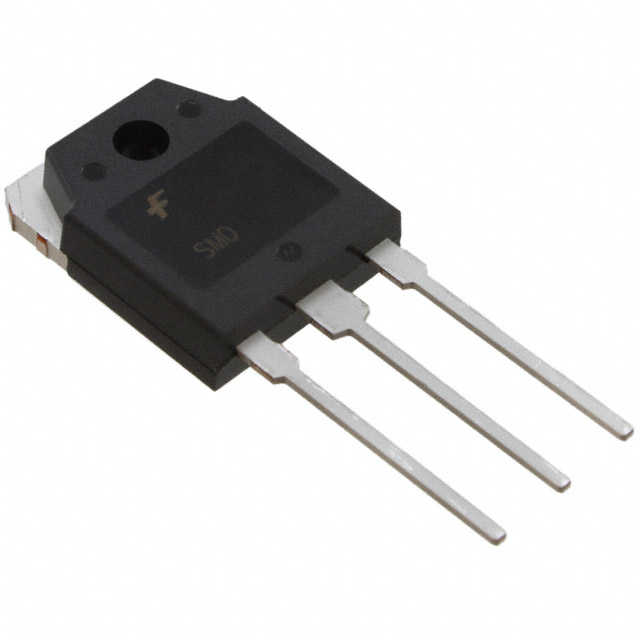

FGA60N65SMD
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 120A
Current - Collector Pulsed (Icm) : 180A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 60A
Power - Max : 600W
Switching Energy : 1.54mJ (on), 450µJ (off)
Input Type : Standard
Gate Charge : 189nC
Td (on/off) @ 25°C : 18ns/104ns
Test Condition : 400V, 60A, 3 Ohm, 15V
Reverse Recovery Time (trr) : 47ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3PN
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 120A
Current - Collector Pulsed (Icm) : 180A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 60A
Power - Max : 600W
Switching Energy : 1.54mJ (on), 450µJ (off)
Input Type : Standard
Gate Charge : 189nC
Td (on/off) @ 25°C : 18ns/104ns
Test Condition : 400V, 60A, 3 Ohm, 15V
Reverse Recovery Time (trr) : 47ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3PN
0
1160 in stock
FGA6530WDF
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 30A
Power - Max : 176W
Switching Energy : 960µJ (on), 162µJ (off)
Input Type : Standard
Gate Charge : 37.4nC
Td (on/off) @ 25°C : 12ns/42.4ns
Test Condition : 400V, 30A, 6 Ohm, 15V
Reverse Recovery Time (trr) : 81ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3PN
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 30A
Power - Max : 176W
Switching Energy : 960µJ (on), 162µJ (off)
Input Type : Standard
Gate Charge : 37.4nC
Td (on/off) @ 25°C : 12ns/42.4ns
Test Condition : 400V, 30A, 6 Ohm, 15V
Reverse Recovery Time (trr) : 81ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3PN
0
448 in stock
FGA6540WDF
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 40A
Power - Max : 238W
Switching Energy : 1.37mJ (on), 250µJ (off)
Input Type : Standard
Gate Charge : 55.5nC
Td (on/off) @ 25°C : 16.8ns/54.4ns
Test Condition : 400V, 40A, 6 Ohm, 15V
Reverse Recovery Time (trr) : 101ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3PN
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 40A
Power - Max : 238W
Switching Energy : 1.37mJ (on), 250µJ (off)
Input Type : Standard
Gate Charge : 55.5nC
Td (on/off) @ 25°C : 16.8ns/54.4ns
Test Condition : 400V, 40A, 6 Ohm, 15V
Reverse Recovery Time (trr) : 101ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3PN
0
447 in stock
FGA6560WDF
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 120A
Current - Collector Pulsed (Icm) : 180A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 60A
Power - Max : 306W
Switching Energy : 2.46mJ (on), 520µJ (off)
Input Type : Standard
Gate Charge : 84nC
Td (on/off) @ 25°C : 25.6ns/71ns
Test Condition : 400V, 60A, 6 Ohm, 15V
Reverse Recovery Time (trr) : 110ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3PN
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 120A
Current - Collector Pulsed (Icm) : 180A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 60A
Power - Max : 306W
Switching Energy : 2.46mJ (on), 520µJ (off)
Input Type : Standard
Gate Charge : 84nC
Td (on/off) @ 25°C : 25.6ns/71ns
Test Condition : 400V, 60A, 6 Ohm, 15V
Reverse Recovery Time (trr) : 110ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3PN
0
395 in stock
FGA70N30TDTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 300V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 1.5V @ 15V, 20A
Power - Max : 201W
Switching Energy : -
Input Type : Standard
Gate Charge : 125nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : 21ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3PN
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 300V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 1.5V @ 15V, 20A
Power - Max : 201W
Switching Energy : -
Input Type : Standard
Gate Charge : 125nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : 21ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3PN
0
100 in stock
FGA70N30TTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 300V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 1.5V @ 15V, 20A
Power - Max : 201W
Switching Energy : -
Input Type : Standard
Gate Charge : 125nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3PN
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 300V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 1.5V @ 15V, 20A
Power - Max : 201W
Switching Energy : -
Input Type : Standard
Gate Charge : 125nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3PN
0
100 in stock
FGA70N33BTDTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 330V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 220A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 70A
Power - Max : 149W
Switching Energy : -
Input Type : Standard
Gate Charge : 49nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : 23ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 330V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 220A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 70A
Power - Max : 149W
Switching Energy : -
Input Type : Standard
Gate Charge : 49nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : 23ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
0
100 in stock
FGA90N30DTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 300V
Current - Collector (Ic) (Max) : 90A
Current - Collector Pulsed (Icm) : 220A
Vce(on) (Max) @ Vge, Ic : 1.4V @ 15V, 20A
Power - Max : 219W
Switching Energy : -
Input Type : Standard
Gate Charge : 87nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : 21ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 300V
Current - Collector (Ic) (Max) : 90A
Current - Collector Pulsed (Icm) : 220A
Vce(on) (Max) @ Vge, Ic : 1.4V @ 15V, 20A
Power - Max : 219W
Switching Energy : -
Input Type : Standard
Gate Charge : 87nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : 21ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
