- Discrete Semiconductor Products
- Transistors - IGBTs - Single
Part Number
Manufacturer
Description
Unit Price
In Stock
FGA30S120P
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1300V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 30A
Power - Max : 348W
Switching Energy : -
Input Type : Standard
Gate Charge : 78nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole

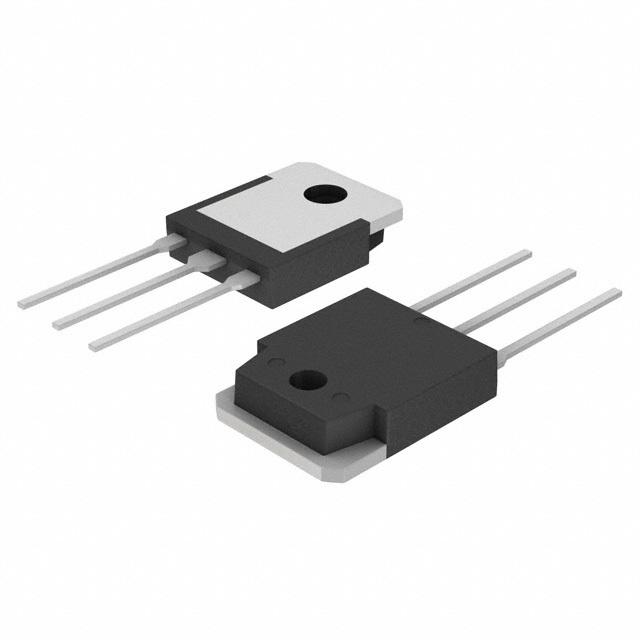

Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3PN
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1300V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 30A
Power - Max : 348W
Switching Energy : -
Input Type : Standard
Gate Charge : 78nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3PN
0
100 in stock
FGA30T65SHD
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 30A
Power - Max : 238W
Switching Energy : 598µJ (on), 167µJ (off)
Input Type : Standard
Gate Charge : 54.7nC
Td (on/off) @ 25°C : 14.4ns/52.8ns
Test Condition : 400V, 30A, 6 Ohm, 15V
Reverse Recovery Time (trr) : 31.8ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3PN
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 30A
Power - Max : 238W
Switching Energy : 598µJ (on), 167µJ (off)
Input Type : Standard
Gate Charge : 54.7nC
Td (on/off) @ 25°C : 14.4ns/52.8ns
Test Condition : 400V, 30A, 6 Ohm, 15V
Reverse Recovery Time (trr) : 31.8ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3PN
0
365 in stock
FGA4060ADF
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 40A
Power - Max : 238W
Switching Energy : 1.37mJ (on), 250µJ (off)
Input Type : Standard
Gate Charge : 55.5nC
Td (on/off) @ 25°C : 16.8ns/54.4ns
Test Condition : 400V, 40A, 6 Ohm, 15V
Reverse Recovery Time (trr) : 26ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3PN
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 40A
Power - Max : 238W
Switching Energy : 1.37mJ (on), 250µJ (off)
Input Type : Standard
Gate Charge : 55.5nC
Td (on/off) @ 25°C : 16.8ns/54.4ns
Test Condition : 400V, 40A, 6 Ohm, 15V
Reverse Recovery Time (trr) : 26ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3PN
0
425 in stock
FGA40N60UFDTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 3V @ 15V, 20A
Power - Max : 160W
Switching Energy : 470µJ (on), 130µJ (off)
Input Type : Standard
Gate Charge : 77nC
Td (on/off) @ 25°C : 15ns/65ns
Test Condition : 300V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 95ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3PN
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 3V @ 15V, 20A
Power - Max : 160W
Switching Energy : 470µJ (on), 130µJ (off)
Input Type : Standard
Gate Charge : 77nC
Td (on/off) @ 25°C : 15ns/65ns
Test Condition : 300V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 95ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3PN
0
100 in stock
FGA40S65SH
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 1.81V @ 15V, 40A
Power - Max : 268W
Switching Energy : 194µJ (on), 388µJ (off)
Input Type : Standard
Gate Charge : 73nC
Td (on/off) @ 25°C : 19.2ns/68.8ns
Test Condition : 400V, 40A, 6 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3PN
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 1.81V @ 15V, 40A
Power - Max : 268W
Switching Energy : 194µJ (on), 388µJ (off)
Input Type : Standard
Gate Charge : 73nC
Td (on/off) @ 25°C : 19.2ns/68.8ns
Test Condition : 400V, 40A, 6 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3PN
0
426 in stock
FGA40T65SHD
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 40A
Power - Max : 268W
Switching Energy : 1.01mJ (on), 297µJ (off)
Input Type : Standard
Gate Charge : 72.2nC
Td (on/off) @ 25°C : 19.2ns/65.6ns
Test Condition : 400V, 40A, 6 Ohm, 15V
Reverse Recovery Time (trr) : 31.8ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3PN
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 40A
Power - Max : 268W
Switching Energy : 1.01mJ (on), 297µJ (off)
Input Type : Standard
Gate Charge : 72.2nC
Td (on/off) @ 25°C : 19.2ns/65.6ns
Test Condition : 400V, 40A, 6 Ohm, 15V
Reverse Recovery Time (trr) : 31.8ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3PN
0
450 in stock
FGA40T65SHDF
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 1.81V @ 15V, 40A
Power - Max : 268W
Switching Energy : 1.22mJ (on), 440µJ (off)
Input Type : Standard
Gate Charge : 68nC
Td (on/off) @ 25°C : 18ns/64ns
Test Condition : 400V, 40A, 6 Ohm, 15V
Reverse Recovery Time (trr) : 101ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3PN
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 1.81V @ 15V, 40A
Power - Max : 268W
Switching Energy : 1.22mJ (on), 440µJ (off)
Input Type : Standard
Gate Charge : 68nC
Td (on/off) @ 25°C : 18ns/64ns
Test Condition : 400V, 40A, 6 Ohm, 15V
Reverse Recovery Time (trr) : 101ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3PN
0
444 in stock
FGA40T65UQDF
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 1.67V @ 15V, 40A
Power - Max : 231W
Switching Energy : 989µJ (on), 310µJ (off)
Input Type : Standard
Gate Charge : 306nC
Td (on/off) @ 25°C : 32ns/271ns
Test Condition : 400V, 40A, 6 Ohm, 15V
Reverse Recovery Time (trr) : 89ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3PN
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 1.67V @ 15V, 40A
Power - Max : 231W
Switching Energy : 989µJ (on), 310µJ (off)
Input Type : Standard
Gate Charge : 306nC
Td (on/off) @ 25°C : 32ns/271ns
Test Condition : 400V, 40A, 6 Ohm, 15V
Reverse Recovery Time (trr) : 89ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3PN
0
170 in stock
FGA5065ADF
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 100A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 50A
Power - Max : 268W
Switching Energy : 1.35mJ (on), 309µJ (off)
Input Type : Standard
Gate Charge : 72.2nC
Td (on/off) @ 25°C : 20.8ns/62.4ns
Test Condition : 400V, 50A, 6 Ohm, 15V
Reverse Recovery Time (trr) : 31.8ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3PN
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 100A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 50A
Power - Max : 268W
Switching Energy : 1.35mJ (on), 309µJ (off)
Input Type : Standard
Gate Charge : 72.2nC
Td (on/off) @ 25°C : 20.8ns/62.4ns
Test Condition : 400V, 50A, 6 Ohm, 15V
Reverse Recovery Time (trr) : 31.8ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3PN
0
424 in stock
FGA50N100BNTD2
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : NPT and Trench
Voltage - Collector Emitter Breakdown (Max) : 1000V
Current - Collector (Ic) (Max) : 50A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2.9V @ 15V, 60A
Power - Max : 156W
Switching Energy : -
Input Type : Standard
Gate Charge : 257nC
Td (on/off) @ 25°C : 34ns/243ns
Test Condition : 600V, 60A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 75ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : NPT and Trench
Voltage - Collector Emitter Breakdown (Max) : 1000V
Current - Collector (Ic) (Max) : 50A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2.9V @ 15V, 60A
Power - Max : 156W
Switching Energy : -
Input Type : Standard
Gate Charge : 257nC
Td (on/off) @ 25°C : 34ns/243ns
Test Condition : 600V, 60A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 75ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
0
223 in stock
FGA50N100BNTDTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : NPT and Trench
Voltage - Collector Emitter Breakdown (Max) : 1000V
Current - Collector (Ic) (Max) : 50A
Current - Collector Pulsed (Icm) : 100A
Vce(on) (Max) @ Vge, Ic : 2.9V @ 15V, 60A
Power - Max : 156W
Switching Energy : -
Input Type : Standard
Gate Charge : 275nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : 1.5µs
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : NPT and Trench
Voltage - Collector Emitter Breakdown (Max) : 1000V
Current - Collector (Ic) (Max) : 50A
Current - Collector Pulsed (Icm) : 100A
Vce(on) (Max) @ Vge, Ic : 2.9V @ 15V, 60A
Power - Max : 156W
Switching Energy : -
Input Type : Standard
Gate Charge : 275nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : 1.5µs
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
0
447 in stock
FGA50N100BNTTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : NPT and Trench
Voltage - Collector Emitter Breakdown (Max) : 1000V
Current - Collector (Ic) (Max) : 50A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2.9V @ 15V, 60A
Power - Max : 156W
Switching Energy : -
Input Type : Standard
Gate Charge : 257nC
Td (on/off) @ 25°C : 34ns/243ns
Test Condition : 600V, 60A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3PN
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : NPT and Trench
Voltage - Collector Emitter Breakdown (Max) : 1000V
Current - Collector (Ic) (Max) : 50A
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 2.9V @ 15V, 60A
Power - Max : 156W
Switching Energy : -
Input Type : Standard
Gate Charge : 257nC
Td (on/off) @ 25°C : 34ns/243ns
Test Condition : 600V, 60A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3PN
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
