- Discrete Semiconductor Products
- Transistors - IGBTs - Single
Part Number
Manufacturer
Description
Unit Price
In Stock

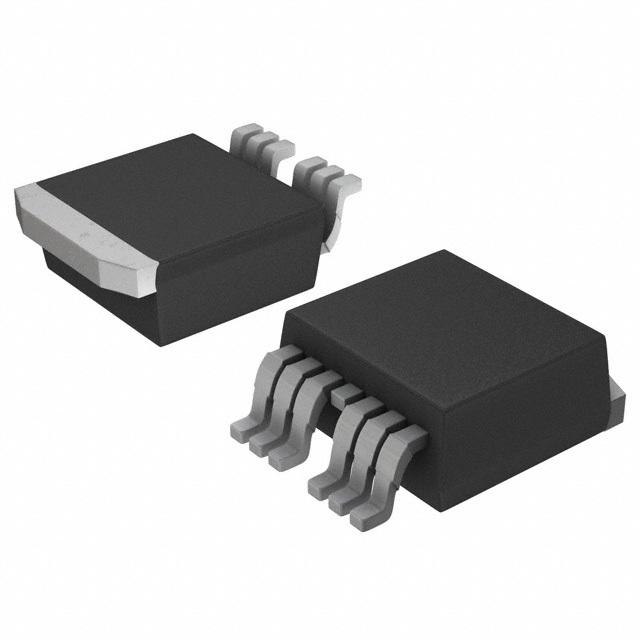

FGB3040CS
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : EcoSPARK®
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 430V
Current - Collector (Ic) (Max) : 21A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 1.6V @ 4V, 6A
Power - Max : 150W
Switching Energy : -
Input Type : Logic
Gate Charge : 15nC
Td (on/off) @ 25°C : -/4.7µs
Test Condition : 300V, 1 kOhm, 5V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-7, D²Pak (6 Leads + Tab) Variant
Supplier Device Package : TO-263-6
Packaging : Cut Tape (CT)
Alternate Packaging
Series : EcoSPARK®
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 430V
Current - Collector (Ic) (Max) : 21A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 1.6V @ 4V, 6A
Power - Max : 150W
Switching Energy : -
Input Type : Logic
Gate Charge : 15nC
Td (on/off) @ 25°C : -/4.7µs
Test Condition : 300V, 1 kOhm, 5V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-7, D²Pak (6 Leads + Tab) Variant
Supplier Device Package : TO-263-6
0
782 in stock
FGB3040G2-F085
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101, EcoSPARK®
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 400V
Current - Collector (Ic) (Max) : 41A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 1.25V @ 4V, 6A
Power - Max : 150W
Switching Energy : -
Input Type : Logic
Gate Charge : 21nC
Td (on/off) @ 25°C : 900ns/4.8µs
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D²PAK (TO-263)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101, EcoSPARK®
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 400V
Current - Collector (Ic) (Max) : 41A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 1.25V @ 4V, 6A
Power - Max : 150W
Switching Energy : -
Input Type : Logic
Gate Charge : 21nC
Td (on/off) @ 25°C : 900ns/4.8µs
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D²PAK (TO-263)
0
800 in stock
FGB30N6S2
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 45A
Current - Collector Pulsed (Icm) : 108A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 12A
Power - Max : 167W
Switching Energy : 55µJ (on), 100µJ (off)
Input Type : Standard
Gate Charge : 23nC
Td (on/off) @ 25°C : 6ns/40ns
Test Condition : 390V, 12A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : TO-263AB
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 45A
Current - Collector Pulsed (Icm) : 108A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 12A
Power - Max : 167W
Switching Energy : 55µJ (on), 100µJ (off)
Input Type : Standard
Gate Charge : 23nC
Td (on/off) @ 25°C : 6ns/40ns
Test Condition : 390V, 12A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : TO-263AB
0
100 in stock
FGB30N6S2D
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 45A
Current - Collector Pulsed (Icm) : 108A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 12A
Power - Max : 167W
Switching Energy : 55µJ (on), 100µJ (off)
Input Type : Standard
Gate Charge : 23nC
Td (on/off) @ 25°C : 6ns/40ns
Test Condition : 390V, 12A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 46ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : TO-263AB
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 45A
Current - Collector Pulsed (Icm) : 108A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 12A
Power - Max : 167W
Switching Energy : 55µJ (on), 100µJ (off)
Input Type : Standard
Gate Charge : 23nC
Td (on/off) @ 25°C : 6ns/40ns
Test Condition : 390V, 12A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 46ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : TO-263AB
0
100 in stock
FGB30N6S2DT
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 45A
Current - Collector Pulsed (Icm) : 108A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 12A
Power - Max : 167W
Switching Energy : 55µJ (on), 100µJ (off)
Input Type : Standard
Gate Charge : 23nC
Td (on/off) @ 25°C : 6ns/40ns
Test Condition : 390V, 12A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 46ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : TO-263AB
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 45A
Current - Collector Pulsed (Icm) : 108A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 12A
Power - Max : 167W
Switching Energy : 55µJ (on), 100µJ (off)
Input Type : Standard
Gate Charge : 23nC
Td (on/off) @ 25°C : 6ns/40ns
Test Condition : 390V, 12A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 46ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : TO-263AB
0
100 in stock

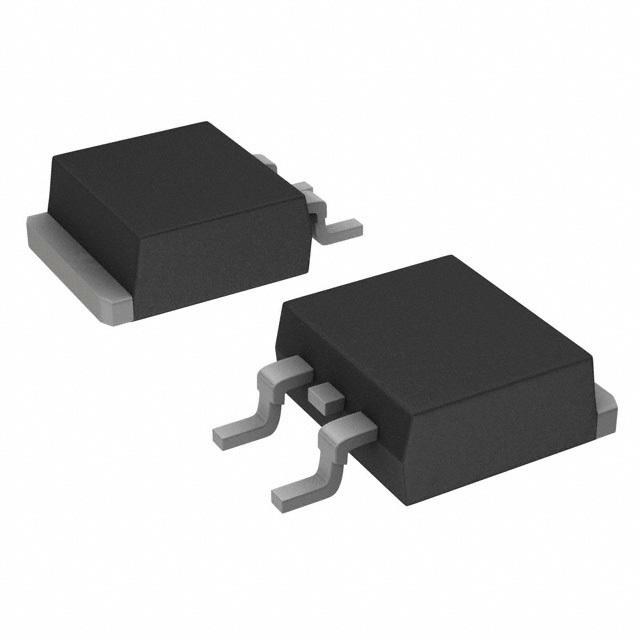

FGB30N6S2T
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 45A
Current - Collector Pulsed (Icm) : 108A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 12A
Power - Max : 167W
Switching Energy : 55µJ (on), 110µJ (off)
Input Type : Standard
Gate Charge : 23nC
Td (on/off) @ 25°C : 6ns/40ns
Test Condition : 390V, 12A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : TO-263AB
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 45A
Current - Collector Pulsed (Icm) : 108A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 12A
Power - Max : 167W
Switching Energy : 55µJ (on), 110µJ (off)
Input Type : Standard
Gate Charge : 23nC
Td (on/off) @ 25°C : 6ns/40ns
Test Condition : 390V, 12A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : TO-263AB
0
100 in stock
FGB3236-F085
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101, EcoSPARK®
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 360V
Current - Collector (Ic) (Max) : 44A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 1.4V @ 4V, 6A
Power - Max : 187W
Switching Energy : -
Input Type : Logic
Gate Charge : 20nC
Td (on/off) @ 25°C : -/5.4µs
Test Condition : 300V, 1 kOhm, 5V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : TO-263
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101, EcoSPARK®
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 360V
Current - Collector (Ic) (Max) : 44A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 1.4V @ 4V, 6A
Power - Max : 187W
Switching Energy : -
Input Type : Logic
Gate Charge : 20nC
Td (on/off) @ 25°C : -/5.4µs
Test Condition : 300V, 1 kOhm, 5V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : TO-263
0
612 in stock
FGB3245G2-F085
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101, EcoSPARK®
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 450V
Current - Collector (Ic) (Max) : 23A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 1.25V @ 4V, 6A
Power - Max : 150W
Switching Energy : -
Input Type : Logic
Gate Charge : 23nC
Td (on/off) @ 25°C : 900ns/5.4µs
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : TO-263AB
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101, EcoSPARK®
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 450V
Current - Collector (Ic) (Max) : 23A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 1.25V @ 4V, 6A
Power - Max : 150W
Switching Energy : -
Input Type : Logic
Gate Charge : 23nC
Td (on/off) @ 25°C : 900ns/5.4µs
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : TO-263AB
0
686 in stock
FGB3440G2-F085
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101, EcoSPARK®
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 400V
Current - Collector (Ic) (Max) : 26.9A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 1.2V @ 4V, 6A
Power - Max : 166W
Switching Energy : -
Input Type : Logic
Gate Charge : 24nC
Td (on/off) @ 25°C : 1µs/5.3µs
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : TO-263AB
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101, EcoSPARK®
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 400V
Current - Collector (Ic) (Max) : 26.9A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 1.2V @ 4V, 6A
Power - Max : 166W
Switching Energy : -
Input Type : Logic
Gate Charge : 24nC
Td (on/off) @ 25°C : 1µs/5.3µs
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : TO-263AB
0
670 in stock
FGB40N60SM
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 40A
Power - Max : 349W
Switching Energy : 870µJ (on), 260µJ (off)
Input Type : Standard
Gate Charge : 119nC
Td (on/off) @ 25°C : 12ns/92ns
Test Condition : 400V, 40A, 6 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : TO-263AB (D²PAK)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 40A
Power - Max : 349W
Switching Energy : 870µJ (on), 260µJ (off)
Input Type : Standard
Gate Charge : 119nC
Td (on/off) @ 25°C : 12ns/92ns
Test Condition : 400V, 40A, 6 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : TO-263AB (D²PAK)
0
774 in stock
FGB40N6S2
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 180A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 20A
Power - Max : 290W
Switching Energy : 115µJ (on), 195µJ (off)
Input Type : Standard
Gate Charge : 35nC
Td (on/off) @ 25°C : 8ns/35ns
Test Condition : 390V, 20A, 3 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : TO-263AB
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 180A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 20A
Power - Max : 290W
Switching Energy : 115µJ (on), 195µJ (off)
Input Type : Standard
Gate Charge : 35nC
Td (on/off) @ 25°C : 8ns/35ns
Test Condition : 390V, 20A, 3 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : TO-263AB
0
100 in stock
FGB40N6S2T
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 180A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 20A
Power - Max : 290W
Switching Energy : 115µJ (on), 195µJ (off)
Input Type : Standard
Gate Charge : 35nC
Td (on/off) @ 25°C : 8ns/35ns
Test Condition : 390V, 20A, 3 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : TO-263AB
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 180A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 20A
Power - Max : 290W
Switching Energy : 115µJ (on), 195µJ (off)
Input Type : Standard
Gate Charge : 35nC
Td (on/off) @ 25°C : 8ns/35ns
Test Condition : 390V, 20A, 3 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : TO-263AB
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
