WeEn Semiconductors Co., Ltd
- WeEn Semiconductors Co., Ltd, is the global joint venture between NXP Semiconductors N.V. and Beijing JianGuang Asset Management Co. Ltd (JAC Capital). WeEn Semiconductors was officially opened on 19th January, 2016 with the business and operations center located in Shanghai, China. WeEn Semiconductors is registered at Nanchang city which is the capital city of Jiangxi province, China. It fully owns subsidiaries and branches in Jilin city for bipolar production, in Shanghai and the United Kingdom for R&D and production support, in Hong Kong for Sales activities, and in many other countries for sales and customer services, respectively.
As a key player in the semiconductors industry, WeEn combines the advanced bipolar power technology and the strong resource of JAC Capital in Chinese manufacturing industry and distribution channels, to focus on developing a complete portfolio of industry-leading bipolar power products including silicon controlled rectifiers, power diodes, high voltage transistors, silicon carbide which are widely used in the automotive, telecommunications, computers and consumer electronics, intelligent home appliances, lighting, and power management markets. The aim is to help the customers achieve higher cost-efficiency and production efficiency and to contribute to the development of China and global intelligent manufacturing.
The NXP Bi-Polar Division product portfolio (Diodes, Thyristors & Transistors) has been transferred to WeEn Semiconductors (Jan 19, 2017).
Part Number
Manufacturer
Description
Unit Price
In Stock
WeEn Semiconductors Co., Ltd
Manufacturer : WeEn Semiconductors
Packaging : Tube
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) : 9A
Voltage - Forward (Vf) (Max) @ If : 1.9V @ 8A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 35ns
Current - Reverse Leakage @ Vr : 50µA @ 600V
Capacitance @ Vr, F : -
Mounting Type : Through Hole

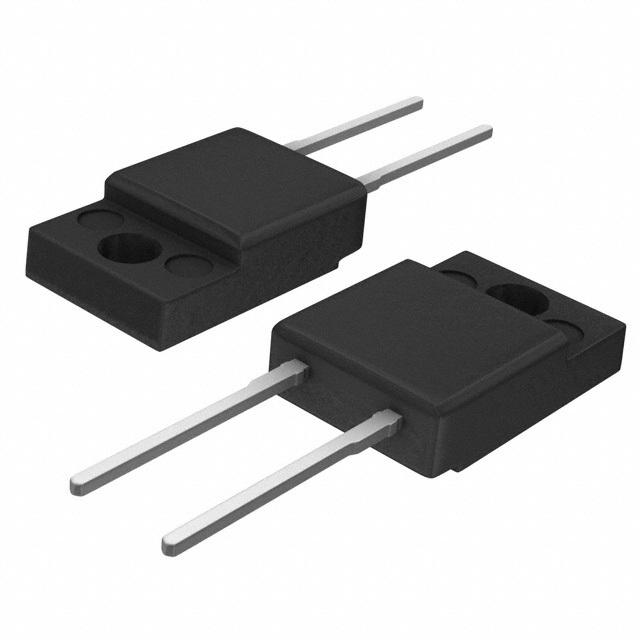

Package / Case : TO-220-2 Full Pack, Isolated Tab
Supplier Device Package : TO-220FP
Operating Temperature - Junction : 150°C (Max)
0
4880 in stock
WeEn Semiconductors Co., Ltd
Manufacturer : WeEn Semiconductors
Packaging : Tube
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) : 9A
Voltage - Forward (Vf) (Max) @ If : 1.26V @ 8A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 60ns
Current - Reverse Leakage @ Vr : 50µA @ 600V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : TO-220-2 Full Pack, Isolated Tab
Supplier Device Package : TO-220FP
Operating Temperature - Junction : 150°C (Max)
0
5249 in stock
WeEn Semiconductors Co., Ltd
Manufacturer : WeEn Semiconductors
Packaging : Tube
Series : -
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 150V
Current - Average Rectified (Io) (per Diode) : 20A
Voltage - Forward (Vf) (Max) @ If : 1.15V @ 20A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 25ns
Current - Reverse Leakage @ Vr : 30µA @ 150V
Operating Temperature - Junction : 150°C (Max)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
1603 in stock
WeEn Semiconductors Co., Ltd
Manufacturer : WeEn Semiconductors
Packaging : Tube
Series : -
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) (per Diode) : 20A
Voltage - Forward (Vf) (Max) @ If : 1.15V @ 20A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 25ns
Current - Reverse Leakage @ Vr : 30µA @ 200V
Operating Temperature - Junction : 150°C (Max)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
2 in stock
WeEn Semiconductors Co., Ltd
Manufacturer : WeEn Semiconductors
Packaging : Tube
Series : -
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 400V
Current - Average Rectified (Io) (per Diode) : 20A
Voltage - Forward (Vf) (Max) @ If : 1.35V @ 20A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 60ns
Current - Reverse Leakage @ Vr : 50µA @ 400V
Operating Temperature - Junction : -
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
3479 in stock
WeEn Semiconductors Co., Ltd
Manufacturer : WeEn Semiconductors
Packaging : Tube
Series : -
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 500V
Current - Average Rectified (Io) (per Diode) : 20A
Voltage - Forward (Vf) (Max) @ If : 1.35V @ 20A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 60ns
Current - Reverse Leakage @ Vr : 50µA @ 500V
Operating Temperature - Junction : 150°C (Max)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
773 in stock
WeEn Semiconductors Co., Ltd
Manufacturer : WeEn Semiconductors
Packaging : Tube
Series : -
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) (per Diode) : 20A
Voltage - Forward (Vf) (Max) @ If : 1.36V @ 10A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 60ns
Current - Reverse Leakage @ Vr : 50µA @ 600V
Operating Temperature - Junction : 150°C (Max)
Mounting Type : Through Hole

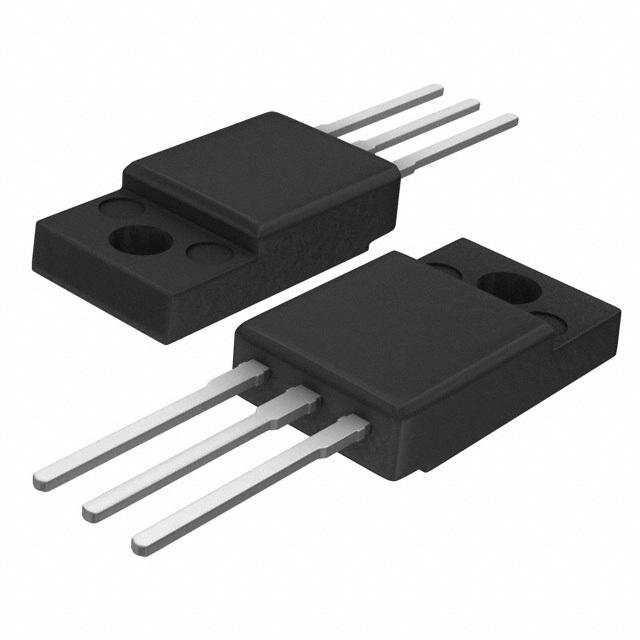

Package / Case : TO-220-3 Full Pack, Isolated Tab
Supplier Device Package : TO-220-3
0
4261 in stock
WeEn Semiconductors Co., Ltd
Manufacturer : WeEn Semiconductors
Packaging : Tube
Series : -
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) (per Diode) : 20A
Voltage - Forward (Vf) (Max) @ If : 2.1V @ 10A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 35ns
Current - Reverse Leakage @ Vr : 50µA @ 600V
Operating Temperature - Junction : 150°C (Max)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
4305 in stock
WeEn Semiconductors Co., Ltd
Manufacturer : WeEn Semiconductors
Packaging : Tube
Series : -
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 150V
Current - Average Rectified (Io) (per Diode) : 30A
Voltage - Forward (Vf) (Max) @ If : 1.2V @ 30A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 28ns
Current - Reverse Leakage @ Vr : 100µA @ 150V
Operating Temperature - Junction : 150°C (Max)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
4733 in stock
WeEn Semiconductors Co., Ltd
Manufacturer : WeEn Semiconductors
Packaging : Tube
Series : -
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) (per Diode) : 30A
Voltage - Forward (Vf) (Max) @ If : 1.2V @ 30A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 28ns
Current - Reverse Leakage @ Vr : 100µA @ 200V
Operating Temperature - Junction : 150°C (Max)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
175 in stock
WeEn Semiconductors Co., Ltd
Manufacturer : WeEn Semiconductors
Packaging : Tube
Series : -
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 500V
Current - Average Rectified (Io) (per Diode) : 30A
Voltage - Forward (Vf) (Max) @ If : 1.36V @ 30A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 60ns
Current - Reverse Leakage @ Vr : 50µA @ 500V
Operating Temperature - Junction : 150°C (Max)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
4806 in stock
WeEn Semiconductors Co., Ltd
Manufacturer : WeEn Semiconductors
Packaging : Tube
Series : -
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) (per Diode) : 15A
Voltage - Forward (Vf) (Max) @ If : 1.2V @ 30A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 28ns
Current - Reverse Leakage @ Vr : 100µA @ 200V
Operating Temperature - Junction : 150°C (Max)
Mounting Type : Through Hole

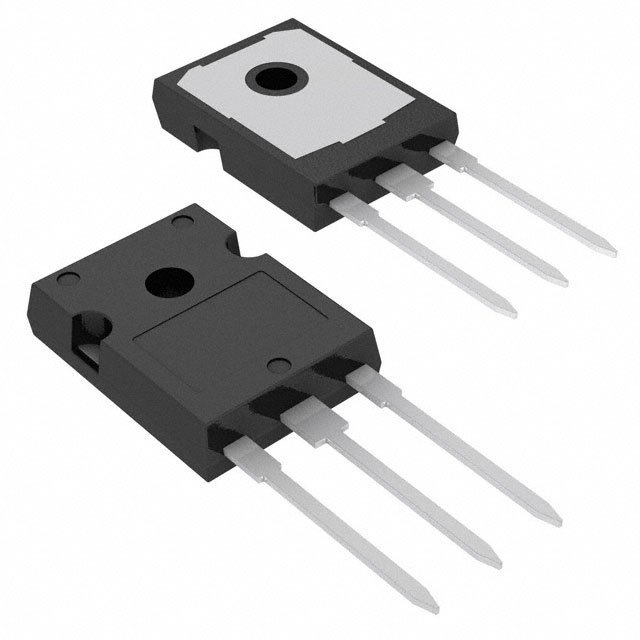

Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
30820 in stock
