WeEn Semiconductors Co., Ltd
- WeEn Semiconductors Co., Ltd, is the global joint venture between NXP Semiconductors N.V. and Beijing JianGuang Asset Management Co. Ltd (JAC Capital). WeEn Semiconductors was officially opened on 19th January, 2016 with the business and operations center located in Shanghai, China. WeEn Semiconductors is registered at Nanchang city which is the capital city of Jiangxi province, China. It fully owns subsidiaries and branches in Jilin city for bipolar production, in Shanghai and the United Kingdom for R&D and production support, in Hong Kong for Sales activities, and in many other countries for sales and customer services, respectively.
As a key player in the semiconductors industry, WeEn combines the advanced bipolar power technology and the strong resource of JAC Capital in Chinese manufacturing industry and distribution channels, to focus on developing a complete portfolio of industry-leading bipolar power products including silicon controlled rectifiers, power diodes, high voltage transistors, silicon carbide which are widely used in the automotive, telecommunications, computers and consumer electronics, intelligent home appliances, lighting, and power management markets. The aim is to help the customers achieve higher cost-efficiency and production efficiency and to contribute to the development of China and global intelligent manufacturing.
The NXP Bi-Polar Division product portfolio (Diodes, Thyristors & Transistors) has been transferred to WeEn Semiconductors (Jan 19, 2017).
Part Number
Manufacturer
Description
Unit Price
In Stock

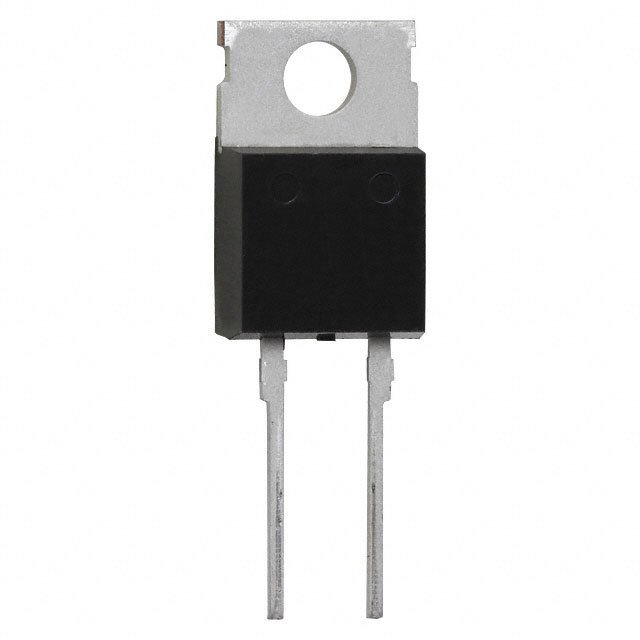

WeEn Semiconductors Co., Ltd
Manufacturer : WeEn Semiconductors
Packaging : Tube
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) : 14A
Voltage - Forward (Vf) (Max) @ If : 1.05V @ 14A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 30ns
Current - Reverse Leakage @ Vr : 50µA @ 200V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : TO-220-2
Supplier Device Package : TO-220AC
Operating Temperature - Junction : 150°C (Max)
0
4011 in stock
WeEn Semiconductors Co., Ltd
Manufacturer : WeEn Semiconductors
Packaging : Tube
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 150V
Current - Average Rectified (Io) : 8A
Voltage - Forward (Vf) (Max) @ If : 1.05V @ 8A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 25ns
Current - Reverse Leakage @ Vr : 10µA @ 150V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : TO-220-2
Supplier Device Package : TO-220AC
Operating Temperature - Junction : 150°C (Max)
0
31 in stock
WeEn Semiconductors Co., Ltd
Manufacturer : WeEn Semiconductors
Packaging : Tube
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) : 8A
Voltage - Forward (Vf) (Max) @ If : 1.05V @ 8A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 25ns
Current - Reverse Leakage @ Vr : 10µA @ 200V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : TO-220-2
Supplier Device Package : TO-220AC
Operating Temperature - Junction : 150°C (Max)
0
1783 in stock
WeEn Semiconductors Co., Ltd
Manufacturer : WeEn Semiconductors
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) : 8A
Voltage - Forward (Vf) (Max) @ If : 1.3V @ 20A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 25ns
Current - Reverse Leakage @ Vr : 10µA @ 200V
Capacitance @ Vr, F : -
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
Operating Temperature - Junction : 150°C (Max)
0
1027 in stock
WeEn Semiconductors Co., Ltd
Manufacturer : WeEn Semiconductors
Packaging : Bulk
Series : -
Part Status : Active
Voltage - Off State : 400V
Voltage - Gate Trigger (Vgt) (Max) : 800mV
Current - Gate Trigger (Igt) (Max) : 12µA
Voltage - On State (Vtm) (Max) : 1.35V
Current - On State (It (AV)) (Max) : 500mA
Current - On State (It (RMS)) (Max) : 800mA
Current - Hold (Ih) (Max) : 5mA
Current - Off State (Max) : 100µA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 8A, 9A
SCR Type : Sensitive Gate
Operating Temperature : -
Mounting Type : Through Hole
Package / Case : TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
Supplier Device Package : TO-92-3
0
1963 in stock

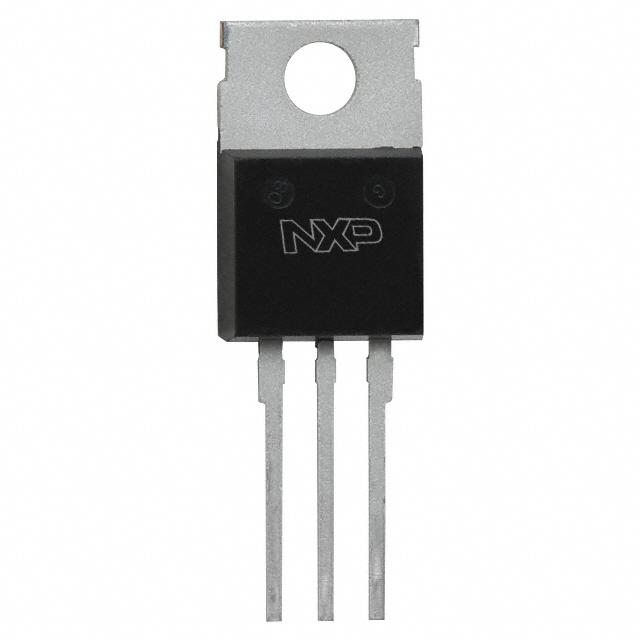

WeEn Semiconductors Co., Ltd
Manufacturer : WeEn Semiconductors
Packaging : Tube
Series : -
Part Status : Active
Triac Type : Standard
Voltage - Off State : 400V
Current - On State (It (RMS)) (Max) : 25A
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Non Rep. Surge 50, 60Hz (Itsm) : 190A, 230A
Current - Gate Trigger (Igt) (Max) : 50mA
Current - Hold (Ih) (Max) : 30mA
Configuration : Single
Operating Temperature : 125°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
4648 in stock

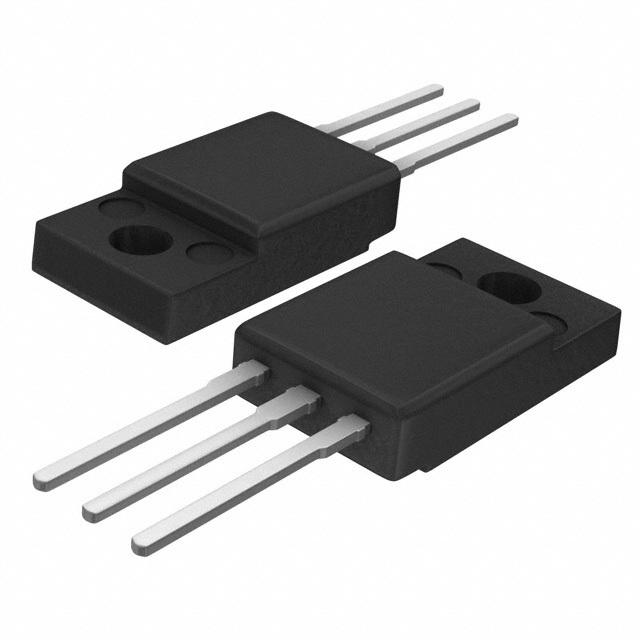

WeEn Semiconductors Co., Ltd
Manufacturer : WeEn Semiconductors
Packaging : Tube
Series : -
Part Status : Active
Triac Type : Standard
Voltage - Off State : 600V
Current - On State (It (RMS)) (Max) : 20A
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Non Rep. Surge 50, 60Hz (Itsm) : 190A, 230A
Current - Gate Trigger (Igt) (Max) : 50mA
Current - Hold (Ih) (Max) : 30mA
Configuration : Single
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack, Isolated Tab
Supplier Device Package : TO-220F
0
699 in stock

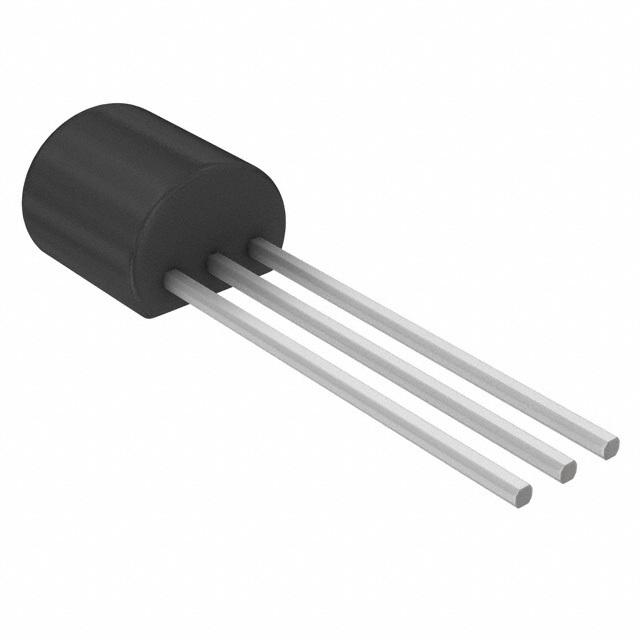

WeEn Semiconductors Co., Ltd
Manufacturer : WeEn Semiconductors
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Triac Type : Logic - Sensitive Gate
Voltage - Off State : 400V
Current - On State (It (RMS)) (Max) : 600mA
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Non Rep. Surge 50, 60Hz (Itsm) : 8A, 8.8A
Current - Gate Trigger (Igt) (Max) : 7mA
Current - Hold (Ih) (Max) : 10mA
Configuration : Single
Operating Temperature : 125°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
Supplier Device Package : TO-92-3
0
3208 in stock
WeEn Semiconductors Co., Ltd
Manufacturer : WeEn Semiconductors
Packaging : Bulk
Alternate Packaging
Series : -
Part Status : Active
Triac Type : Logic - Sensitive Gate
Voltage - Off State : 400V
Current - On State (It (RMS)) (Max) : 600mA
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Non Rep. Surge 50, 60Hz (Itsm) : 8A, 8.8A
Current - Gate Trigger (Igt) (Max) : 7mA
Current - Hold (Ih) (Max) : 10mA
Configuration : Single
Operating Temperature : 125°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package : TO-92-3
0
10132 in stock

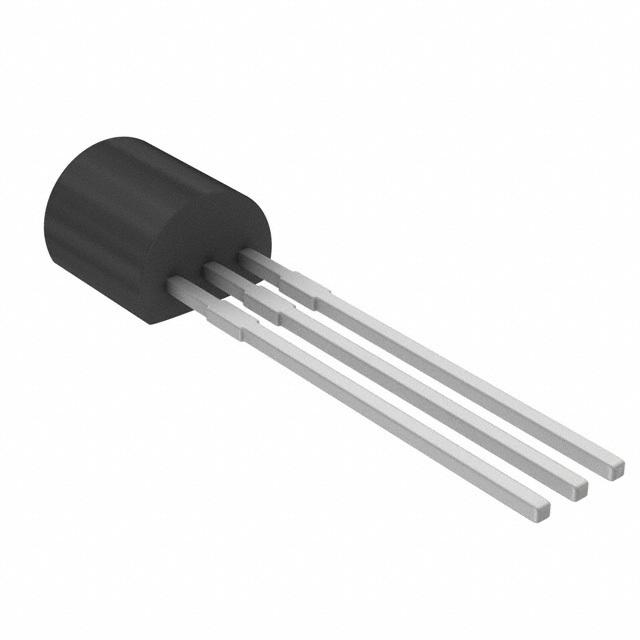

WeEn Semiconductors Co., Ltd
Manufacturer : WeEn Semiconductors
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Triac Type : Logic - Sensitive Gate
Voltage - Off State : 600V
Current - On State (It (RMS)) (Max) : 600mA
Voltage - Gate Trigger (Vgt) (Max) : 2V
Current - Non Rep. Surge 50, 60Hz (Itsm) : 8A, 8.8A
Current - Gate Trigger (Igt) (Max) : 5mA
Current - Hold (Ih) (Max) : 10mA
Configuration : Single
Operating Temperature : 125°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
Supplier Device Package : TO-92-3
0
2874 in stock
WeEn Semiconductors Co., Ltd
Manufacturer : WeEn Semiconductors
Packaging : Bulk
Series : -
Part Status : Active
Triac Type : Logic - Sensitive Gate
Voltage - Off State : 600V
Current - On State (It (RMS)) (Max) : 600mA
Voltage - Gate Trigger (Vgt) (Max) : 2V
Current - Non Rep. Surge 50, 60Hz (Itsm) : 8A, 8.8A
Current - Gate Trigger (Igt) (Max) : 5mA
Current - Hold (Ih) (Max) : 10mA
Configuration : Single
Operating Temperature : 125°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
Supplier Device Package : TO-92-3
0
10475 in stock

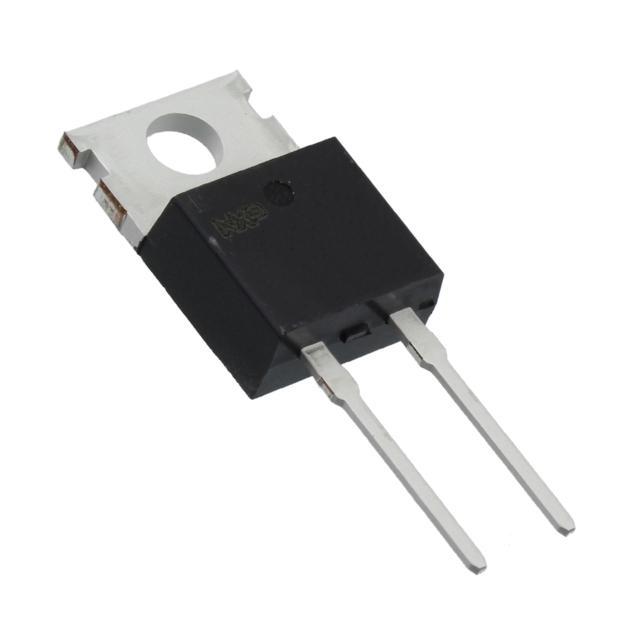

WeEn Semiconductors Co., Ltd
Manufacturer : WeEn Semiconductors
Packaging : Tube
Series : -
Part Status : Active
Diode Type : Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) : 650V
Current - Average Rectified (Io) : 10A
Voltage - Forward (Vf) (Max) @ If : 1.85V @ 10A
Speed : No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) : 0ns
Current - Reverse Leakage @ Vr : 230µA @ 650V
Capacitance @ Vr, F : 250pF @ 1V, 1MHz
Mounting Type : Through Hole
Package / Case : TO-220-2
Supplier Device Package : TO-220AC
Operating Temperature - Junction : 175°C (Max)
0
4996 in stock
