WeEn Semiconductors Co., Ltd

- WeEn Semiconductors Co., Ltd, is the global joint venture between NXP Semiconductors N.V. and Beijing JianGuang Asset Management Co. Ltd (JAC Capital). WeEn Semiconductors was officially opened on 19th January, 2016 with the business and operations center located in Shanghai, China. WeEn Semiconductors is registered at Nanchang city which is the capital city of Jiangxi province, China. It fully owns subsidiaries and branches in Jilin city for bipolar production, in Shanghai and the United Kingdom for R&D and production support, in Hong Kong for Sales activities, and in many other countries for sales and customer services, respectively.

As a key player in the semiconductors industry, WeEn combines the advanced bipolar power technology and the strong resource of JAC Capital in Chinese manufacturing industry and distribution channels, to focus on developing a complete portfolio of industry-leading bipolar power products including silicon controlled rectifiers, power diodes, high voltage transistors, silicon carbide which are widely used in the automotive, telecommunications, computers and consumer electronics, intelligent home appliances, lighting, and power management markets. The aim is to help the customers achieve higher cost-efficiency and production efficiency and to contribute to the development of China and global intelligent manufacturing.

The NXP Bi-Polar Division product portfolio (Diodes, Thyristors & Transistors) has been transferred to WeEn Semiconductors (Jan 19, 2017).


Part Number

Manufacturer

Description

Unit Price

In Stock

BYC15X-600PQ

WeEn Semiconductors Co., Ltd

Manufacturer : WeEn Semiconductors
Packaging : Tube
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) : 15A
Voltage - Forward (Vf) (Max) @ If : 3.2V @ 15A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 18ns
Current - Reverse Leakage @ Vr : 10µA @ 600V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : TO-220-2 Full Pack, Isolated Tab
Supplier Device Package : TO-220F
Operating Temperature - Junction : 175°C (Max)

4699 in stock

BYC20-600,127

WeEn Semiconductors Co., Ltd

Manufacturer : WeEn Semiconductors
Packaging : Tube
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 500V
Current - Average Rectified (Io) : 20A
Voltage - Forward (Vf) (Max) @ If : 2.9V @ 20A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 55ns
Current - Reverse Leakage @ Vr : 200µA @ 600V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : TO-220-2
Supplier Device Package : TO-220AC
Operating Temperature - Junction : 150°C (Max)

5568 in stock

BYC20X-600,127

WeEn Semiconductors Co., Ltd

Manufacturer : WeEn Semiconductors
Packaging : Tube
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 500V
Current - Average Rectified (Io) : 20A
Voltage - Forward (Vf) (Max) @ If : 2.9V @ 20A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 55ns
Current - Reverse Leakage @ Vr : 200µA @ 600V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : TO-220-2 Full Pack, Isolated Tab
Supplier Device Package : TO-220FP
Operating Temperature - Junction : 150°C (Max)

4372 in stock

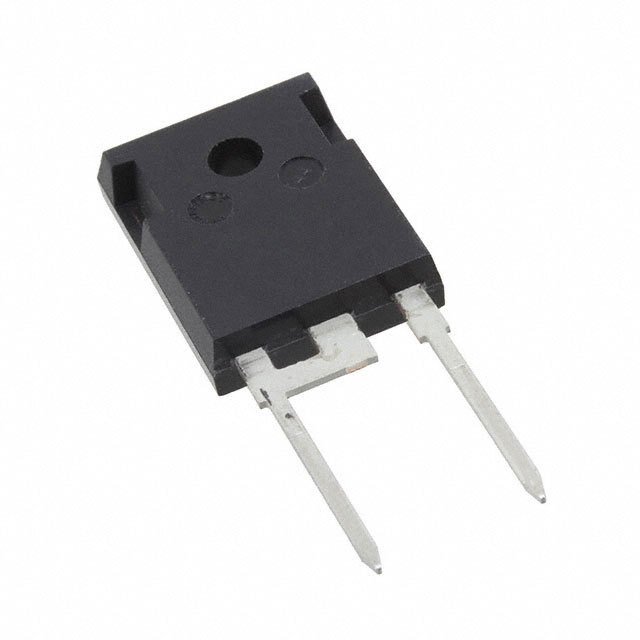

BYC30W-600PQ

WeEn Semiconductors Co., Ltd

Manufacturer : WeEn Semiconductors
Packaging : Tube
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) : 30A
Voltage - Forward (Vf) (Max) @ If : 2.75V @ 30A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 22ns
Current - Reverse Leakage @ Vr : 10µA @ 600V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : TO-247-2
Supplier Device Package : TO-247-2
Operating Temperature - Junction : 175°C (Max)

2670 in stock

BYC30X-600P,127

WeEn Semiconductors Co., Ltd

Manufacturer : WeEn Semiconductors
Packaging : Tube
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) : 30A
Voltage - Forward (Vf) (Max) @ If : 1.8V @ 30A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 35ns
Current - Reverse Leakage @ Vr : 10µA @ 600V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : TO-220-2 Full Pack, Isolated Tab
Supplier Device Package : TO-220FP
Operating Temperature - Junction : 175°C (Max)

3647 in stock

BYC5-600,127

WeEn Semiconductors Co., Ltd

Manufacturer : WeEn Semiconductors
Packaging : Tube
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 500V
Current - Average Rectified (Io) : 5A
Voltage - Forward (Vf) (Max) @ If : 2.9V @ 5A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 50ns
Current - Reverse Leakage @ Vr : 100µA @ 600V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : TO-220-2
Supplier Device Package : TO-220AC
Operating Temperature - Junction : 150°C (Max)

7492 in stock

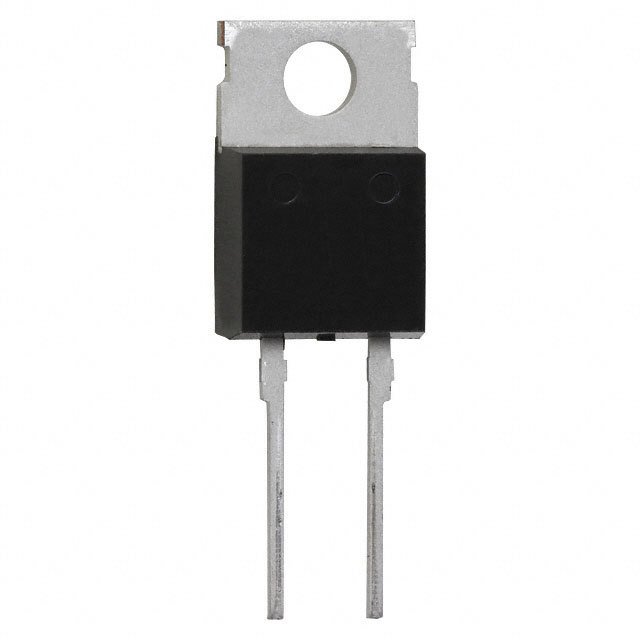

BYC8-600P,127

WeEn Semiconductors Co., Ltd

Manufacturer : WeEn Semiconductors
Packaging : Tube
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) : 8A
Voltage - Forward (Vf) (Max) @ If : 1.9V @ 8A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 18ns
Current - Reverse Leakage @ Vr : 20µA @ 600V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : TO-220-2
Supplier Device Package : TO-220AC
Operating Temperature - Junction : 175°C (Max)

3653 in stock

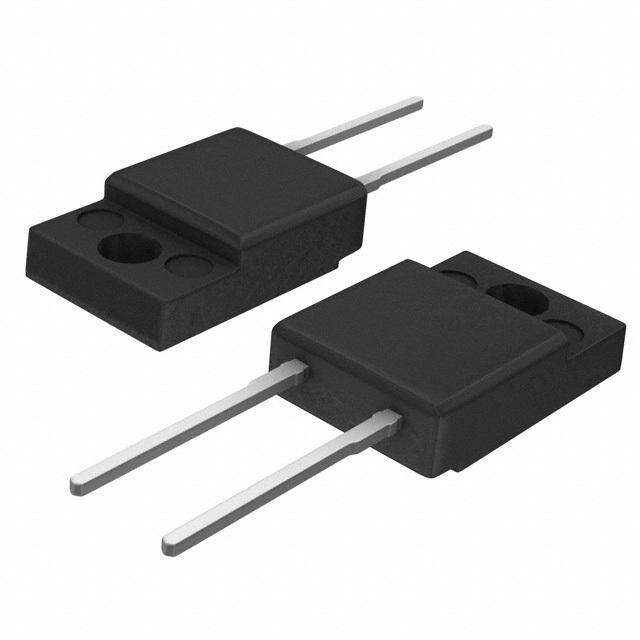

BYC8X-600,127

WeEn Semiconductors Co., Ltd

Manufacturer : WeEn Semiconductors
Packaging : Tube
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) : 8A
Voltage - Forward (Vf) (Max) @ If : 2.9V @ 8A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 52ns
Current - Reverse Leakage @ Vr : 150µA @ 600V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : TO-220-2 Full Pack, Isolated Tab
Supplier Device Package : TO-220FP
Operating Temperature - Junction : 150°C (Max)

4790 in stock

BYC8X-600P,127

WeEn Semiconductors Co., Ltd

Manufacturer : WeEn Semiconductors
Packaging : Tube
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) : 8A
Voltage - Forward (Vf) (Max) @ If : 1.9V @ 8A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 18ns
Current - Reverse Leakage @ Vr : 20µA @ 600V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : TO-220-2 Full Pack, Isolated Tab
Supplier Device Package : TO-220FP
Operating Temperature - Junction : 175°C (Max)

4769 in stock

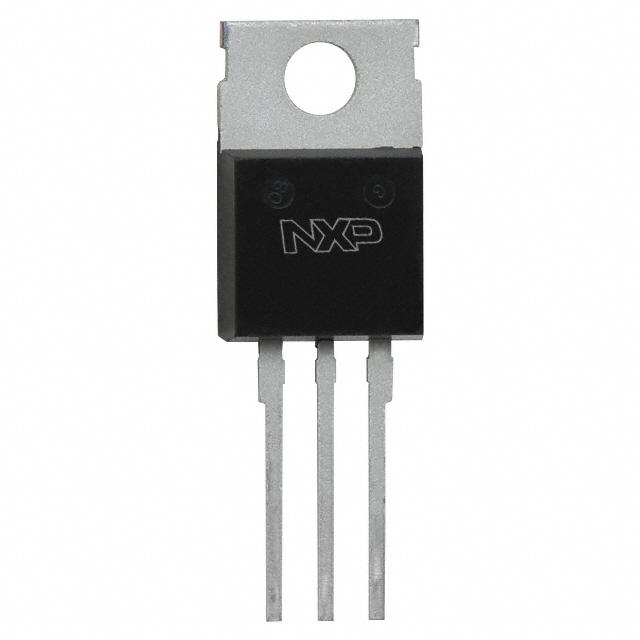

BYQ28E-200,127

WeEn Semiconductors Co., Ltd

Manufacturer : WeEn Semiconductors
Packaging : Tube
Series : -
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) (per Diode) : 10A
Voltage - Forward (Vf) (Max) @ If : 1.25V @ 10A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 25ns
Current - Reverse Leakage @ Vr : 10µA @ 200V
Operating Temperature - Junction : 150°C (Max)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB

2648 in stock

BYQ28E-200/H,127

WeEn Semiconductors Co., Ltd

4888 in stock

BYQ28E-200E,127

WeEn Semiconductors Co., Ltd

1064 in stock
