United Chemi-Con
- A wholly owned subsidiary of Nippon Chemi-Con, United Chemi-Con (UCC) is North America's largest manufacturer and supplier of aluminum electrolytic capacitors. Established in the United States in 1970, United Chemi-Con distributes more than 8,000 products, including products manufactured both domestically in Lansing, North Carolina, and at other worldwide plants.
Because quality customer service is one of United Chemi-Con's highest priorities, we offer complete engineering and sales support at our corporate headquarters in Rosemont, Illinois, as well as sales, service and field engineering support at other sites throughout the country. UCC products are warehoused in Brea, California and Lansing, North Carolina, ensuring fast and efficient delivery of your orders.
Part Number
Manufacturer
Description
Unit Price
In Stock
Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Alchip™- MVE
Part Status : Active
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 69mA @ 120Hz
Ripple Current @ High Frequency : -
Impedance : -
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.205" (5.20mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
127633 in stock

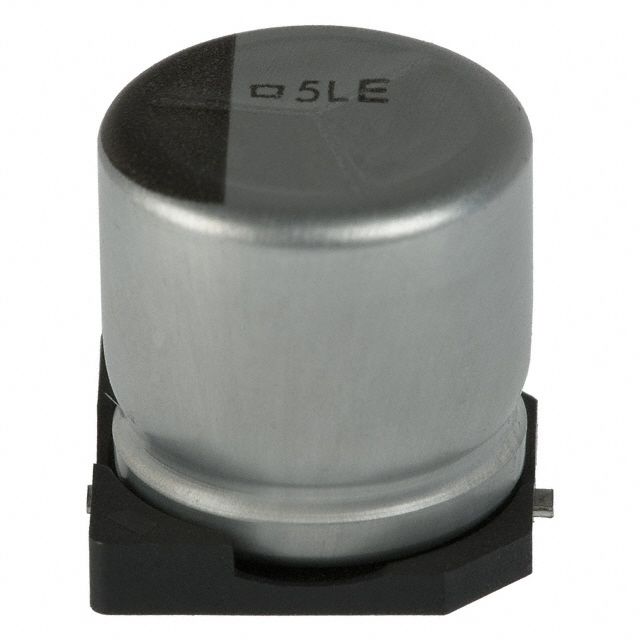

Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Alchip™- MVE
Part Status : Active
Capacitance : 470µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 490mA @ 120Hz
Ripple Current @ High Frequency : -
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.394" (10.00mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
10288 in stock

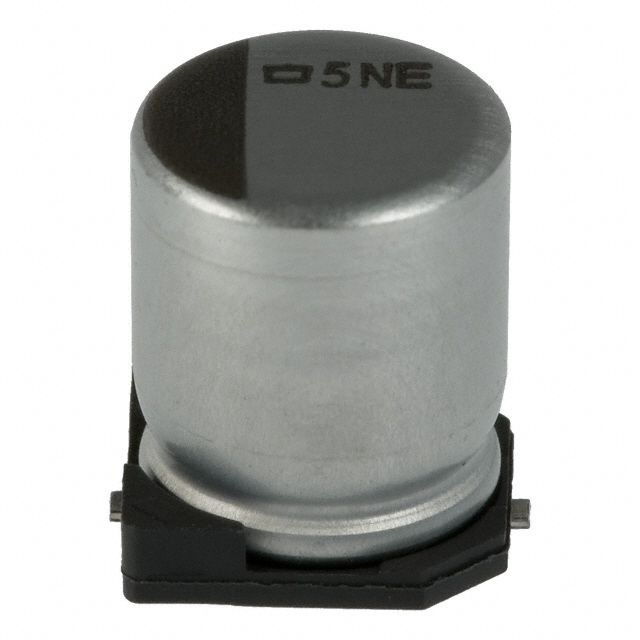

Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Alchip™- MVE
Part Status : Active
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 100mA @ 120Hz
Ripple Current @ High Frequency : -
Impedance : -
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.303" (7.70mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
25668 in stock
Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Alchip™- MVE
Part Status : Active
Capacitance : 220µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 375mA @ 120Hz
Ripple Current @ High Frequency : -
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.394" (10.00mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
27873 in stock
Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Alchip™- MVE
Part Status : Active
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 310mA @ 120Hz
Ripple Current @ High Frequency : -
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.394" (10.00mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
28657 in stock

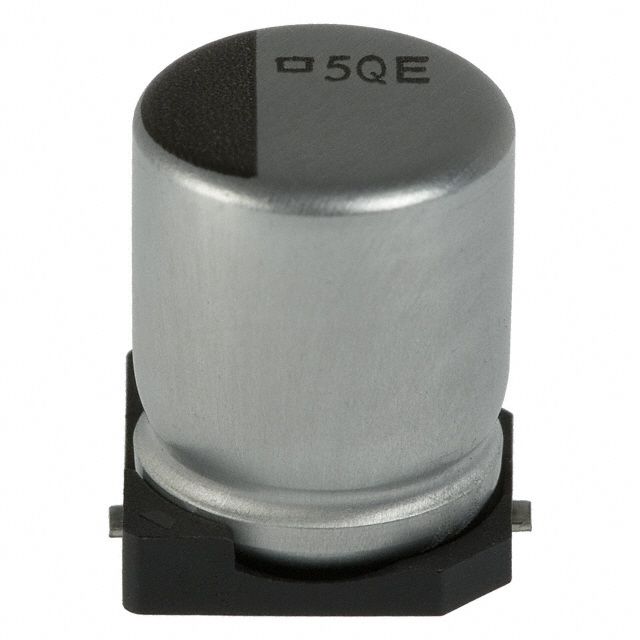

Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Alchip™- MVE
Part Status : Active
Capacitance : 47µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 170mA @ 120Hz
Ripple Current @ High Frequency : -
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.394" (10.00mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
56771 in stock
Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Alchip™- MVH
Part Status : Active
Capacitance : 10µF
Tolerance : ±20%
Voltage - Rated : 100V
ESR (Equivalent Series Resistance) : 750 mOhm @ 100kHz
Lifetime @ Temp. : 2000 Hrs @ 125°C
Operating Temperature : -40°C ~ 125°C
Polarization : Polar
Ratings : -
Applications : Automotive
Ripple Current @ Low Frequency : 46.2mA @ 120Hz
Ripple Current @ High Frequency : 70mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.394" (10.00mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
11830 in stock

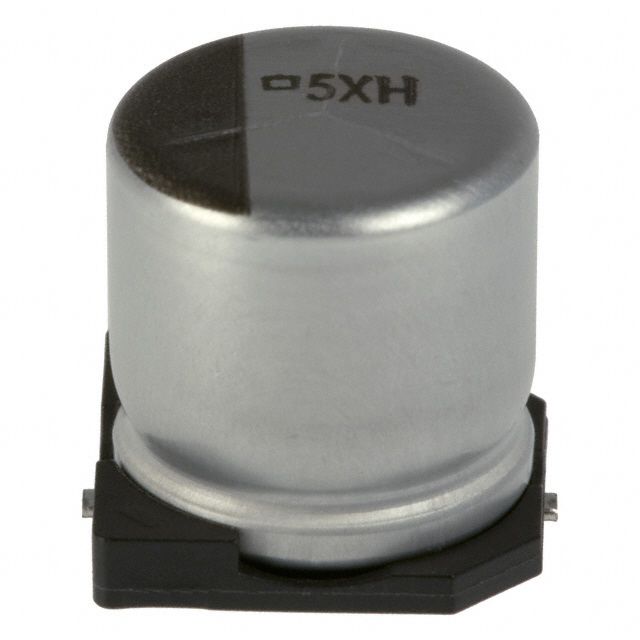

Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Alchip™- MVH
Part Status : Active
Capacitance : 22µF
Tolerance : ±20%
Voltage - Rated : 100V
ESR (Equivalent Series Resistance) : 550 mOhm @ 100kHz
Lifetime @ Temp. : 2000 Hrs @ 125°C
Operating Temperature : -40°C ~ 125°C
Polarization : Polar
Ratings : -
Applications : Automotive
Ripple Current @ Low Frequency : 106.95mA @ 120Hz
Ripple Current @ High Frequency : 115mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.394" (10.00mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
8412 in stock
Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Alchip™- MVH
Part Status : Active
Capacitance : 470µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : 110 mOhm @ 100kHz
Lifetime @ Temp. : 5000 Hrs @ 125°C
Operating Temperature : -40°C ~ 125°C
Polarization : Polar
Ratings : -
Applications : Automotive
Ripple Current @ Low Frequency : 450mA @ 120Hz
Ripple Current @ High Frequency : 900mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.492" Dia (12.50mm)
Height - Seated (Max) : 0.630" (16.00mm)
Surface Mount Land Size : 0.512" L x 0.512" W (13.00mm x 13.00mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
6970 in stock

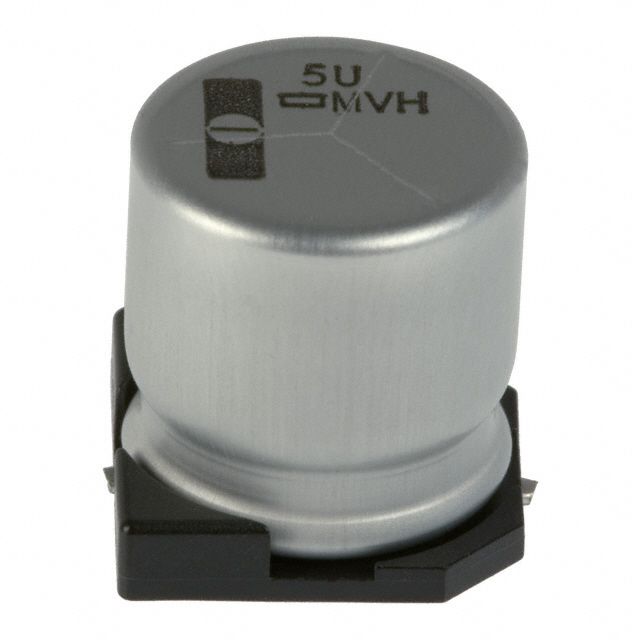

Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Alchip™- MVH
Part Status : Active
Capacitance : 220µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : 230 mOhm @ 100kHz
Lifetime @ Temp. : 5000 Hrs @ 125°C
Operating Temperature : -40°C ~ 125°C
Polarization : Polar
Ratings : -
Applications : Automotive
Ripple Current @ Low Frequency : 275mA @ 120Hz
Ripple Current @ High Frequency : 550mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.492" Dia (12.50mm)
Height - Seated (Max) : 0.532" (13.50mm)
Surface Mount Land Size : 0.512" L x 0.512" W (13.00mm x 13.00mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
18499 in stock

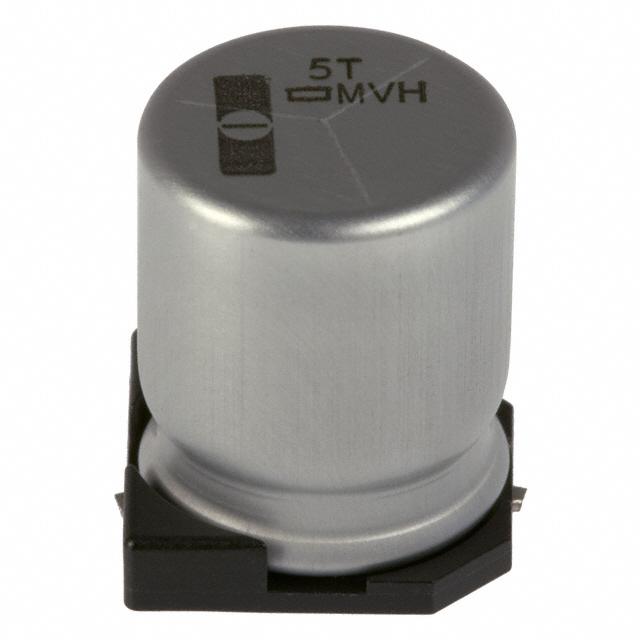

Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Alchip™- MVH
Part Status : Active
Capacitance : 330µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : 180 mOhm @ 100kHz
Lifetime @ Temp. : 5000 Hrs @ 125°C
Operating Temperature : -40°C ~ 125°C
Polarization : Polar
Ratings : -
Applications : Automotive
Ripple Current @ Low Frequency : 350mA @ 120Hz
Ripple Current @ High Frequency : 700mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.492" Dia (12.50mm)
Height - Seated (Max) : 0.630" (16.00mm)
Surface Mount Land Size : 0.512" L x 0.512" W (13.00mm x 13.00mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
9099 in stock

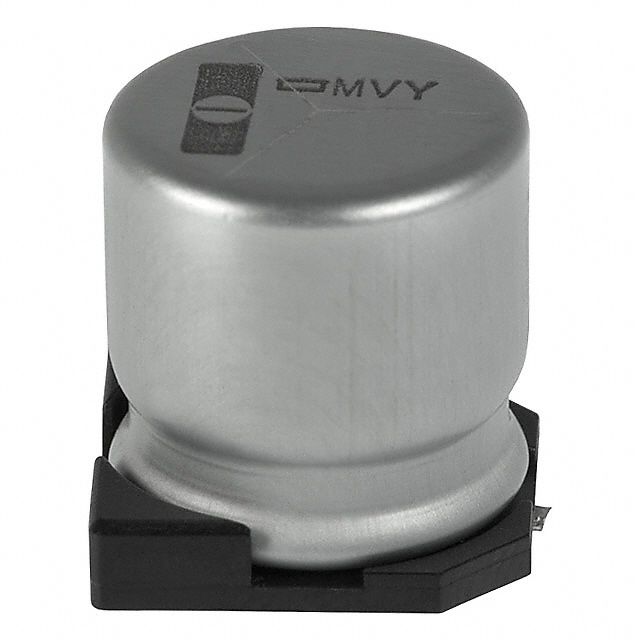

Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Alchip™- MVY
Part Status : Active
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 100V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 180mA @ 120Hz
Ripple Current @ High Frequency : 450mA @ 100kHz
Impedance : 330 mOhms
Lead Spacing : -
Size / Dimension : 0.492" Dia (12.50mm)
Height - Seated (Max) : 0.532" (13.50mm)
Surface Mount Land Size : 0.512" L x 0.512" W (13.00mm x 13.00mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
9036 in stock
