United Chemi-Con
- A wholly owned subsidiary of Nippon Chemi-Con, United Chemi-Con (UCC) is North America's largest manufacturer and supplier of aluminum electrolytic capacitors. Established in the United States in 1970, United Chemi-Con distributes more than 8,000 products, including products manufactured both domestically in Lansing, North Carolina, and at other worldwide plants.
Because quality customer service is one of United Chemi-Con's highest priorities, we offer complete engineering and sales support at our corporate headquarters in Rosemont, Illinois, as well as sales, service and field engineering support at other sites throughout the country. UCC products are warehoused in Brea, California and Lansing, North Carolina, ensuring fast and efficient delivery of your orders.
Part Number
Manufacturer
Description
Unit Price
In Stock

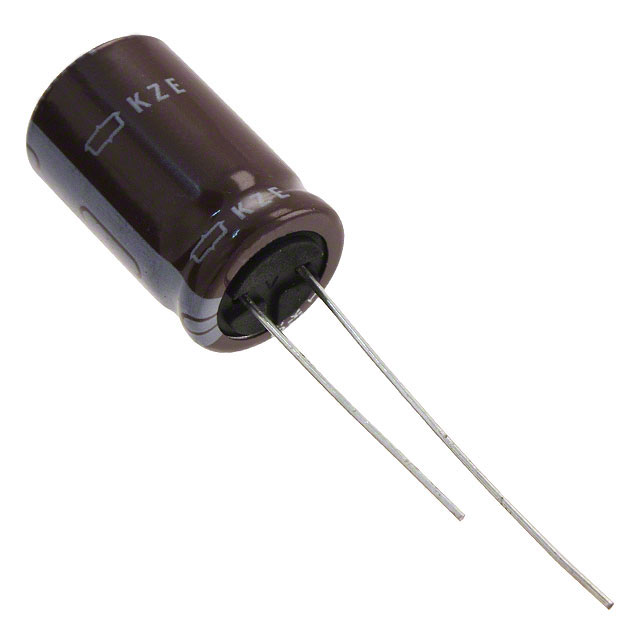

Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Bulk
Series : KZE
Part Status : Active
Capacitance : 680µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 1.68A @ 120Hz
Ripple Current @ High Frequency : 2.8A @ 100kHz
Impedance : 21 mOhms
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.492" Dia (12.50mm)
Height - Seated (Max) : 1.575" (40.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
8194 in stock

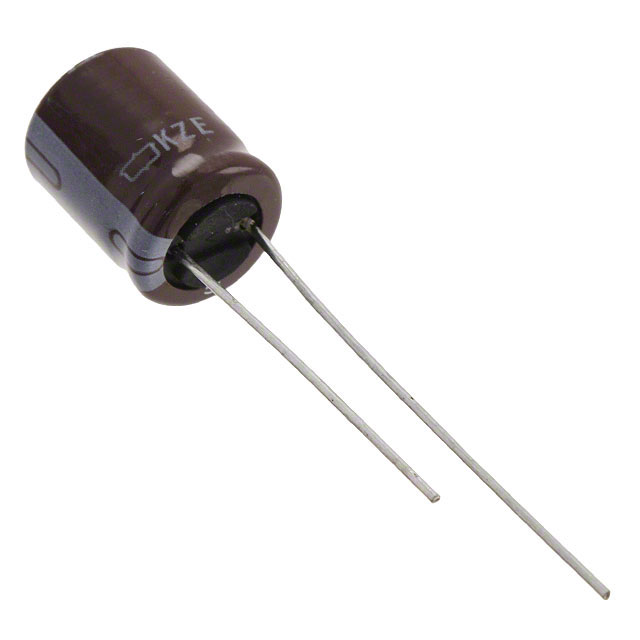

Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Bulk
Series : KZE
Part Status : Active
Capacitance : 1200µF
Tolerance : ±20%
Voltage - Rated : 6.3V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 4000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 858mA @ 120Hz
Ripple Current @ High Frequency : 1.43A @ 100kHz
Impedance : 38 mOhms
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.630" (16.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
54003 in stock

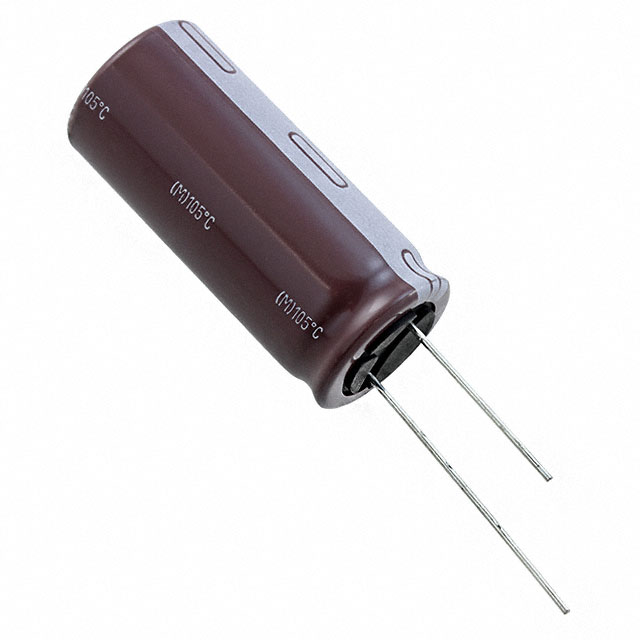

Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Bulk
Series : KZN
Part Status : Active
Capacitance : 3300µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 10000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 3.6375A @ 120Hz
Ripple Current @ High Frequency : 4.85A @ 100kHz
Impedance : 12 mOhms
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.709" Dia (18.00mm)
Height - Seated (Max) : 1.634" (41.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
4162 in stock

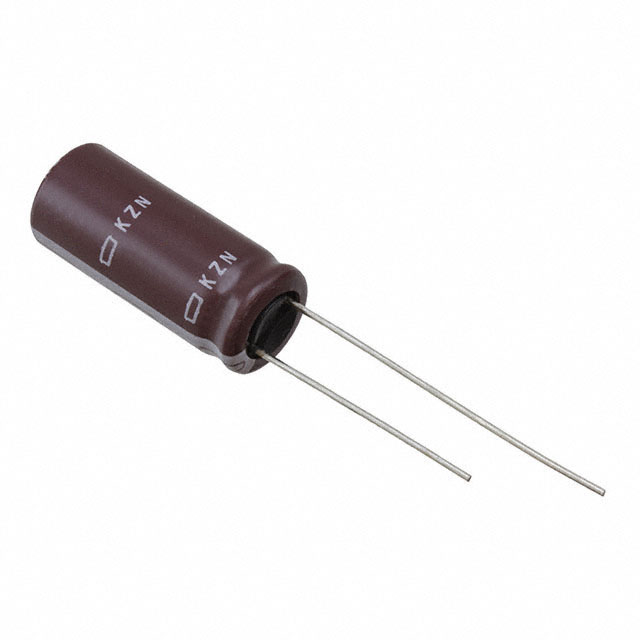

Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Bulk
Series : KZN
Part Status : Active
Capacitance : 330µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 10000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 995mA @ 120Hz
Ripple Current @ High Frequency : 1.99A @ 100kHz
Impedance : 37 mOhms
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 1.043" (26.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
17257 in stock

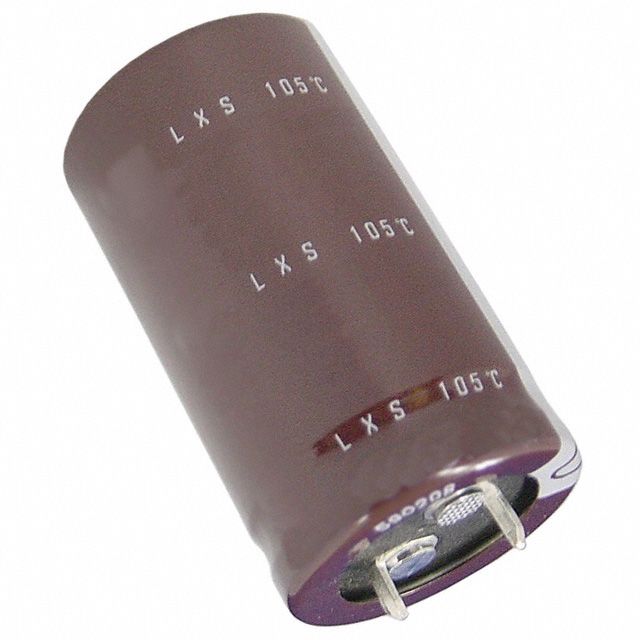

Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Bulk
Series : LXS
Part Status : Active
Capacitance : 560µF
Tolerance : ±20%
Voltage - Rated : 400V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -25°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 2.04A @ 120Hz
Ripple Current @ High Frequency : 2.9172A @ 50kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 1.181" Dia (30.00mm)
Height - Seated (Max) : 1.870" (47.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
3176 in stock
Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Bulk
Series : LXS
Part Status : Active
Capacitance : 220µF
Tolerance : ±20%
Voltage - Rated : 450V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -25°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 1.18A @ 120Hz
Ripple Current @ High Frequency : 1.6874A @ 50kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 1.181" Dia (30.00mm)
Height - Seated (Max) : 1.280" (32.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
1790 in stock

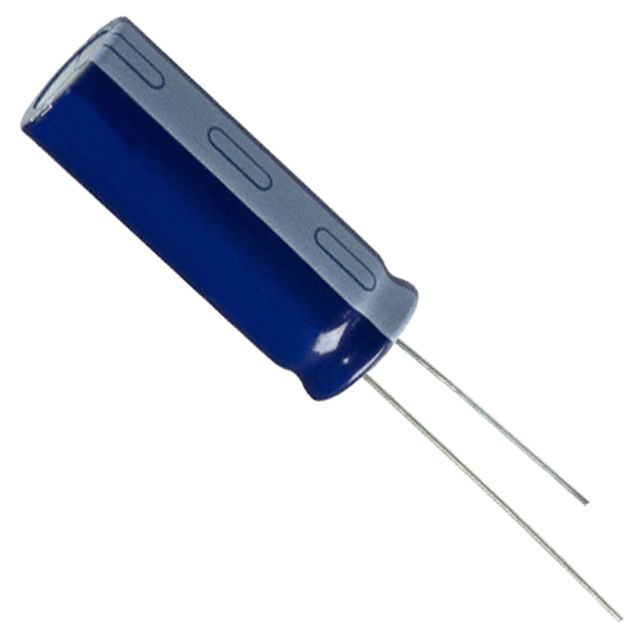

Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Bulk
Series : LXZ
Part Status : Active
Capacitance : 1800µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 7000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 1.722A @ 120Hz
Ripple Current @ High Frequency : 2.87A @ 100kHz
Impedance : 17 mOhms
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.492" Dia (12.50mm)
Height - Seated (Max) : 1.634" (41.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
26095 in stock

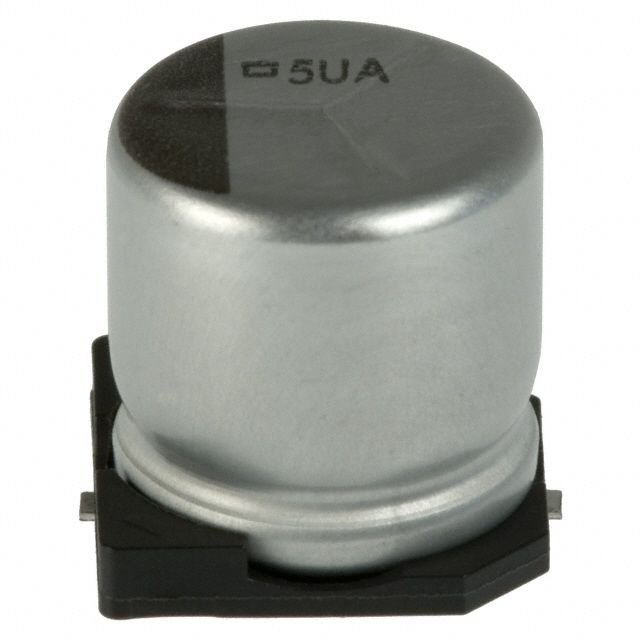

Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Alchip™- MVA
Part Status : Active
Capacitance : 470µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 400mA @ 120Hz
Ripple Current @ High Frequency : 432mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.394" (10.00mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
36287 in stock

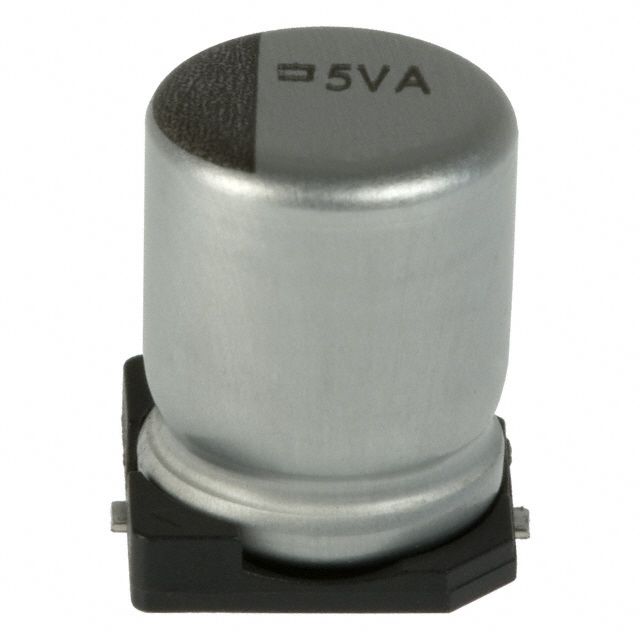

Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Alchip™- MVA
Part Status : Active
Capacitance : 220µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 260mA @ 120Hz
Ripple Current @ High Frequency : 280.8mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.394" (10.00mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
27703 in stock
Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Alchip™- MVA
Part Status : Active
Capacitance : 220µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 320mA @ 120Hz
Ripple Current @ High Frequency : 345.6mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.394" (10.00mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
6200 in stock

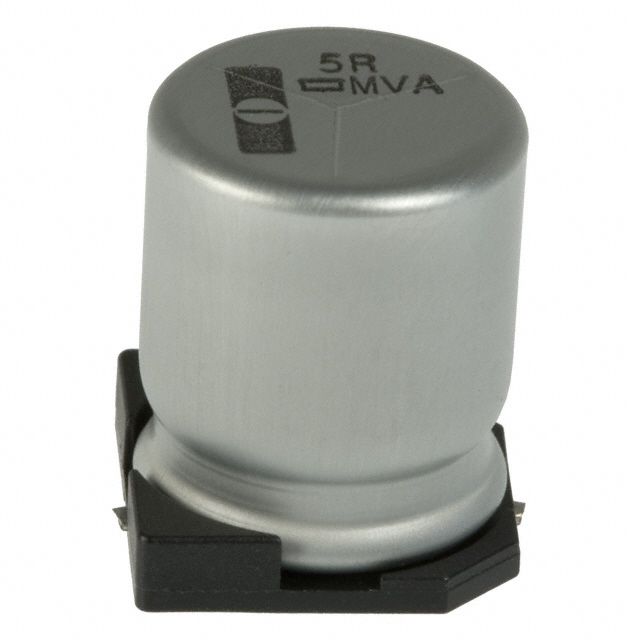

Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Alchip™- MVA
Part Status : Active
Capacitance : 470µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 740mA @ 120Hz
Ripple Current @ High Frequency : 1.11A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.492" Dia (12.50mm)
Height - Seated (Max) : 0.630" (16.00mm)
Surface Mount Land Size : 0.512" L x 0.512" W (13.00mm x 13.00mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
11397 in stock

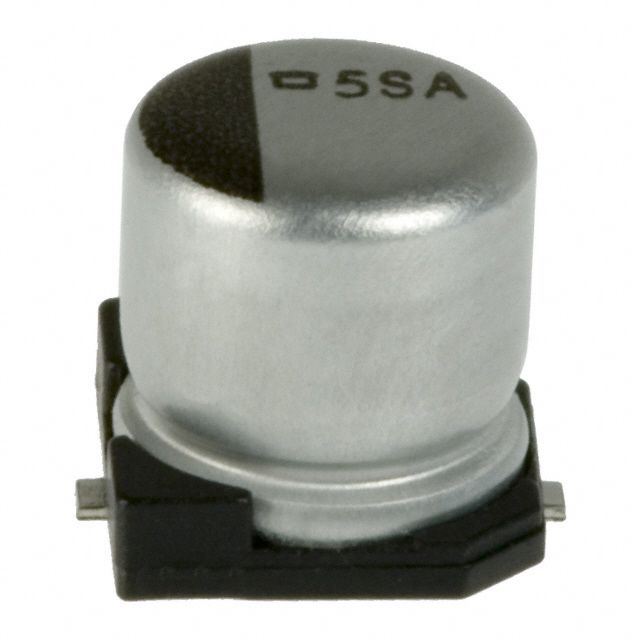

Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Alchip™- MVA
Part Status : Active
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 6.3V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 55mA @ 120Hz
Ripple Current @ High Frequency : 59.4mA @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.197" Dia (5.00mm)
Height - Seated (Max) : 0.205" (5.20mm)
Surface Mount Land Size : 0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
43038 in stock
