United Chemi-Con
- A wholly owned subsidiary of Nippon Chemi-Con, United Chemi-Con (UCC) is North America's largest manufacturer and supplier of aluminum electrolytic capacitors. Established in the United States in 1970, United Chemi-Con distributes more than 8,000 products, including products manufactured both domestically in Lansing, North Carolina, and at other worldwide plants.
Because quality customer service is one of United Chemi-Con's highest priorities, we offer complete engineering and sales support at our corporate headquarters in Rosemont, Illinois, as well as sales, service and field engineering support at other sites throughout the country. UCC products are warehoused in Brea, California and Lansing, North Carolina, ensuring fast and efficient delivery of your orders.
Part Number
Manufacturer
Description
Unit Price
In Stock

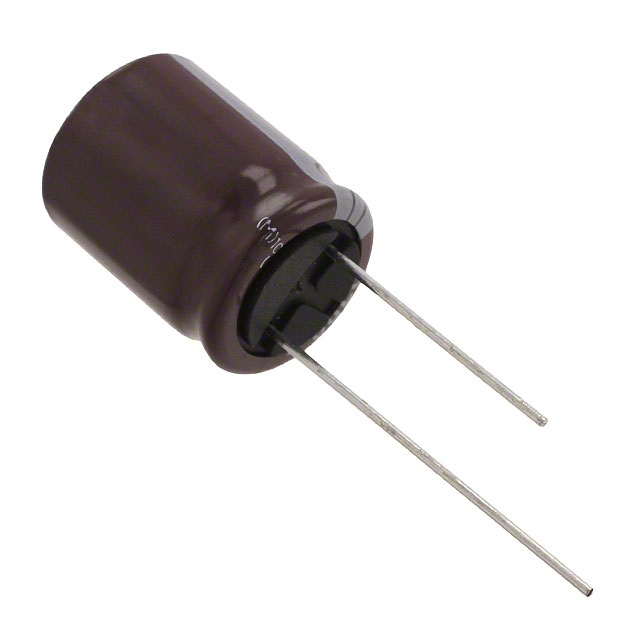

Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Bulk
Series : KZE
Part Status : Active
Capacitance : 330µF
Tolerance : ±20%
Voltage - Rated : 100V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 850mA @ 120Hz
Ripple Current @ High Frequency : -
Impedance : 38 mOhms
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.630" Dia (16.00mm)
Height - Seated (Max) : 1.043" (26.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
2400 in stock

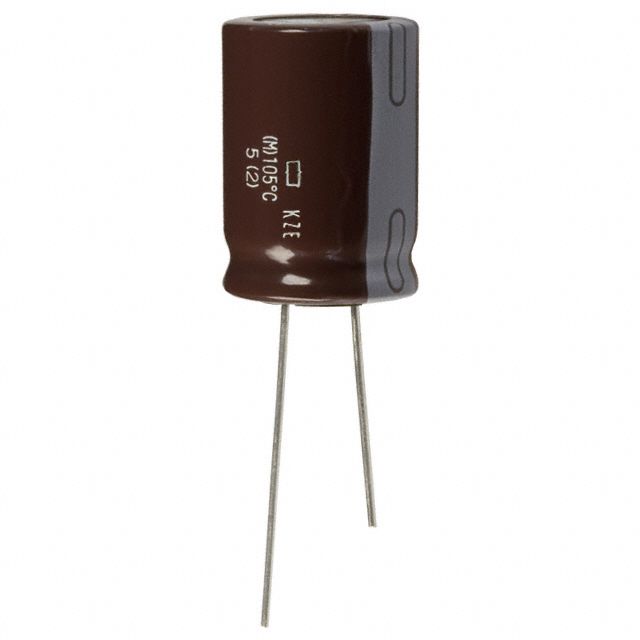

Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Bulk
Series : KZE
Part Status : Active
Capacitance : 470µF
Tolerance : ±20%
Voltage - Rated : 100V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 875mA @ 120Hz
Ripple Current @ High Frequency : 1.75A @ 100kHz
Impedance : 36 mOhms
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.709" Dia (18.00mm)
Height - Seated (Max) : 0.984" (25.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
10465 in stock

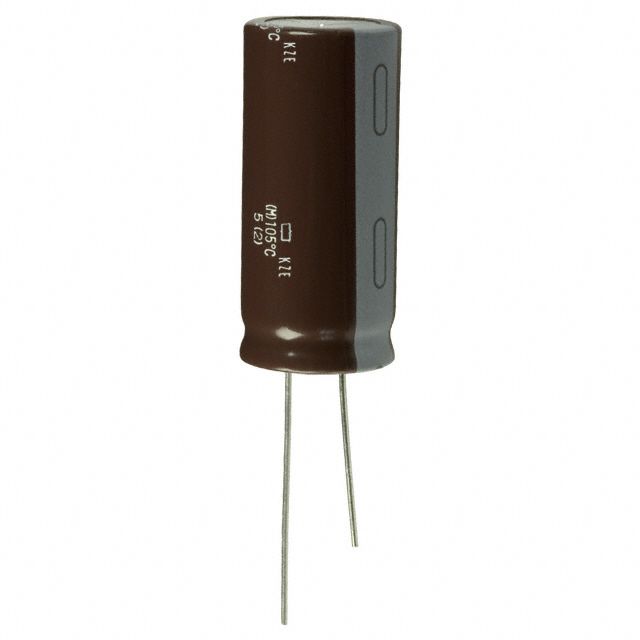

Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Bulk
Series : KZE
Part Status : Active
Capacitance : 820µF
Tolerance : ±20%
Voltage - Rated : 100V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 1.62A @ 120Hz
Ripple Current @ High Frequency : 2.7A @ 100kHz
Impedance : 26 mOhms
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.709" Dia (18.00mm)
Height - Seated (Max) : 1.575" (40.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
5460 in stock
Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Bulk
Series : KZE
Part Status : Active
Capacitance : 470µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 4000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 715mA @ 120Hz
Ripple Current @ High Frequency : 1.43A @ 100kHz
Impedance : 38 mOhms
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.630" (16.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
1068 in stock
Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Bulk
Series : KZE
Part Status : Active
Capacitance : 1200µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 1.974A @ 120Hz
Ripple Current @ High Frequency : 3.29A @ 100kHz
Impedance : 16 mOhms
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.492" Dia (12.50mm)
Height - Seated (Max) : 1.181" (30.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
6082 in stock

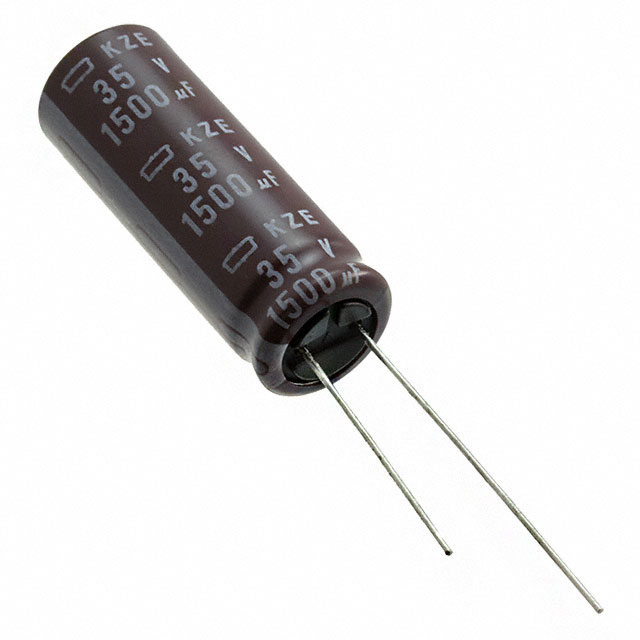

Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Bulk
Series : KZE
Part Status : Active
Capacitance : 1500µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 2.04A @ 120Hz
Ripple Current @ High Frequency : 3.4A @ 100kHz
Impedance : 15 mOhms
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.492" Dia (12.50mm)
Height - Seated (Max) : 1.378" (35.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
11208 in stock
Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Bulk
Series : KZE
Part Status : Active
Capacitance : 1000µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 1.806A @ 120Hz
Ripple Current @ High Frequency : 3.01A @ 100kHz
Impedance : 21 mOhms
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.630" Dia (16.00mm)
Height - Seated (Max) : 0.984" (25.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
3301 in stock

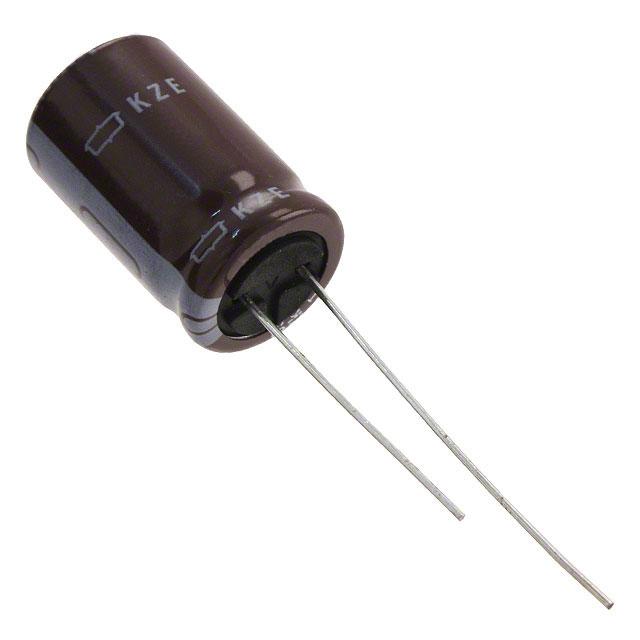

Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Bulk
Series : KZE
Part Status : Active
Capacitance : 470µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 1.025A @ 120Hz
Ripple Current @ High Frequency : 2.05A @ 100kHz
Impedance : 27 mOhms
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.492" Dia (12.50mm)
Height - Seated (Max) : 0.787" (20.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
9400 in stock
Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Bulk
Series : KZE
Part Status : Active
Capacitance : 820µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 1.776A @ 120Hz
Ripple Current @ High Frequency : 2.96A @ 100kHz
Impedance : 19 mOhms
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.492" Dia (12.50mm)
Height - Seated (Max) : 1.378" (35.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
11998 in stock

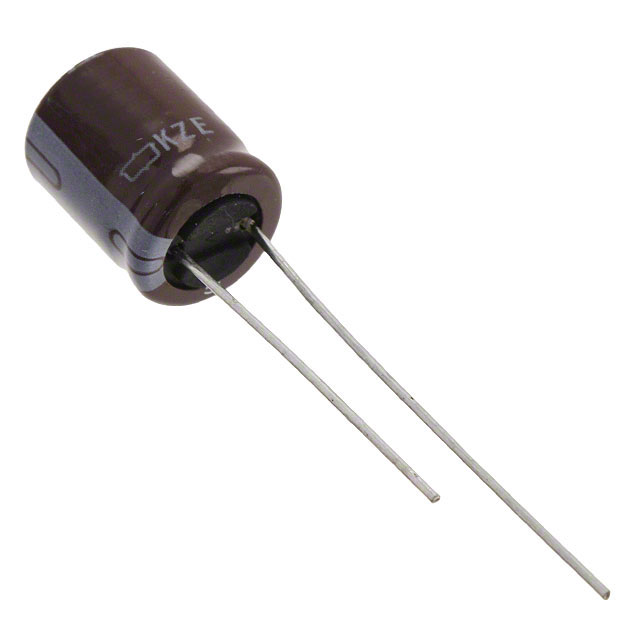

Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Bulk
Series : KZE
Part Status : Active
Capacitance : 220µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 4000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 675mA @ 120Hz
Ripple Current @ High Frequency : 1.35A @ 100kHz
Impedance : 46 mOhms
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.984" (25.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
27938 in stock
Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Bulk
Series : KZE
Part Status : Active
Capacitance : 390µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 950mA @ 120Hz
Ripple Current @ High Frequency : 1.9A @ 100kHz
Impedance : 31 mOhms
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.492" Dia (12.50mm)
Height - Seated (Max) : 0.984" (25.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
25552 in stock
Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Bulk
Series : KZE
Part Status : Active
Capacitance : 470µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 5000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 1.15A @ 120Hz
Ripple Current @ High Frequency : 2.3A @ 100kHz
Impedance : 28 mOhms
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.492" Dia (12.50mm)
Height - Seated (Max) : 1.181" (30.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
13156 in stock
