Sumida
- Sumida is one of the leading manufacturers of coils and wire wound electronic products. Sumida currently has over 31000 products in its coil catalog-attesting to the diversity to which coil technology can be applied in the present day information age. All of Sumida's products are manufactured outside of Japan in various locations in the Asian region as well as in Mexico. This has allowed Sumida to keep costs to a minimum, spread risk and increase response times.
Sumida components can be found in audio visual equipment, CD-ROM drives, DVD/MD products, modems, networking hardware, liquid crystal display monitors, computer peripherals, air-conditioners, electronic automotive products such as Anti Lock Braking Systems, and a plethora of other electronic devices. See the product section of our site for more on our extensive range.
Part Number
Manufacturer
Description
Unit Price
In Stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CR75
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 2.2µH
Tolerance : ±20%
Current Rating : 4.5A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 19.5 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 36.4MHz
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 7.96MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Max) : 0.217" (5.50mm)
0
426 in stock

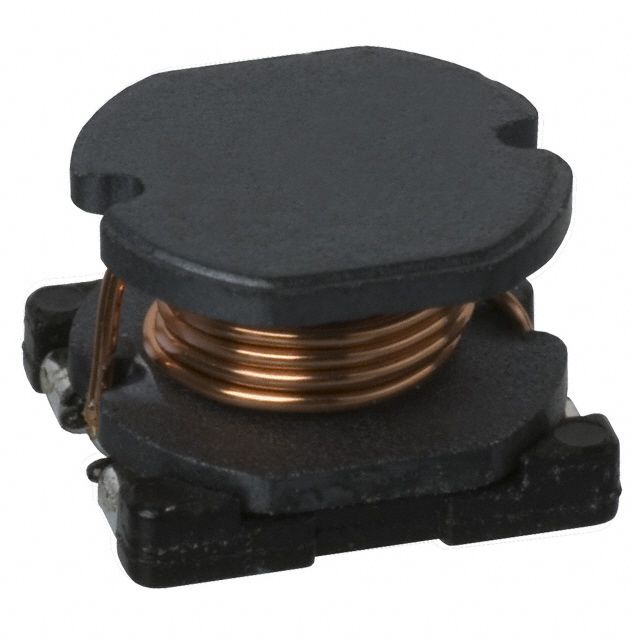

Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CR75
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 33µH
Tolerance : ±10%
Current Rating : 1.2A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 130 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 15MHz
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 2.52MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Max) : 0.217" (5.50mm)
0
10773 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CR75
Part Status : Discontinued at
Type : Wirewound
Material - Core : Ferrite
Inductance : 3.3µH
Tolerance : ±20%
Current Rating : 3.7A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 24.7 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 26.8MHz
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 7.96MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Max) : 0.217" (5.50mm)
0
425 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CR75
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 47µH
Tolerance : ±10%
Current Rating : 1.1A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 180 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 13MHz
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 2.52MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Max) : 0.217" (5.50mm)
0
2459 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CR75
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 68µH
Tolerance : ±10%
Current Rating : 850mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 280 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 11MHz
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 2.52MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Max) : 0.217" (5.50mm)
0
1143 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CBM
Part Status : Active
Transformer Type : Data/Voice Coupling
Inductance : 30µH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:1.67
Mounting Type : Surface Mount
Size / Dimension : 0.179" L x 0.280" W (4.55mm x 7.10mm)
Height - Seated (Max) : 0.078" (1.98mm)
Operating Temperature : -
0
800 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CBM
Part Status : Active
Transformer Type : Data/Voice Coupling
Inductance : 120µH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:1
Mounting Type : Surface Mount
Size / Dimension : 0.205" L x 0.280" W (5.20mm x 7.10mm)
Height - Seated (Max) : 0.138" (3.50mm)
Operating Temperature : -20°C ~ 105°C
0
4336 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ESMIT
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : -
Impedance - Secondary (Ohms) : -
DC Resistance (DCR) - Primary : 250 mOhm
DC Resistance (DCR) - Secondary : 250 mOhm
Transformer Type : -
Frequency Range : -
Frequency Response : -
Voltage - Isolation : 3750Vrms
Insertion Loss : -
Return Loss : -
Power Level : -
Operating Temperature : -40°C ~ 125°C
Approvals : -
Mounting Type : Surface Mount
Size / Dimension : 0.280" L x 0.205" W (7.10mm x 5.20mm)
Height - Seated (Max) : 0.138" (3.50mm)
Termination Style : Gull Wing
0
1448 in stock

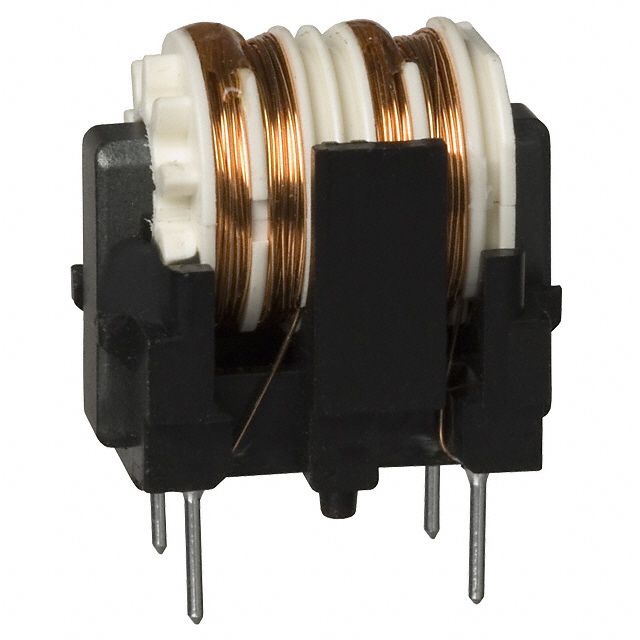

Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Bulk
Series : LF
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 2.2mH @ 1kHz
Current Rating (Max) : 1.3A
DC Resistance (DCR) (Max) : 240 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.827" L x 0.638" W (21.00mm x 16.20mm)
Height (Max) : 0.886" (22.50mm)
Package / Case : Vertical, 4 PC Pin
0
1057 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Bulk
Series : M-8
Part Status : Obsolete
Inductance : 4.7mH
Tolerance : ±6%
Q @ Freq : 100 @ 100kHz
Mounting Type : Through Hole
Package / Case : -
Size / Dimension : 0.303" L x 0.303" W (7.70mm x 7.70mm)
Height : 0.433" (11.00mm)
0
100 in stock

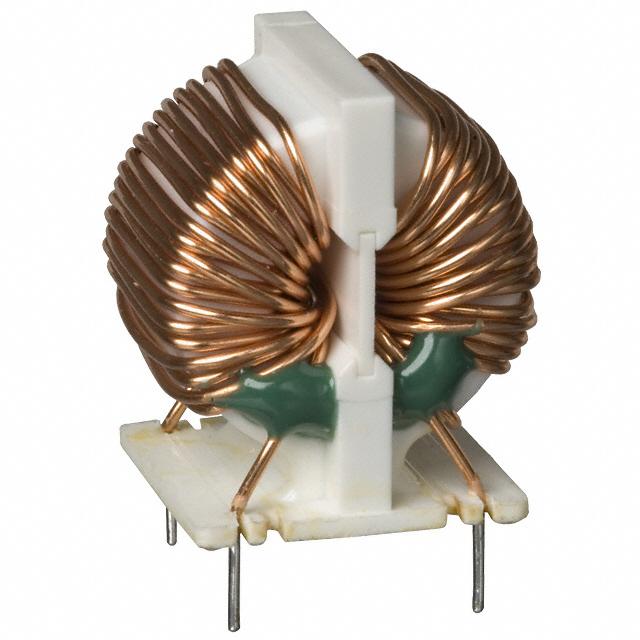

Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Bulk
Series : PFC
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 4mH @ 1kHz
Current Rating (Max) : 4A
DC Resistance (DCR) (Max) : 54 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.984" L x 0.787" W (25.00mm x 20.00mm)
Height (Max) : 1.063" (27.00mm)
Package / Case : Vertical, No Base, 4 PC Pin
0
759 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Bulk
Series : PFC
Part Status : Obsolete
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 450µH @ 1kHz
Current Rating (Max) : 10A
DC Resistance (DCR) (Max) : 8.5 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.984" L x 0.787" W (25.00mm x 20.00mm)
Height (Max) : 1.063" (27.00mm)
Package / Case : Vertical, No Base, 4 PC Pin
0
100 in stock
