Sumida
- Sumida is one of the leading manufacturers of coils and wire wound electronic products. Sumida currently has over 31000 products in its coil catalog-attesting to the diversity to which coil technology can be applied in the present day information age. All of Sumida's products are manufactured outside of Japan in various locations in the Asian region as well as in Mexico. This has allowed Sumida to keep costs to a minimum, spread risk and increase response times.
Sumida components can be found in audio visual equipment, CD-ROM drives, DVD/MD products, modems, networking hardware, liquid crystal display monitors, computer peripherals, air-conditioners, electronic automotive products such as Anti Lock Braking Systems, and a plethora of other electronic devices. See the product section of our site for more on our extensive range.
Part Number
Manufacturer
Description
Unit Price
In Stock

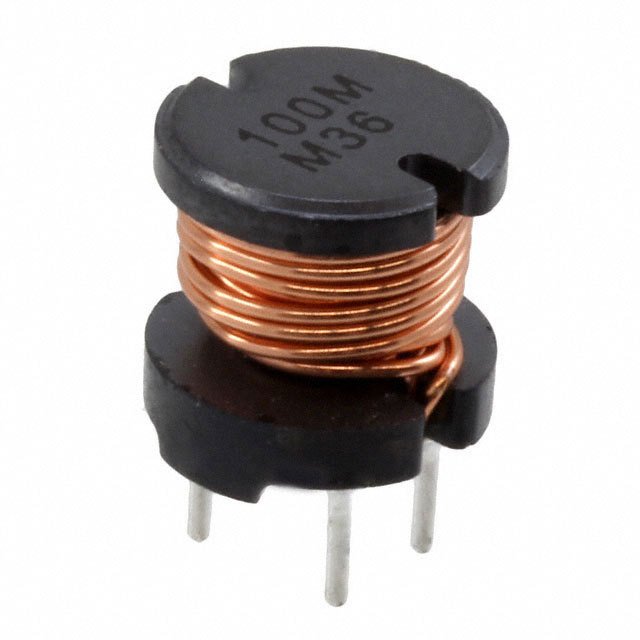

Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Bulk
Series : RCH-110
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 10µH
Tolerance : ±20%
Current Rating : 5.3A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 22 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 14MHz
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.413" (10.50mm)
0
129 in stock

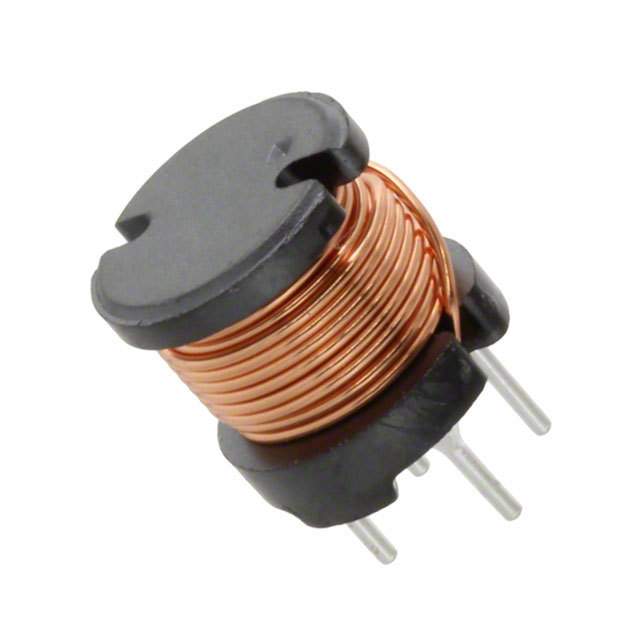

Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Bulk
Series : RCH-110
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 100µH
Tolerance : ±10%
Current Rating : 1.7A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 160 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 5.7MHz
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.413" (10.50mm)
0
41 in stock

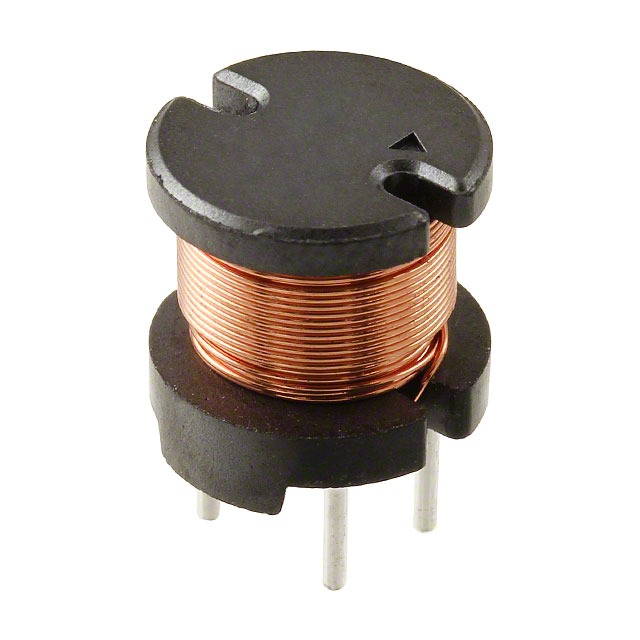

Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Bulk
Series : RCH-110
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 1mH
Tolerance : ±10%
Current Rating : 530mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 1.7 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : 1.7MHz
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.413" (10.50mm)
0
2315 in stock

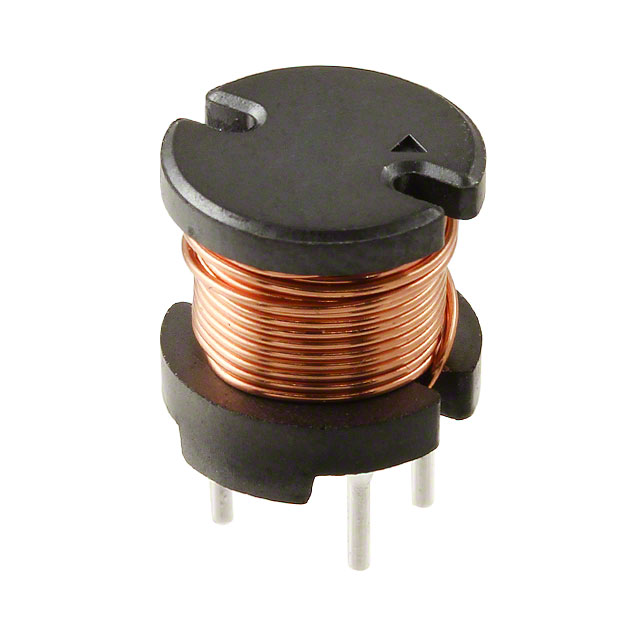

Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Bulk
Series : RCH-110
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 220µH
Tolerance : ±10%
Current Rating : 1.1A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 340 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 3.8MHz
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.413" (10.50mm)
0
287 in stock

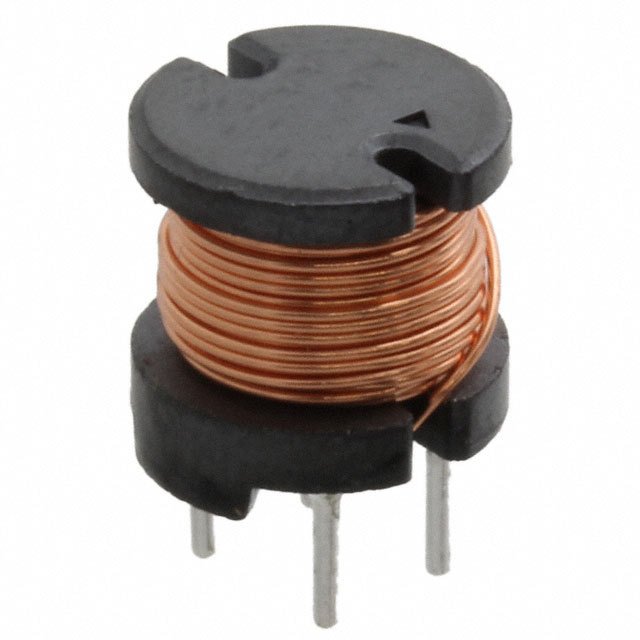

Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Bulk
Series : RCH-110
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 330µH
Tolerance : ±10%
Current Rating : 930mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 520 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 2.8MHz
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.413" (10.50mm)
0
2277 in stock

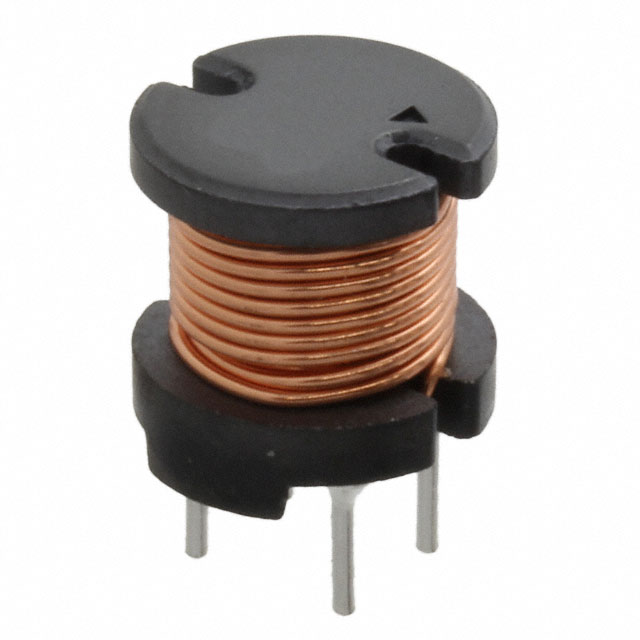

Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Bulk
Series : RCH-110
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 68µH
Tolerance : ±10%
Current Rating : 2.1A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 120 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 6.3MHz
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.413" (10.50mm)
0
100 in stock

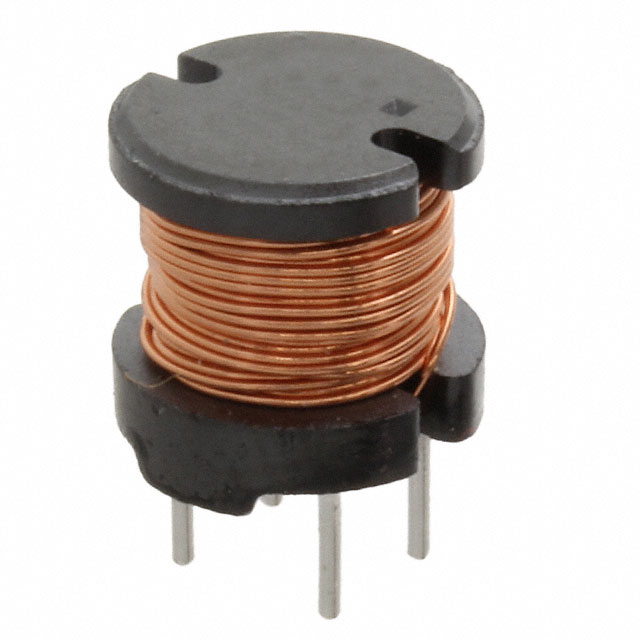

Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Bulk
Series : RCH-110
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 680µH
Tolerance : ±10%
Current Rating : 650mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 1.1 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : 2.1MHz
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.413" (10.50mm)
0
587 in stock

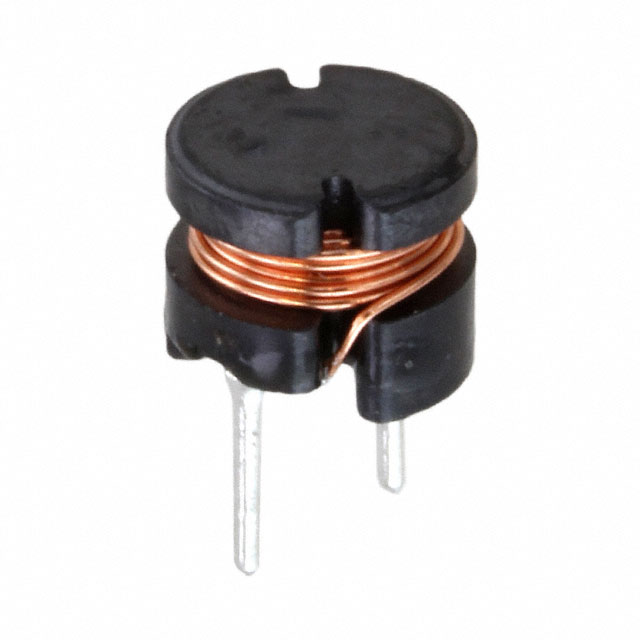

Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Bulk
Series : RCH-654
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 47µH
Tolerance : ±10%
Current Rating : 620mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 340 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 2.52MHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.236" Dia (6.00mm)
Height - Seated (Max) : 0.197" (5.00mm)
0
626 in stock

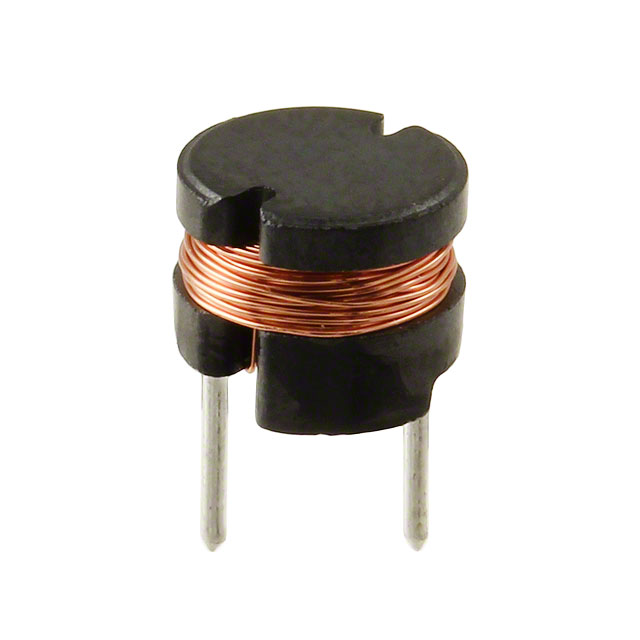

Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Bulk
Series : RCH-654
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 470µH
Tolerance : ±10%
Current Rating : 200mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 2.92 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.236" Dia (6.00mm)
Height - Seated (Max) : 0.197" (5.00mm)
0
478 in stock

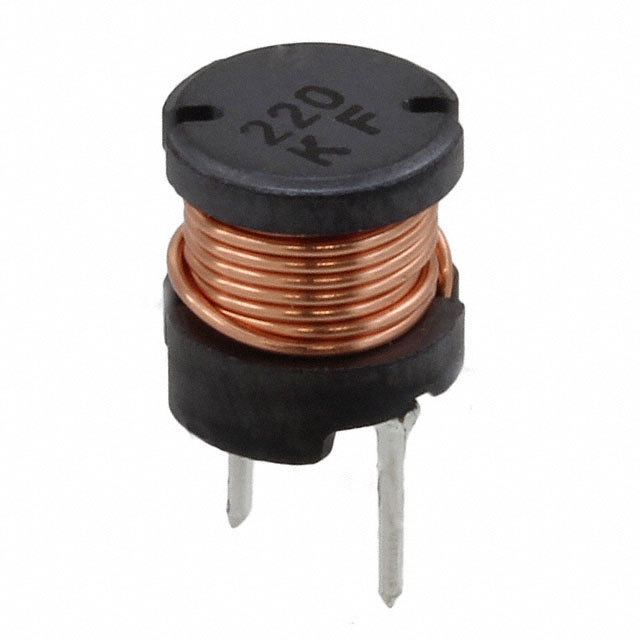

Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Bulk
Series : RCH-664
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 22µH
Tolerance : ±10%
Current Rating : 1.27A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 110 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 2.52MHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.236" Dia (6.00mm)
Height - Seated (Max) : 0.256" (6.50mm)
0
723 in stock

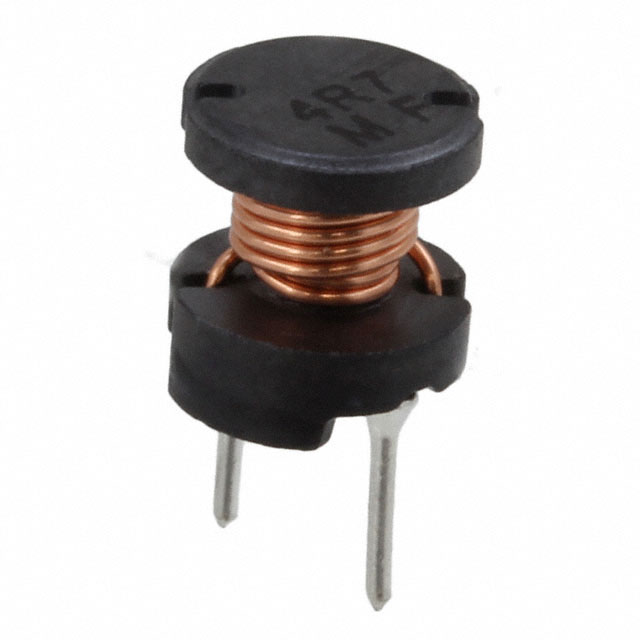

Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Bulk
Series : RCH-664
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 4.7µH
Tolerance : ±20%
Current Rating : 2.43A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 36.4 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 7.96MHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.236" Dia (6.00mm)
Height - Seated (Max) : 0.256" (6.50mm)
0
354 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Bulk
Series : RCH8011
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 68µH
Tolerance : ±15%
Current Rating : 1.9A
Current - Saturation : 1.7A
Shielding : Unshielded
DC Resistance (DCR) : 138 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -30°C ~ 100°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.307" Dia (7.80mm)
Height - Seated (Max) : 0.425" (10.80mm)
0
100 in stock
