Sumida
- Sumida is one of the leading manufacturers of coils and wire wound electronic products. Sumida currently has over 31000 products in its coil catalog-attesting to the diversity to which coil technology can be applied in the present day information age. All of Sumida's products are manufactured outside of Japan in various locations in the Asian region as well as in Mexico. This has allowed Sumida to keep costs to a minimum, spread risk and increase response times.
Sumida components can be found in audio visual equipment, CD-ROM drives, DVD/MD products, modems, networking hardware, liquid crystal display monitors, computer peripherals, air-conditioners, electronic automotive products such as Anti Lock Braking Systems, and a plethora of other electronic devices. See the product section of our site for more on our extensive range.
Part Number
Manufacturer
Description
Unit Price
In Stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CR43
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 10µH
Tolerance : ±20%
Current Rating : 1.04A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 182 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 34.8MHz
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 2.52MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.177" L x 0.157" W (4.50mm x 4.00mm)
Height - Seated (Max) : 0.138" (3.50mm)
0
8833 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CR43
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 15µH
Tolerance : ±20%
Current Rating : 850mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 235 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 28MHz
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 2.52MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.177" L x 0.157" W (4.50mm x 4.00mm)
Height - Seated (Max) : 0.138" (3.50mm)
0
1590 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CR43
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 2.2µH
Tolerance : ±20%
Current Rating : 1.75A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 71.2 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 68.3MHz
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 7.96MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.189" L x 0.169" W (4.80mm x 4.30mm)
Height - Seated (Max) : 0.138" (3.50mm)
0
3895 in stock

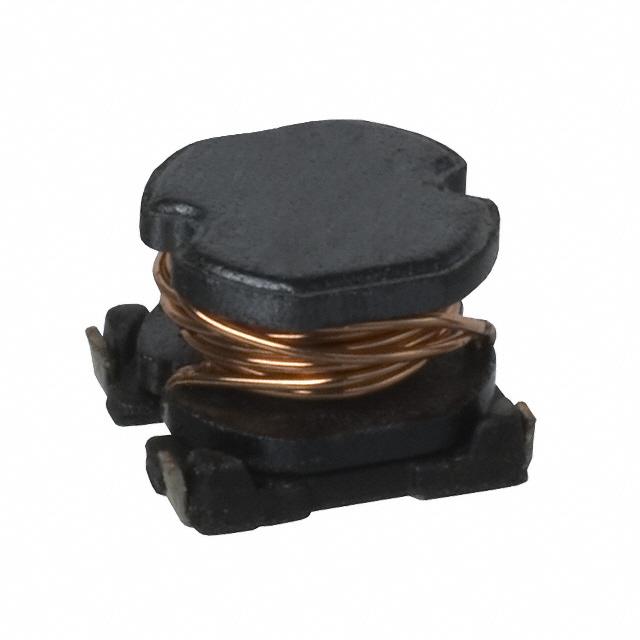

Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CR43
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 2.7µH
Tolerance : ±20%
Current Rating : 1.58A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 78.7 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 64MHz
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 7.96MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.177" L x 0.157" W (4.50mm x 4.00mm)
Height - Seated (Max) : 0.138" (3.50mm)
0
1360 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CR43
Part Status : Discontinued at
Type : Wirewound
Material - Core : Ferrite
Inductance : 33µH
Tolerance : ±10%
Current Rating : 560mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 540 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 19.3MHz
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 2.52MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.177" L x 0.157" W (4.50mm x 4.00mm)
Height - Seated (Max) : 0.138" (3.50mm)
0
178 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CR43
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 3.3µH
Tolerance : ±20%
Current Rating : 1.44A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 86.2 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 60MHz
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 7.96MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.189" L x 0.169" W (4.80mm x 4.30mm)
Height - Seated (Max) : 0.138" (3.50mm)
0
2546 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CR43
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 3.9µH
Tolerance : ±20%
Current Rating : 1.33A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 93.7 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 52.6MHz
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 7.96MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.189" L x 0.169" W (4.80mm x 4.30mm)
Height - Seated (Max) : 0.138" (3.50mm)
0
758 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CR43
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 4.7µH
Tolerance : ±20%
Current Rating : 1.15A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 108.7 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 49.3MHz
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 7.96MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.189" L x 0.169" W (4.80mm x 4.30mm)
Height - Seated (Max) : 0.138" (3.50mm)
0
6061 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CR43
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 6.8µH
Tolerance : ±20%
Current Rating : 950mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 131.2 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 42.3MHz
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 7.96MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.189" L x 0.169" W (4.80mm x 4.30mm)
Height - Seated (Max) : 0.138" (3.50mm)
0
1702 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CR43
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 8.2µH
Tolerance : ±20%
Current Rating : 840mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 146.2 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 34.8MHz
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 7.96MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.189" L x 0.169" W (4.80mm x 4.30mm)
Height - Seated (Max) : 0.138" (3.50mm)
0
450 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CR54
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 10µH
Tolerance : ±20%
Current Rating : 1.44A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 100 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 30.6MHz
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 2.52MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.228" L x 0.209" W (5.80mm x 5.30mm)
Height - Seated (Max) : 0.191" (4.85mm)
0
11328 in stock

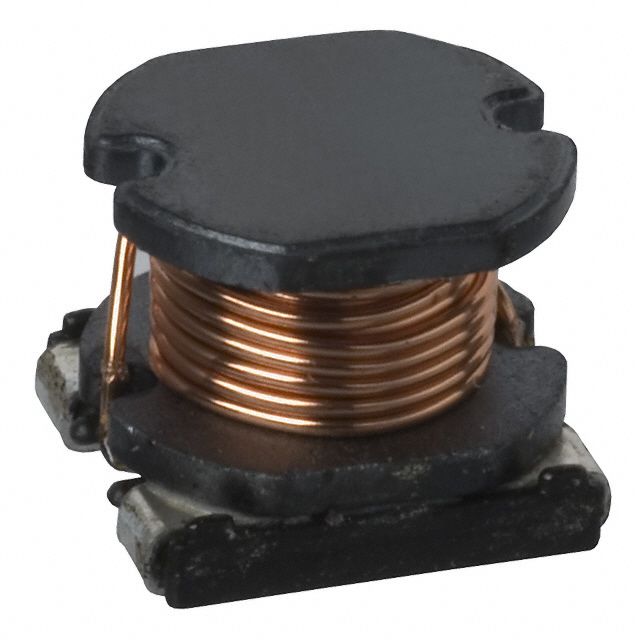

Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CR54
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 100µH
Tolerance : ±10%
Current Rating : 520mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 700 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.228" L x 0.209" W (5.80mm x 5.30mm)
Height - Seated (Max) : 0.191" (4.85mm)
0
4128 in stock
