Sumida
- Sumida is one of the leading manufacturers of coils and wire wound electronic products. Sumida currently has over 31000 products in its coil catalog-attesting to the diversity to which coil technology can be applied in the present day information age. All of Sumida's products are manufactured outside of Japan in various locations in the Asian region as well as in Mexico. This has allowed Sumida to keep costs to a minimum, spread risk and increase response times.
Sumida components can be found in audio visual equipment, CD-ROM drives, DVD/MD products, modems, networking hardware, liquid crystal display monitors, computer peripherals, air-conditioners, electronic automotive products such as Anti Lock Braking Systems, and a plethora of other electronic devices. See the product section of our site for more on our extensive range.
Part Number
Manufacturer
Description
Unit Price
In Stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging

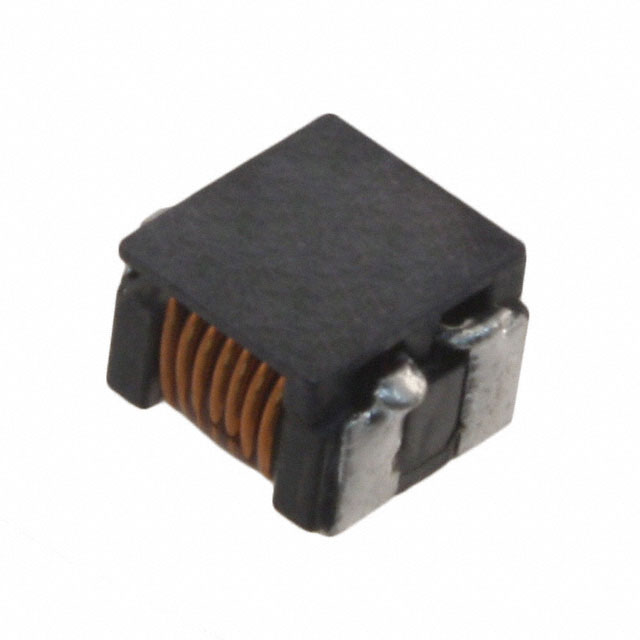

Series : CPFC
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : 600 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 2.5A
DC Resistance (DCR) (Max) : 20 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -20°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.244" L x 0.209" W (6.20mm x 5.30mm)
Height (Max) : 0.150" (3.80mm)
Package / Case : Horizontal, 4 J-Lead
0
84 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging

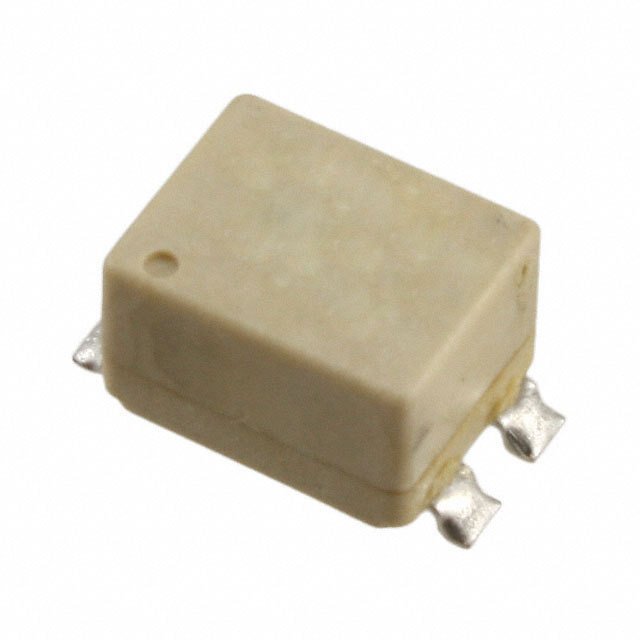

Series : CPFC
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 3A
DC Resistance (DCR) (Max) : 60 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.374" L x 0.224" W (9.50mm x 5.70mm)
Height (Max) : 0.200" (5.08mm)
Package / Case : Vertical, 4 Gull Wing
0
8574 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging

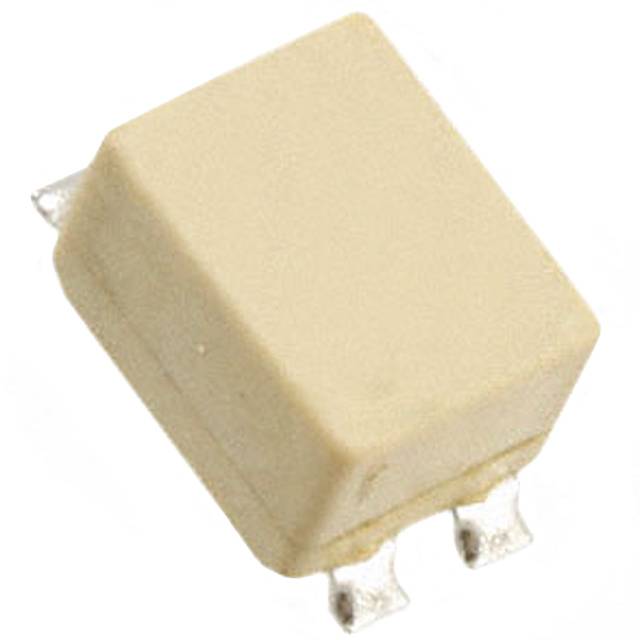

Series : CPFC
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : 200 Ohms @ 20MHz
Inductance @ Frequency : -
Current Rating (Max) : 2A
DC Resistance (DCR) (Max) : 120 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.374" L x 0.224" W (9.50mm x 5.70mm)
Height (Max) : 0.200" (5.08mm)
Package / Case : Vertical, 4 Gull Wing
0
100 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging

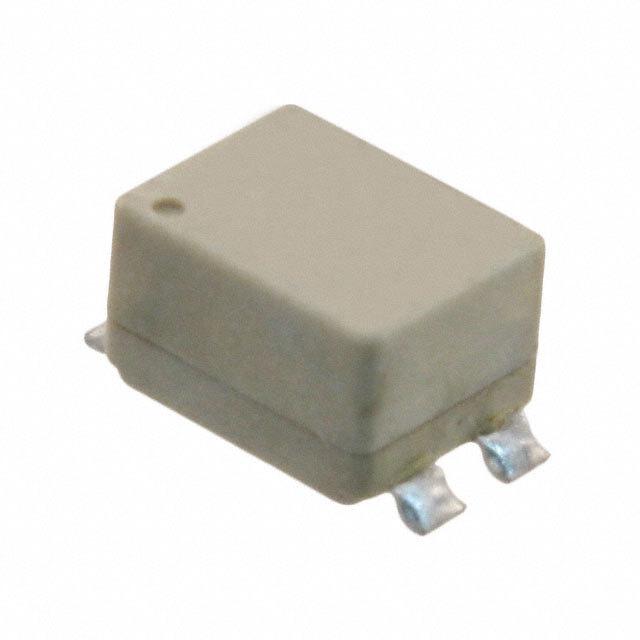

Series : CPFC
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : 300 Ohms @ 160MHz
Inductance @ Frequency : -
Current Rating (Max) : 2.5A
DC Resistance (DCR) (Max) : 120 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.374" L x 0.224" W (9.50mm x 5.70mm)
Height (Max) : 0.200" (5.08mm)
Package / Case : Vertical, 4 Gull Wing
0
2063 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CPFC
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : 700 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 1.5A
DC Resistance (DCR) (Max) : 120 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.374" L x 0.224" W (9.50mm x 5.70mm)
Height (Max) : 0.200" (5.08mm)
Package / Case : Vertical, 4 Gull Wing
0
5711 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CPFC
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : 500 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 4.5A
DC Resistance (DCR) (Max) : 15 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.311" L x 0.295" W (7.90mm x 7.50mm)
Height (Max) : 0.189" (4.80mm)
Package / Case : -
0
3061 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging

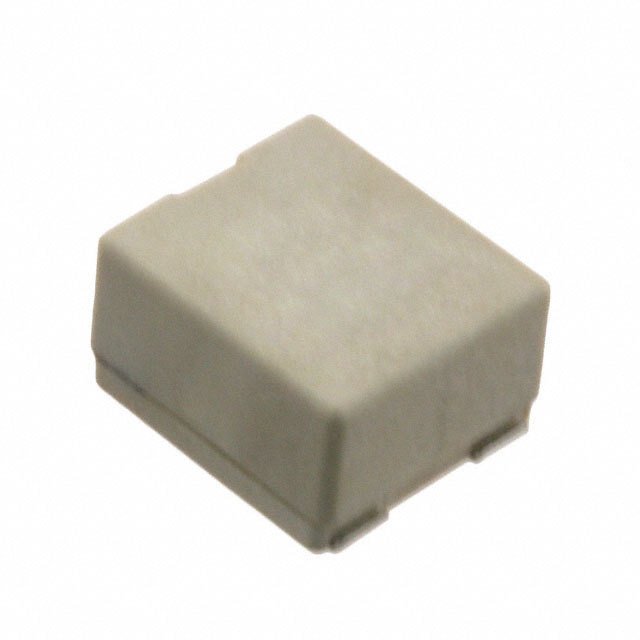

Series : CPFC
Part Status : Discontinued at
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 4.7mH @ 100kHz
Current Rating (Max) : -
DC Resistance (DCR) (Max) : 2 Ohm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.366" L x 0.323" W (9.30mm x 8.20mm)
Height (Max) : 0.217" (5.50mm)
Package / Case : Horizontal, 4 PC Pad
0
106 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging

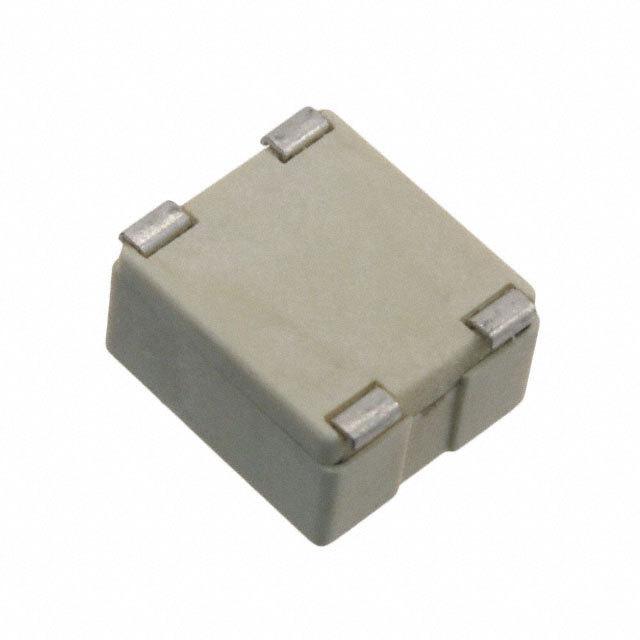

Series : CPFC
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 300 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 5.65A
DC Resistance (DCR) (Max) : 20 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.366" L x 0.323" W (9.30mm x 8.20mm)
Height (Max) : 0.217" (5.50mm)
Package / Case : Horizontal, 4 PC Pad
0
462 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging

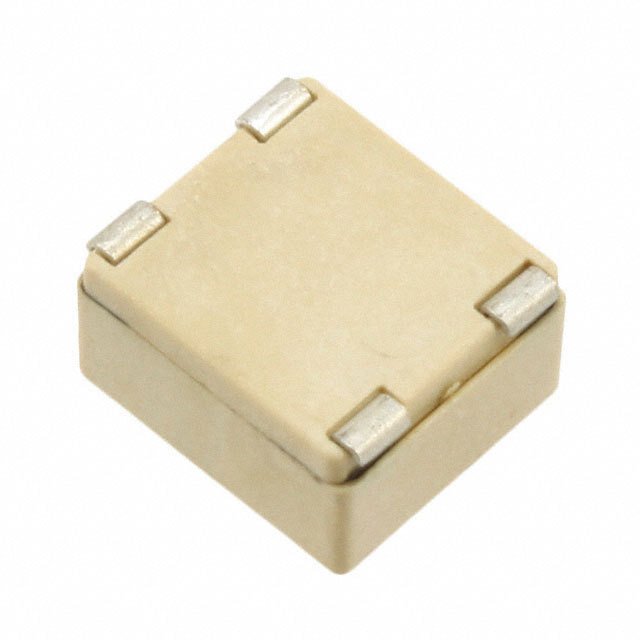

Series : CPFC
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 1 kOhms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 4A
DC Resistance (DCR) (Max) : 20 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.366" L x 0.323" W (9.30mm x 8.20mm)
Height (Max) : 0.217" (5.50mm)
Package / Case : Horizontal, 4 PC Pad
0
32119 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging

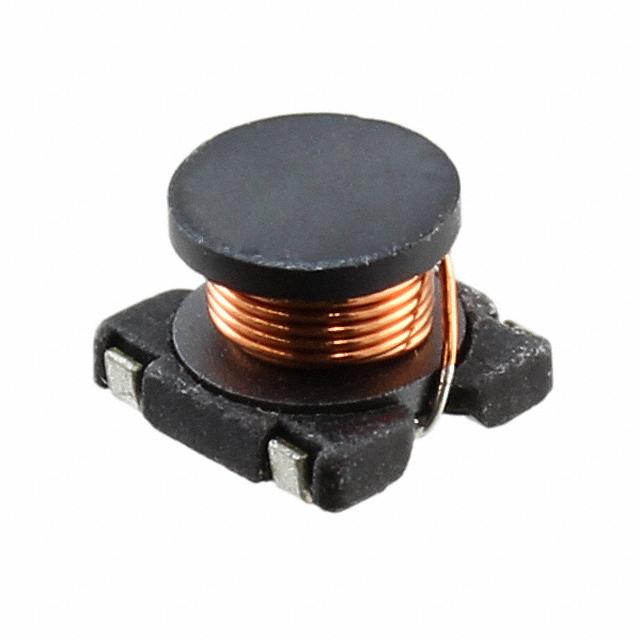

Series : CR32
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 10µH
Tolerance : ±10%
Current Rating : 760mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 230 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.150" L x 0.138" W (3.80mm x 3.50mm)
Height - Seated (Max) : 0.118" (3.00mm)
0
5600 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CR32
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 22µH
Tolerance : ±10%
Current Rating : 500mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 470 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.150" L x 0.138" W (3.80mm x 3.50mm)
Height - Seated (Max) : 0.118" (3.00mm)
0
2423 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CR32
Part Status : Discontinued at
Type : Wirewound
Material - Core : Ferrite
Inductance : 2.2µH
Tolerance : ±20%
Current Rating : 1.28A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 104 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 7.96MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.150" L x 0.138" W (3.80mm x 3.50mm)
Height - Seated (Max) : 0.118" (3.00mm)
0
1260 in stock
