Sumida
- Sumida is one of the leading manufacturers of coils and wire wound electronic products. Sumida currently has over 31000 products in its coil catalog-attesting to the diversity to which coil technology can be applied in the present day information age. All of Sumida's products are manufactured outside of Japan in various locations in the Asian region as well as in Mexico. This has allowed Sumida to keep costs to a minimum, spread risk and increase response times.
Sumida components can be found in audio visual equipment, CD-ROM drives, DVD/MD products, modems, networking hardware, liquid crystal display monitors, computer peripherals, air-conditioners, electronic automotive products such as Anti Lock Braking Systems, and a plethora of other electronic devices. See the product section of our site for more on our extensive range.
Part Number
Manufacturer
Description
Unit Price
In Stock

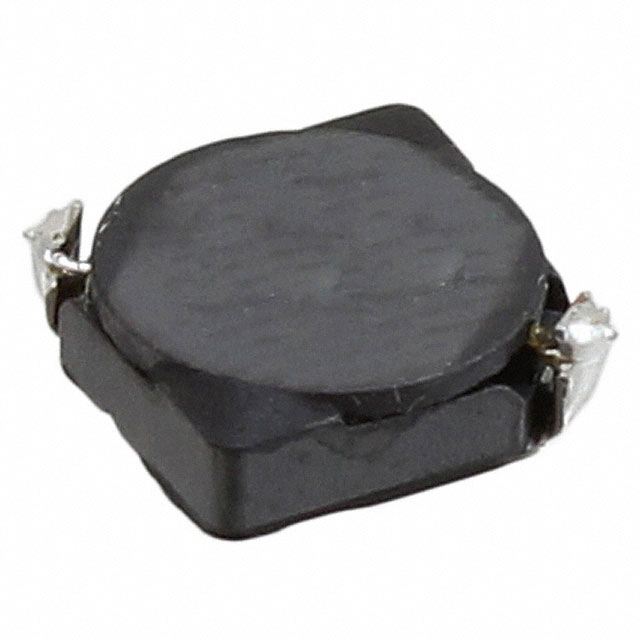

Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH5D18
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 82µH
Tolerance : ±30%
Current Rating : 410mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 978 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.224" L x 0.224" W (5.70mm x 5.70mm)
Height - Seated (Max) : 0.079" (2.00mm)
0
2761 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH5D18
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 8.9µH
Tolerance : ±30%
Current Rating : 1.25A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 116 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.224" L x 0.224" W (5.70mm x 5.70mm)
Height - Seated (Max) : 0.079" (2.00mm)
0
227 in stock

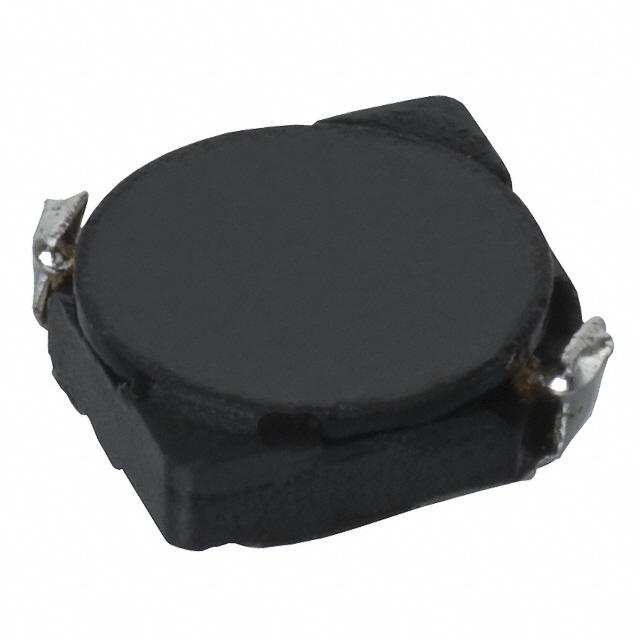

Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH5D28
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 10µH
Tolerance : ±30%
Current Rating : 1.3A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 65 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.224" L x 0.224" W (5.70mm x 5.70mm)
Height - Seated (Max) : 0.118" (3.00mm)
0
7123 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH5D28
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 12µH
Tolerance : ±30%
Current Rating : 1.2A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 76 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.224" L x 0.224" W (5.70mm x 5.70mm)
Height - Seated (Max) : 0.118" (3.00mm)
0
1541 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH5D28
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 15µH
Tolerance : ±30%
Current Rating : 1.1A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 103 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.224" L x 0.224" W (5.70mm x 5.70mm)
Height - Seated (Max) : 0.118" (3.00mm)
0
2417 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH5D28
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 22µH
Tolerance : ±30%
Current Rating : 900mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 122 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.224" L x 0.224" W (5.70mm x 5.70mm)
Height - Seated (Max) : 0.118" (3.00mm)
0
7251 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH5D28
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 2.5µH
Tolerance : ±30%
Current Rating : 2.6A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 18 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.224" L x 0.224" W (5.70mm x 5.70mm)
Height - Seated (Max) : 0.118" (3.00mm)
0
7951 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH5D28
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 39µH
Tolerance : ±30%
Current Rating : 700mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 212 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.224" L x 0.224" W (5.70mm x 5.70mm)
Height - Seated (Max) : 0.118" (3.00mm)
0
604 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH5D28
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 3µH
Tolerance : ±30%
Current Rating : 2.4A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 24 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.224" L x 0.224" W (5.70mm x 5.70mm)
Height - Seated (Max) : 0.118" (3.00mm)
0
1874 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH5D28
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 47µH
Tolerance : ±30%
Current Rating : 620mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 250 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.224" L x 0.224" W (5.70mm x 5.70mm)
Height - Seated (Max) : 0.118" (3.00mm)
0
317 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH5D28
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 4.2µH
Tolerance : ±30%
Current Rating : 2.2A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 31 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.224" L x 0.224" W (5.70mm x 5.70mm)
Height - Seated (Max) : 0.118" (3.00mm)
0
4436 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CDRH5D28
Part Status : Active
Type : -
Material - Core : Ferrite
Inductance : 5.3µH
Tolerance : ±30%
Current Rating : 1.9A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 38 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.224" L x 0.224" W (5.70mm x 5.70mm)
Height - Seated (Max) : 0.118" (3.00mm)
0
3565 in stock
